Performance
Initial Lumens: 140,000Lamp Lumens Per Watt: 140
Rated Life: 20,000 hours

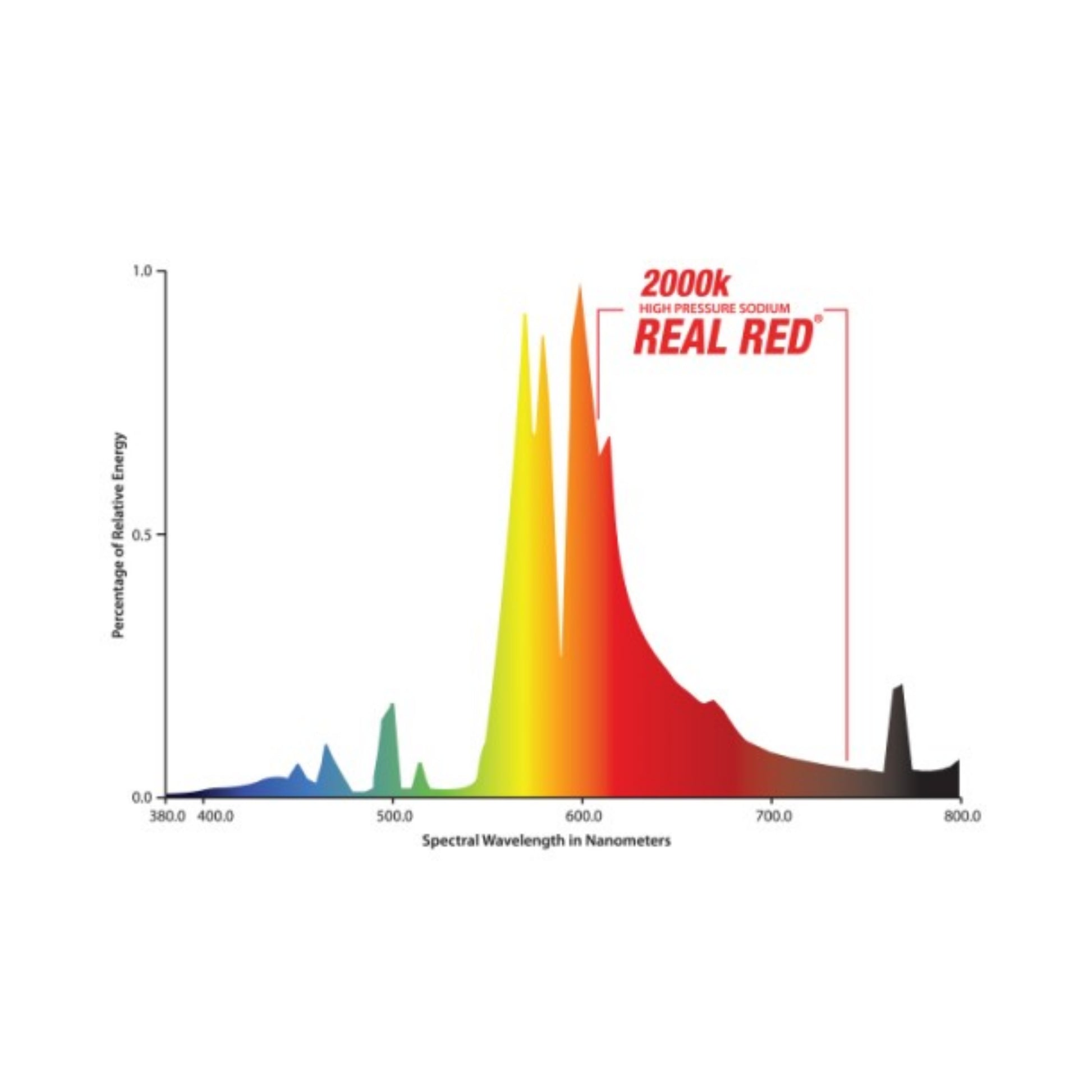

Color Temperature: 2000k
Color Rendering Index (CRI): 25
Burning Position: Horizontal ±15 °
Bulb Designation: T10
Fixture Rating: Open/Closed
To 90% Warm Up Time: 4 min
Hot Restart Time: 3-5 min
ANSI Designation: S52
Physical Data / Requirements
Base Designation: K12x30sBulb Diameter: 32mm (max)
Max Overall Length (MOL): 394mm (max)
Light Center Length (LCL): 197mm ±2mm
Max Base Temperature: 250 °C
Max Bulb Temperature: 700 °C
Socket Pulse Rating: ≥5KVA
Electrical Data / Requirements
Lamp Wattage: 1000WOperating Voltage: 250V
Operating Current: 4.7A
Weight: 1 lb / .45 kg

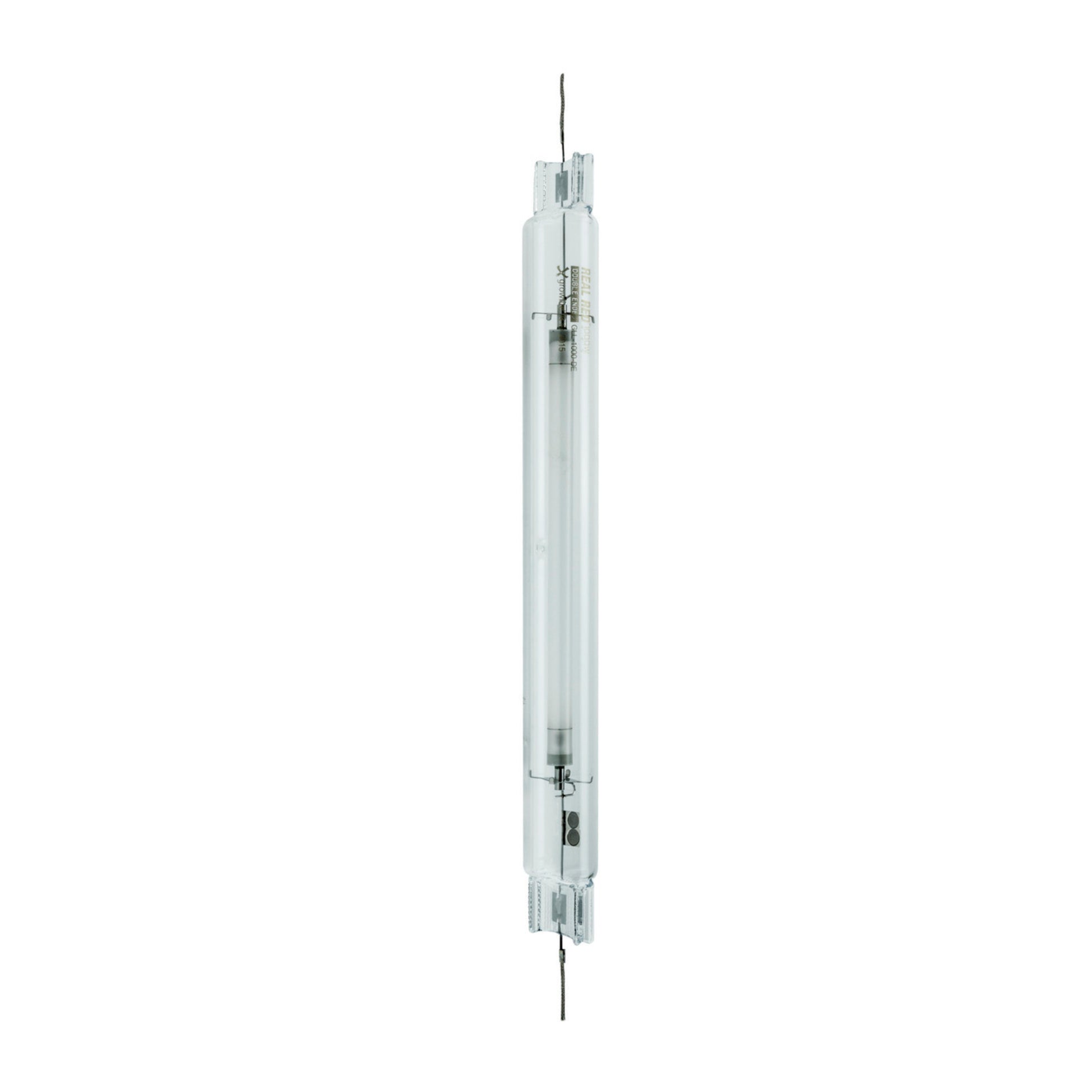

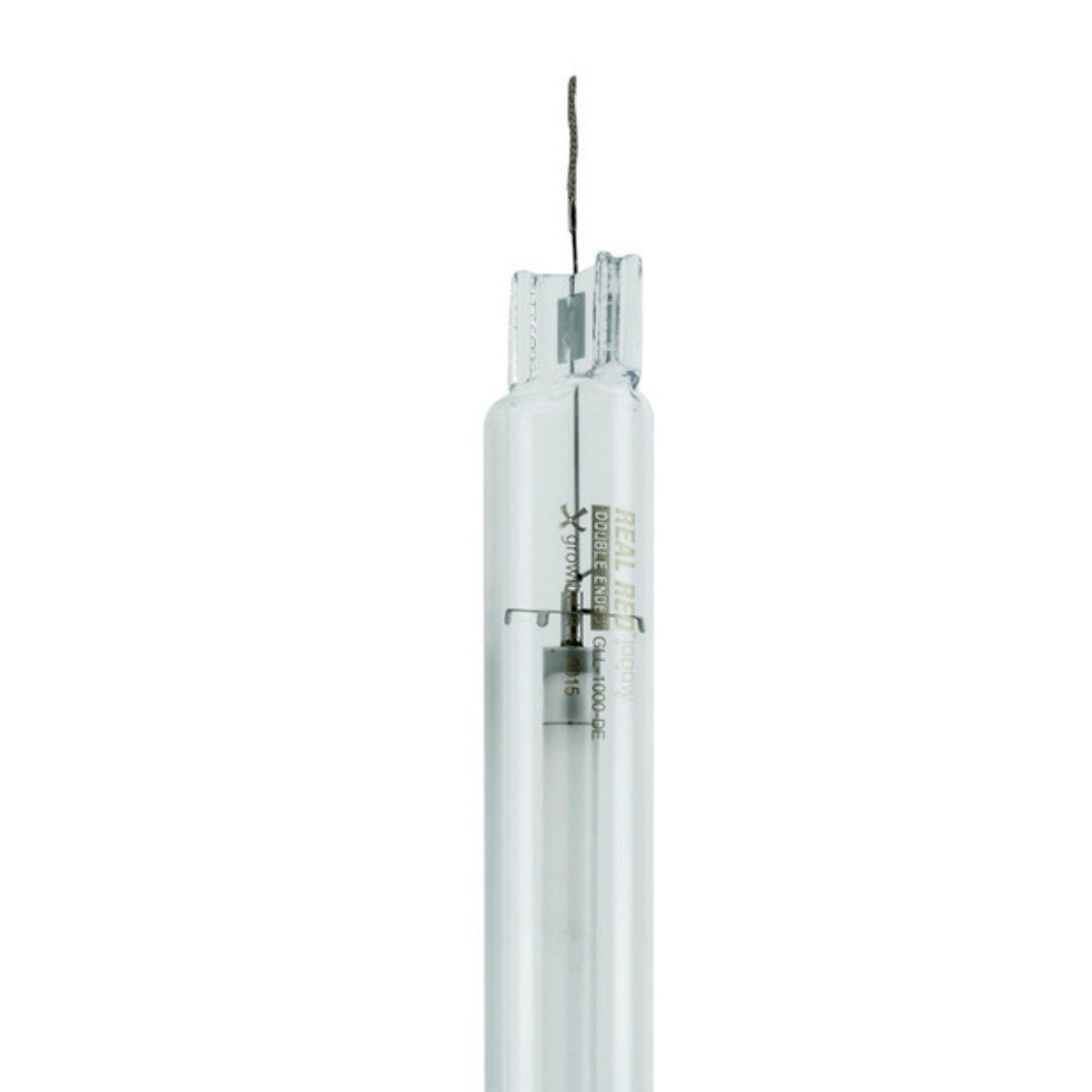

Item No. GLL-1000-HDEL-HPS
