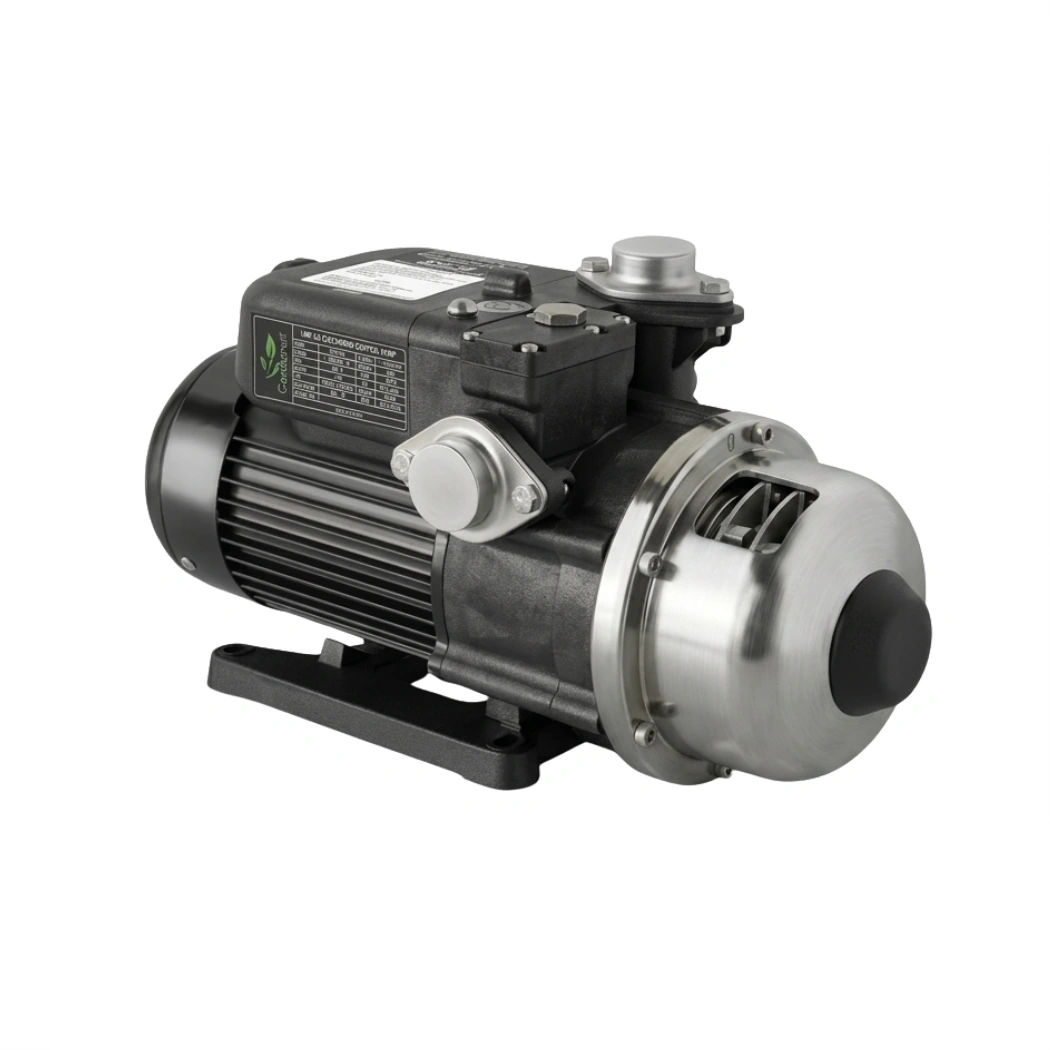

GrowoniX DDP-20 Delivery Pump for High-Volume Water Transfer
The GrowoniX DDP-20 delivery pump moves up to 26 GPM and tops out at 64 PSI. A high-pressure cutoff trips at 60 PSI to protect the line. It runs on standard 115V 60Hz single-phase power and draws about 10A, roughly 1,150 watts at full load. The 1" NPT ports handle big lines. It is rated for constant duty.
Built to Push RO Water Across a Big Garden
This is the delivery pump that pushes stored RO water from a reservoir out to your feed lines across a big garden. It is built for non-aggressive water only, so keep solids and particulate off the inlet. Need more flow? Stack multiple units to add GPM. It pairs with GrowoniX EX and GX RO systems as the delivery stage.
Key Features
- 26 GPM Max Flow: High-volume transfer for big gardens and long feed-line runs.
- 64 PSI Output / 60 PSI Cutoff: Strong delivery pressure with a built-in high-pressure shut-off.
- 115V / 10A Power: Standard single-phase wall power, about 1,150 watts at full draw.
- 1" NPT In/Out Ports: Large inlet and outlet for unrestricted flow.
- Constant Duty Cycle: Built to run continuously without a forced cooldown.
- Stackable Design: Run multiple units together to add flow rate.
Technical Specifications
| Specification | Value |
|---|---|
| Model / SKU | DDP-20 |
| Max Flow Rate | 26 GPM |
| Max Output Pressure | 64 PSI |
| High Pressure Cutoff | Yes (60 PSI) |
| Voltage | 115V 60Hz 1 PH |
| Amp Draw | 10A (~1,150W) |
| Port Size (In/Out) | 1" NPT |
| Duty Cycle | Constant |
| Dimensions (L x W x H) | 16.11" x 7.28" x 8.98" |
| Weight | 25 lb |
