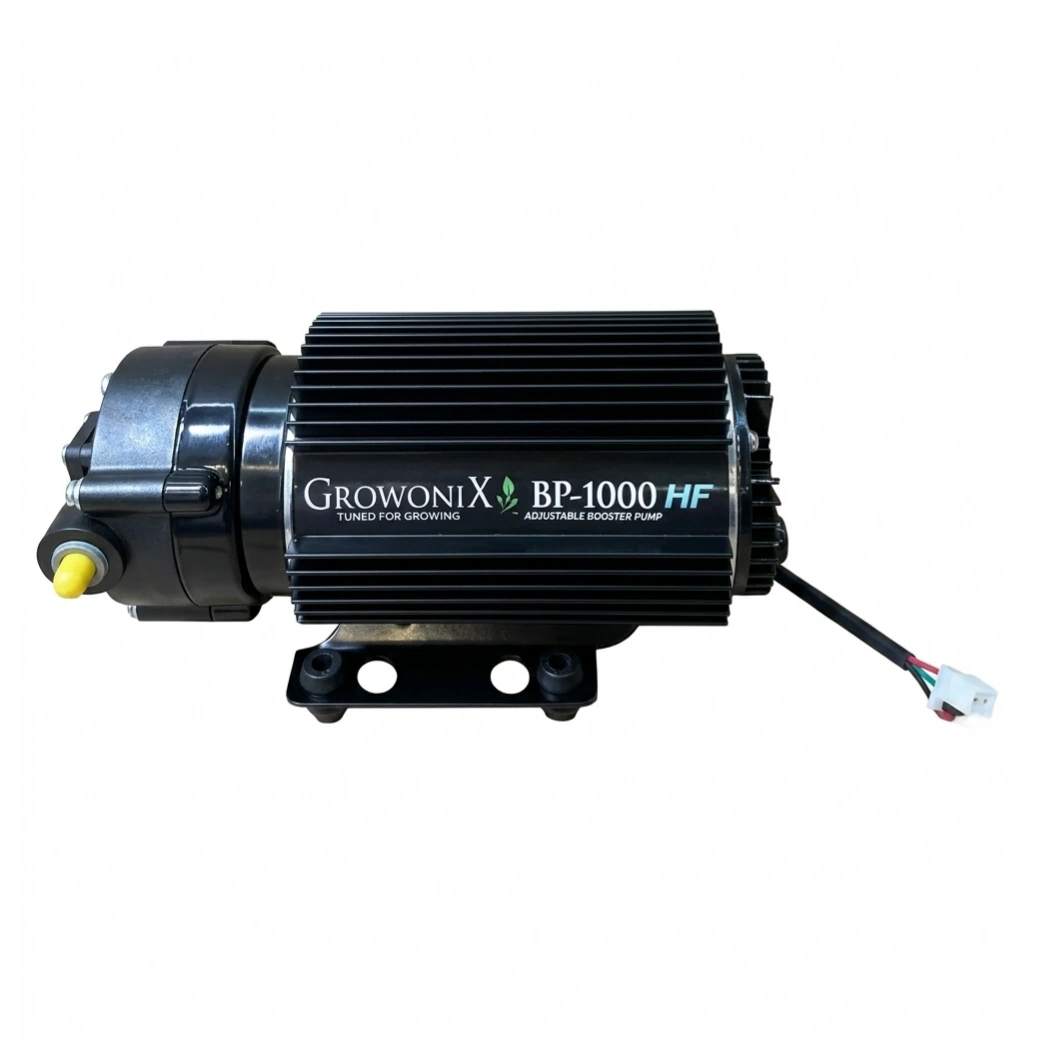

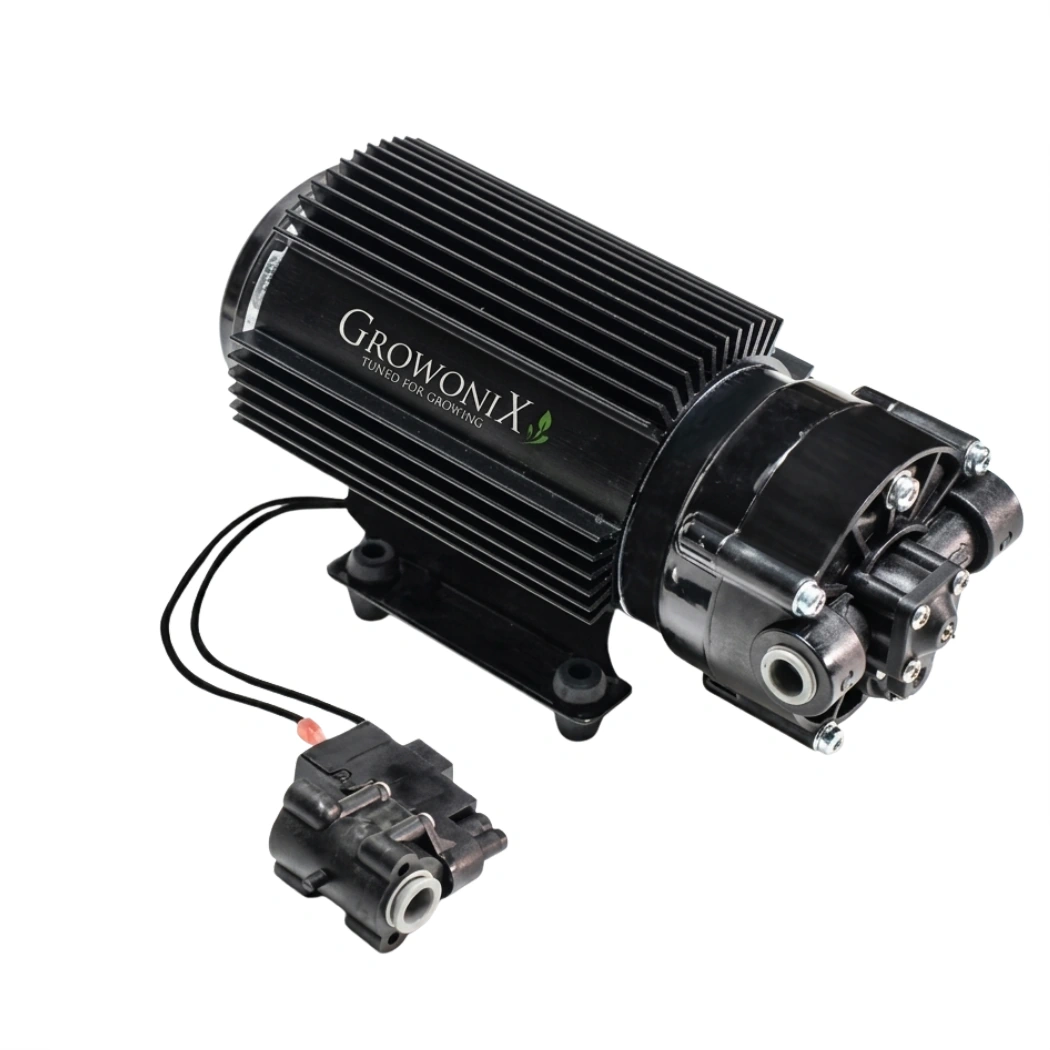

GrowoniX BP-1000 Booster Pump for Low Inlet Pressure
The GrowoniX BP-1000 booster pump solves low feed pressure on GrowoniX 600-1000 GPD filters. It lets the RO membrane hit full performance with as little as 0 PSI of incoming water. Output is adjustable and regulated to 78 PSI for these systems, with a 130 PSI ceiling. It runs on 24 VDC at 5.7A. An aluminum cooling jacket keeps motor temperature stable.
Built to Feed EX800, EX/GX600, and EX/GX1000 Membranes

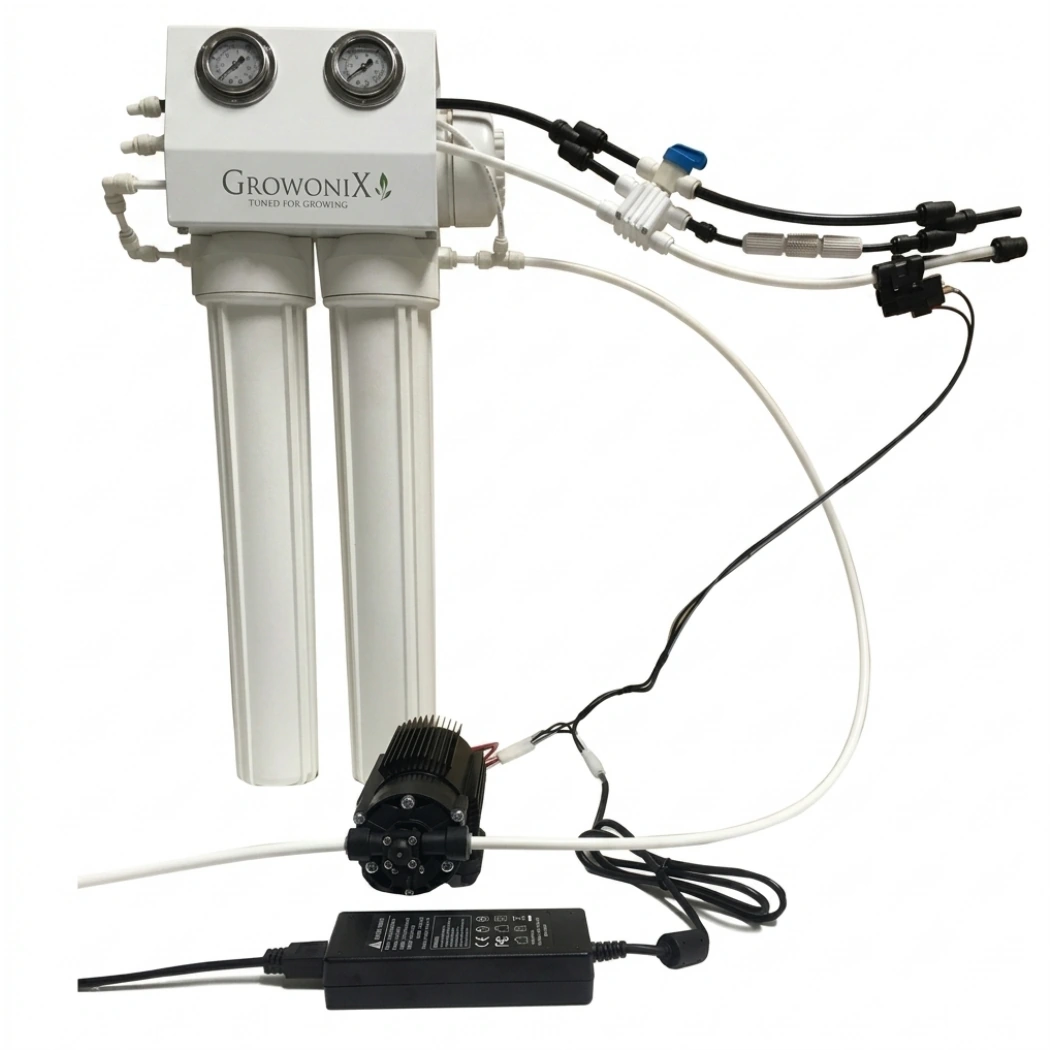

Plumb it on the RO inlet ahead of the EX800, EX/GX600, or EX/GX1000 membrane housing. The 3/8" tube ports match the GrowoniX line, and it can even siphon. A high-pressure cutoff trips at 40 PSI on the RO line to protect the system. It runs an intermittent duty cycle. Dial in the regulator to match your membrane.
Key Features
- Low-Pressure Fix: Full RO performance from as little as 0 PSI of incoming feed pressure.
- Adjustable Output, 78 PSI Regulated: Set to 78 PSI for these membranes, with a 130 PSI maximum.
- 1.2 GPM @ 80 PSI Flow: Sized for the EX800, EX/GX600, and EX/GX1000 filters.
- 24 VDC / 5.7A Power: About 137 watts at full pressure on low-voltage DC.
- Aluminum Thermal Cooling Jacket: Stabilizes motor temperature and protects the electronics.
- High-Pressure Cutoff + Siphon: Trips at 40 PSI on the RO line, and the pump can siphon.
Technical Specifications
| Specification | Value |
|---|---|
| Model / SKU | BP-1000 |
| Fits in System | EX800, EX/GX600, EX/GX1000 |
| Port Size (In/Out) | 3/8" Tube |
| Max Flow Rate | 1.2 GPM @ 80 PSI |
| Max Output Pressure | 130 PSI |
| Regulated Output | 78 PSI (adjustable) |
| High Pressure Cutoff | Yes (40 PSI RO line) |
| Standard Voltage | 24 VDC |
| Amp Draw | 5.7A @ 130 PSI (~137W) |
| Duty Cycle | Intermittent |
| Dimensions (L x W x H) | 8.85" x 4.00" x 4.05" |
| Weight | 6.4 lb |
