GrowoniX GX1000 Flow Box Deluxe RO System

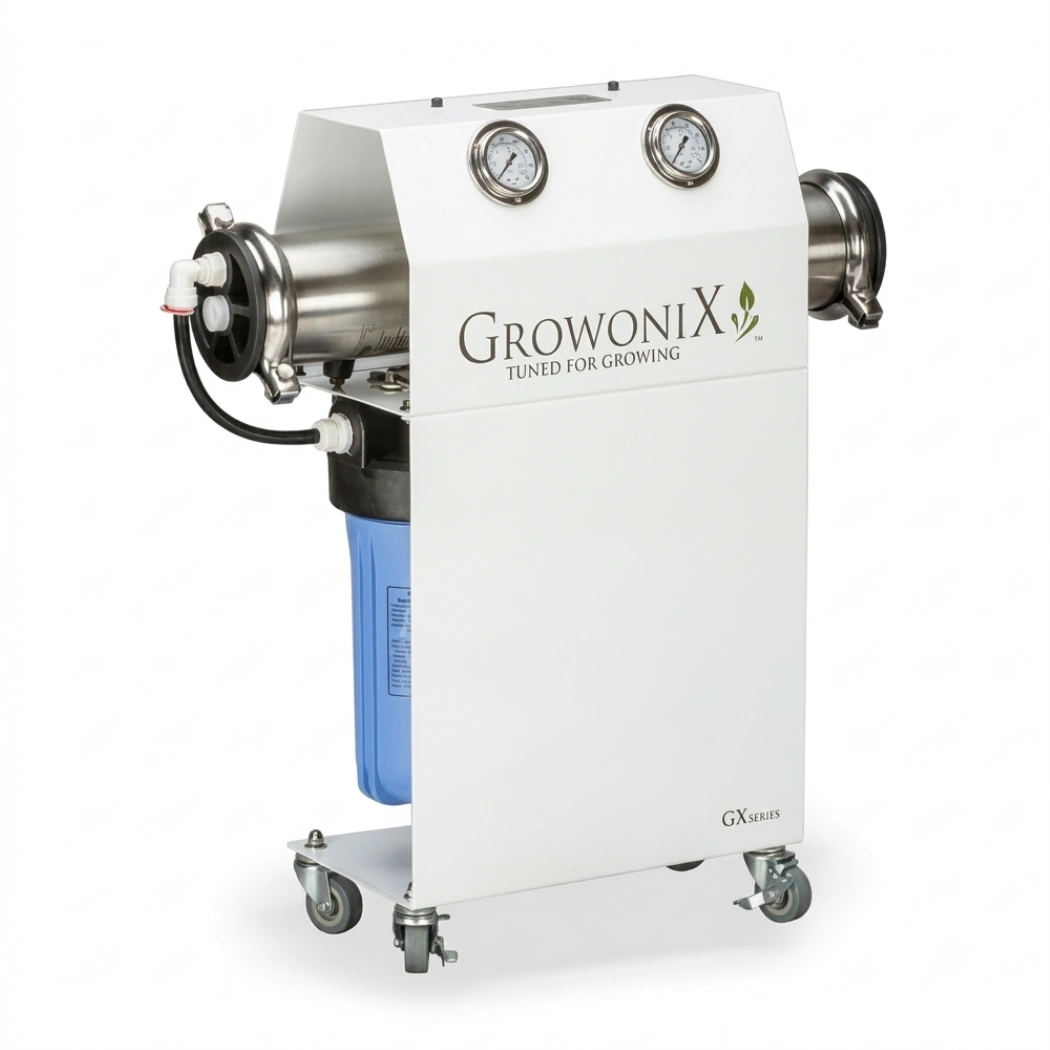

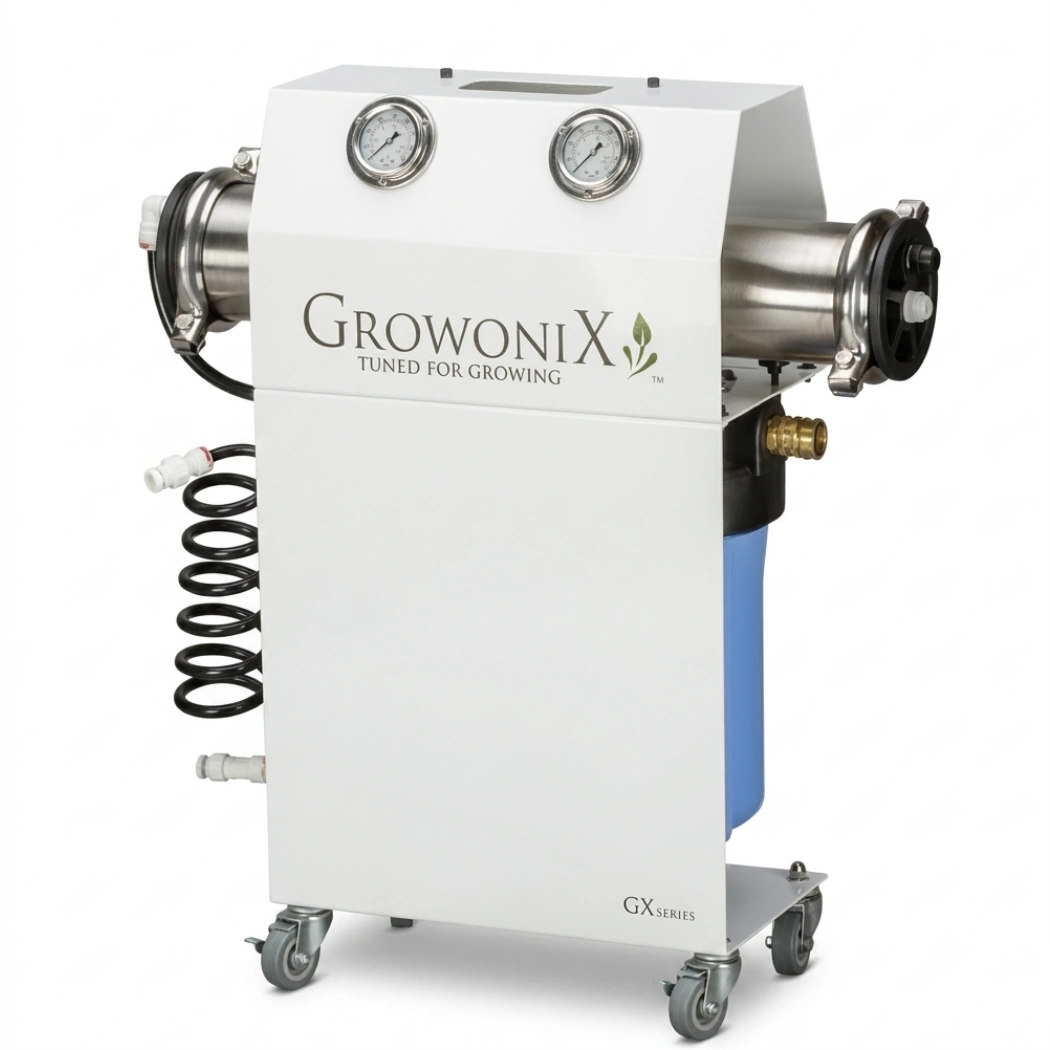

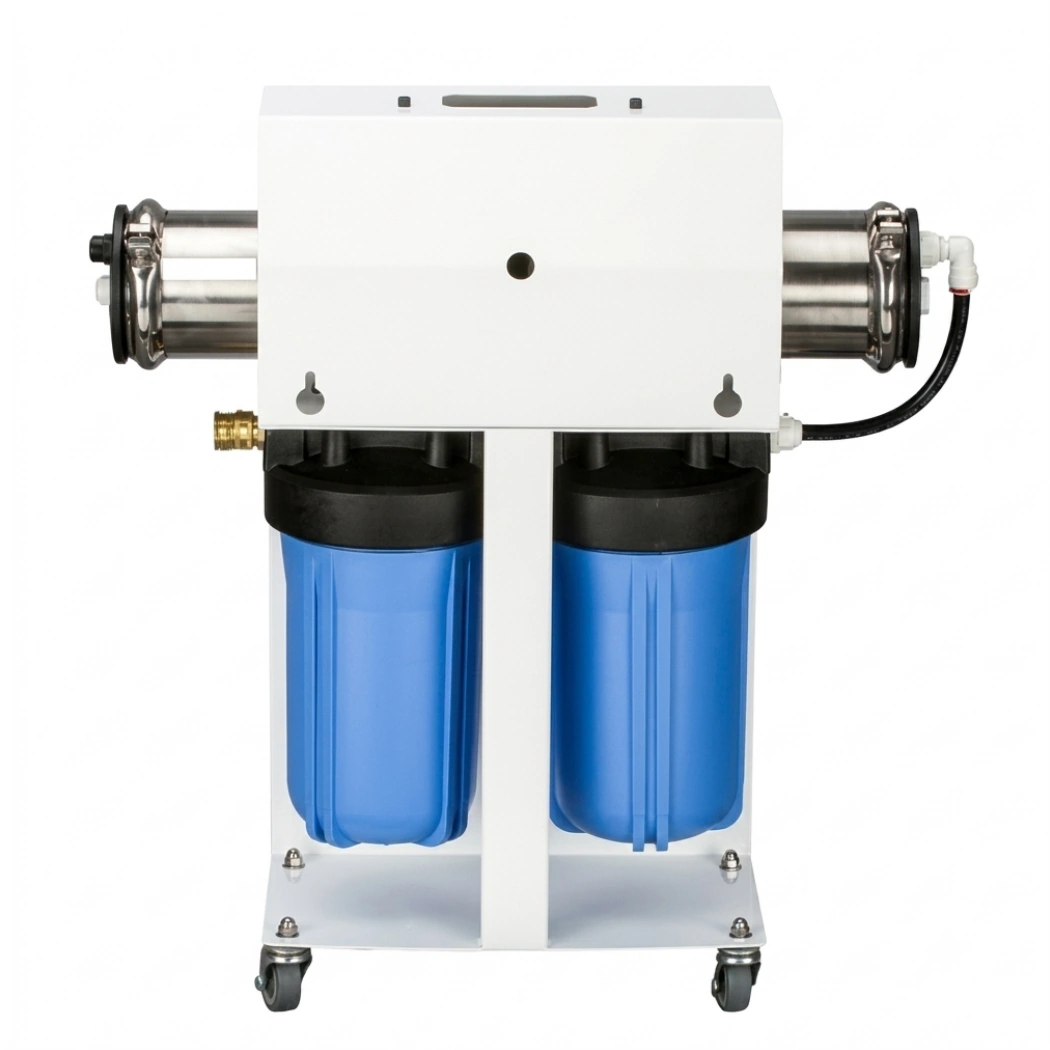

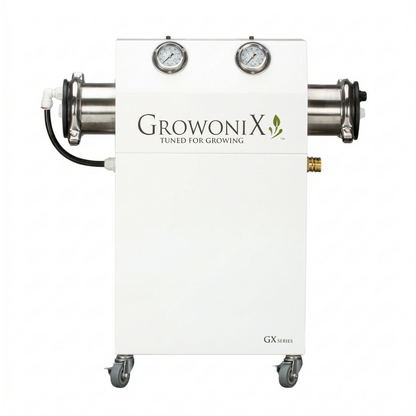

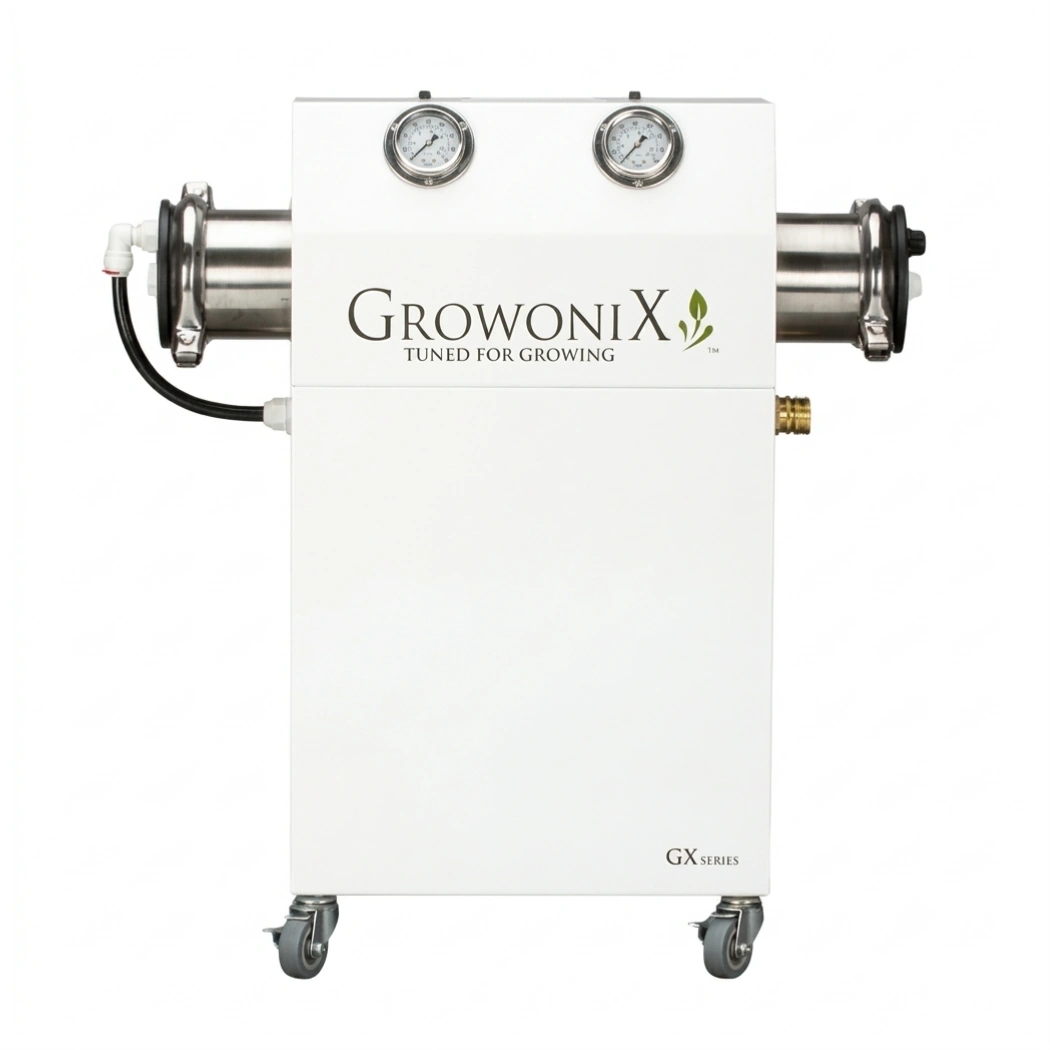

The GrowoniX GX1000 Flow Box Deluxe is a 1000 GPD (42 GPH) high-flow reverse osmosis system that its included booster pump pushes to 2000+ GPD. It runs a polyamide thin-film composite membrane at 97% nominal salt rejection and a true 1:1 ratio, on a mobile chassis. The integrated FlowBox adds liquid flow meters so you dial and hold the waste-to-product ratio. A brass garden-hose swivel feeds it, with 3/8" RO tube for permeate and waste.
Included Booster Pump and KDF85 Carbon
The Deluxe package includes the BP-6010-CH booster pump, which runs on 115V at 5.6 A and makes full flow when feed pressure is low. The KDF85 and catalytic carbon stage (CF-4510-KDF) clears chloramine, iron, and heavy metals over 17,000 gallons, ahead of a spun sediment prefilter. Because the FlowBox manages waste flow, the system runs without a separate membrane flush valve. Flush the KDF stage at startup, then use the FlowBox meters to hold a true 1:1 year-round.
Key Features
- 1000 GPD (2000+ with Pump): Included booster pump doubles output.
- 97% Rejection, True 1:1: FlowBox meters hold the ratio year-round.
- Included BP-6010-CH Pump: 115V, 5.6 A, makes full flow at low feed pressure.
- KDF85 + Catalytic Carbon: 17,000-gallon capacity for chloramine and metals.
- Polyamide TFC Membrane: High-flow GXM-1000-HF element.
- Mobile Chassis: Rolls to the water source or grow room.
Technical Specifications
| Specification | Value |
|---|---|
| Permeate Flow | 1000 GPD (42 GPH); up to 2000+ with pump |
| System Ratio | 1:1 (FlowBox-tunable) |
| Nominal Salt Rejection | 97% |
| Feed Water Pressure | 40-80 psi |
| Feed Water Temperature | 40-113°F |
| Min Feed Flow | 1.39 GPM |
| Feed Input | Brass garden-hose swivel |
| Permeate / Waste Line | 3/8" RO tube |
| Membrane | GXM-1000-HF (polyamide TFC) |
| Carbon Filter | CF-4510-KDF (KDF85 + catalytic) |
| Sediment Filter | SF-4510-PL |
| Carbon Capacity | 17,000 gallons |
| Booster Pump | BP-6010-CH (included) |
| Pump Power | 115V, 5.6 A, max 150 psi |
