Brand: Quest

Quest Dehumidifier Hanging Bracket for Dual 105-225 and 185 Cool (Needs 2)

Quest Dehumidifier Hanging Bracket for Dual 105-225 and 185 Cool (Needs 2)

SKU: SKU:4042836

Ordering a large quantity of this item?
As long as the order total is more than $2K you can:

Regular price $45.00 USD
Regular price $45.00 USD Sale price $45.00 USD
Sale Sold out
Shipping calculated at checkout.

KILLER PRICE
This item is heavily discounted and may not qualify for discounts.

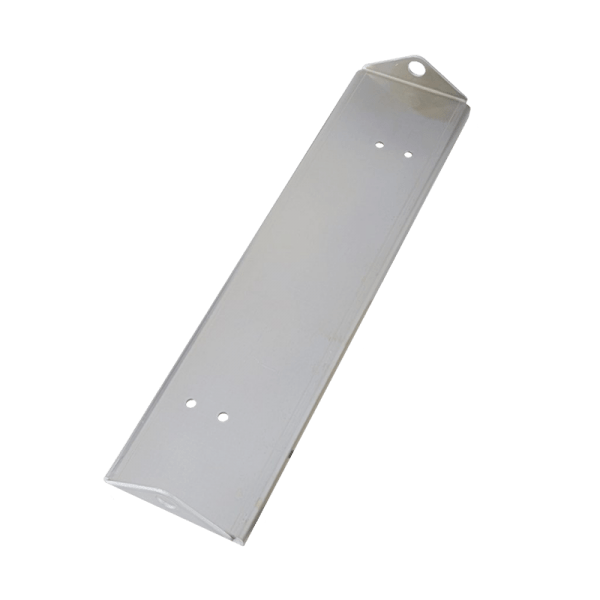

This Quest dehumidifier hanging bracket carries a Quest Dual 105, 155, 165, 205, 225 or 185 Cool from underneath for overhead installation. It is sold individually, and each dehumidifier needs two brackets to hang level from structural members.

View full details

Quest Dehumidifier Hanging Bracket: Overhead Support for Dual Units

This bracket is Quest's factory part, number 4042836, for suspending a Quest Dual unit overhead. It fits the Quest Dual 105, 155, 165, 205 and 225, along with the Quest 185 Cool. Each listing covers a single bracket, and every dehumidifier needs two. The pair runs across the underside of the cabinet, one toward each end. Quest's manual calls for exactly that kind of support. The unit must be carried from underneath and never hung by its sides or ends. Each bracket measures 23 x 6 x 3 in. From the brackets, the unit hangs on steel hangers, straps or another suitable support tied to structural members. Lifting the dehumidifier off the floor frees bench and aisle space in a tight room. It also keeps the cabinet clear of standing water during washdowns and spills. Quest builds these units for indoor spaces protected from rain and flooding, so an overhead install suits rooms with wet floors. Hanging height helps the condensate line as well. The drain port gets room below the cabinet for a properly sized P-trap.

Overhead Dehumidifier Mounting: Planning the Install

Start by locating structural members rated for the full weight of the dehumidifier. Ceiling drywall, light grid and unrated greenhouse purlins are the wrong anchor points. In a greenhouse, confirm the frame can carry the extra load before anything goes up. Fit both brackets under the cabinet before lifting, then attach the hangers to each bracket end. Keep the unit level so condensate runs to the drain instead of pooling inside the cabinet. The drain trap needs a minimum depth that grows with the model. Quest lists 4 in for the Dual 105, 8 in for the Dual 155 and 10 in for the Dual 205. Run the drain in three-quarter-inch male NPT PVC pipe so it flows by gravity. Leave at least one foot of open space around the air return and supply. Keep the cabinet off the walls and away from HVAC supply registers. Quest also advises against hanging a unit directly over the canopy when another spot is available. A technician on a ladder above plants puts the crop at risk during every service call. Plan ladder access to the filter and service panels before the unit goes up. Those panels must stay reachable once the dehumidifier hangs in place. After installation, check the drain at every room turn so water never backs up into the cabinet.

Key Features

  • Factory Quest part: Part number 4042836.
  • Two per unit: Sold individually; each dehumidifier hangs on a pair.
  • Support from underneath: Carries the cabinet the way Quest's manual requires.
  • Six compatible models: Quest Dual 105, 155, 165, 205, 225 and 185 Cool.
  • Frees floor space: Lifts the dehumidifier above benches, aisles and wet floors.
  • Drain clearance: Leaves room under the cabinet for a properly sized P-trap.

Technical Specifications

Specification Value
Brand Quest
Part number 4042836
Type Overhead hanging bracket
Quantity 1 bracket (2 required per dehumidifier)
Compatible models Quest Dual 105, Dual 155, Dual 165, Dual 205, Dual 225, Quest 185 Cool
Dimensions 23 x 6 x 3 in
UPC 859029004281
