Harvest Right Oil Free Vacuum Pump | 7 CFM Scroll, No Oil Changes

Harvest Right Oil Free Vacuum Pump | 7 CFM Scroll, No Oil Changes

SKU: SKU:Harvestoilfree

Ordering a large quantity of this item?
As long as the order total is more than $2K you can:

Regular price $1,795.00 USD
Regular price $1,795.00 USD Sale price $1,795.00 USD
Sale Sold out
Shipping calculated at checkout.

The Harvest Right scroll pump is an oil free vacuum pump for freeze dryer owners who would rather skip oil changes. It moves 7 CFM, pulls down to 100 microns or better and runs on standard 115 V household power.

View full details

Oil Free Vacuum Pump for Freeze Dryer Specs and Build

A dry scroll design is what makes this pump different from an oil-sealed vacuum pump. Two interlocking scrolls trap and compress air with no oil bath, so there is nothing to drain, filter or top up between runs. It is rated at 7 CFM of displacement. Each unit is factory tested to reach 100 microns or better, deep enough for the drying stage of a freeze-dry cycle. The intake is a 3/4 in JIC flare, the fitting Harvest Right uses for its freeze dryer vacuum connection. It runs on 115 V, 60 Hz power through a standard US plug. The housing measures 13.5 x 22.25 x 15.25 in, and the pump weighs about 53 lb. The ambient operating range is 30 to 104 F, with humidity kept under 85 percent. Expect the motor to run hot during a cycle, which is normal for this design. Coverage is a 1-year limited warranty against defects in materials and workmanship.

Running a Harvest Right Oil Free Pump Day to Day

Most growers who pick a Harvest Right oil free pump are tired of cloudy oil, drips under the cart and a filter to babysit. With no oil in the system, a batch of herbs or flower finishes without any oil mist near the machine. Current Harvest Right freeze dryers connect to the flare intake without extra fittings. Owners of older Harvest Right models need an adapter, and Harvest Right supplies it at no charge. Set the pump on a firm, level surface with open air around it, never inside a closed, unvented cabinet. The motor housing gets hot enough to burn, so keep hands, cords and packaging clear of it while it runs. In a cold garage, let the pump warm above freezing before starting the first cycle of the day. Day-to-day upkeep is close to nothing, which is the whole point of going oil-free. Over time the scroll tip seals wear, and the first sign is a pump that takes longer to reach full vacuum. Harvest Right services that wear, including cleaning and new bearings, so the pump can return to full strength. Overloaded trays and cut-short cycles both push more moisture through the pump, so loading to spec helps it last. Before any service work, unplug it and give it two hours to cool.

Key Features

  • Dry Scroll Design: No oil to drain, filter or replace between freeze-dry batches.
  • 7 CFM Displacement: Pulls the chamber down quickly at the start of every cycle.
  • 100 Micron Factory Test: Each pump is tested to reach 100 microns or better.
  • 3/4 in JIC Flare Intake: Connects to current Harvest Right freeze dryers without extra fittings.
  • Household Power: Runs on 115 V, 60 Hz with a standard US plug.
  • Free Adapter for Older Units: Harvest Right supplies the adapter older freeze dryers need.
  • 1-Year Limited Warranty: Covers defects in materials and workmanship.

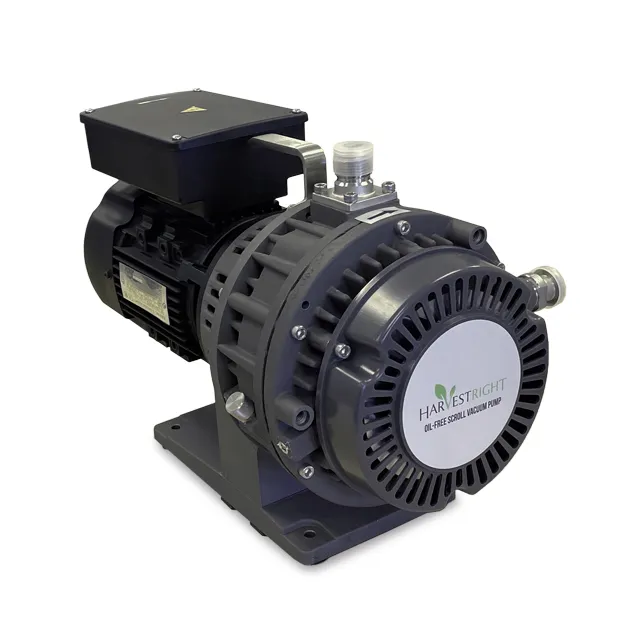

Harvest Right Oil Free Scroll Vacuum Pump for freeze dryers

Technical Specifications

Specification Value
Brand Harvest Right
Model Oil Free Scroll Vacuum Pump
Part Number SP-GW11060
Pump Type Dry scroll, oil-free
Displacement 7 CFM
Ultimate Vacuum 100 microns or better (factory tested)
Intake Port 3/4 in JIC flare
Power 115 V, 60 Hz, US 110 V plug
Dimensions 13.5 x 22.25 x 15.25 in (W x L x H)
Weight 53 lb
Operating Environment 30-104 F ambient, humidity below 85%
Compatibility Harvest Right freeze dryers; older models need a free Harvest Right adapter
Included One oil-free scroll vacuum pump
Warranty 1-year limited
