HydroLogic Evolution Wall Mount Bracket | Stainless, RO1000

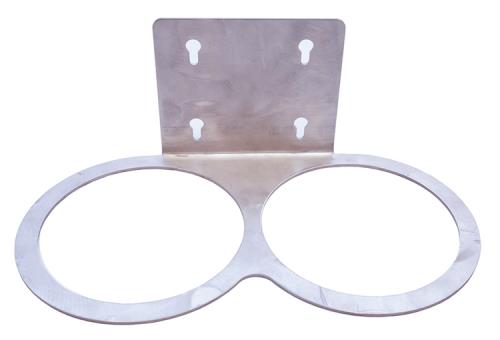

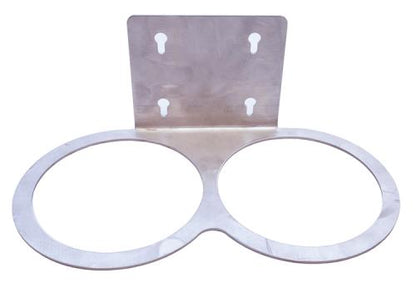

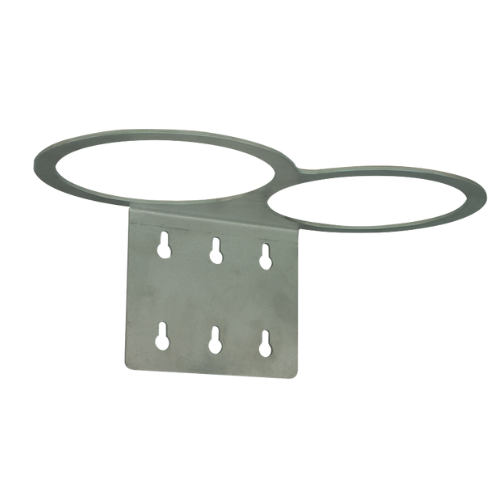

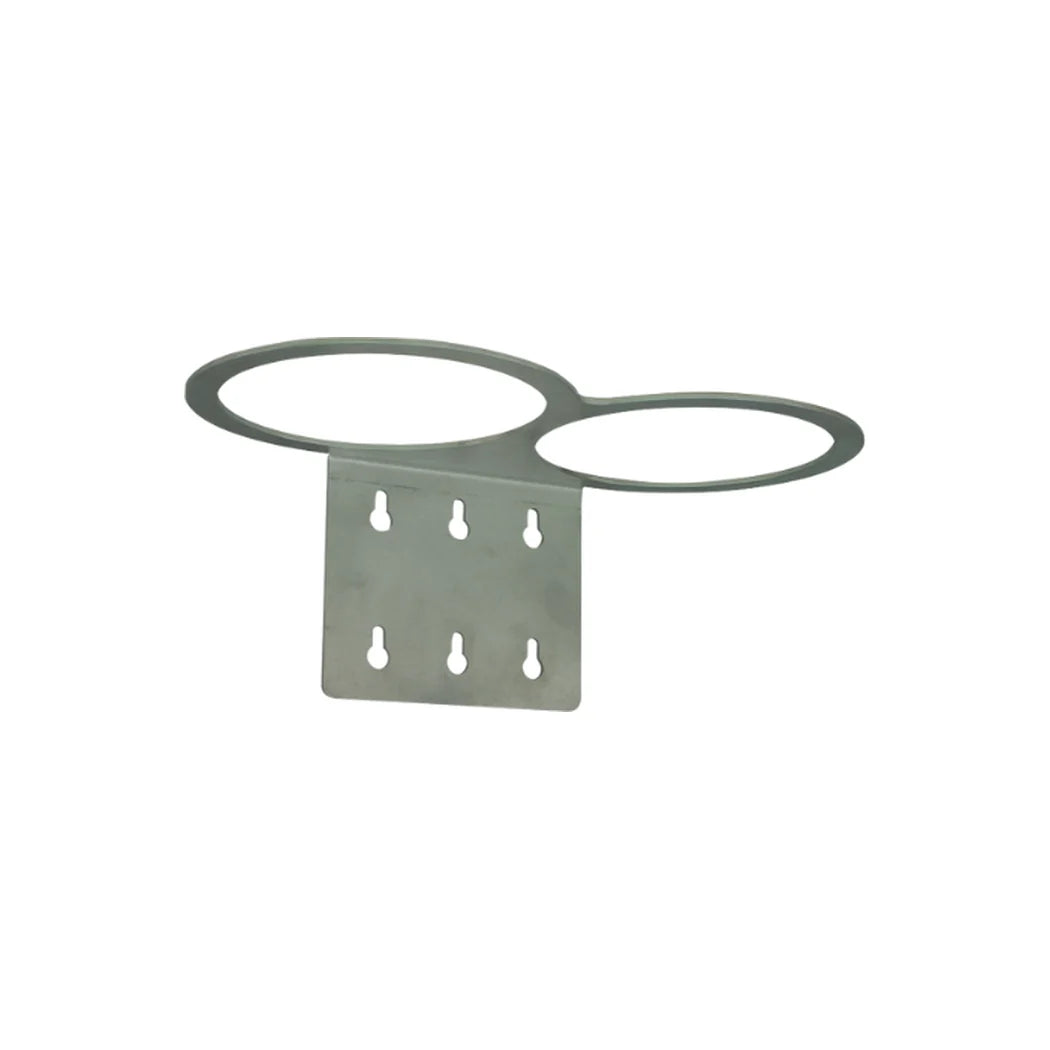

What the Evolution Wall Mount Bracket Holds

A filter stack, off the floor. Two sets of figures circulate for this part. HydroLogic publishes 11.375 by 4.25 by 6.1875 in at 1.122 lbs. The distributor sheet lists 12.312 by 6.312 by 5.625 in at 1.51 lbs. Measure to the smaller pair. Both figures circulate in the trade. It replaces the older HL 10057 part.

Why Heavy Duty Stainless Suits the Wall Behind an RO Unit

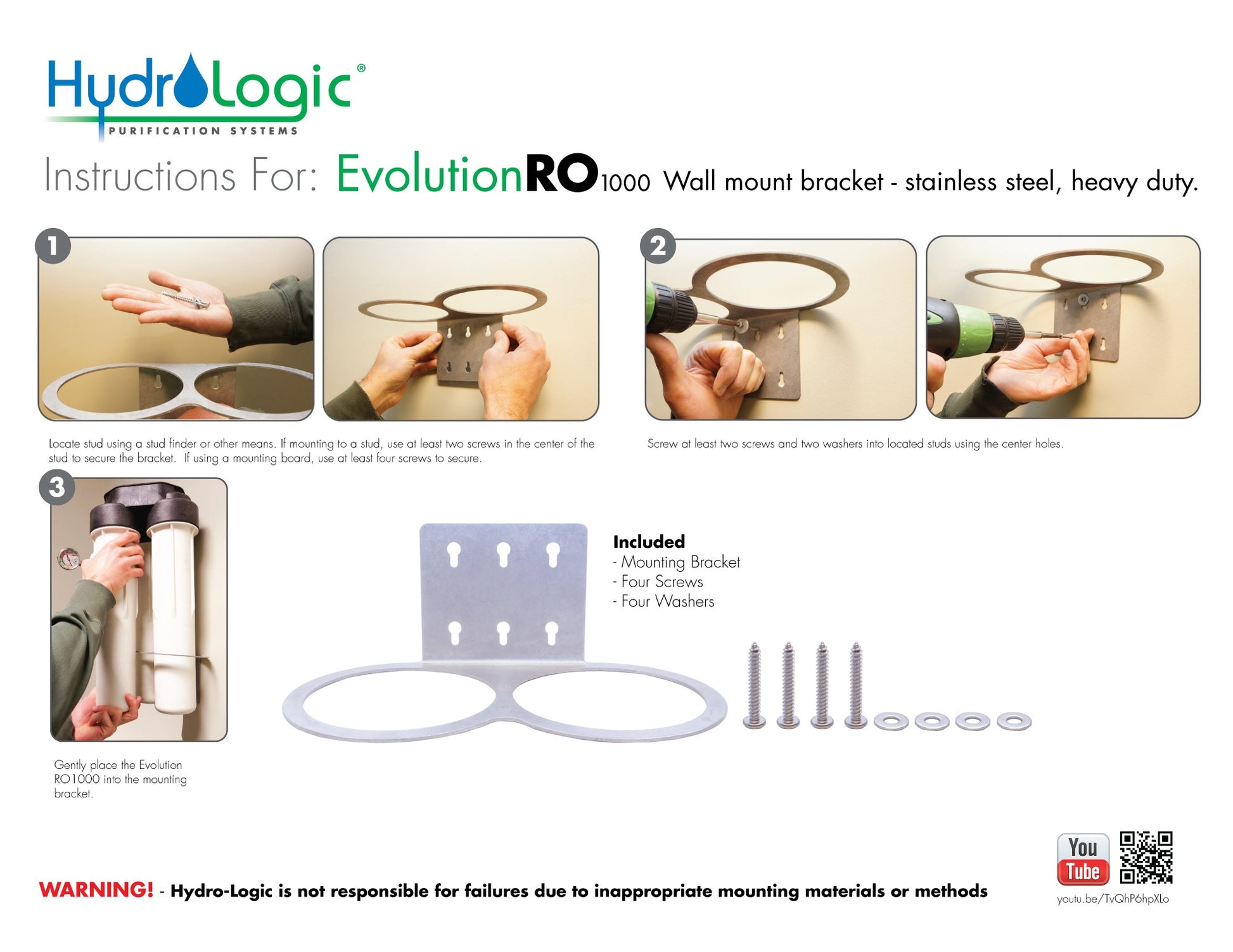

That wall gets wet and stays wet. Plated steel rusts there, which is the whole reason for the material choice. The more important number is not the bracket though. It is what the bracket is screwed into. Full of water an Evolution stack weighs far more than the bracket does. The fixing carries the job: find studs, or use anchors rated well past the loaded weight. Screws and washers come in the box, which is worth knowing because the ones most people reach for are plated. Wall anchors are not included, since the right anchor depends on what you are drilling into. HydroLogic describes the part as mounting an Evolution-RO to a variety of surfaces rather than naming one model. It is not tied to the RO1000 alone.

Key Features

• Gets the system off the floor: Wall mounted, which is usually where an RO stack belongs.
• Heavy duty stainless: The wall behind an RO unit stays wet. Plated steel does not last.
• Screws and washers included: The fasteners most people would otherwise grab are plated steel.
• Replaces HL 10057: The older bracket part number, superseded by this one.
• Not RO1000 only: HydroLogic describes it as mounting an Evolution-RO generally.
• Anchors are not included: The right anchor depends on the wall, so that choice is yours.
• Two published dimension sets: Measure to 11.375 by 4.25 by 6.1875 in, the manufacturer figure.
