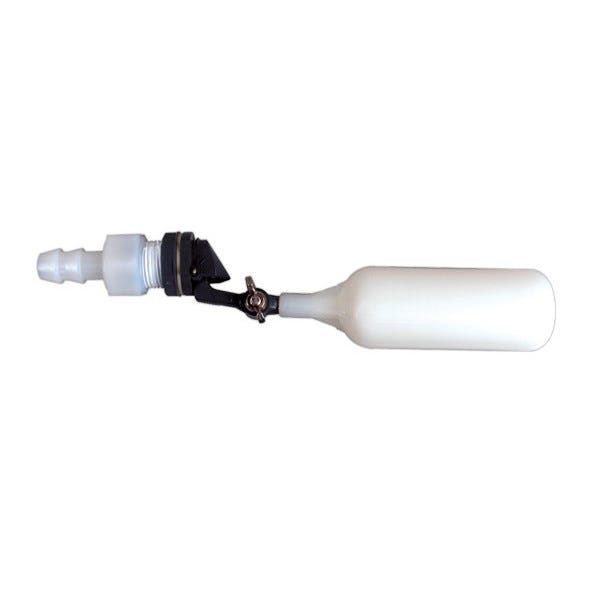

Inside the HydroLogic Float Valve
Topping off a nutrient reservoir by hand means guessing, waiting and the risk of an overflow. This valve takes over that job. Water enters through a 1/2 in barb that pushes into matching tubing. Inside the tank, a hollow float rides on the surface at the end of an arm. As the level rises, the float lifts and closes the valve. When plants drink the level down, the float drops and water flows again. The arm pivots and locks with a wing nut, so the shut-off height is easy to set. Its parts are PVC and stainless steel, so nothing rusts in a wet room. A threaded body with a nut and washer clamps it through the reservoir wall. It works mounted on the side of a tank or through the lid. HydroLogic designed it for its reverse osmosis filters with 1/2 in fittings, but any matching line works.
Setting Up a Reservoir Auto-Fill
A float valve on the RO line turns a manual chore into a hands-off routine. Pick a mounting point high on the tank wall, clear of pumps and stirrers. Drill a clean hole for the threaded body and fit the washer on the wet side for a tight seal. Snug the nut by hand, then add a gentle extra turn. For vertical mounting through a lid, set the arm so the float hangs level. Loosen the wing nut, set the float a few inches below the rim and lock it again. Push the tubing fully onto the barb, adding a clamp if the line sits under pressure. Open the supply and watch the first fill to confirm the valve closes cleanly. Leave enough headroom so the level never reaches overflow when nutrients are added. Check the float and seat during reservoir changes and rinse off salt or algae. If water seeps past at full level, clean the seat before adjusting anything else.
Key Features
- 1/2 in Barb: Pushes into 1/2 in tubing.
- Adjustable Level: Arm locks with a wing nut.
- Horizontal or Vertical: Mounts through the wall or lid.
- PVC and Stainless: Will not rust in wet rooms.
- Unattended Filling: Refills as plants drink.
- RO Ready: Made for HydroLogic RO filters.

Technical Specifications
| Specification | Value |
|---|---|
| Brand | HydroLogic |
| Part Numbers | 728790, HL27012 |
| Inlet | 1/2 in barb |
| Materials | PVC and stainless steel |
| Mounting | Horizontal or vertical, through-wall nut and washer |
| Level | Adjustable arm with wing nut |
| Uses | RO water lines, reservoirs, tanks |
