iGS-25 Controlled 120V Outlet Box | 2 Outputs, 15A Circuit

What the iGS-25 Does in the System

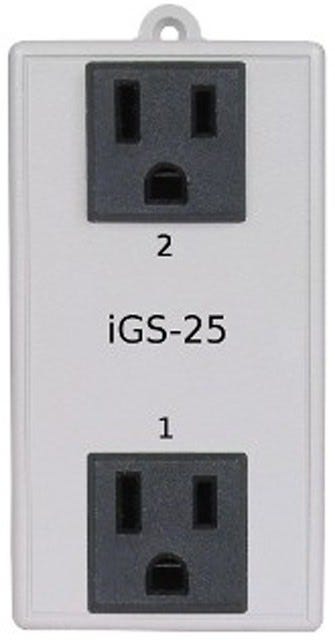

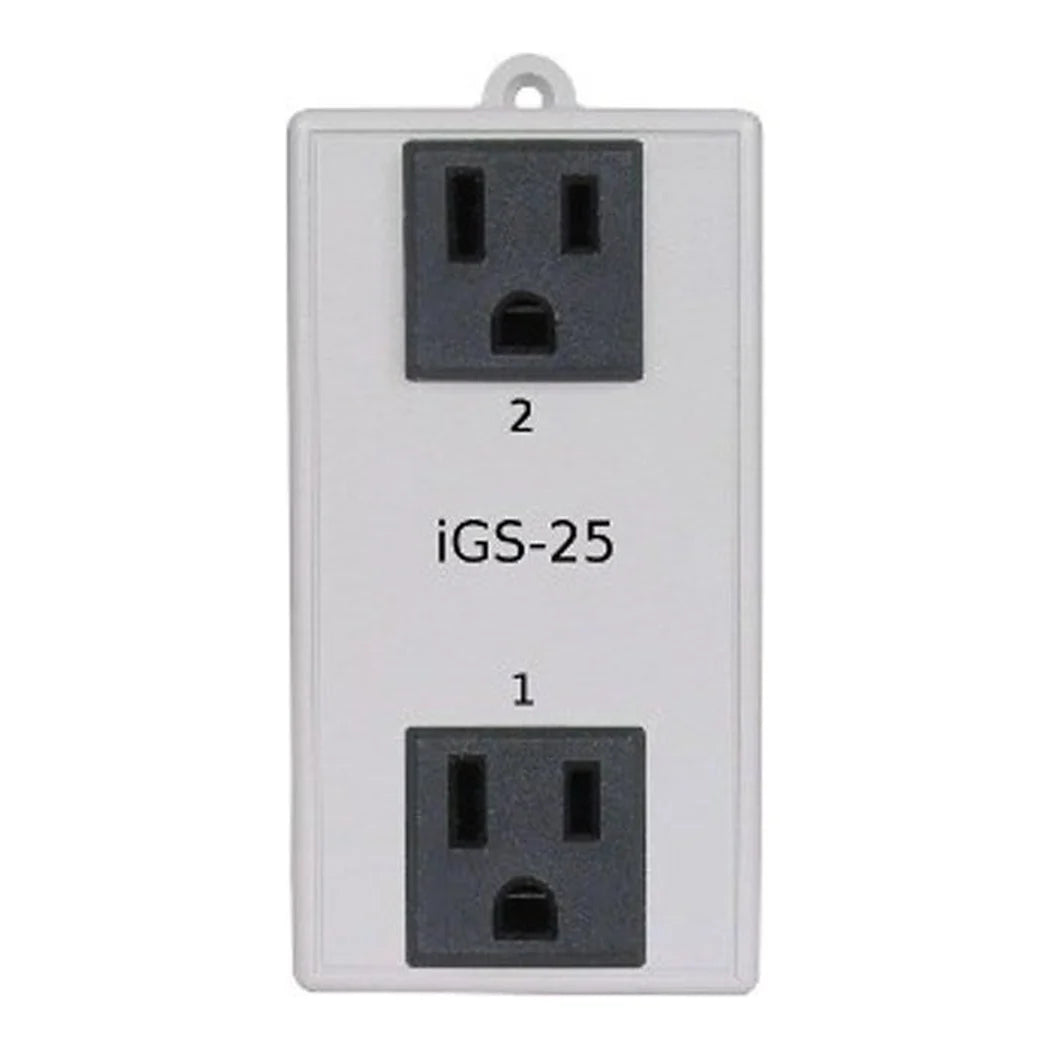

Worth being clear on the division of labour. The controller decides, and this box switches. An iGS-25 carries two 120V outlets that the controller opens and closes. The current a fan or a heater draws never passes through the controller itself. It is sold here as a replacement. That is usually why one is needed, because the part doing the switching is the part that wears.

Wiring a Plug N Grow Controller Across a Room

Distance is the useful part. The box connects back over Ethernet or RJ45 cable. It can sit as far as 50 ft from a plug n grow controller or its connection module. That means the controller mounts where you read it and the outlets mount where the equipment is, rather than forcing both to the same wall. The two ends can also sit on different circuits, which matters once the load in a room outgrows one breaker. Each box has to be fed from its own 15A circuit. That is the sizing basis for the whole box rather than a suggestion. Doubling two onto one breaker is how a room trips at the worst moment. A 6 ft cable comes with the unit. Adding another box gives two more controlled outputs and needs a second 15A supply to match.

Key Features

• Two controlled 120V outputs: The controller switches these, so the load current never runs through the controller.
• Up to 50 ft from the controller: Connects over Ethernet or RJ45, so readout and outlets do not share a wall.
• Works across different circuits: The controller and the box do not have to sit on the same breaker.
• Own 15A circuit required: Each box is sized on that basis. Two boxes need two supplies.
• 6 ft cable included: In the box, so nothing else is needed to connect a device.
• Sold as a replacement part: For Plug N Grow Intelligent Growing System controllers already installed.

Technical Specifications
