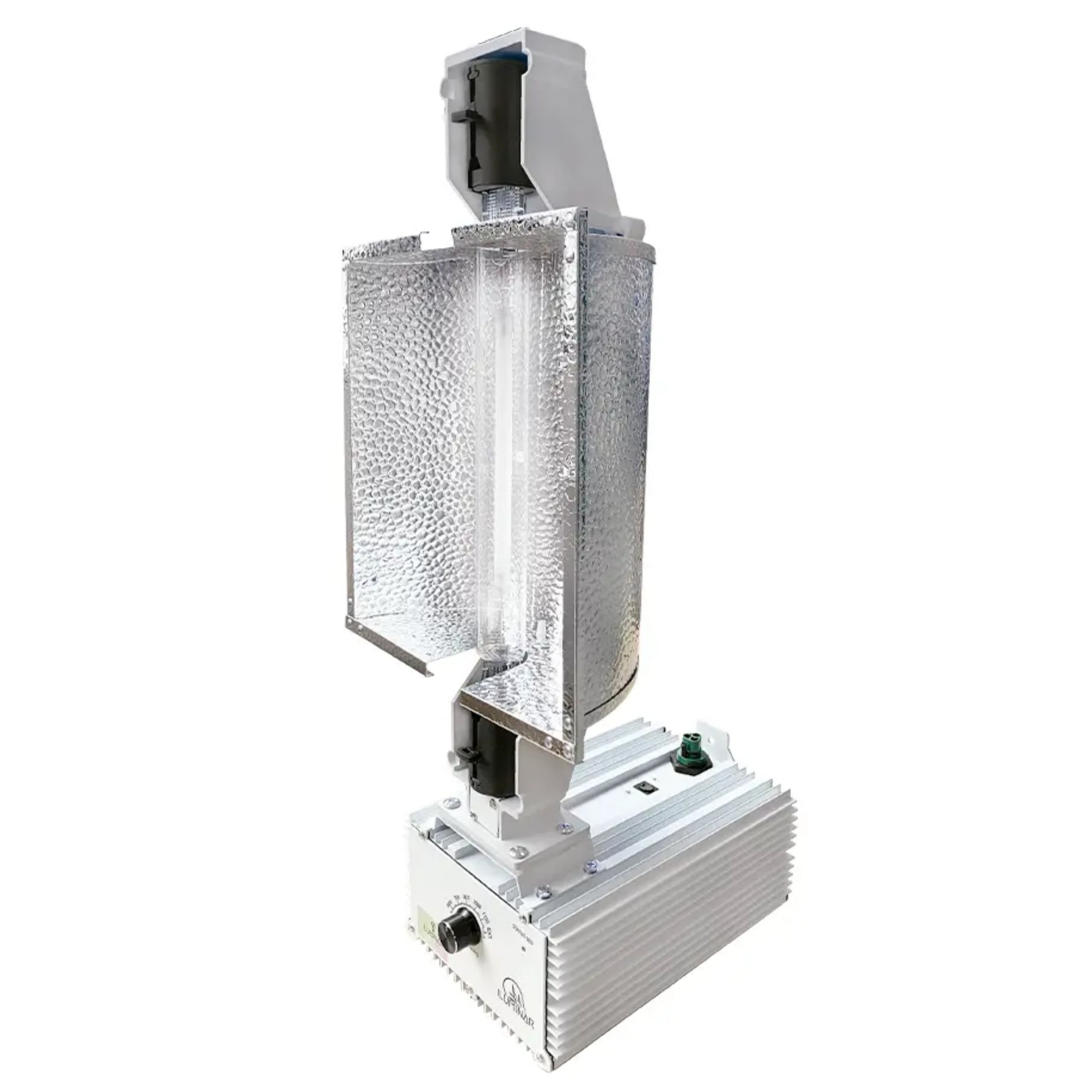

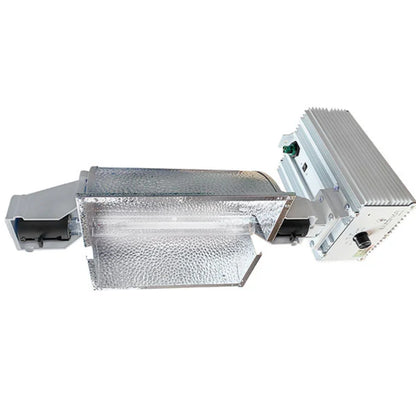

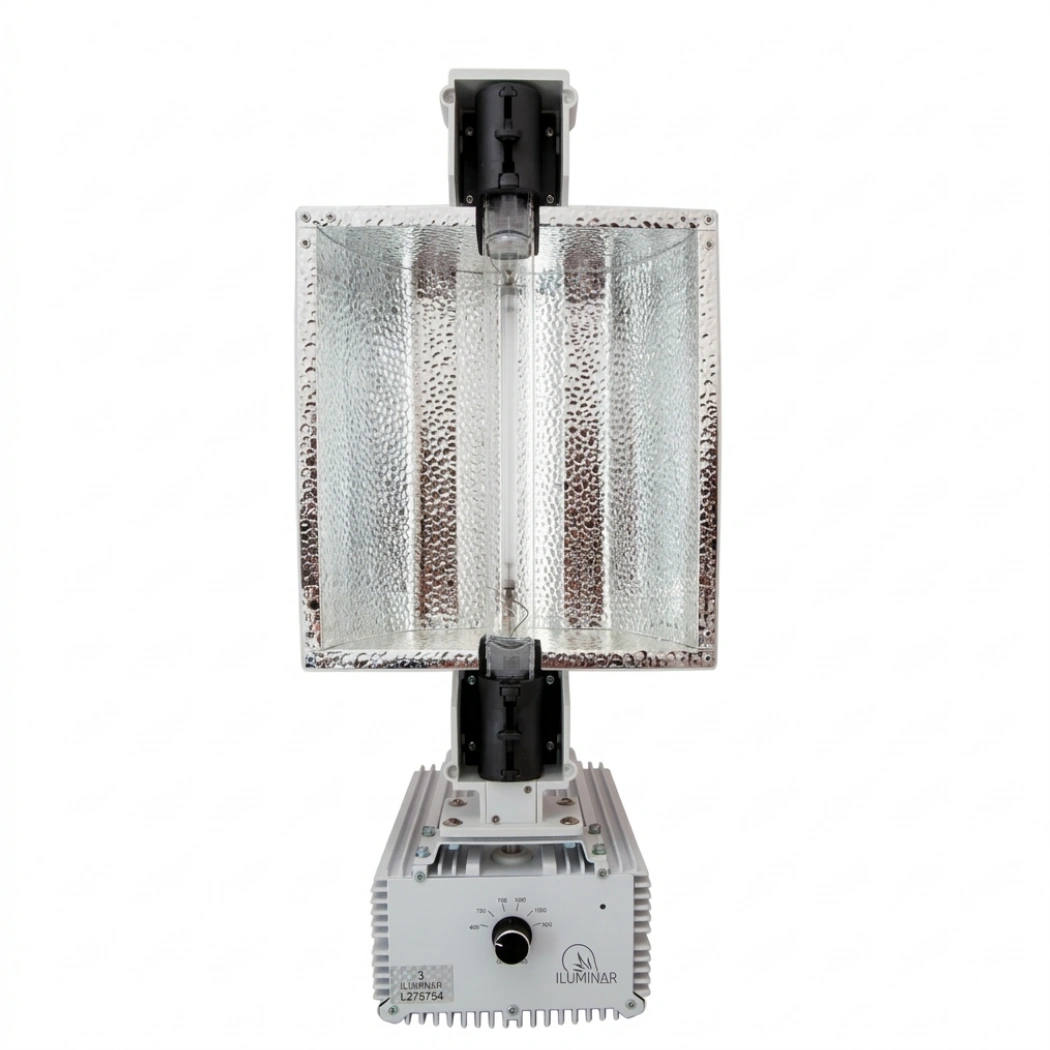

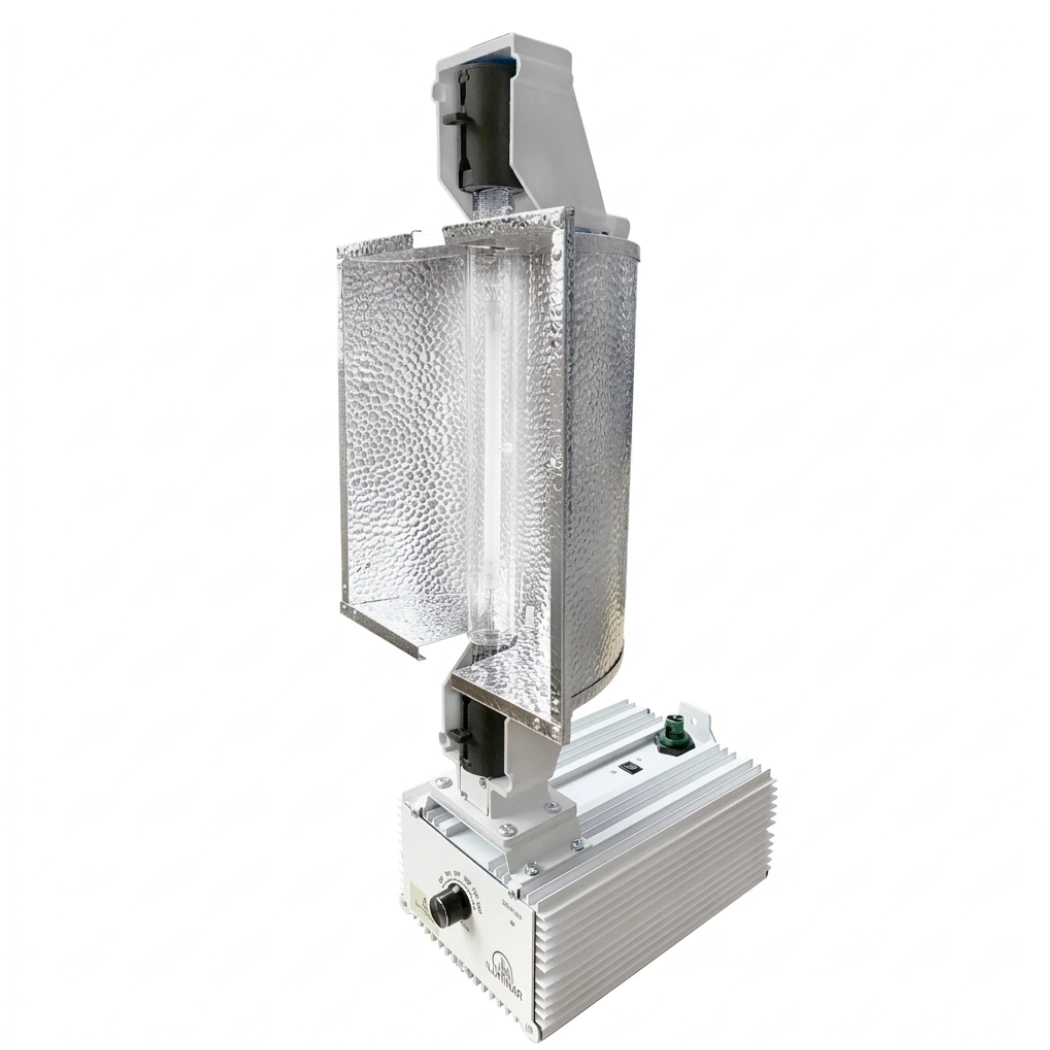

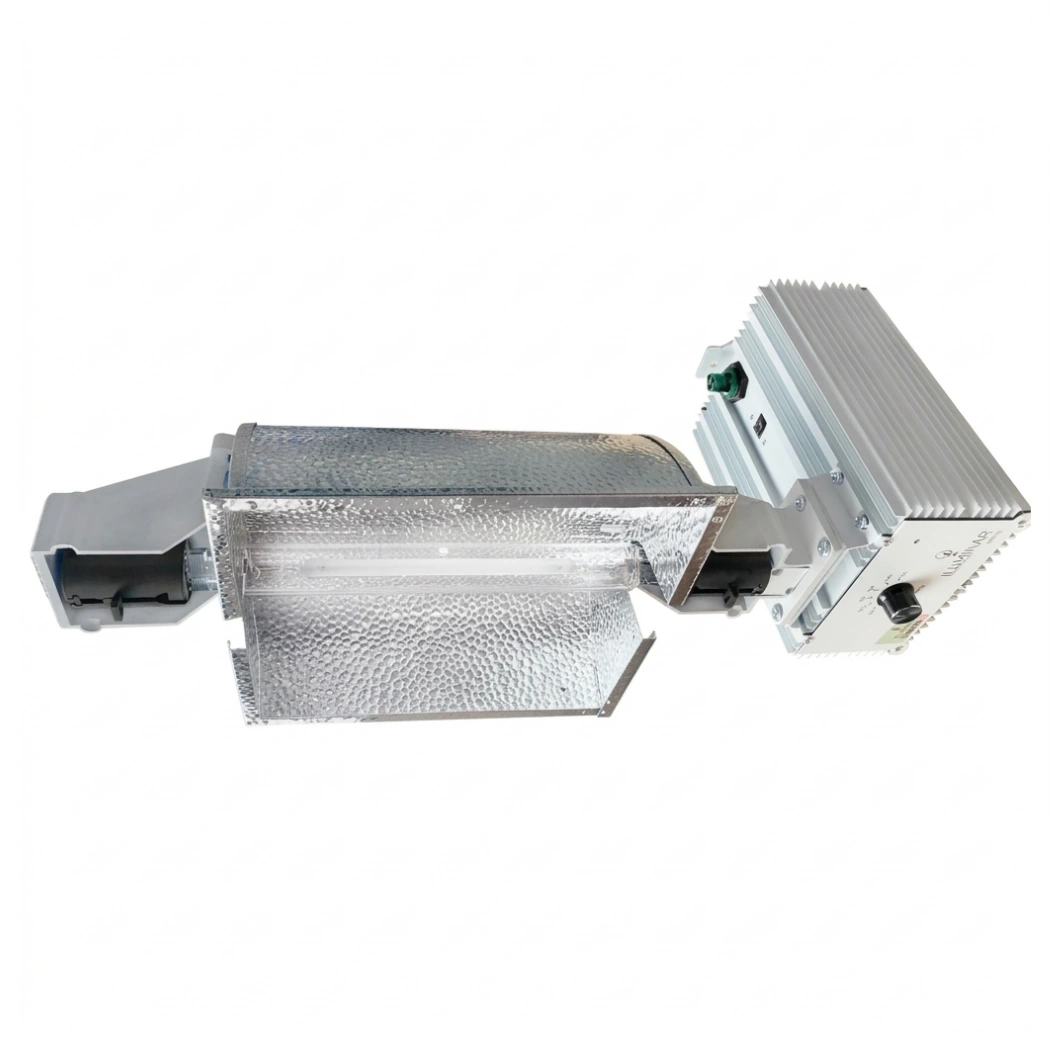

Iluminar IL DE 1000W C-Series: Complete HPS Fixture with Lamp at 2,100 µmol/s

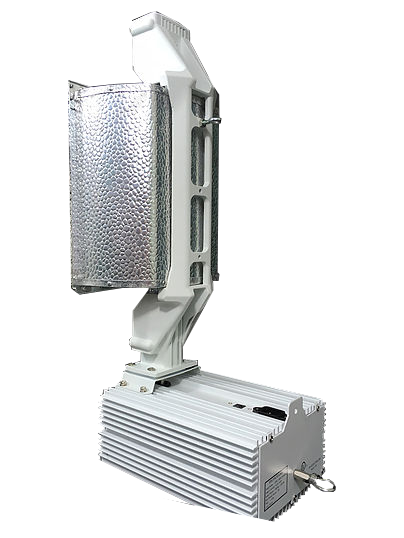

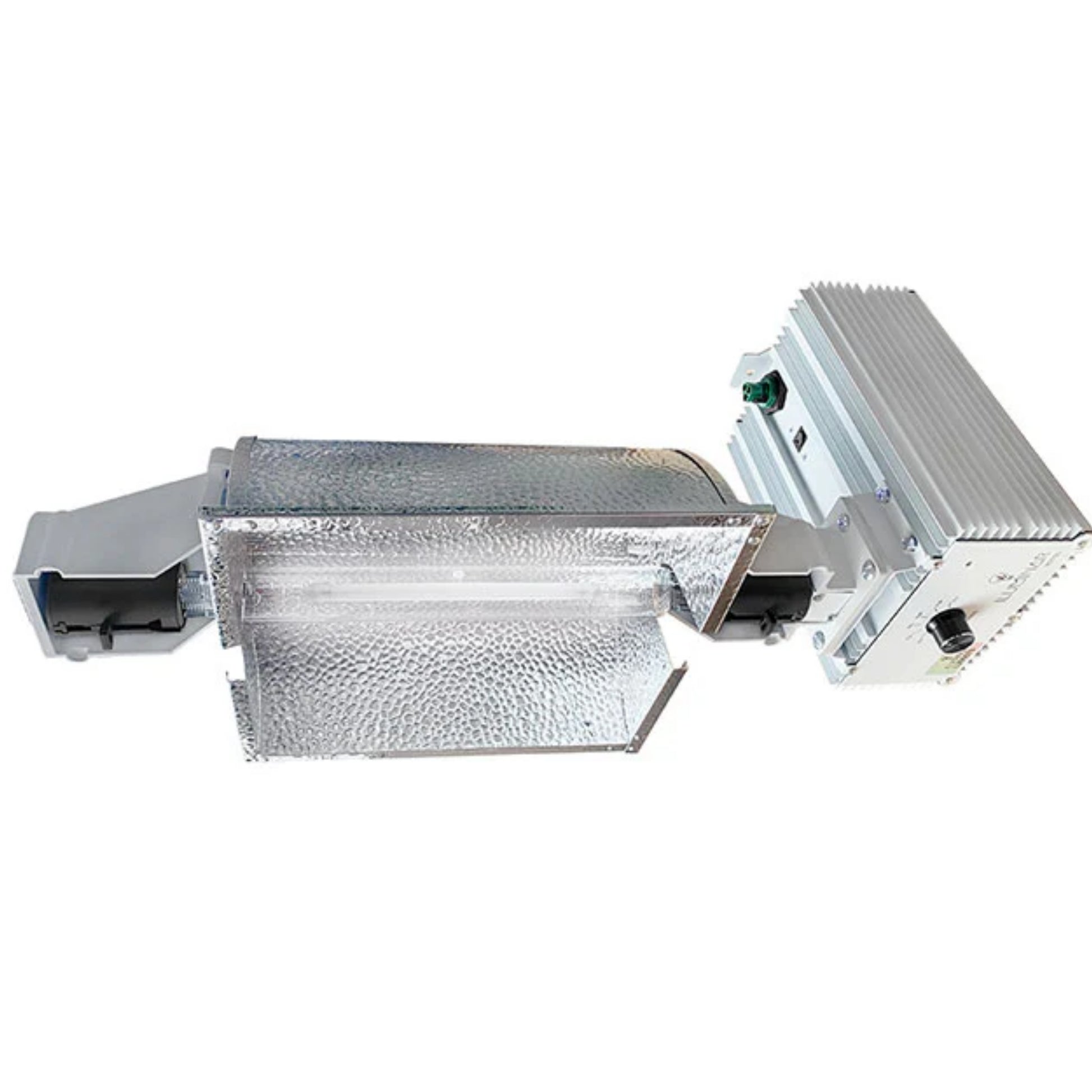

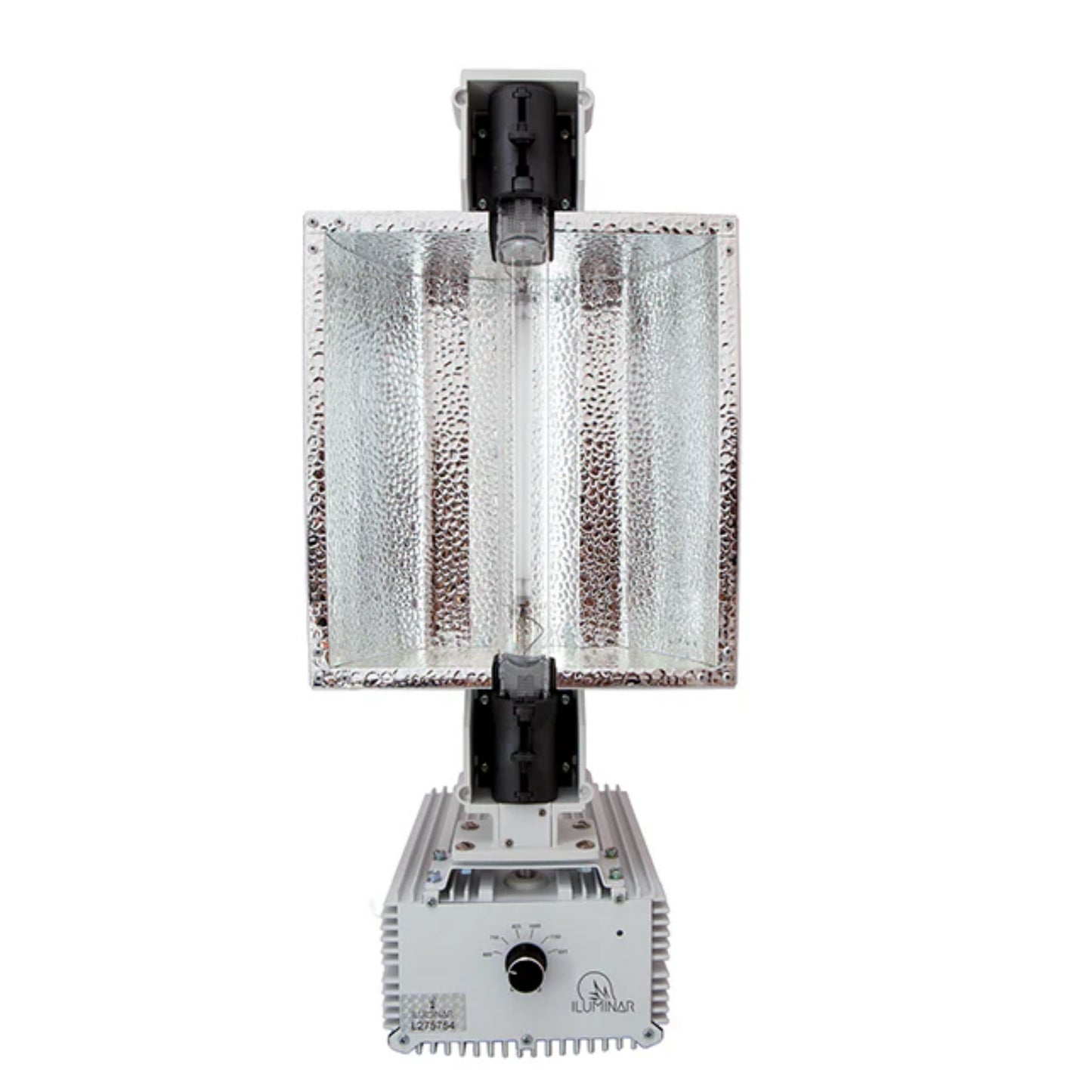

The Iluminar IL DE Full Fixture 1000W 120/240V C-Series is the lamp-included version of the ILUMINAR DE HPS platform, shipping with a matched DE HPS lamp already in the box for immediate deployment. The fixture pushes 2,100 µmol/s PPF through the same >96% reflectivity German aluminum reflector and dimmable high-frequency ballast with overdrive that define the ILUMINAR 1000W line. Dual-voltage 120/240V input with a power factor above 0.99 keeps installation straightforward across commercial electrical setups.
Lamp-Included C-Series for Faster Room Deployment

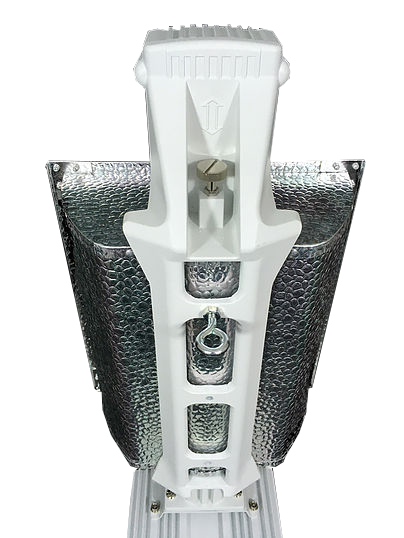

The C-Series designation means this fixture ships with the lamp and all mounting hardware needed for immediate installation — no separate sourcing or compatibility guesswork. The interchangeable reflector system adapts to ceiling heights, DE lamp balanced mounting centers the arc tube for uniform reflector coverage, and the low shadow footprint keeps photon delivery consistent across the 5×4 ft coverage area at 4 ft mounting height. Remote control compatible for room automation. 4,400 BTU thermal output at 13.66 lbs (6.2 kg).
Key Features

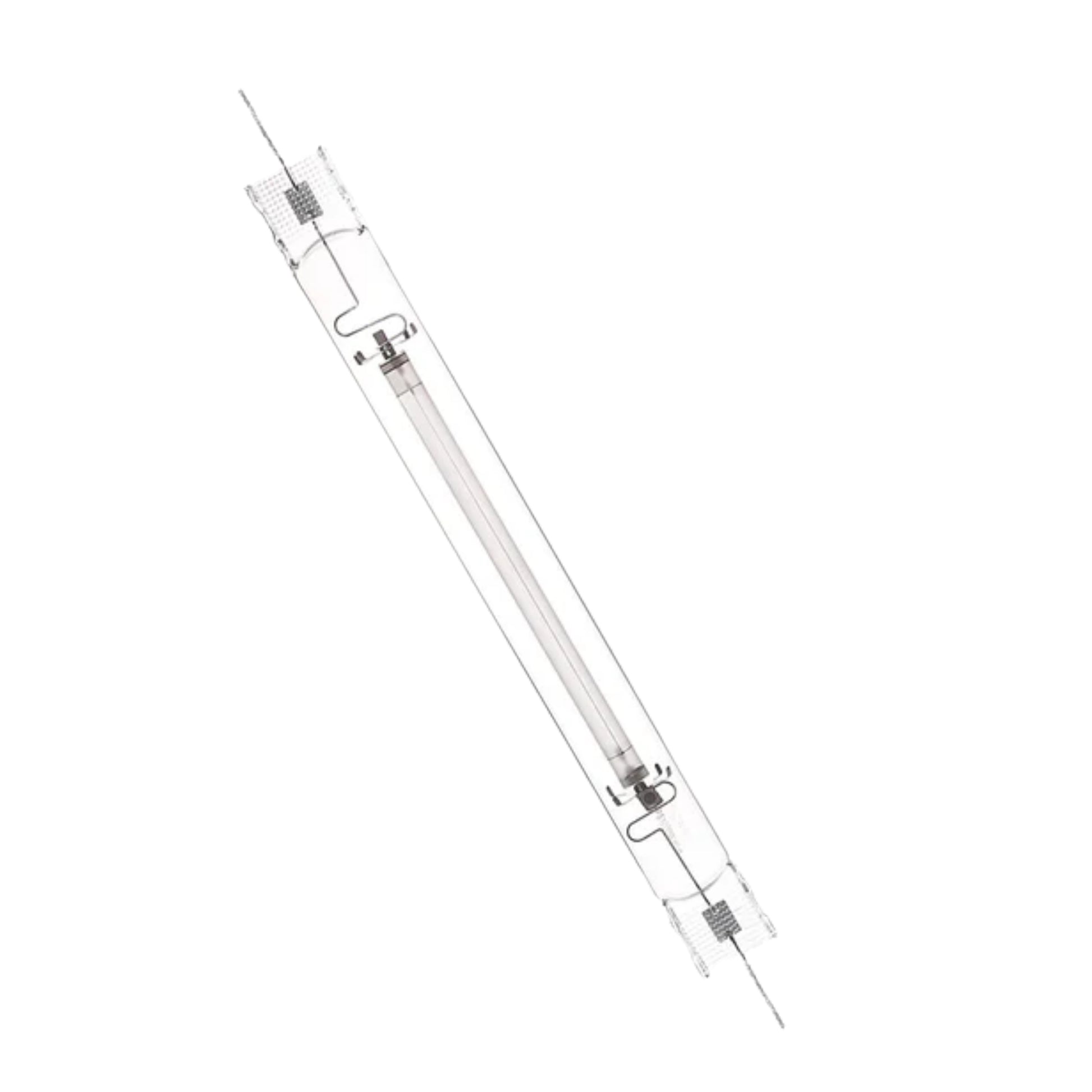

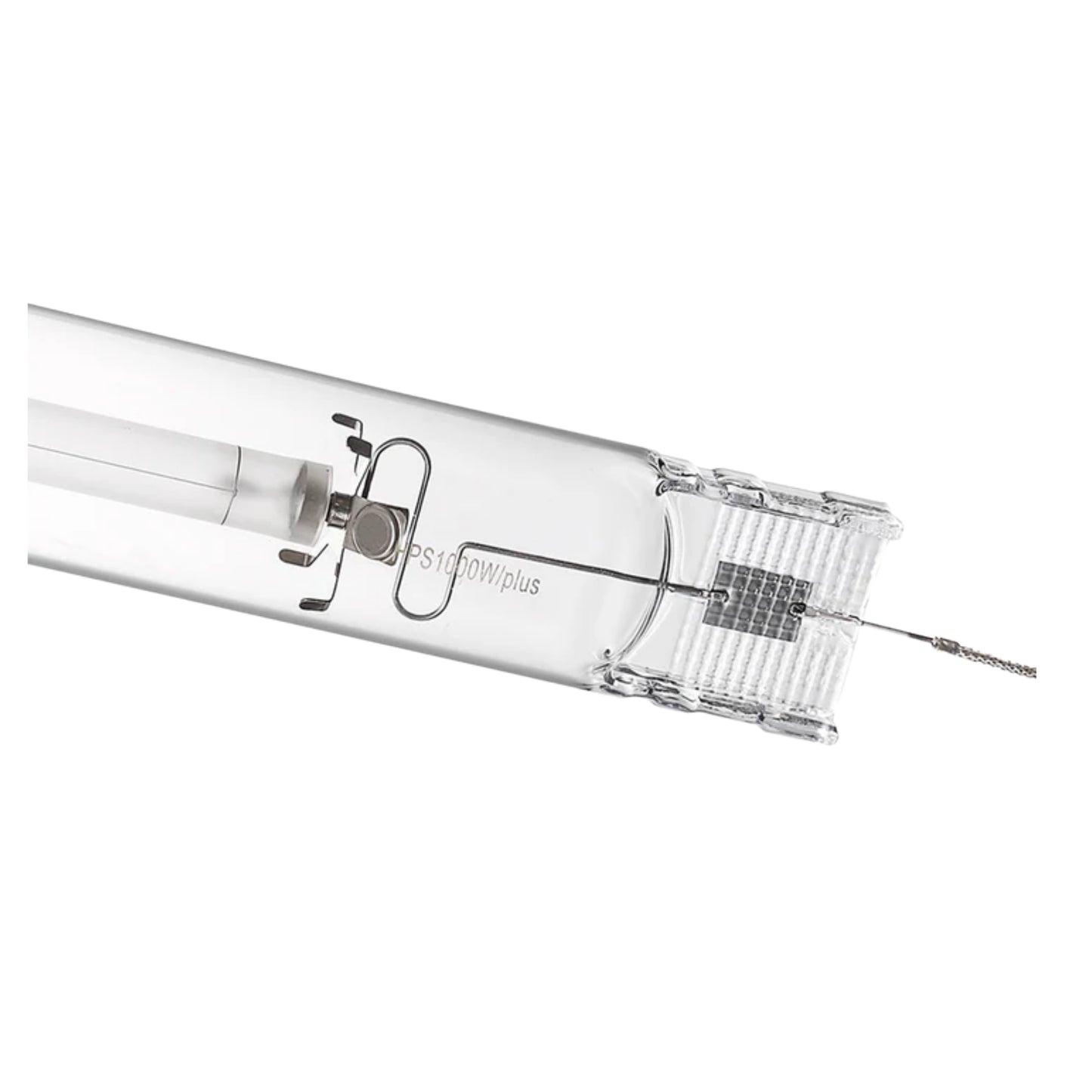

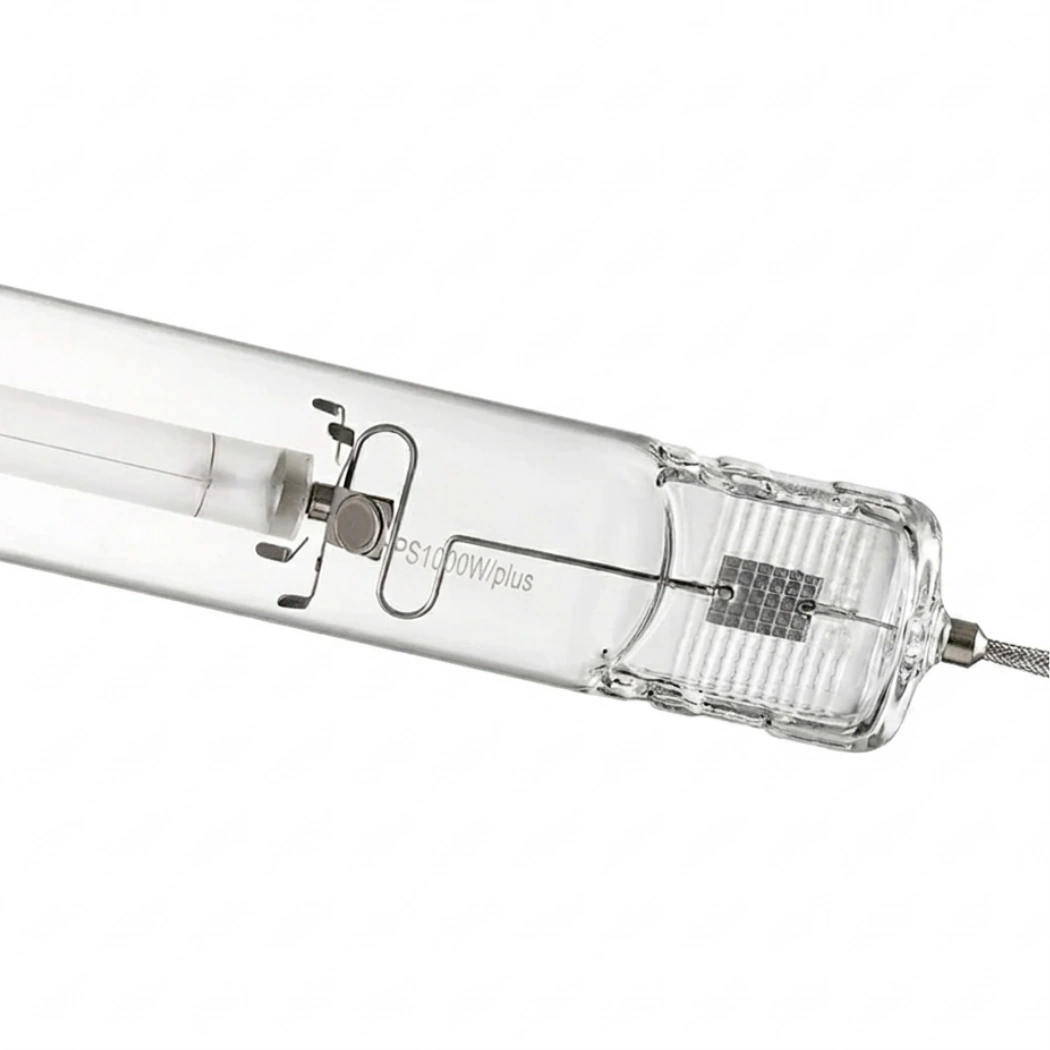

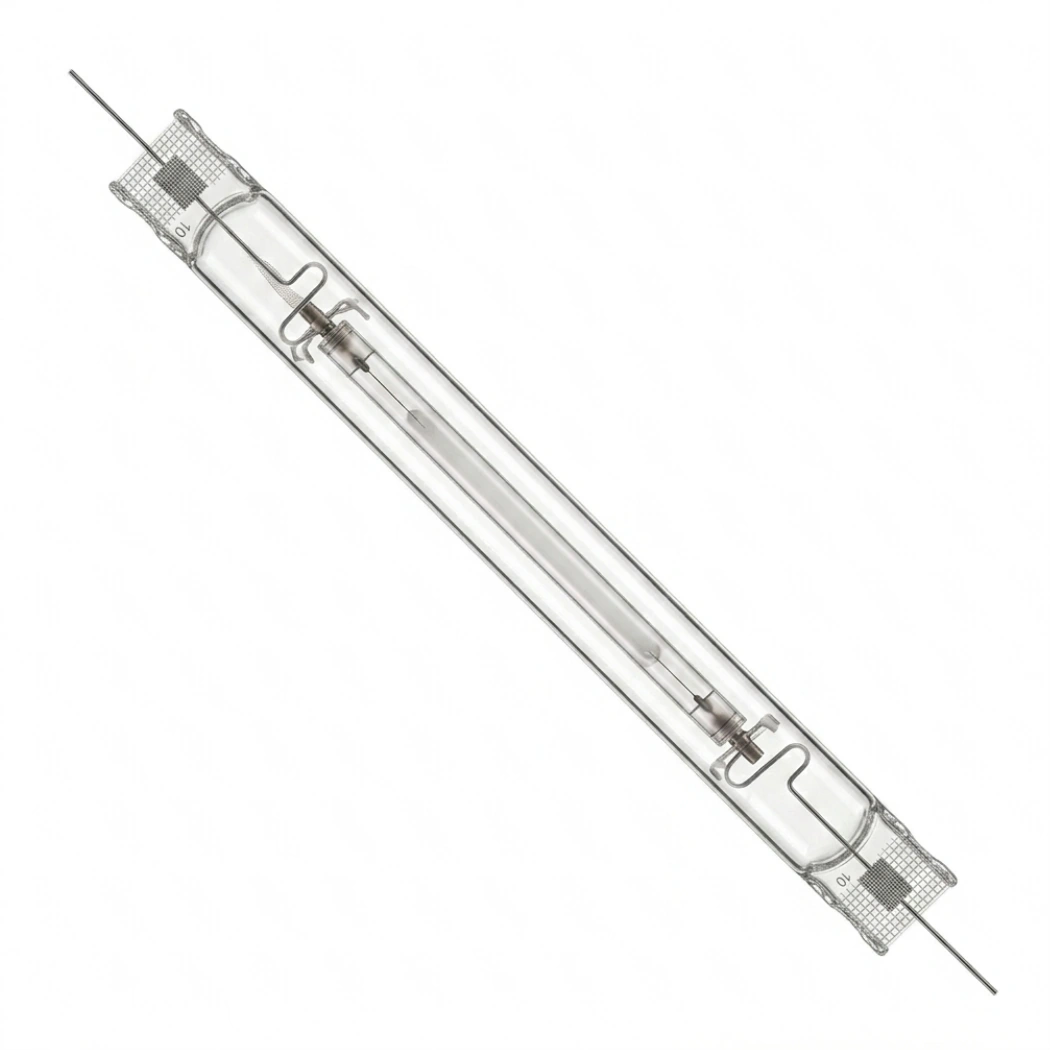

- 2,100 µmol/s with Lamp Included: Ships complete with a matched DE HPS lamp — same top-tier photon output as the no-lamp version, ready to fire immediately
- >96% German Aluminum Reflector: Alanod-grade reflective surface maximizes canopy light delivery with minimal loss across the 5×4 ft coverage area

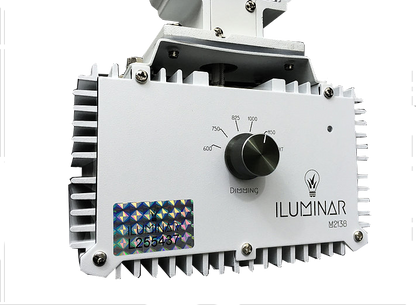

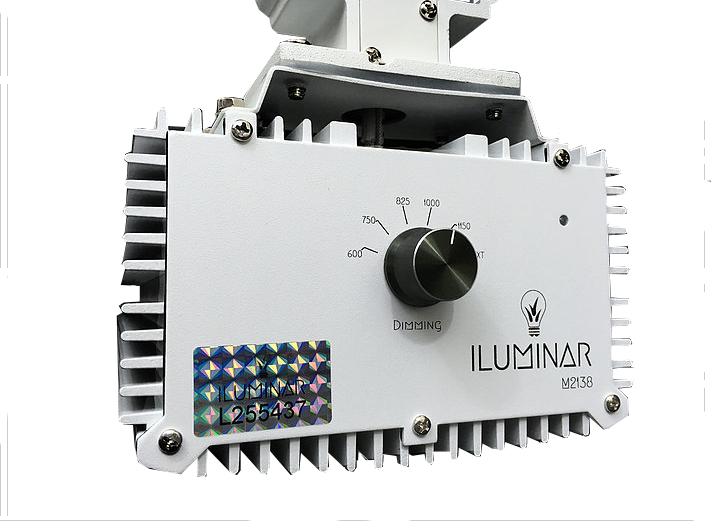

- Dimmable Ballast with Overdrive: Full intensity control from reduced power through 1000W and overdrive lets growers match light levels to crop stage and room conditions
- C-Series Complete Package: Lamp, reflector, ballast, and hanging hardware ship together — no separate components to source for room buildouts

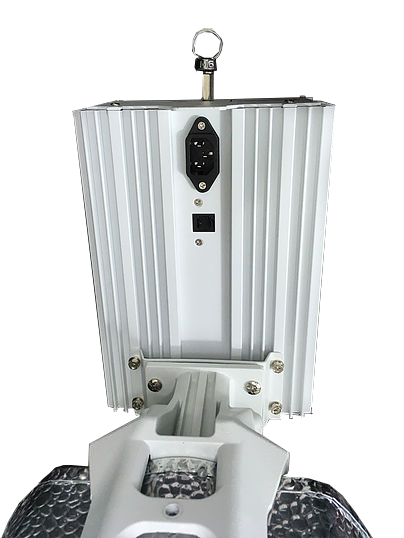

- 120/240V Dual Voltage: Runs on either voltage with >0.99 power factor, keeping commercial installation simple regardless of facility wiring
Technical Specifications
| Specification | Value |
|---|---|
| Fixture Type | Double-Ended HPS (Complete with Lamp) |
| Wattage | 1000W |
| PPF | 2,100 µmol/s |
| Input Voltage | 120/240V |
| Power Factor | >0.99 |
| Reflectivity | >96% (German Aluminum) |
| Coverage | 5×4 ft @ 4 ft mounting height |
| BTU Output | 4,400 |
| Weight | 13.66 lbs (6.2 kg) |
| Dimmable | Yes (with Overdrive) |
| Lamp Included | Yes (DE HPS) |
| Remote Control | Compatible |
| Operating Temp | 32–95°F (0–35°C) |
