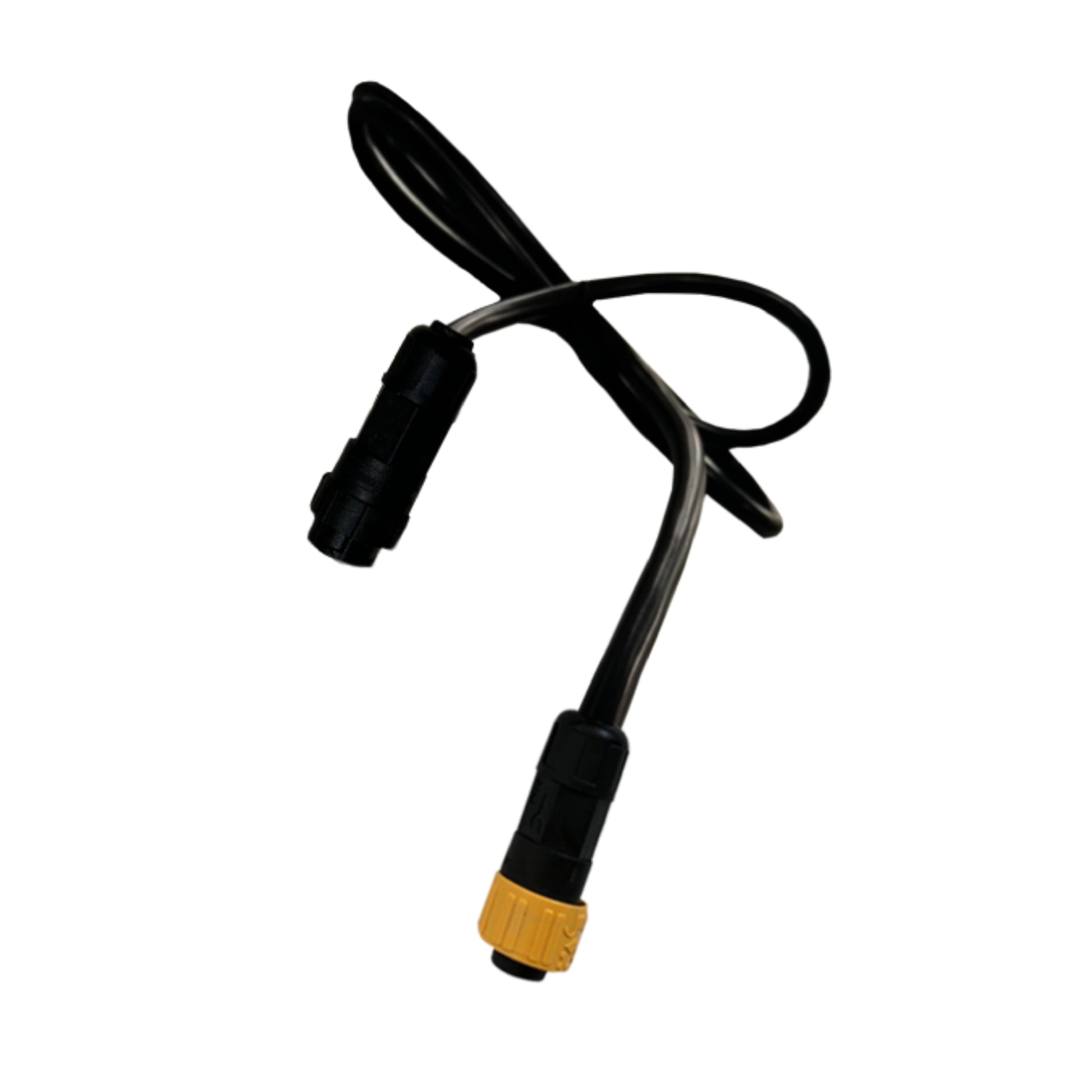

iluminar IL5 IL8 IL12 Daisy Chain AC Cord | 6 ft / 1.8 m | IP67

IL5 IL8 IL12 daisy chain AC for sealed plug-and-play installs

The Iluminar daisy chain cord links iL5, iL8, and iL12 LED grow lights through a 1.8-meter sealed run. It carries 120-277V at the fixture-to-fixture pass-through, so it tracks any modern Iluminar driver. An IP67 connector locks the joint against dust and humidity inside flowering rooms. The 6-foot length matches the spacing growers actually use between iL Series fixtures on a single rack. Up to six units chain off one source, subject to per-fixture amperage and breaker headroom.

IL5 IL8 IL12 daisy chain AC that consolidates fixture wiring

Growers typically run a fixture-to-fixture chain to consolidate trunk wiring on one branch. Place the cable with the female end at the upstream fixture and the male end seating into the next IL unit. At up to 6 chained units, the load math has to clear the breaker — verify per-fixture draw before you commit. The IP67 sealing shrugs off canopy mist and runoff splash that would corrode lesser connectors mid-flower. The 1.8-meter reach matches realistic between-fixture spacing on Iluminar racks, not idealized layout diagrams. And the sealed lock keeps the joint from working loose during thermal cycles that drift straight blades. On a clean install, the chain trims the outlet count without forcing an upstream panel upgrade. Pair the chain with the Iluminar single-feed power cord at the head end to anchor the run to the breaker.

Key Features

• IP67 sealed AC connector: Keeps the joint dust- and water-tight through canopy mist and runoff cleanup.
• 120-277V pass-through: Tracks Iluminar driver voltage on residential or commercial branch circuits.
• 1.8 m / 6 ft length: Matches realistic between-fixture spacing on iL Series racks.
• Up to 6 fixture chain: Cuts the outlet count once breaker math clears for the chained load.
• Built for iL5, iL8, iL12: Drop-in for the IL Series fixture family without splices.
