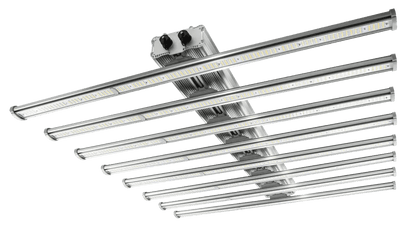

• Iluminar iLogic8 630W UV + Far Red main image

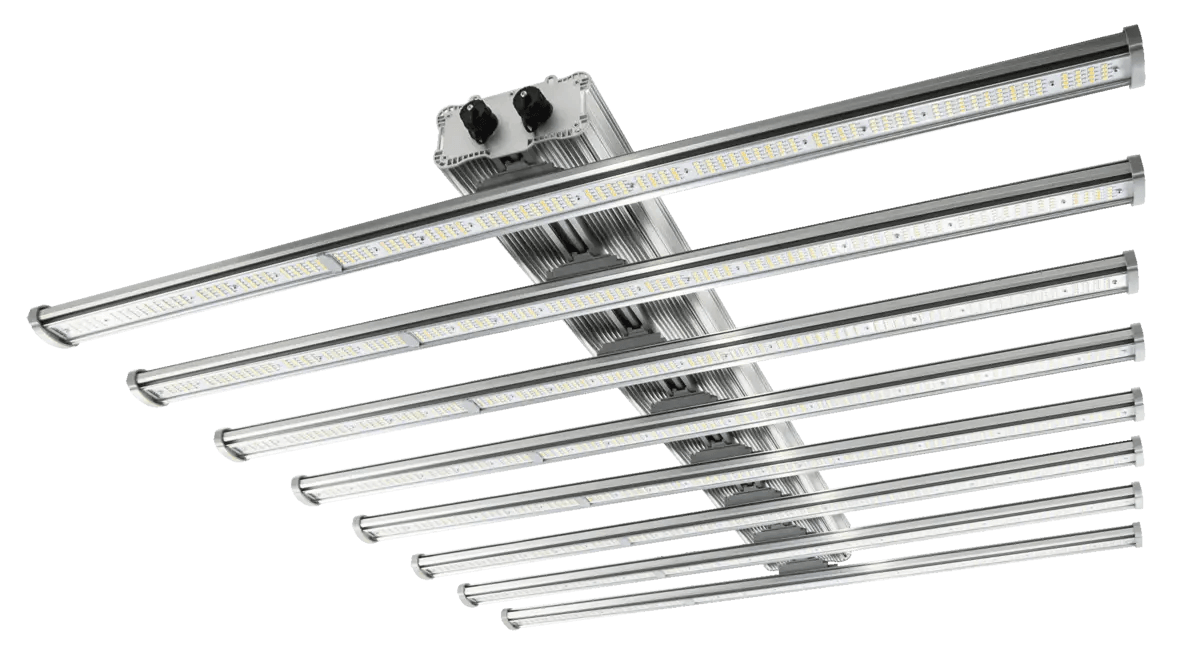

  • Iluminar iLogic 8 630W promotional

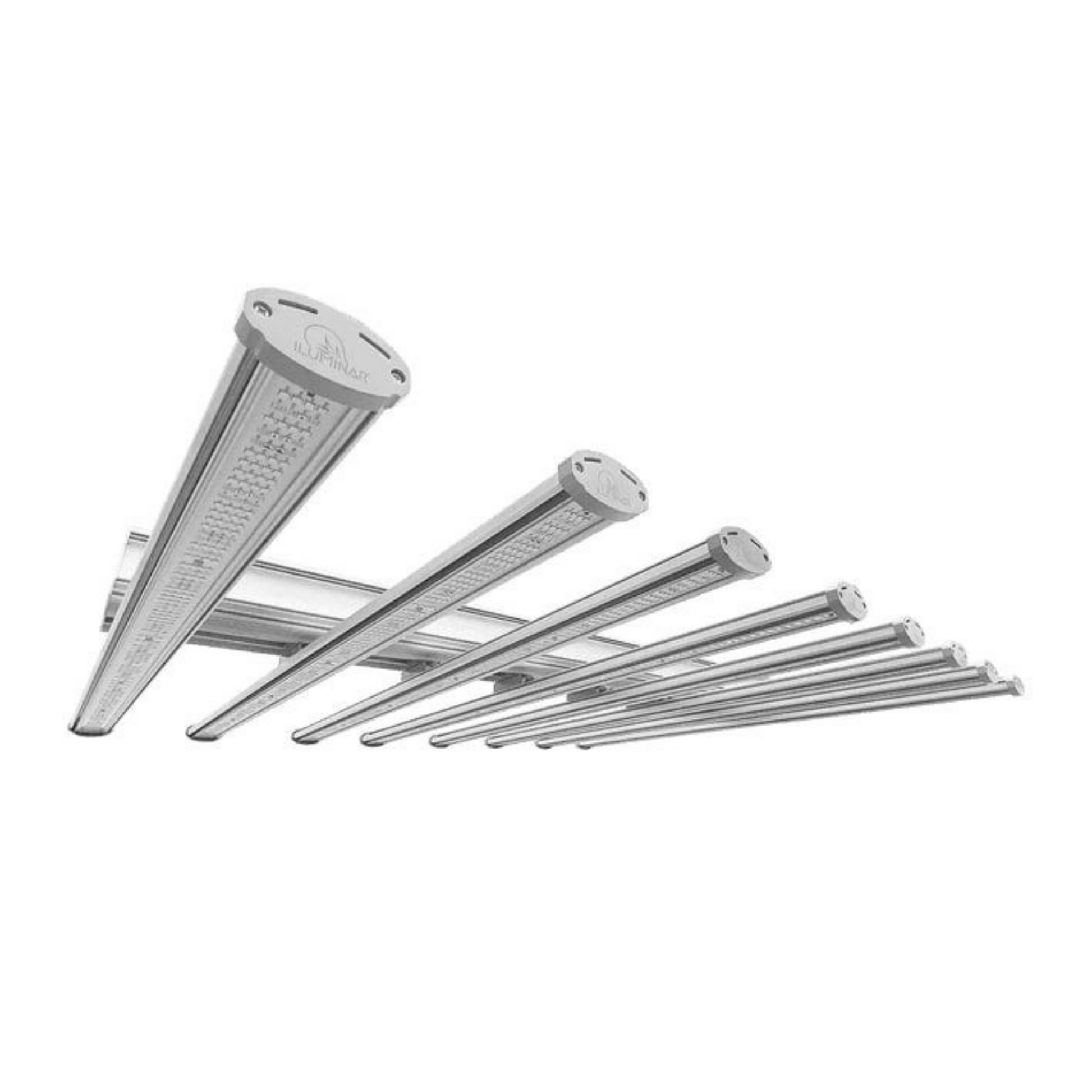

  • Iluminar iLogic 8 630W 120-277V Fixture UV + Far Red Iso View Front

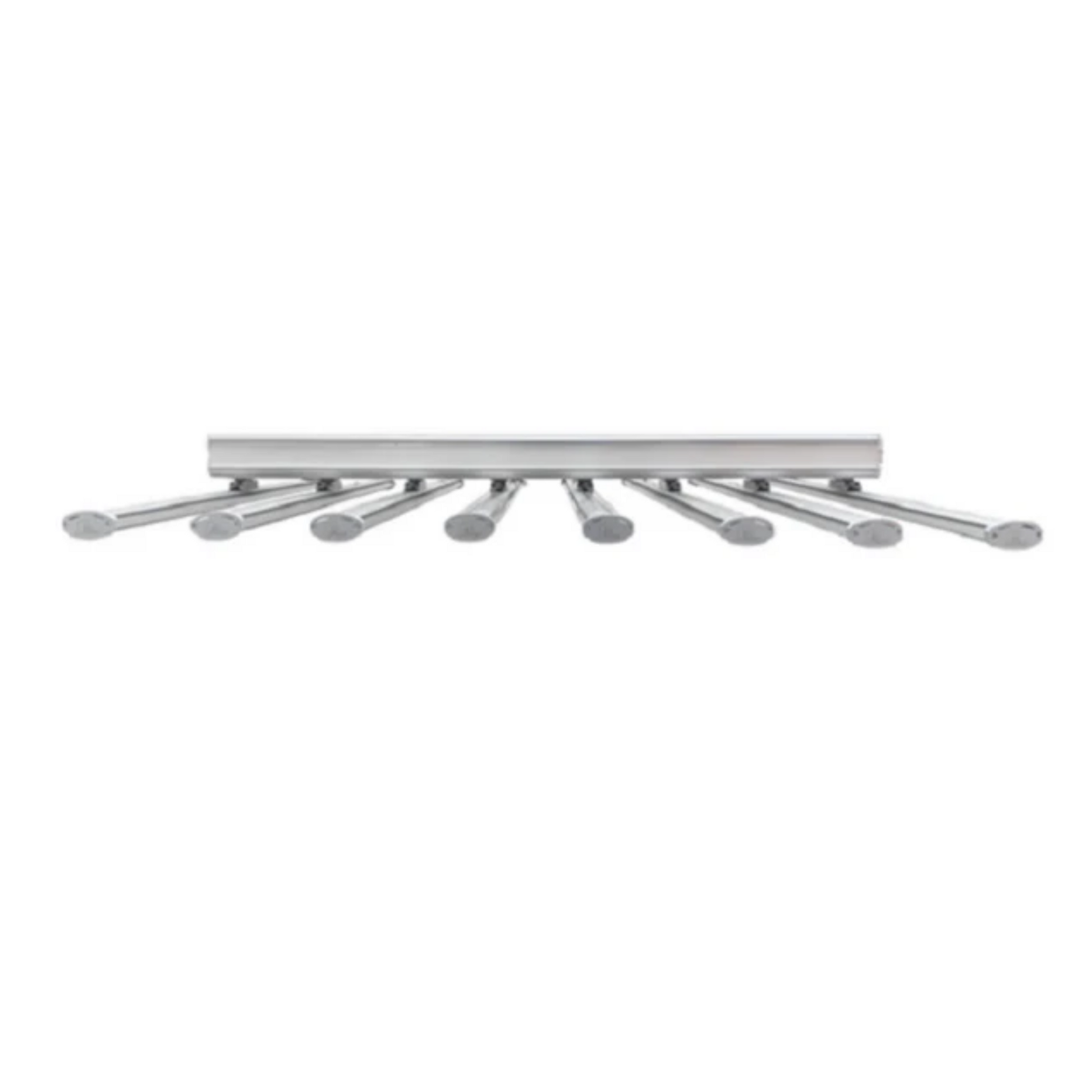

  • Iluminar iLogic8 630W side view

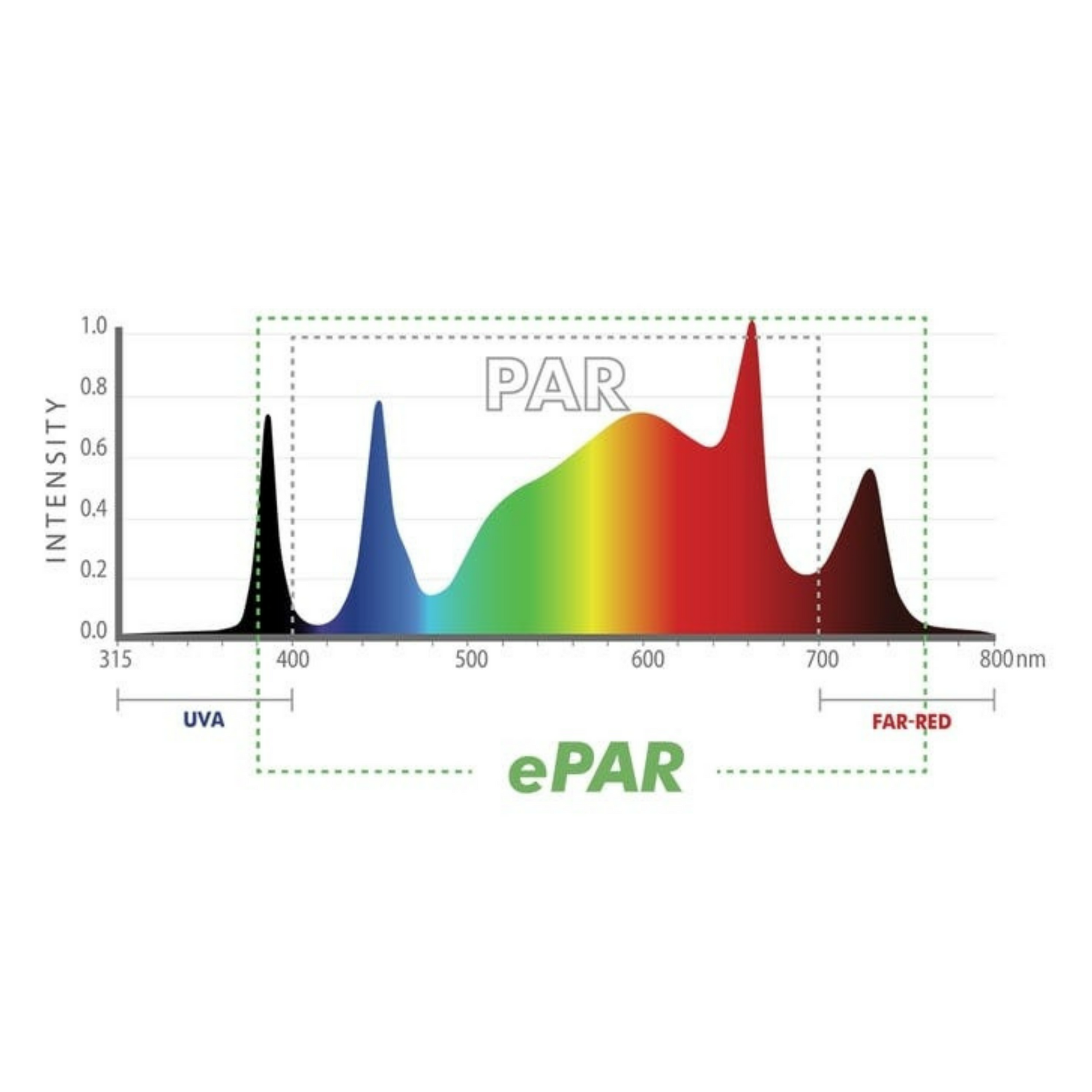

  • Iluminar iLogic8 630W spectrum
1 5
Brand: Iluminar Lighting

Iluminar iLogic8 630W 120-277V LED Fixture - Full Spectrum

Iluminar iLogic8 630W 120-277V LED Fixture - Full Spectrum

SKU: IL-iLOGIC8-FS

Ordering a large quantity of this item?
As long as the order total is more than $2K you can:

$799.00 USD
$799.00 USD
Sale Sold out
Shipping calculated at checkout.

KILLER PRICE
This item is heavily discounted and may not qualify for discounts.

Availability: Online | Will Call Locations Stock May Vary

The Iluminar iLogic8 630W LED fixture produces 1,700 µmol/s at 2.7 µmol/J on Smart Sensing 100–277V input, with a uniform 4×4 ft 3,900K full-spectrum footprint, IP66 build, and hot-swap light bars for indoor cultivation.
View full details

Iluminar iLogic8 630W Full-Spectrum LED Fixture

The Iluminar iLogic8 Full Spectrum produces 1,700 µmol/s at 630W for an efficacy of 2.7 µmol/J, on Smart Sensing 100–277V input. The unit holds a uniform 4′ x 4′ footprint at an 8–12” hang height with a 3,900K full spectrum drawn from 2,400 Samsung LM281B+ Pro diodes plus 108 Honglitronic 660nm deep-red diodes.

Hot-Swap Light Bars and IP66 Build for Indoor LED Cultivation

Hot-swap easy-release clips let growers replace individual light bars without taking the full fixture offline, and inset diodes simplify cleaning between cycles. The high-end Sosen LED driver runs 0–10V dimmable, with IP66 wet rating, ETL/DLC/FCC/CE listings, 50,000+ hour LED lifespan, and a 5-year warranty for single-tier or multi-tier rack systems running CO2-enriched flower rooms.

Key Features

  • 1,700 µmol/s at 2.7 µmol/J: Strong canopy penetration over a uniform 4′ x 4′ footprint at 630W draw.
  • 2,400 Samsung LM281B+ Pro + 108 660nm: Full-spectrum 3,900K white blended with deep-red diodes for veg-through-flower coverage.
  • Smart Sensing 100–277V: Single SKU runs on residential 120V or commercial 277V without driver swaps.
  • Hot-Swap Light Bars: Easy-release clips let individual bars come out for service without removing the fixture.
  • IP66 Damp/Wet Rated Sosen Driver: Sealed extruded heat sink with 50,000+ hour lifespan and 5-year warranty.

Technical Specifications

Specification Value
Power 630W
PPF 1,700 µmol/s
PPE 2.7 µmol/J
Voltage 100–277V Smart Sensing
Color Temperature 3,900K
Spectrum Full Spectrum
LED Diodes 2,400 Samsung LM281B+ Pro + 108 Honglitronic SMD3535 660nm
Driver Sosen LED Driver
Coverage Footprint 4×4 ft
Mounting Height 8–12” to top of canopy
Dimming 0–10V Controllable
Light Distribution 120°
IP Rating IP66 (Damp/Wet)
LED Lifespan 50,000+ hours
Dimensions 1064mm L x 1002mm W x 124.3mm H (41.9” x 39.4” x 4.9”)
Cooling Passive / Extruded Case
Certifications ETL / DLC / FCC / CE
Warranty 5 years
