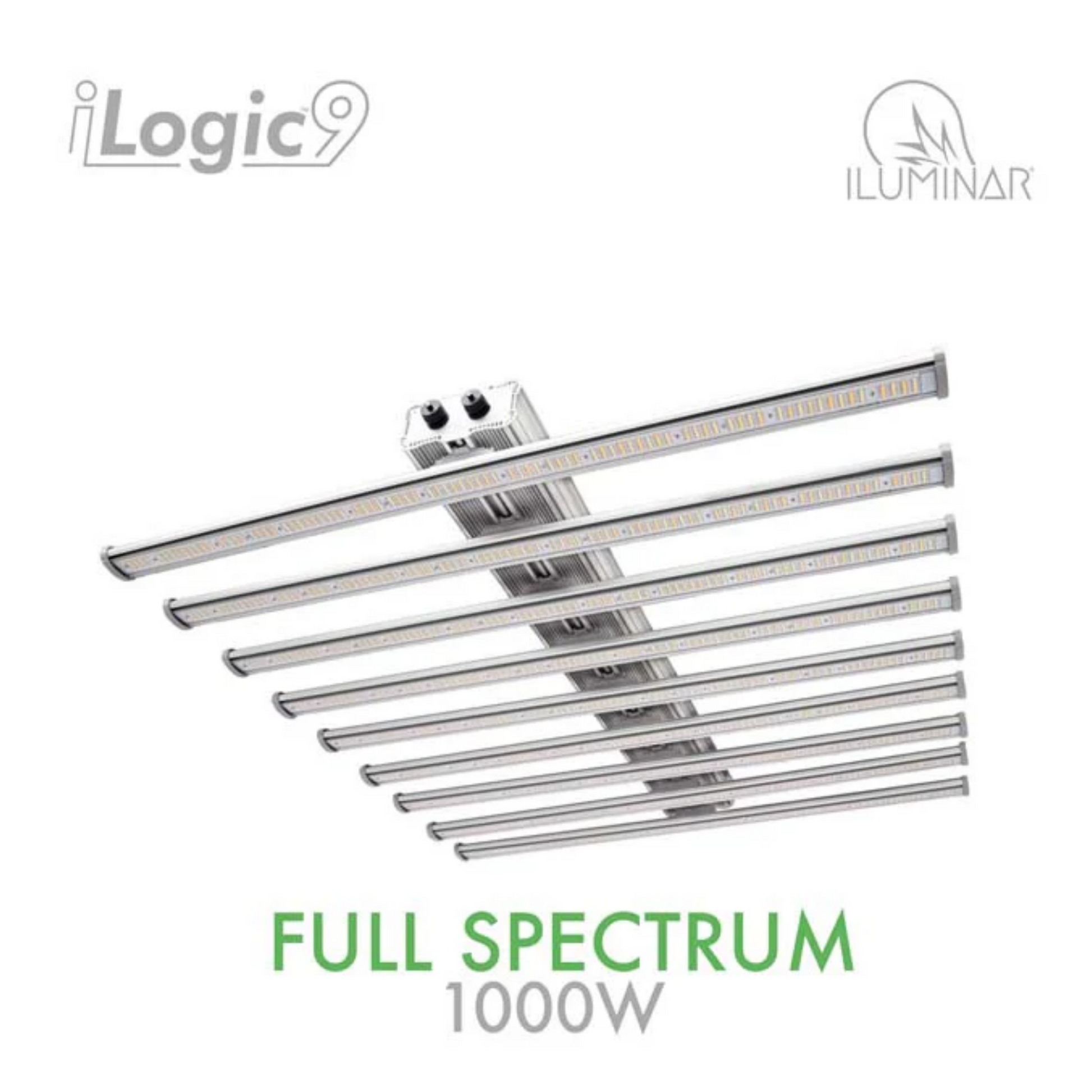

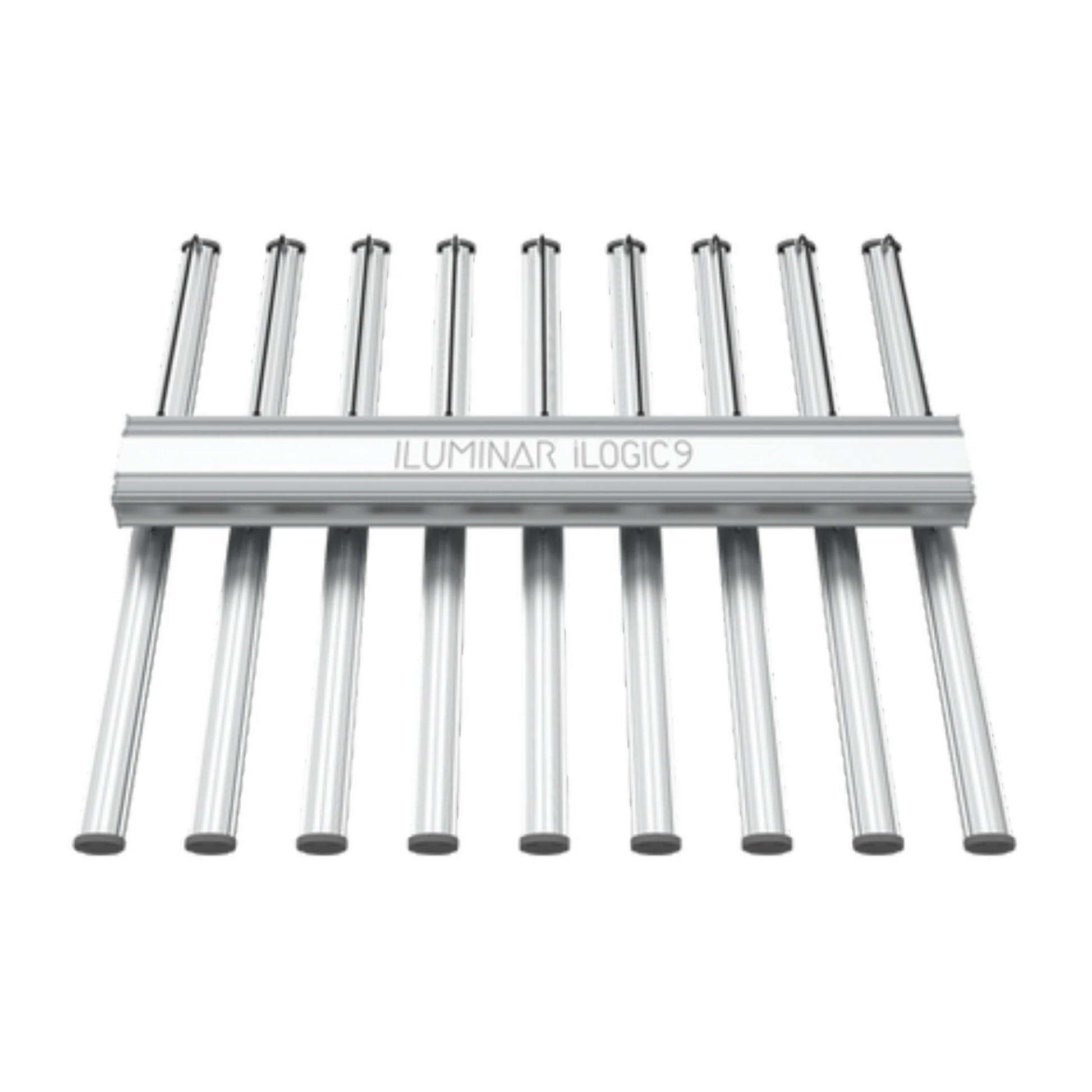

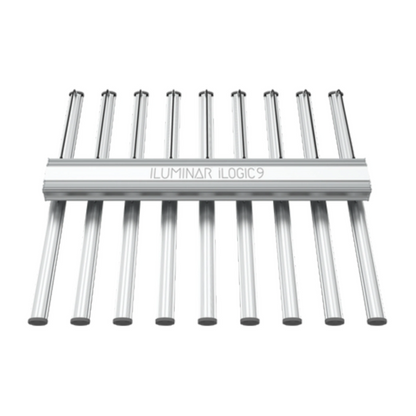

1000W Full-Spectrum LED Fixture with Nine Hot-Swap Light Bars
The iLuminar iLogic9 is a 1000W full-spectrum fixture delivering 2,800 µmol/s PPF at 2.8 µmol/J. Nine OSRAM LED bars cover a 4 x 4 ft flowering footprint with a 5 x 5 ft veg footprint. The 52.5 lb aluminum alloy body uses a four-point hanging system. Hot-swap clips let growers replace individual bars without removing the fixture from service.
Production-Grade 1000W Full-Spectrum LED Fixture for Sealed CO2 Rooms
Growers typically hang the iLogic9 24 to 36 inches above canopy in commercial flowering rooms and ramp from 40% to 100% across early bloom. Mount the fixture using the four-point hanger and pair it with the Touch+ or Hash controller for room-wide schedules. The 1000W full-spectrum LED fixture suits sealed CO2 rooms where 2,800 µmol/s PPF drives heavy production cycles.
Key Features
- 1000W at 2.8 µmol/J: Pulls 2,800 µmol/s PPF across nine OSRAM LED bars for high-output flowering on 4x4 ft canopies.
- Hot-Swap LED Bars: Easy-release clips let growers replace any of the nine bars without taking the fixture down.
- 120-277V Wide Voltage: Accepts standard commercial electrical service across home and production rooms.
- 4-Point Hanging System: Aluminum casing keeps the 52.5 lb fixture level for uniform PPFD across the canopy.
- Touch+ and Hash Compatible: Schedule sunrise, sunset, and dimming via iLuminar Touch+ or Hash controllers room-wide.
Technical Specifications
| Specification | Value |
|---|---|
| Watts | 1000W |
| Voltage | 120-277V |
| PPF | 2,800 µmol/s |
| Efficacy | 2.8 µmol/J |
| Veg Footprint | 5 x 5 ft |
| Flower Footprint | 4 x 4 ft |
| Bars | 9 hot-swap LED bars |
| Diodes | OSRAM |
| Casing | Lightweight aluminum alloy (52.5 lbs / 23.8 kg) |
| Hanging | 4-point system |
| Controllers | Touch+ and Hash |
| Warranty | 5 years |
