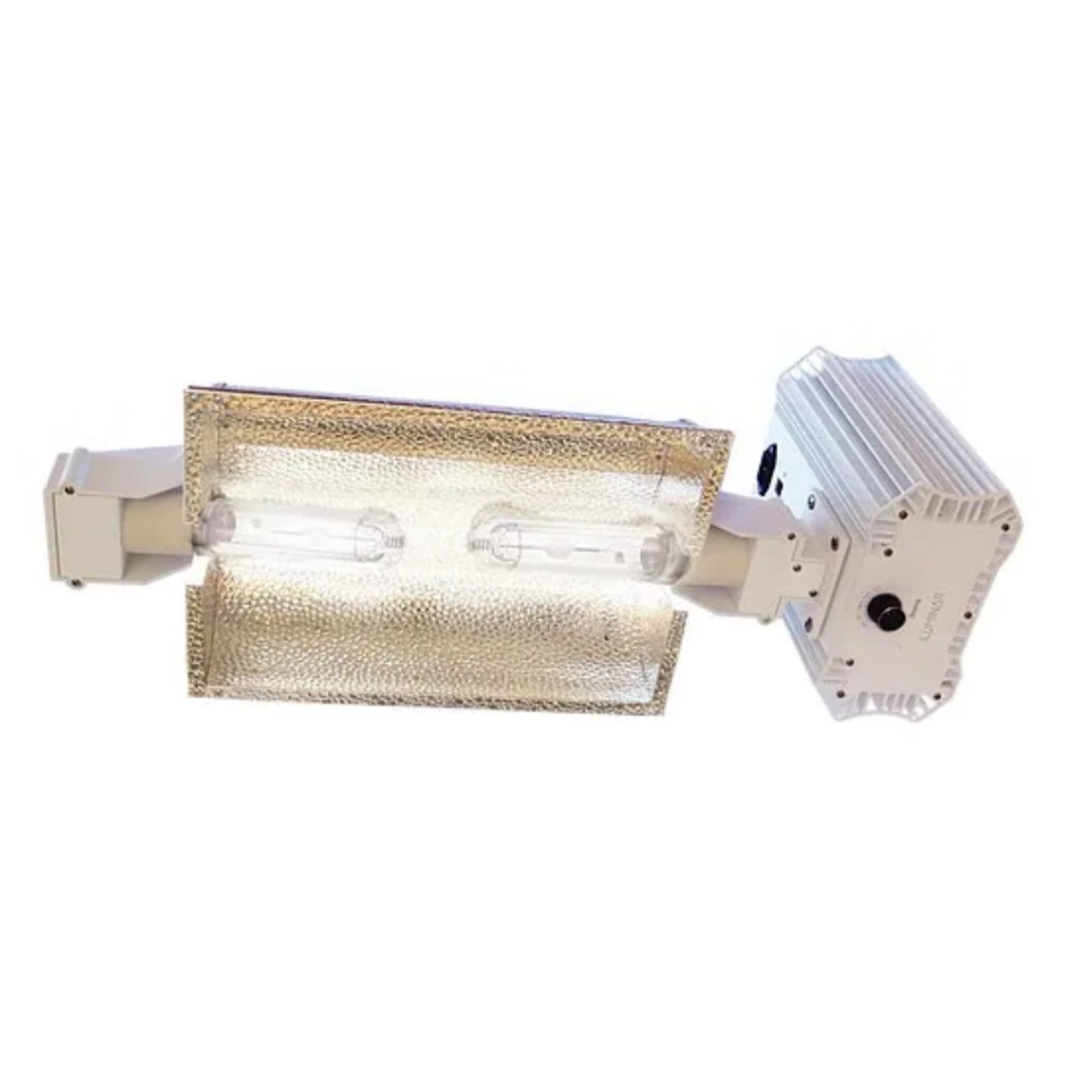

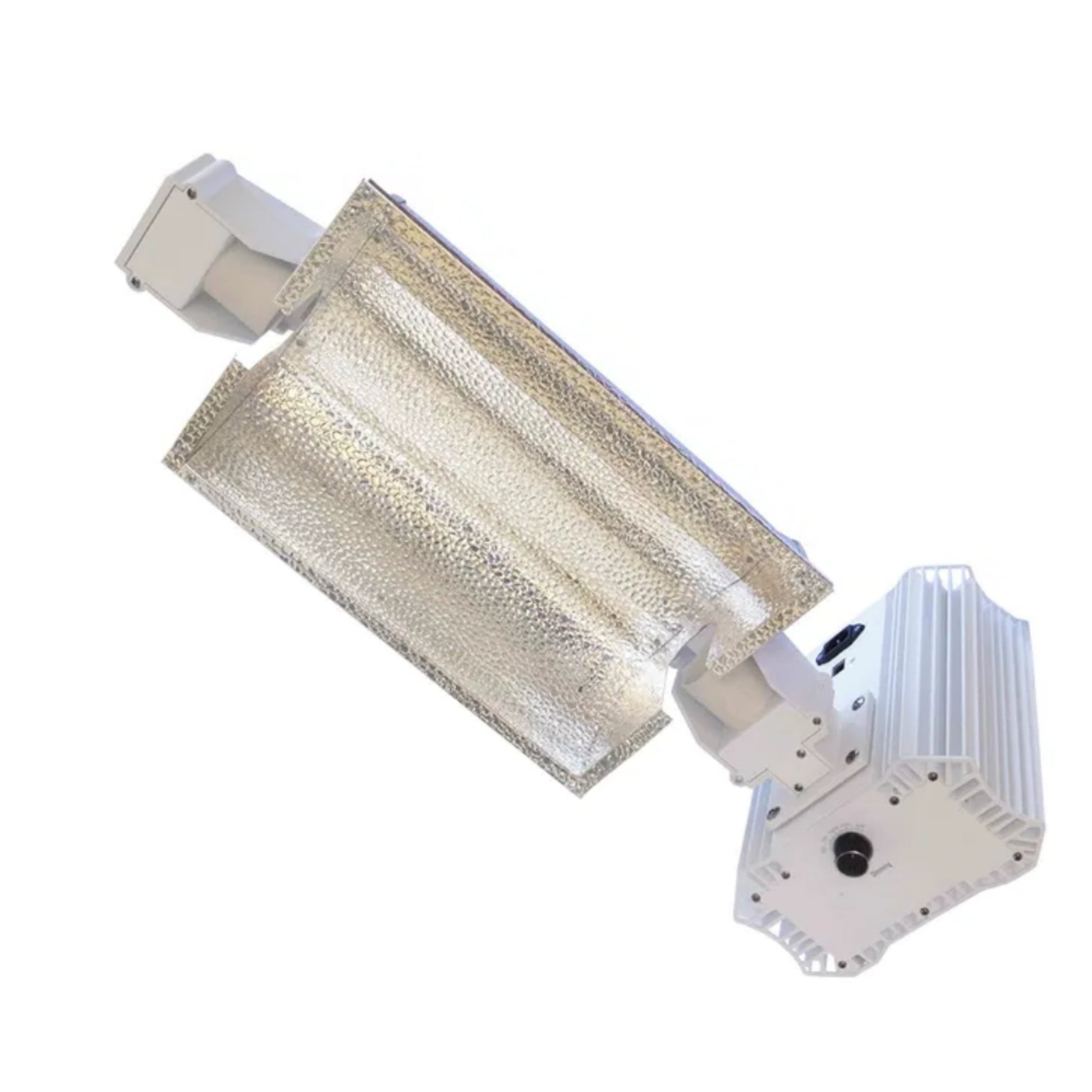

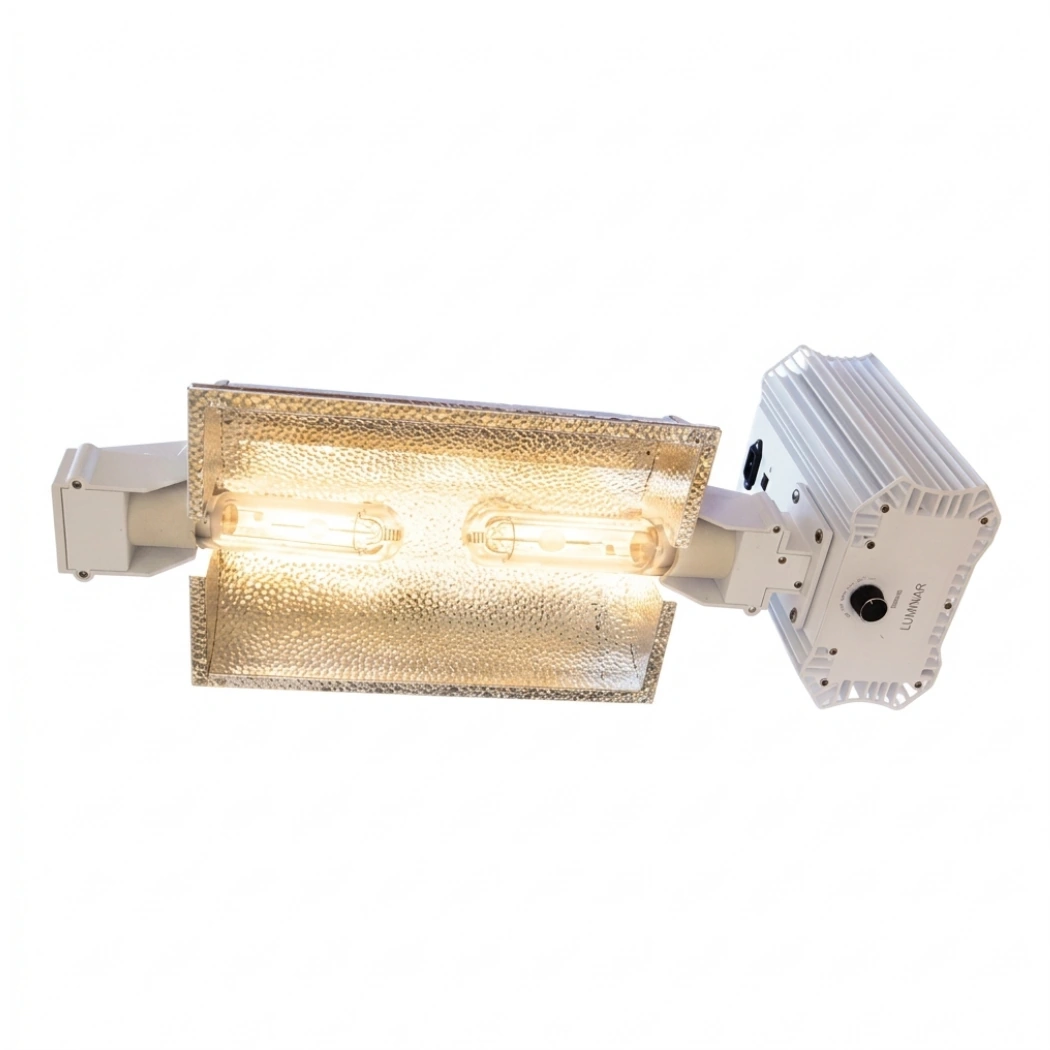

ILUMINAR CMH 630W Dual Lamp Fixture: Broad-Spectrum Output with Integrated Ballast
The ILUMINAR CMH 630W Dual Lamp Fixture runs two opposing 315W ceramic metal halide lamps through an integrated ballast with square-wave technology and RF shielding for clean, stable operation in professional rooms. CMH spectrum sits closer to natural sunlight than HPS or standard MH, driving vigorous growth and richer aroma development across both vegetative and flowering stages. The optimized reflector and dual-lamp design deliver even canopy penetration and consistent PPFD across the footprint, reducing hotspots that lead to uneven plant development.
Gavita and ILUMINAR Touch Controller Compatible for Room-Wide Automation
Compatible with Gavita EL1/EL2 and ILUMINAR Touch controllers for centralized dimming and scheduling, the fixture integrates into existing commercial control infrastructure without proprietary adapters. The two lamps can be dimmed independently from 10% to 100% via 0-10V dimming, giving growers precise spectral and intensity control. Soft-start ignition extends lamp life while ignition-failure protection prevents ballast damage. Rated for 30,000 hours of full-spectrum use. Dimensions: 12.52" × 8.39" × 23.54". Input voltage: 108–264V.
Key Features
- Dual 315W CMH Lamps: Two opposing ceramic metal halide lamps deliver broad-spectrum output closer to sunlight than HPS, driving balanced growth and aroma development
- Independent 0-10V Dimming: Each lamp dims separately from 10% to 100% for precise intensity and spectral control across the canopy
- Gavita EL1/EL2 and ILUMINAR Touch Compatible: Drops into existing commercial control systems for room-wide scheduling and dimming without proprietary adapters
- 30,000-Hour Full-Spectrum Rated Life: Extended service life keeps lamp replacement intervals long and per-cycle costs low across commercial flowering rooms
- Square-Wave Technology with RF Shielding: Stable electrical performance with clean signal operation that won't interfere with controllers or monitoring equipment in the room
Technical Specifications
| Specification | Value |
|---|---|
| Fixture Type | CMH Dual Lamp (Integrated Ballast) |
| Total Wattage | 630W (2 × 315W) |
| Input Voltage | 108–264V |
| Dimming | 0–10V (Independent per lamp, 10–100%) |
| Rated Life | 30,000 Hours |
| RF Shielding | Yes |
| Ignition | Soft Start with Failure Protection |
| Controller Compatibility | Gavita EL1/EL2, ILUMINAR Touch |
| Input Connection | IP67 Wieland Plug |
| Dimensions | 12.52" × 8.39" × 23.54" |
| Operating Temp | 32–95°F (0–35°C) |
| Humidity | 95% (Non-condensing) |
