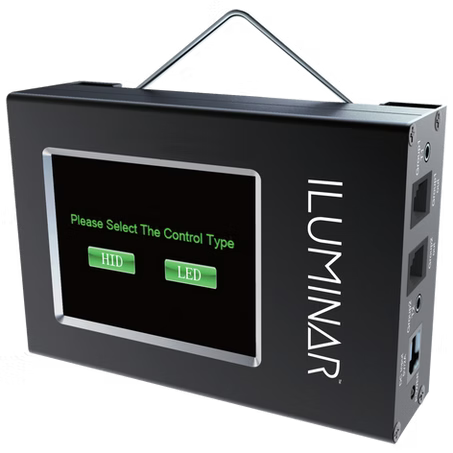

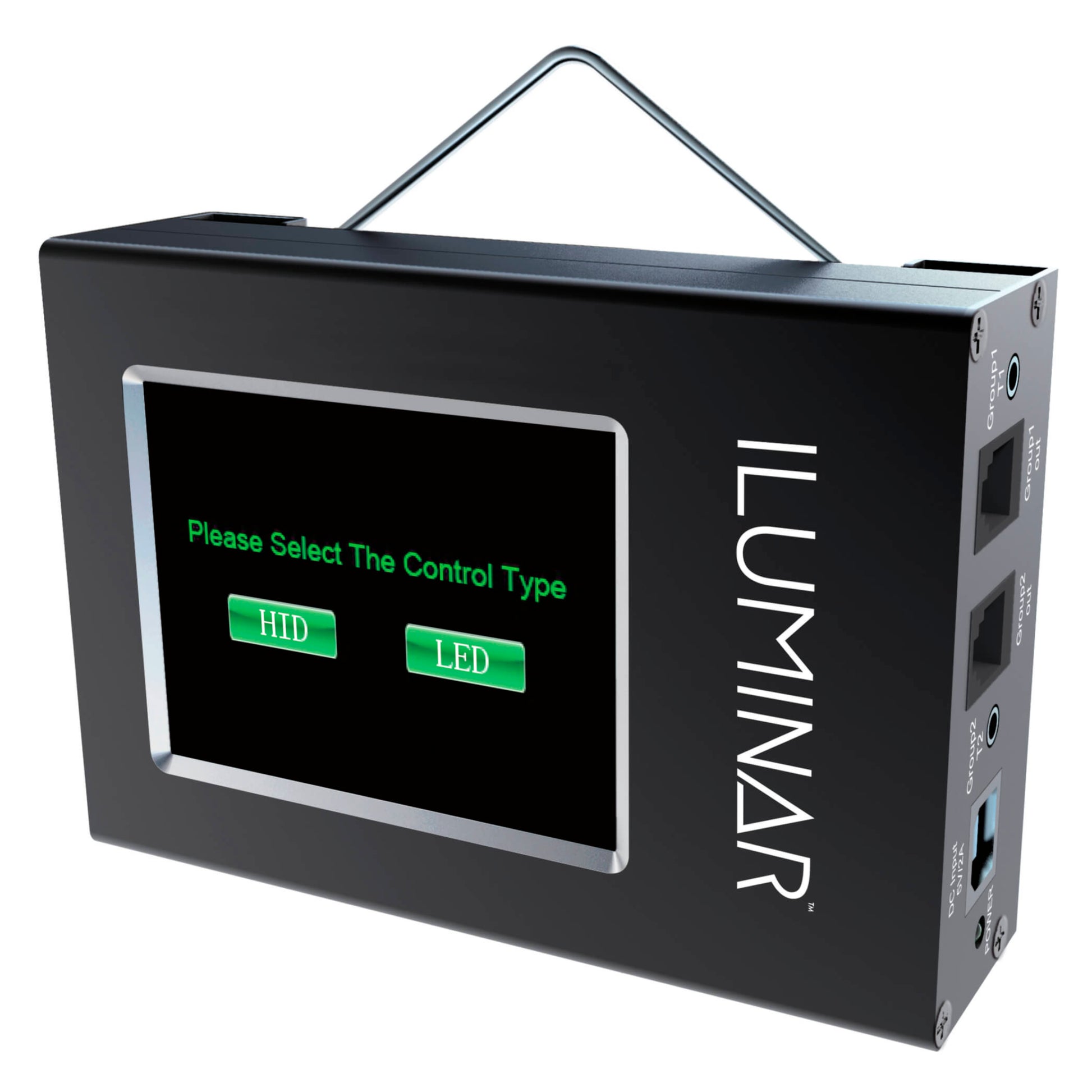

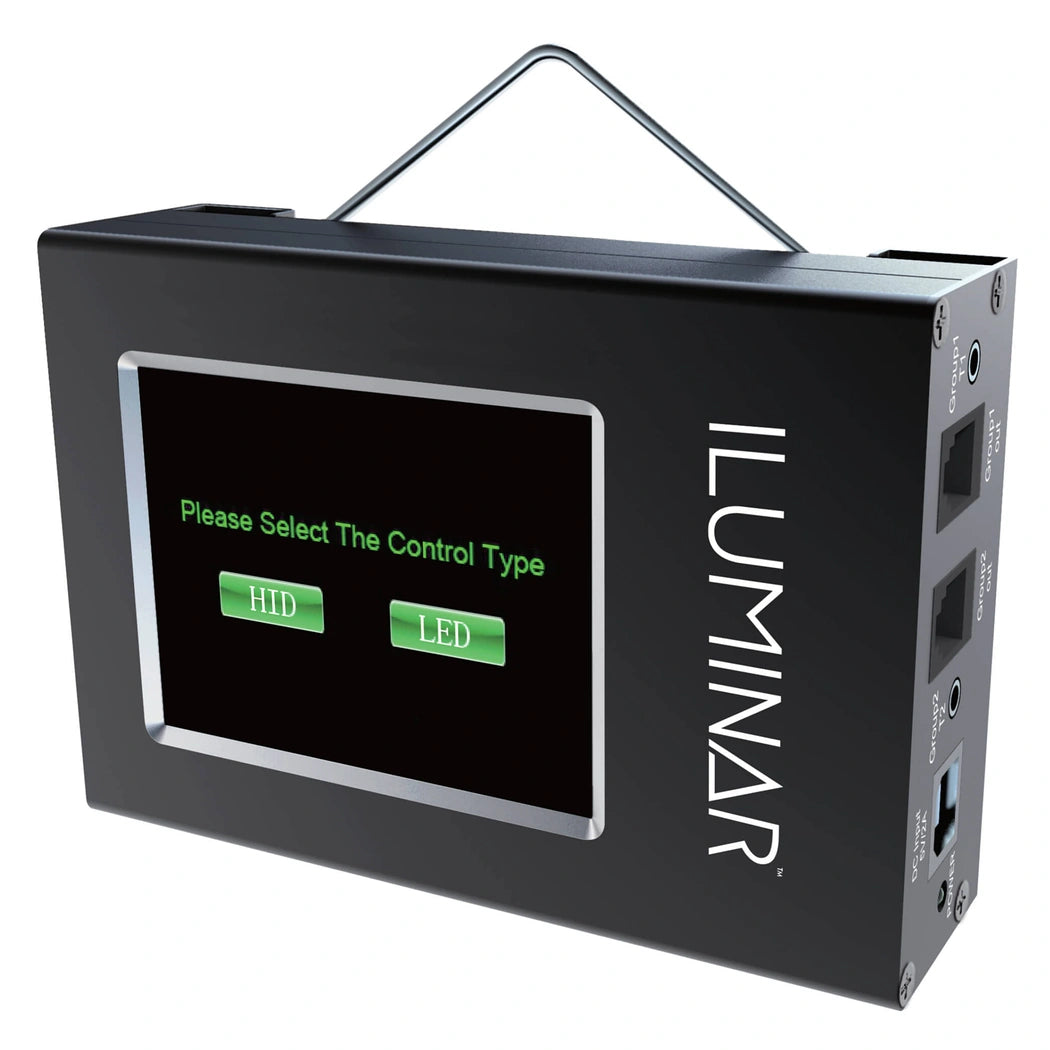

A dual-zone lighting controller for LED, CMH, and HPS
The Touch+ splits into two independent zones, each running up to 60 fixtures for 120 total. Each zone holds its own schedule for a separate room or bench. It works across LED, CMH, and HPS, dimming HID from 50 to 115% and LED from 20 to 100%. Sunrise and sunset simulation ramps lights gradually to ease plants through each transition. Growers set both zones on the LCD touchscreen, and battery backup keeps the settings through a power outage.
Temperature safety on the Touch+ Controller
Two temperature inputs, one per zone, feed automatic shutdown that cuts a zone's lights if it overheats. At 1.1 lbs and just over four inches wide, it mounts almost anywhere near the fixtures. The kit includes the controller, an RJ9-to-RJ14 cable, and dual temperature probes. One note: it is a lighting controller, so climate gear like fans or dehumidifiers runs on a separate environmental controller.
Key Features
- 120 Fixtures, Two Zones: Runs up to 60 fixtures per zone, 120 total, on separate schedules.
- LED / CMH / HPS: Dims HID 50-115% and LED 20-100% across mixed fixtures.
- Sunrise/Sunset Simulation: Ramps lights up and down to ease each transition.
- Dual Temperature Inputs: One probe per zone for zone-specific monitoring.
- Auto Temperature Shutdown: Cuts a zone's lights if the room overheats.
- LCD Touchscreen + Backup: On-unit screen with battery backup for saved settings.
- Compact Build: 1.1 lbs and 4.21 inches wide for easy mounting.
Technical Specifications
| Specification | Value |
|---|---|
| Max Fixtures | 120 (60 per zone) |
| Zones | 2 independent |
| Fixture Support | LED, CMH, HPS |
| Dimming | HID 50-115%, LED 20-100% |
| Temperature Inputs | 2 (one per zone) |
| Safety | Auto temperature shutdown |
| Display | LCD touchscreen, battery backup |
| Operating Range | 70-120 degrees F, <90% humidity |
| Dimensions | 4.21 x 2.91 x 1.22 in |
| Weight | 1.1 lbs |
| In the Box | Controller, RJ9-to-RJ14 cable, dual temp probes |
