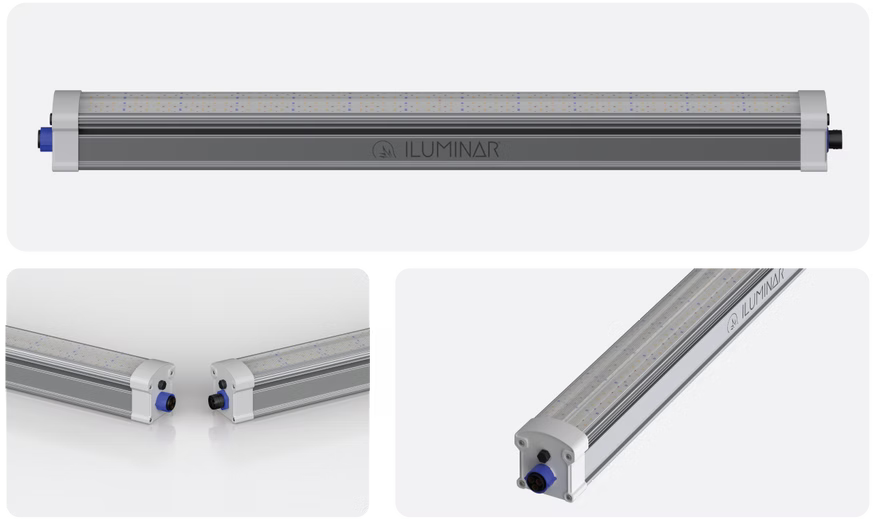

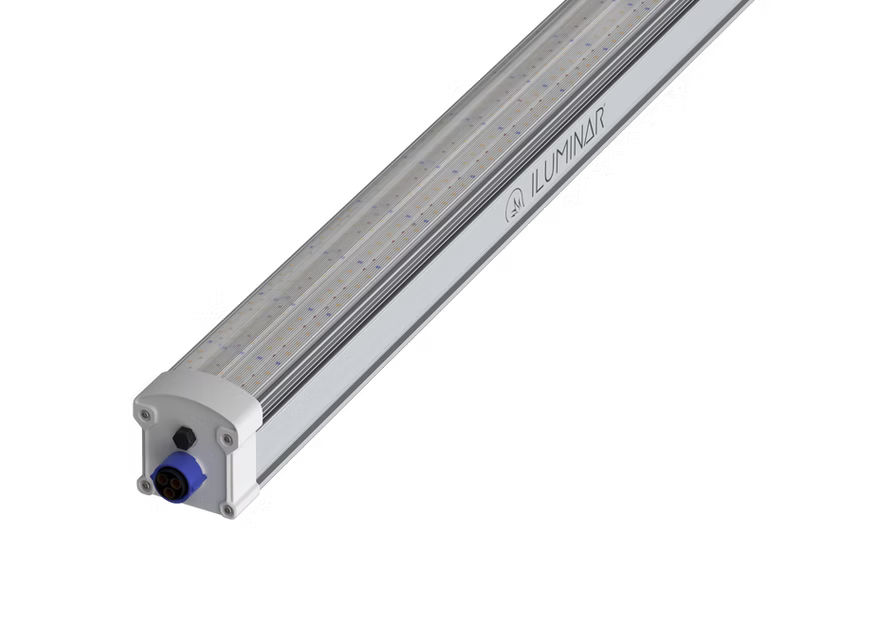

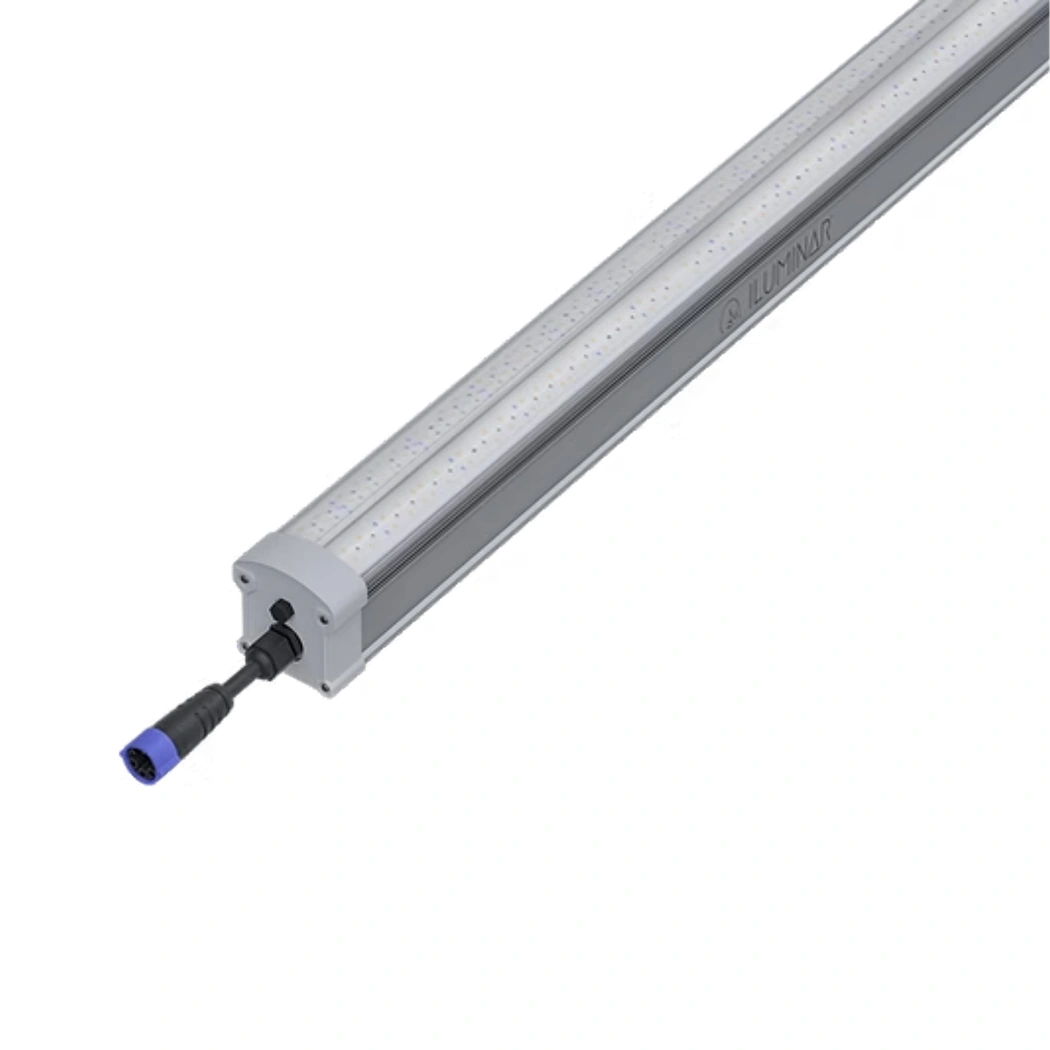

iLuminar Under Canopy 160w Full Spectrum 120-277V

160W full spectrum under canopy LED for balanced lower-canopy light

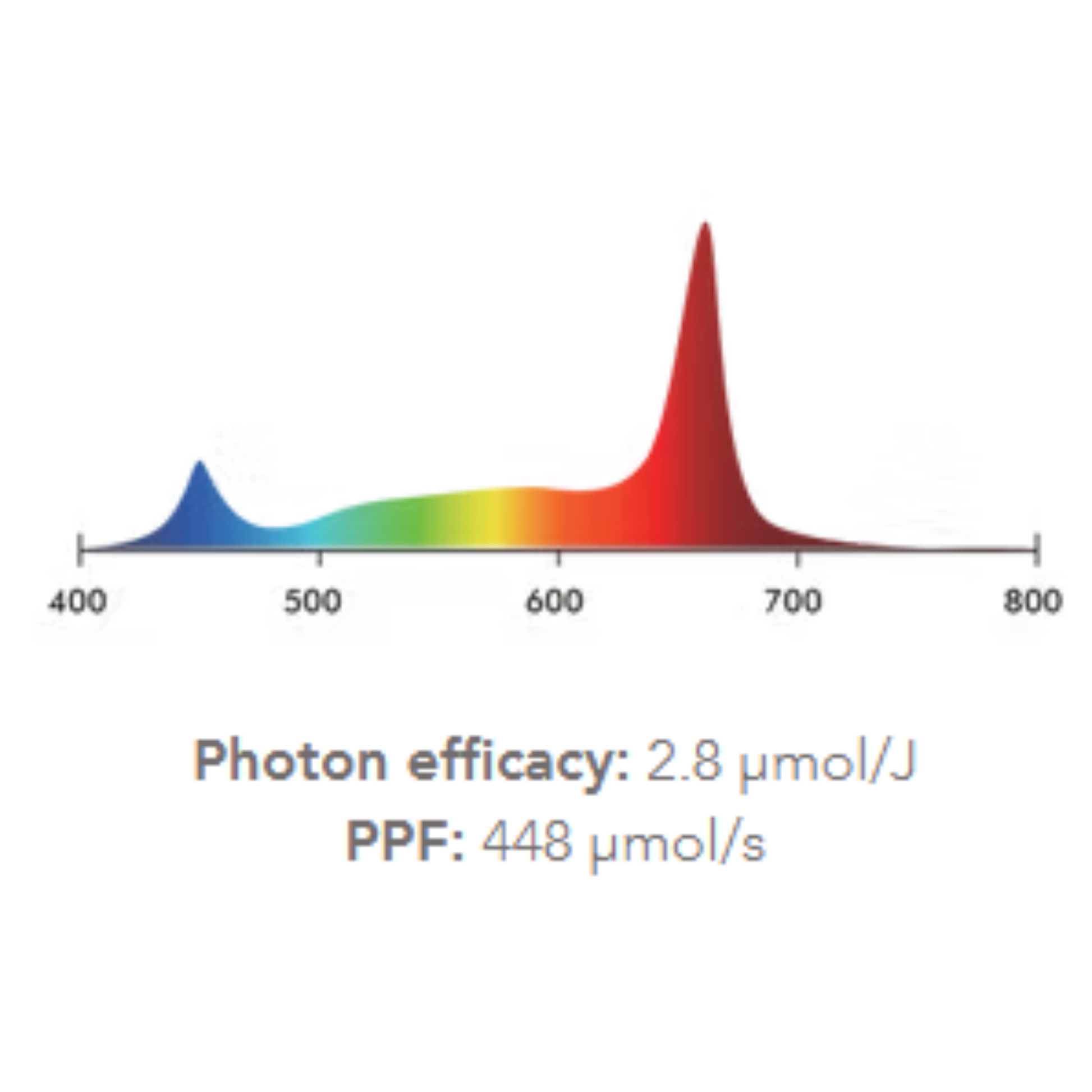

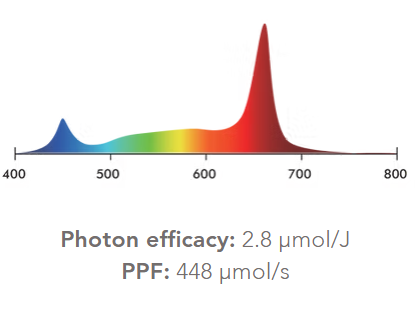

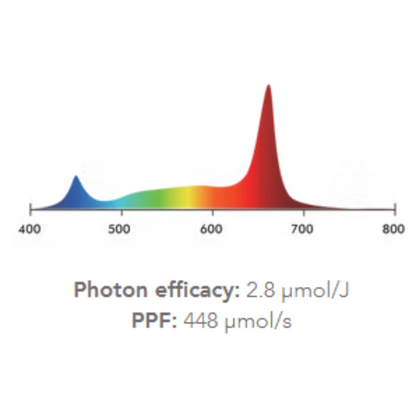

The iLuminar Under Canopy 160W bar runs on 120-277V AC at 0.58-1.33A and delivers 448-480 µmol/s PPF at 2.8-3.0 µmol/J efficacy. The balanced full-spectrum output, with added yellow and green wavelengths, targets lower leaves and bud sites with photons typically blocked by dense overhead canopies.

Full-spectrum under-canopy LED for HPS and DE-HPS top-light pairings

The bar pairs with HPS and DE-HPS top lights, filling the spectral gaps that reach lower bud sites. Two 4-foot bars share one 80W-per-bar supply and support terpene development down the canopy. IP65 protection handles humidity and overspray, and the included support stand allows free-standing placement on rolling benches. A 120-degree distribution spreads light, and 0-10V dimming chains up to 28 lights on 277V circuits. Passive cooling adds no moving parts.

Key Features

• 160W Power Draw: Pulls 160W on 120-277V AC with 0.58-1.33A input current depending on supply voltage.
• 480 µmol/s Full Spectrum: Delivers 448-480 µmol/s at 2.8-3.0 µmol/J efficacy with added yellow and green wavelengths.
• HPS/DE-HPS Companion: Built to pair with HPS and DE-HPS top lights, filling lower-canopy spectral gaps.
• IP65 Wet-Rated Body: IP65 ingress protection runs reliably under irrigation and misting systems.

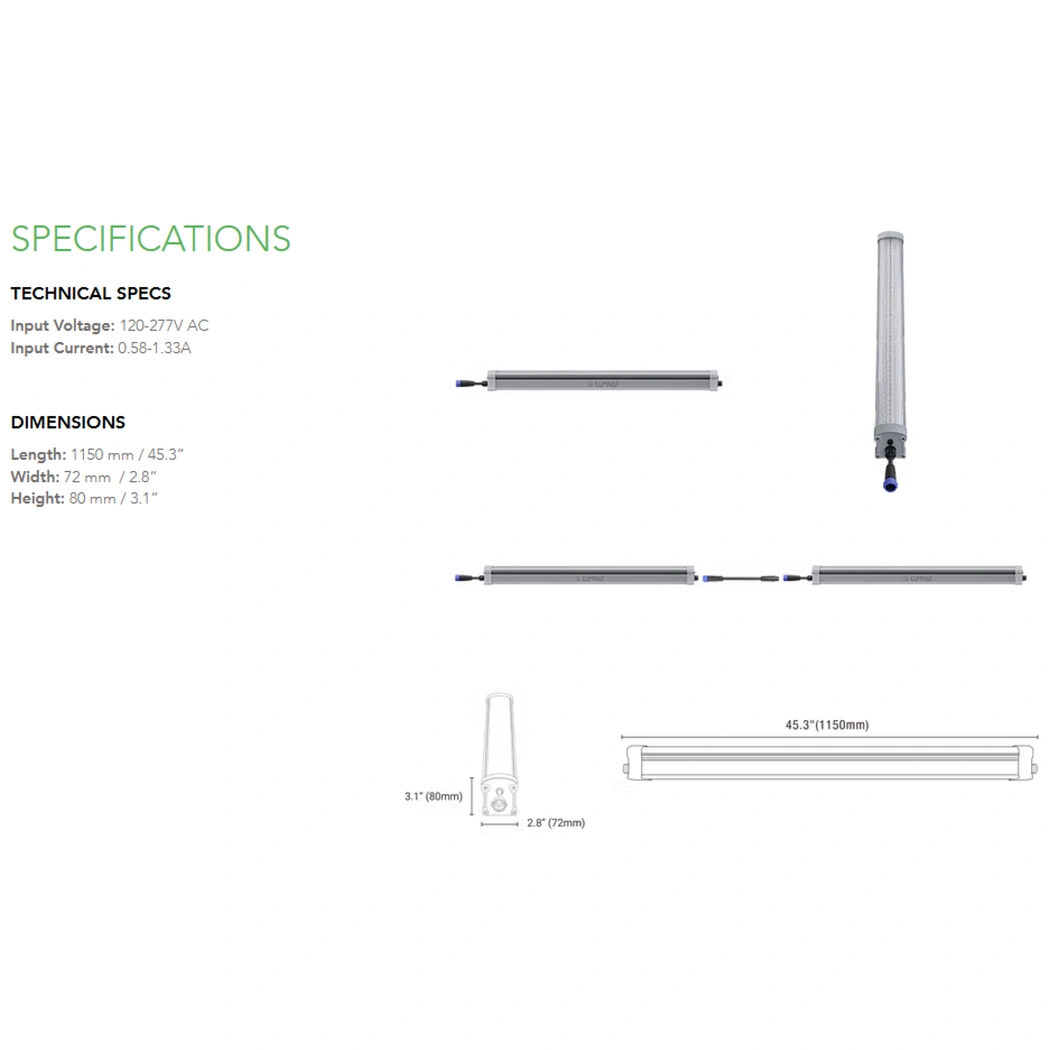

• Included Support Stand: Compact 45.3-inch fixture ships with a support stand for free-standing placement.

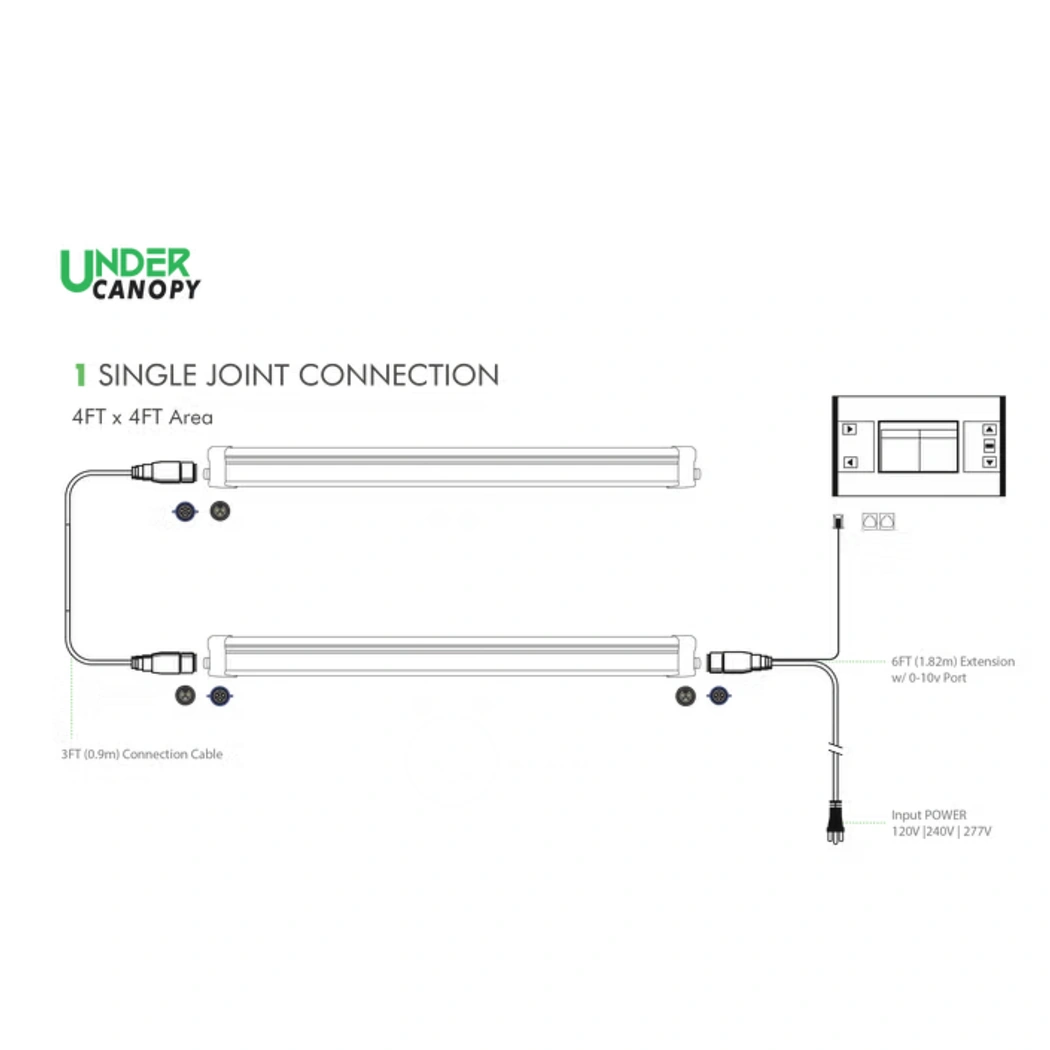

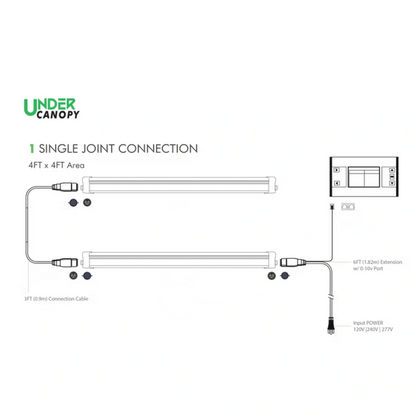

• Daisy-Chain Up to 28: Connects 12 lights on 120V, 24 on 240V, or 28 on 277V for streamlined wiring.

Technical Specifications
