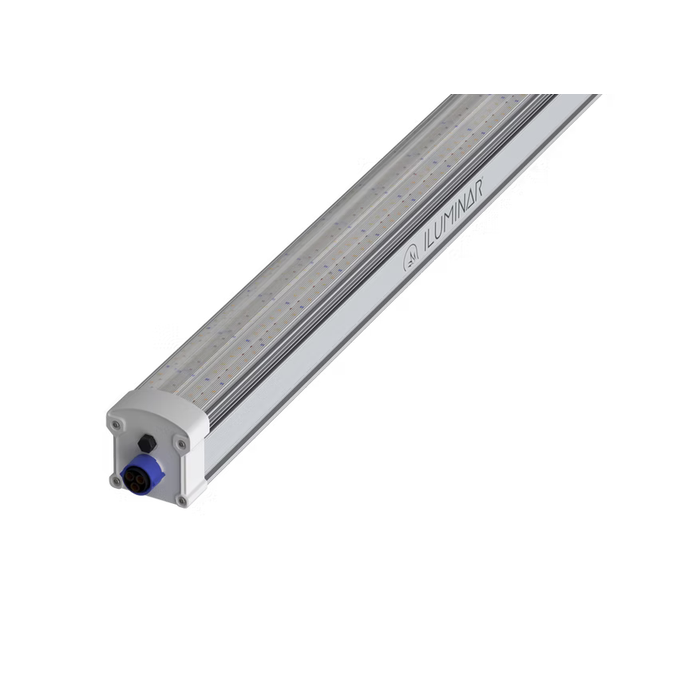

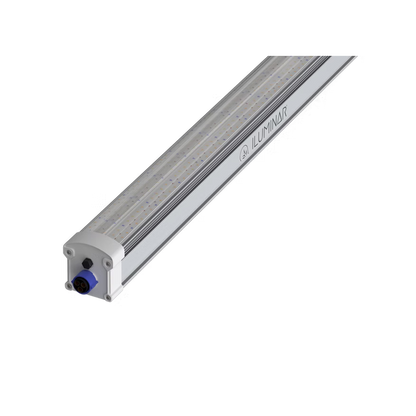

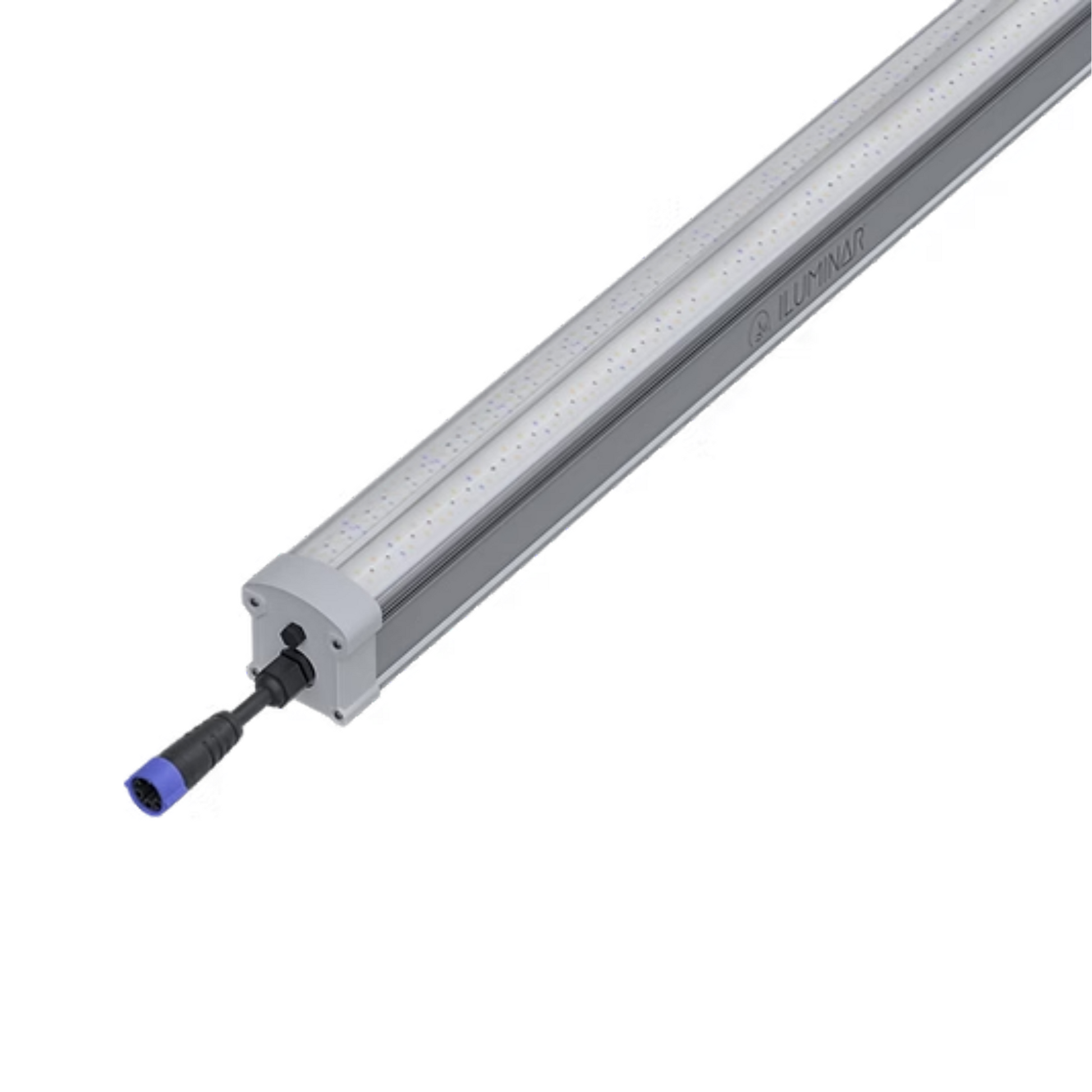

iLuminar Under Canopy 160W R-Spectrum LED for Lower-Canopy Photosynthesis
The iLuminar Under Canopy 160W R-Spectrum LED runs on 120-277V AC with input current from 0.58A to 1.33A, delivering 448-480 µmol/s PPF at 2.8-3.0 µmol/J efficacy. The red-rich spectrum targets the lower canopy beneath dense flowering tops, complementing full-spectrum overheads with photons matched to flower-stage photosynthesis.
Red-Rich Under-Canopy LED for Daisy-Chained Bloom Rooms
An IP65 rating handles humidity and irrigation overspray in commercial bloom rooms, and the 45.3-inch fixture body slots between rolling-bench gaps with the included support stand. 0-10V dimming pairs with most controllers, and circuits scale up to 12 lights on 120V, 24 on 240V, or 28 on 277V for streamlined wiring across larger flower rooms.
Key Features
- 160W Power Draw: Pulls 160W on a 120-277V AC input with 0.58-1.33A current depending on circuit voltage.

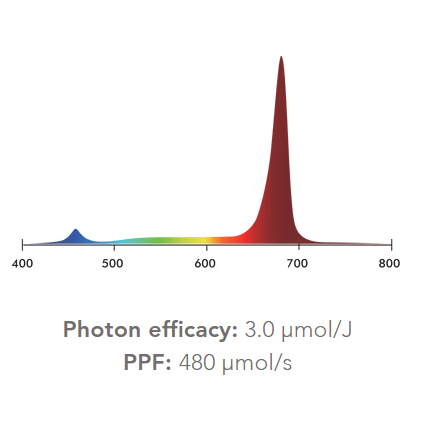

- 480 µmol/s Red-Rich PPF: Delivers 448-480 µmol/s at 2.8-3.0 µmol/J efficacy with red-rich wavelengths for lower-canopy growth.
- IP65 Bloom-Room Build: Sealed body resists humidity and direct contact with irrigation and misting systems.
- 0-10V Dimming: 0-10V control fits most commercial controllers for stage-by-stage intensity tuning.

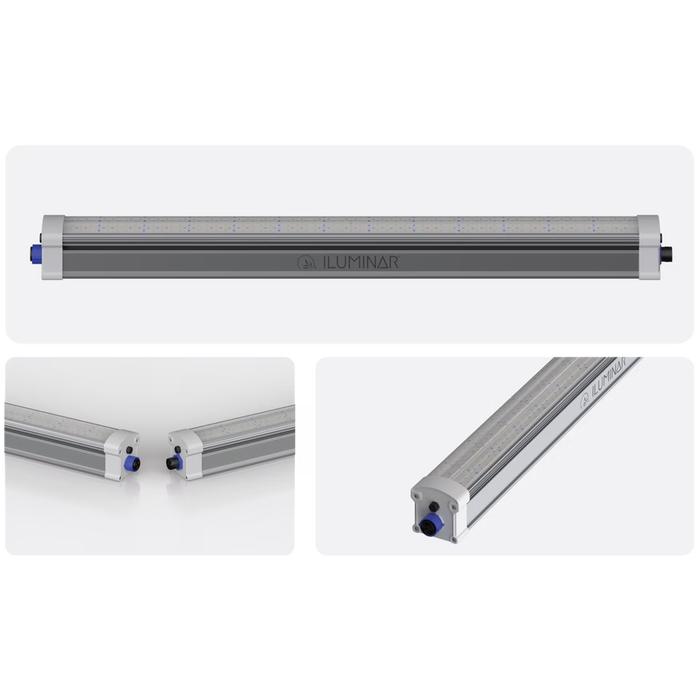

- Included Support Stand: Compact 45.3-inch body ships with a support stand for free-standing placement on rolling benches.

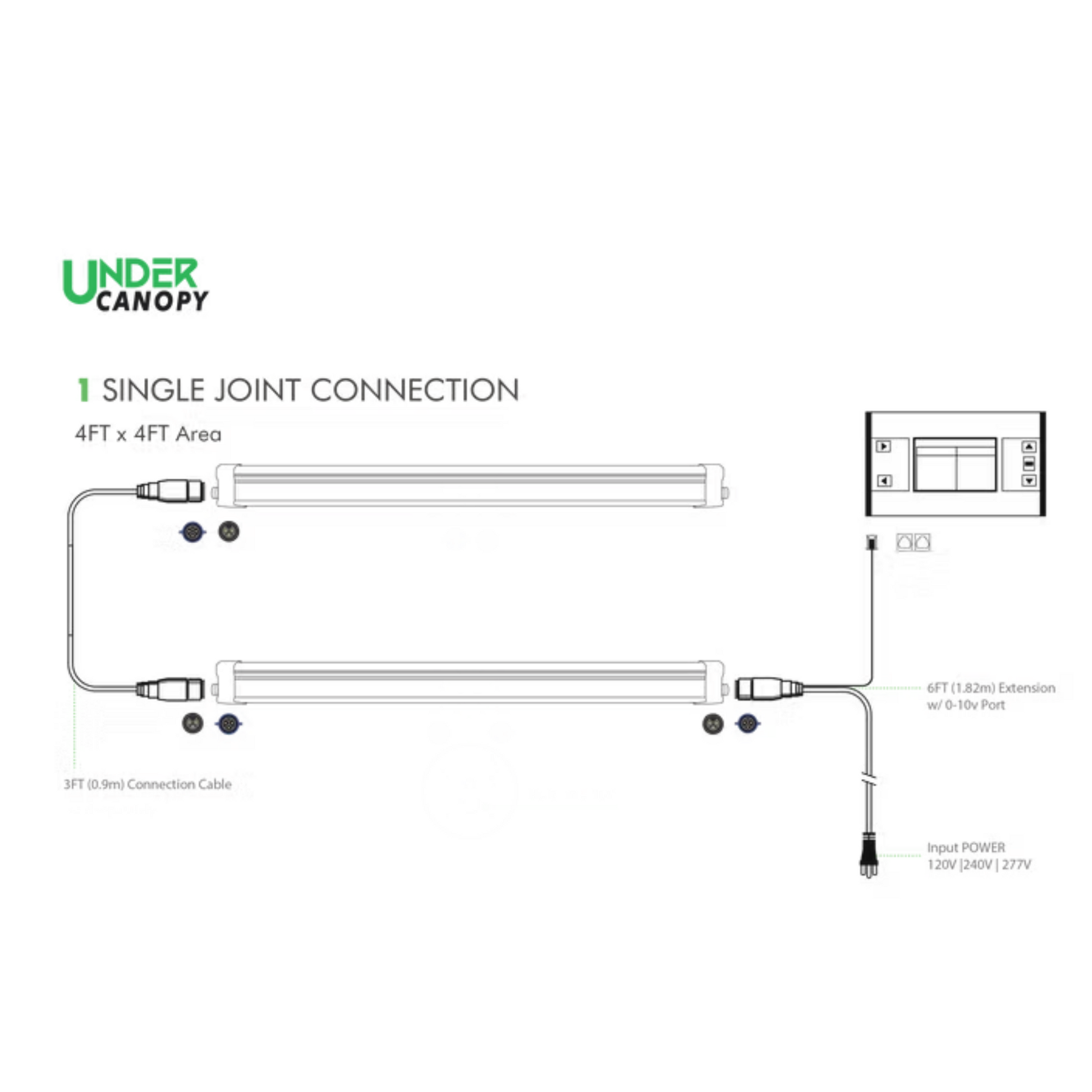

- Daisy-Chain Up to 28: Chains 12 lights on 120V, 24 on 240V, or 28 on 277V for streamlined commercial wiring.

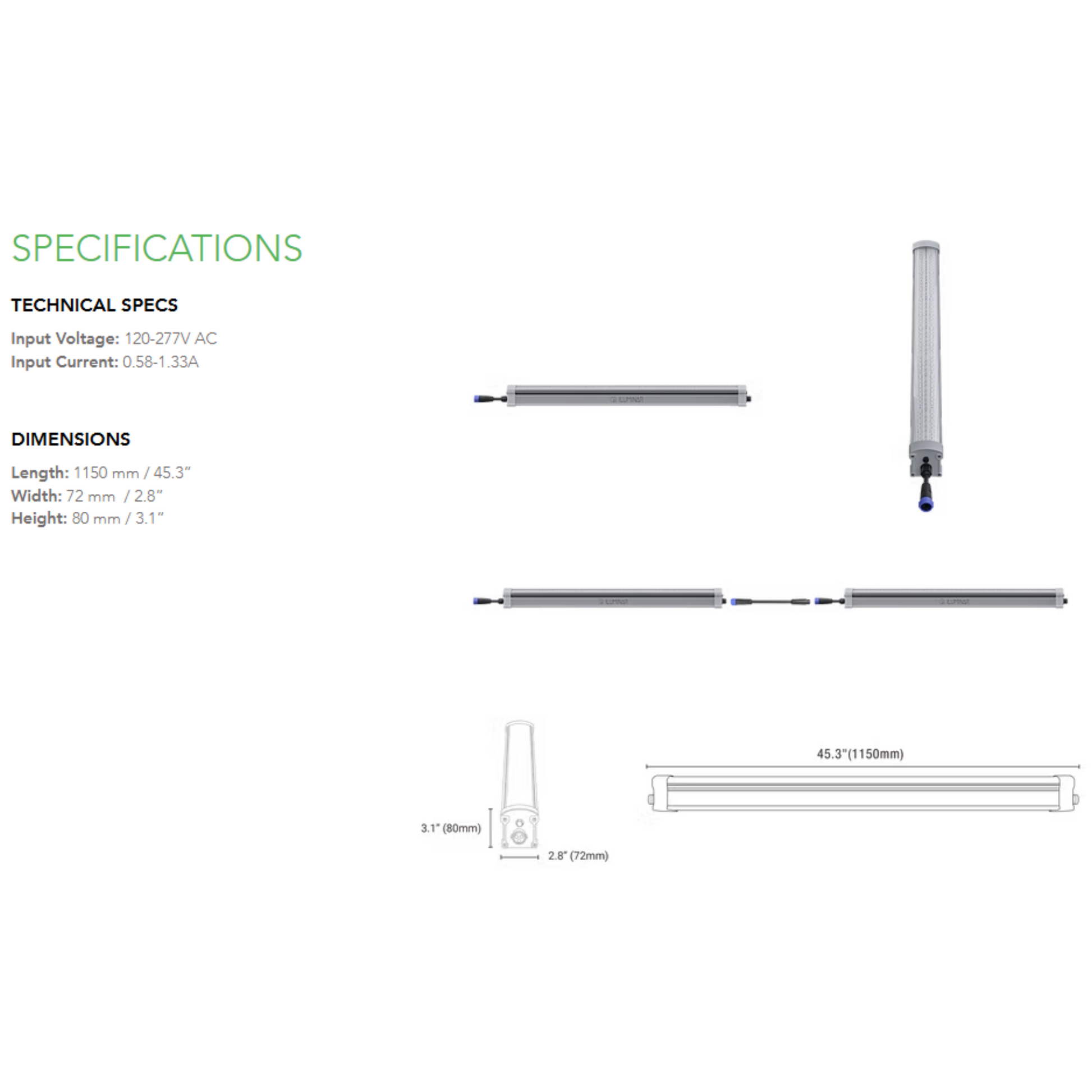

Technical Specifications
| Specification | Value |
|---|---|
| Power Draw | 160W |
| PPF | 448-480 µmol/s |
| PPE | 2.8-3.0 µmol/J |
| Spectrum | R-Spectrum (red-rich, under-canopy) |
| Voltage | 120-277V AC |
| Input Current | 0.58-1.33A |
| IP Rating | IP65 |
| Dimming | 0-10V |
| Daisy Chain | 12 (120V) / 24 (240V) / 28 (277V) |
| Dimensions | 45.3" L × 2.8" W × 3.1" H |
| Mounting | Support stand included |
