Supplemental Inter-Canopy Lighting from Four Samsung LM301H EVO Bars

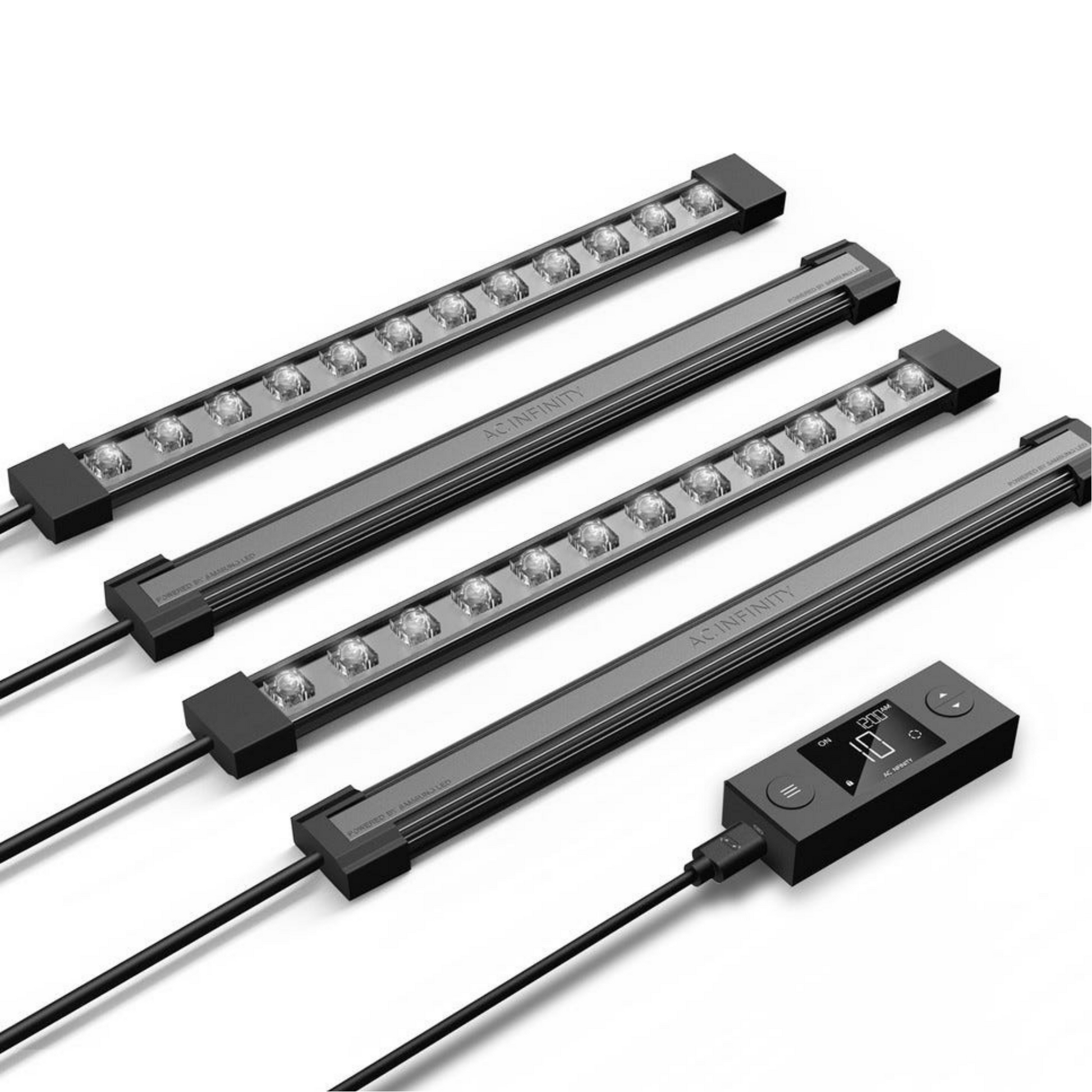

The IONBEAM S11 includes four 28W full-spectrum light bars driven by genuine Samsung LM301H EVO diodes at 3.14 µmol/J PPE for canopy penetration. Each 11-inch bar runs IP65 inside a unibody aluminum housing. The included digital controller offers ten brightness levels and pairs with the AC Infinity UIS app over WiFi.

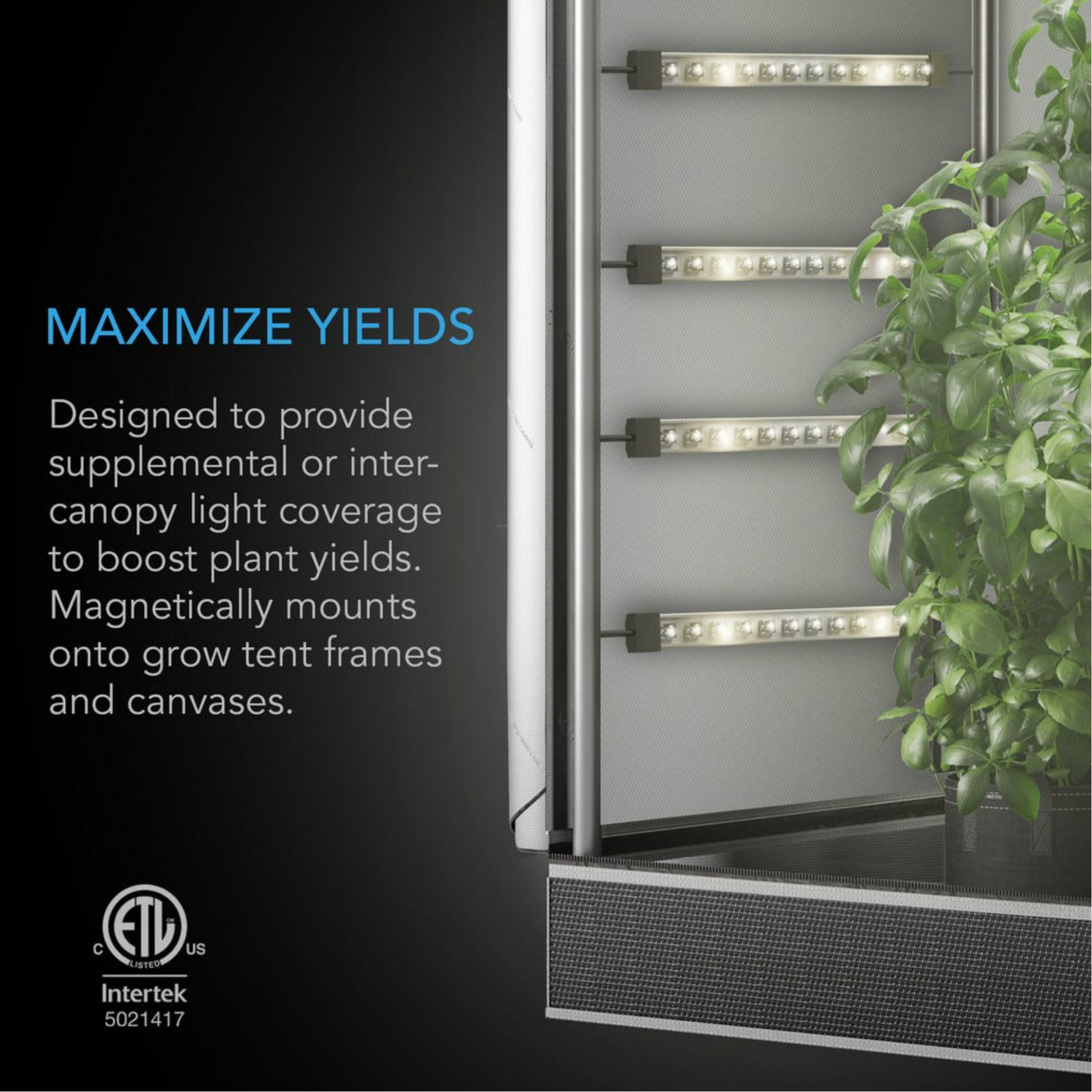

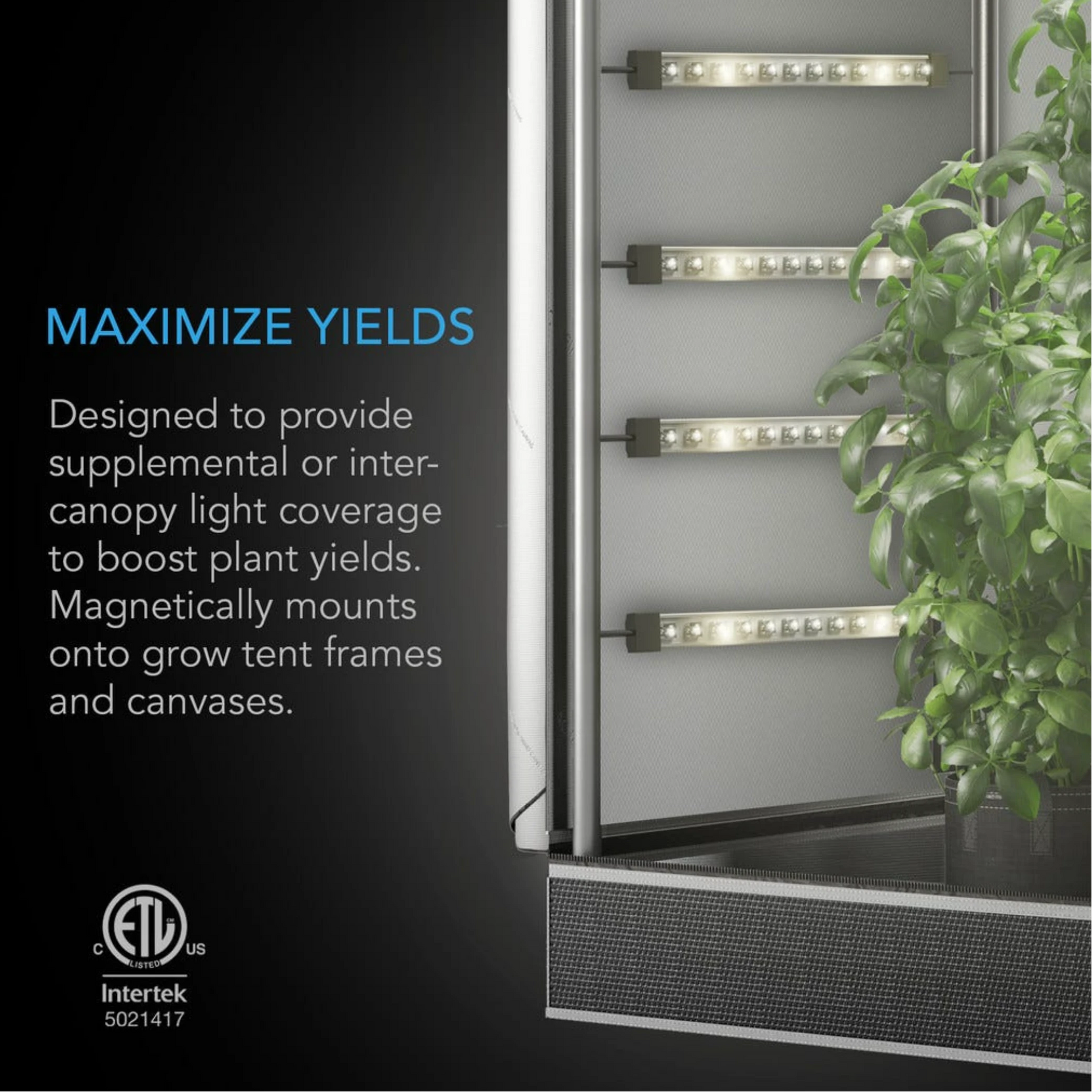

Engineered for Supplemental Inter-Canopy Lighting in Tents and Greenhouses
Growers typically deploy these full-spectrum light bars as supplemental inter-canopy lighting in 2x2 to 4x4 tents to lift under-canopy lighting. Mount the bars 4-8 inches above lower foliage with the included steel mounting bars. Pair the controller with the AC Infinity app for schedule-based dimming. The four-bar kit also ships with screws for primary lighting in smaller setups.
Key Features
- 28W Per Bar: Each 11-inch bar draws 28W with Samsung LM301H EVO diodes for high-output canopy coverage.

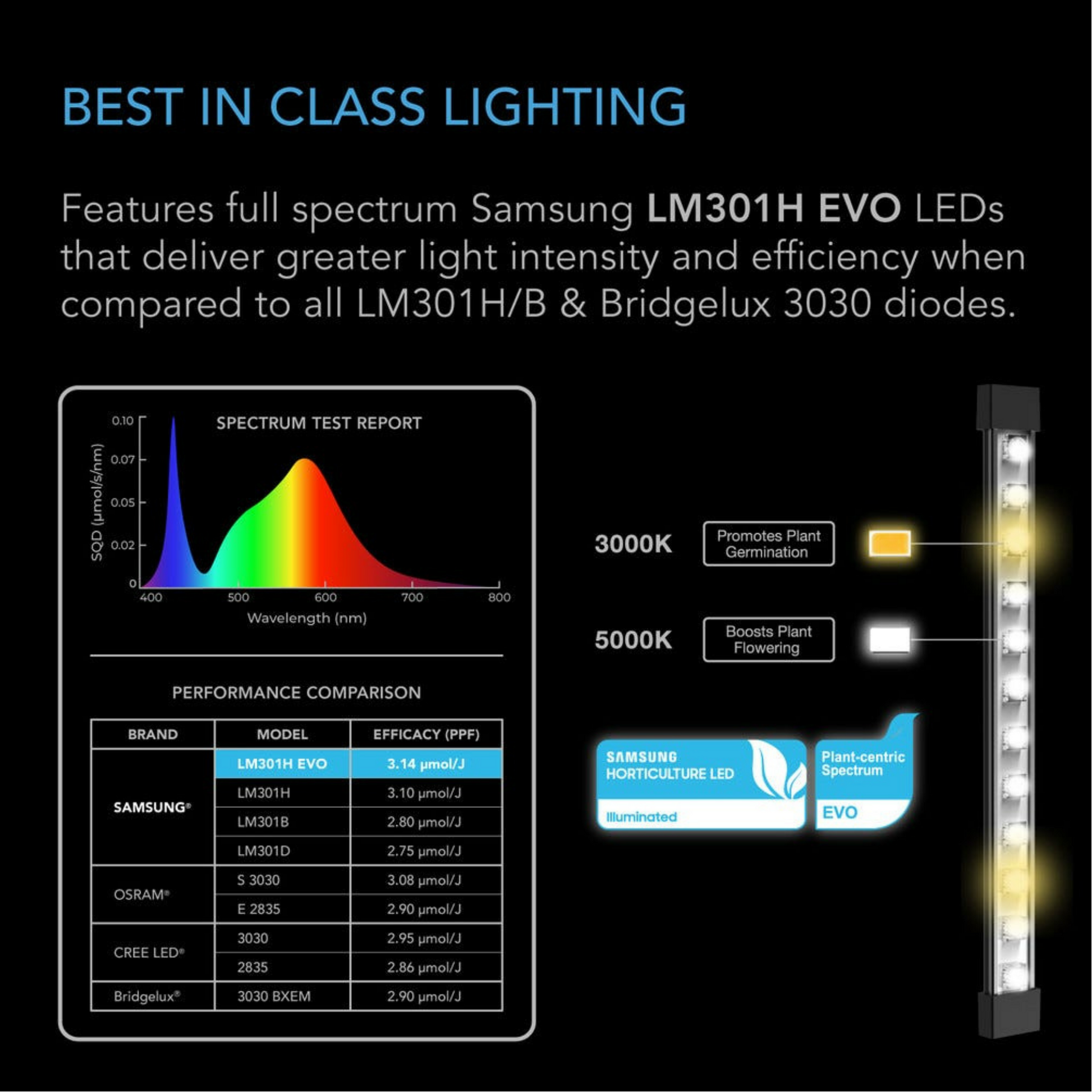

- 3.14 µmol/J PPE: Genuine Samsung EVO diodes deliver intense brightness at industry-leading efficiency for under-canopy work.
- IP65 Build: Unibody aluminum housing resists water and dust while dissipating heat to extend diode lifespan.

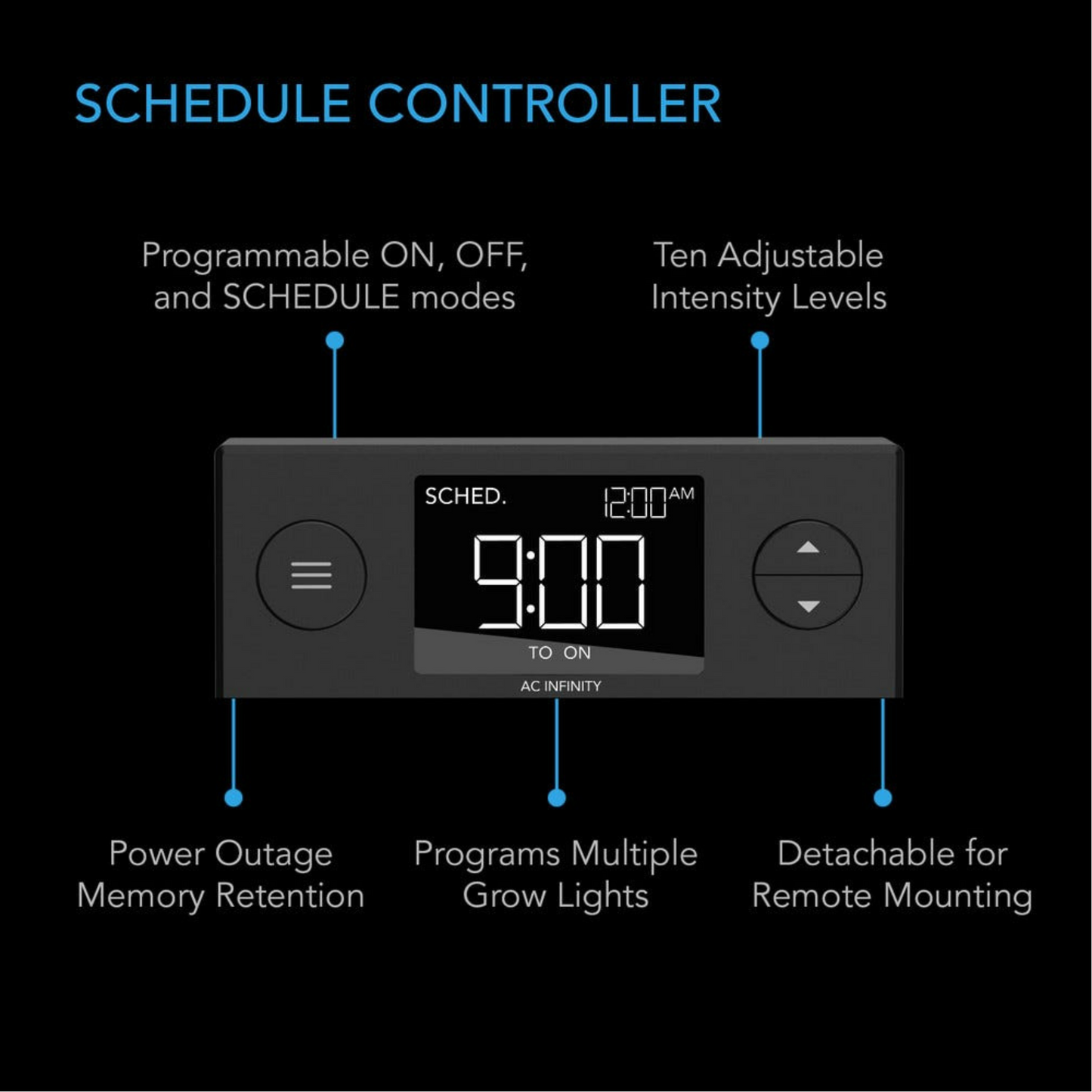

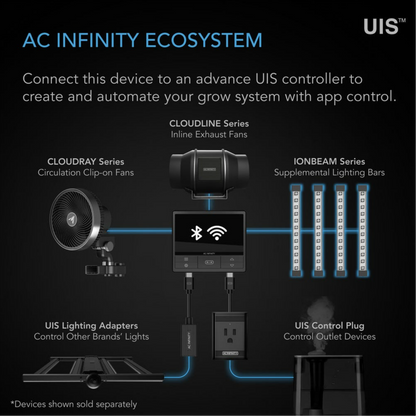

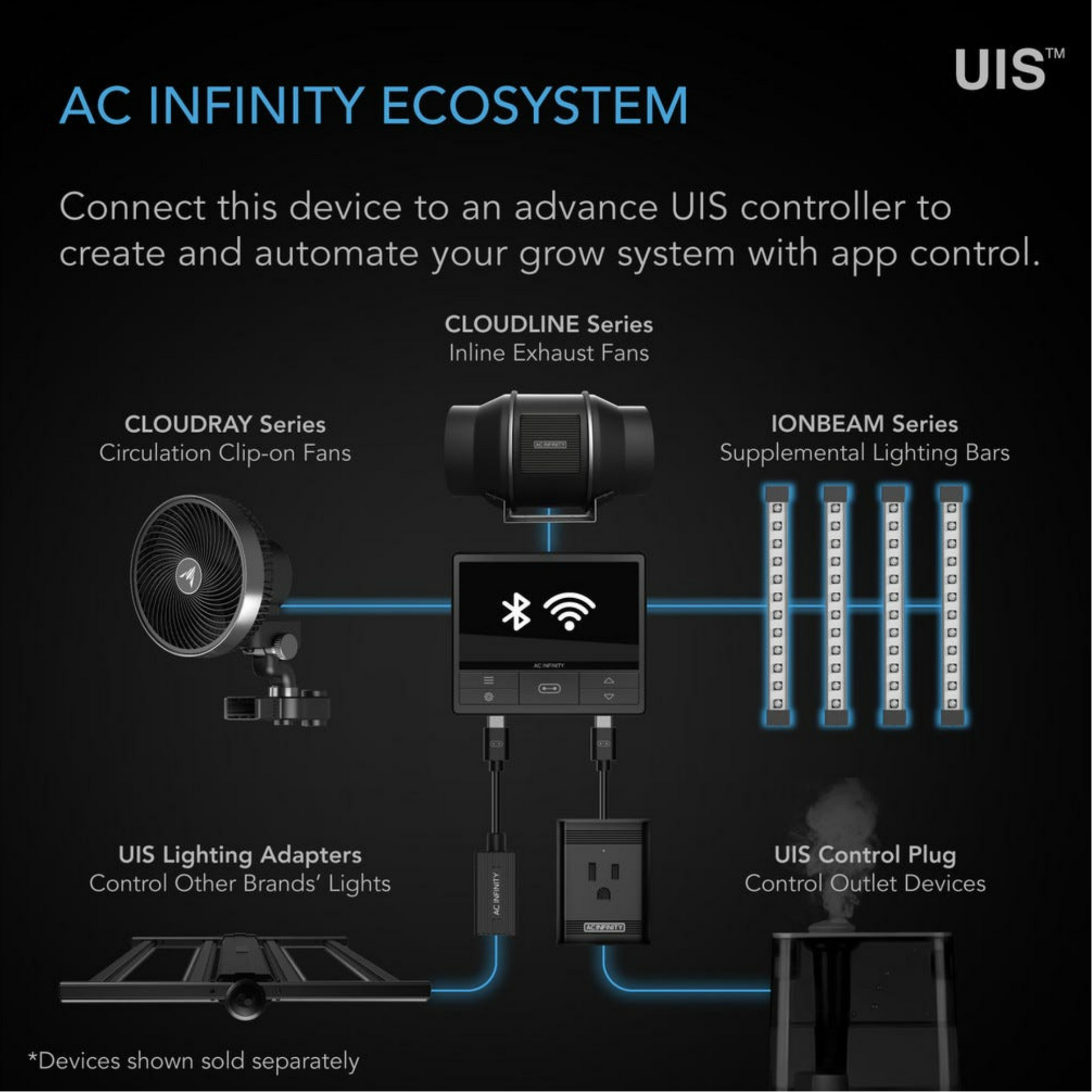

- 10-Level Digital Controller: Adjust brightness and schedule on/off cycles directly or via the AC Infinity UIS app over WiFi.
- Flexible Mounting: Includes four steel bars for magnetic mounting on grow tent frames, canvases, or shelving.

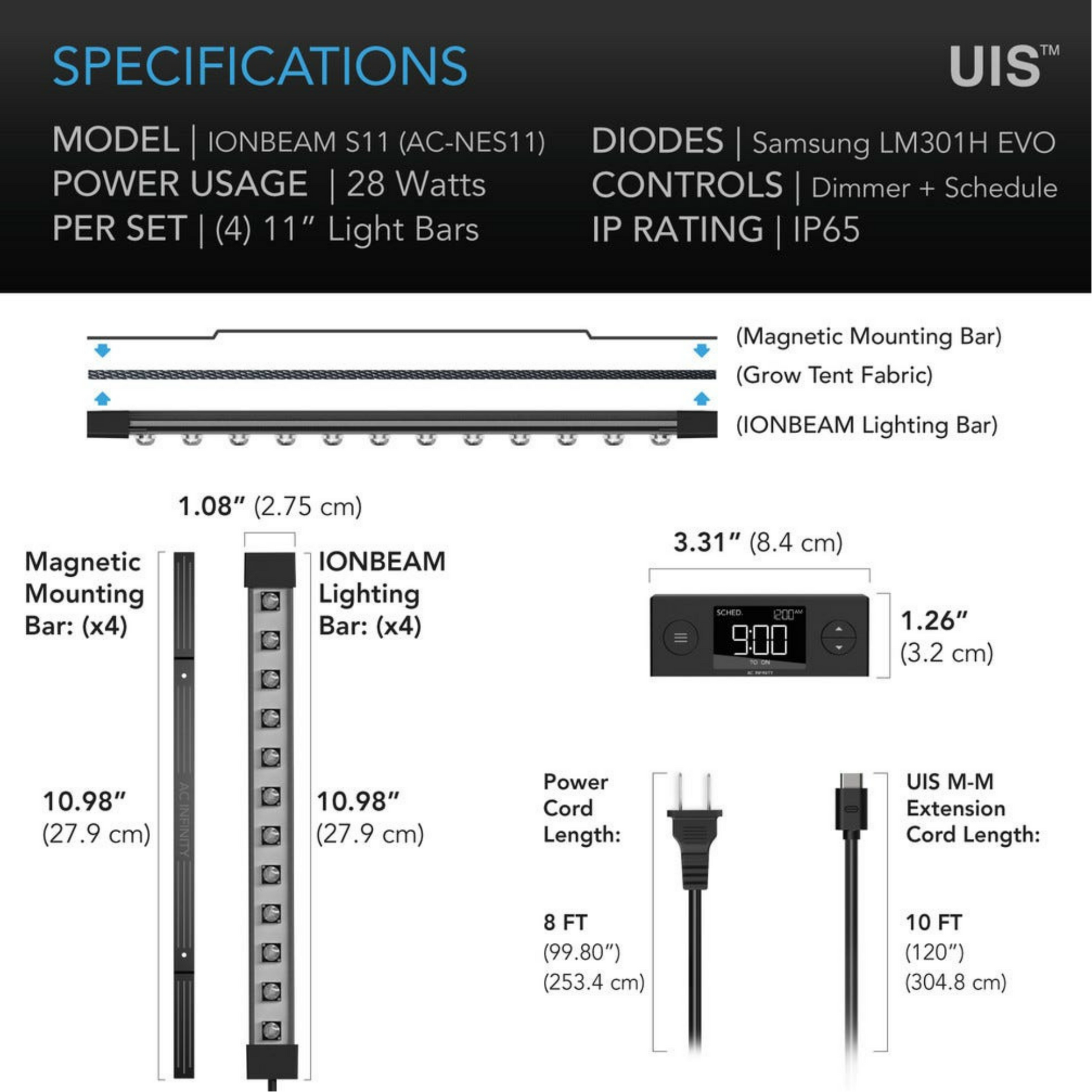

Technical Specifications
| Specification | Value |
|---|---|
| Per-Bar Wattage | 28W |
| Total Wattage | 112W (4 bars) |
| Diodes | Samsung LM301H EVO |
| PPE | 3.14 µmol/J |
| IP Rating | IP65 |
| Bar Length | 11 in (27.9 cm) |
| Spectrum | Full-spectrum |
| Dimming | 10 brightness levels |
| Connectivity | UIS platform / AC Infinity app over WiFi |
