AC Infinity IONBEAM U2 UV LED Grow Light Bars for Targeted Flowering Spectrum

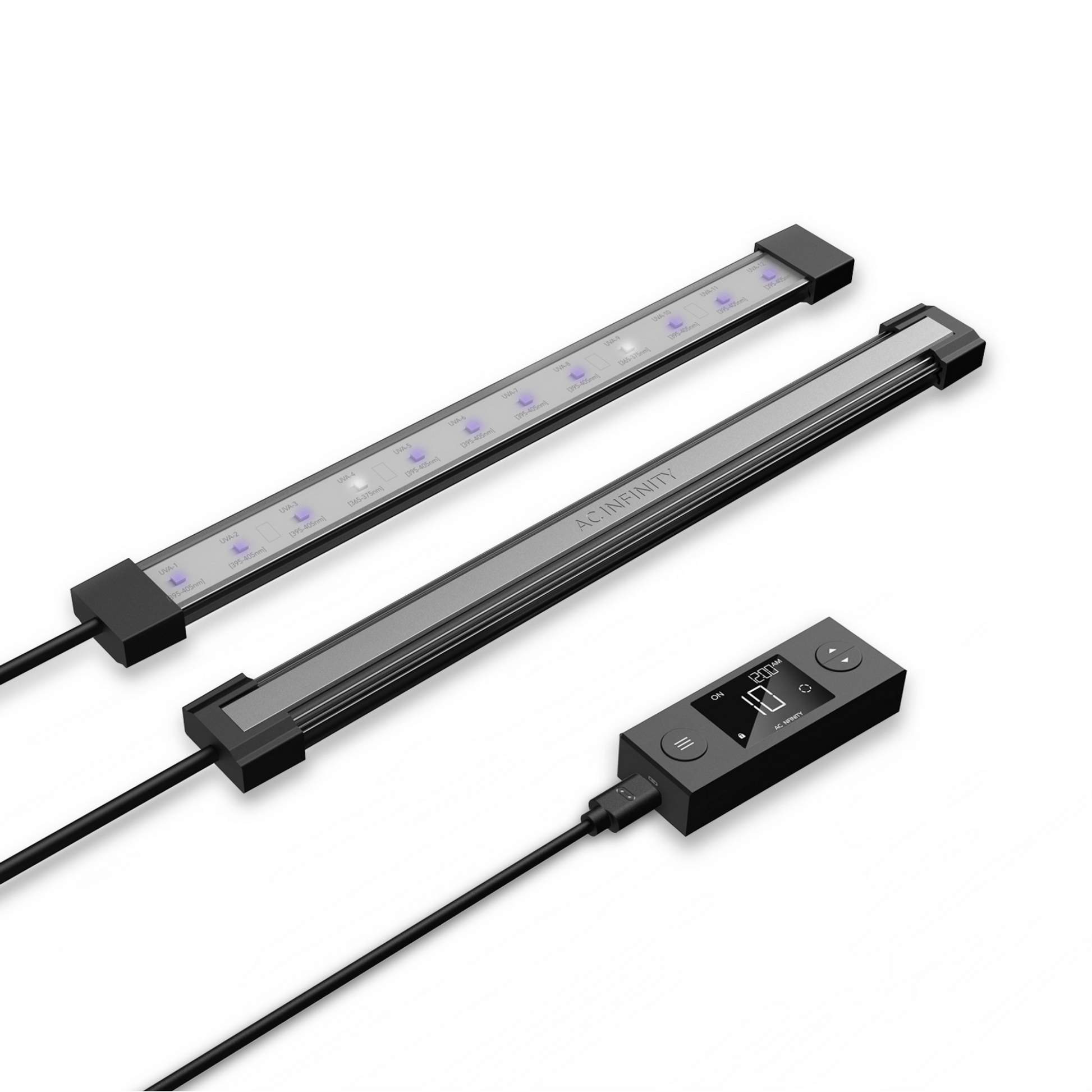

The AC Infinity IONBEAM U2 is a 24W 2-bar kit of 11-inch UV LED grow light bars designed to supplement primary lighting during fruit and flower stages. Each bar combines targeted 365nm and 395nm UV-A diodes (12 chips per bar) on an aluminum-board unibody with IP65 ingress protection and a 50,000-hour rated life.
Targeted UV Supplemental Light for 2×2, 2×4, and 3×3 Spaces
The kit ships with four steel mounting bars for magnetic placement on grow tent frames, bar-style fixtures, or any magnetic surface, allowing fast layout changes between cycles. Two bars cover 2×2, 2×4, and 3×3 footprints, while doubling to four bars handles 4×4 and 5×5 grow spaces. The included digital controller offers ten brightness levels plus ON, OFF, and SCHEDULE modes, and the bars connect to UIS smart controllers for app-driven automation, climate triggers, and data export through the AC Infinity app.
Key Features
- 24W UV Power Draw: Pulls 24W total across the 2-bar kit on 100-240V AC, 50/60Hz at 0.06A.

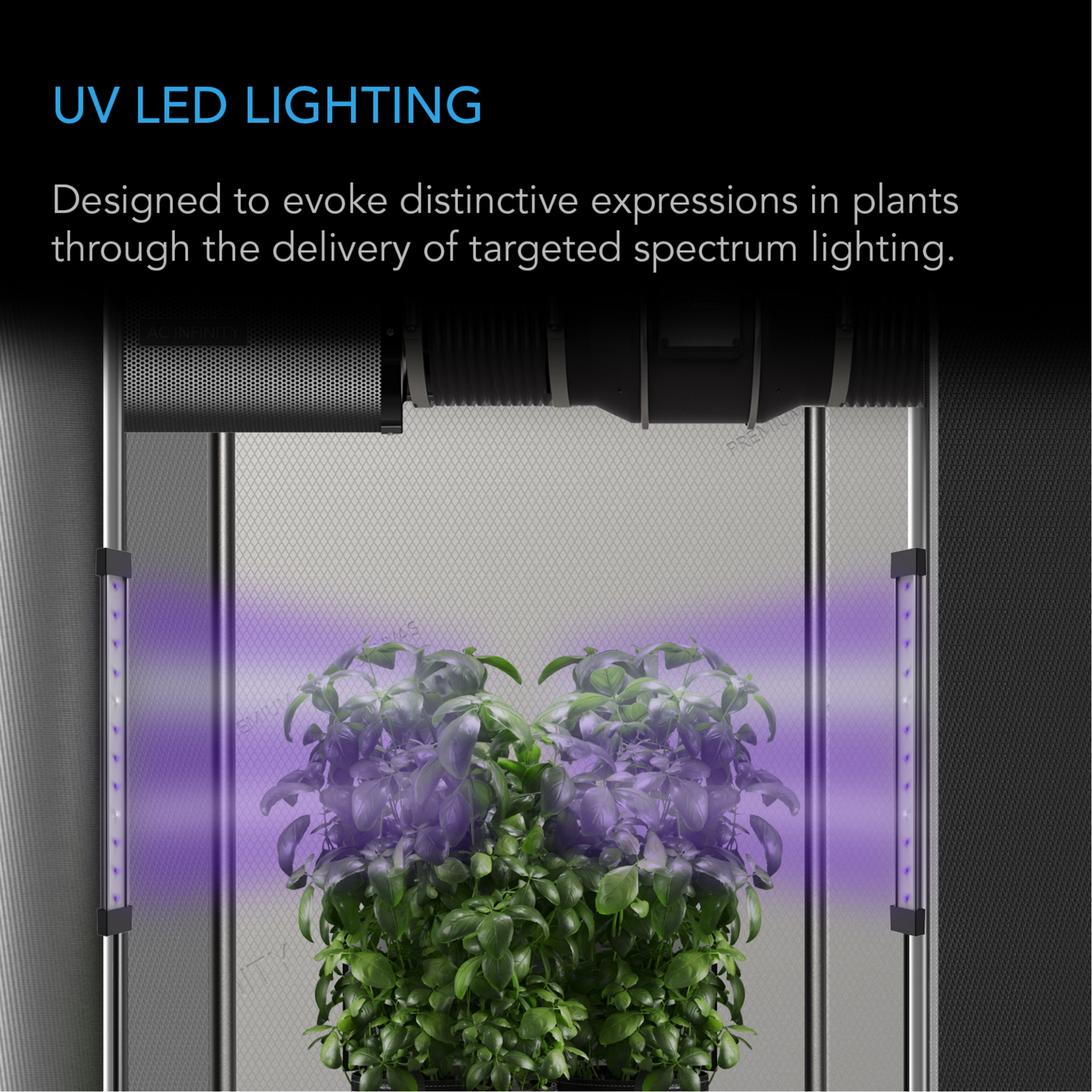

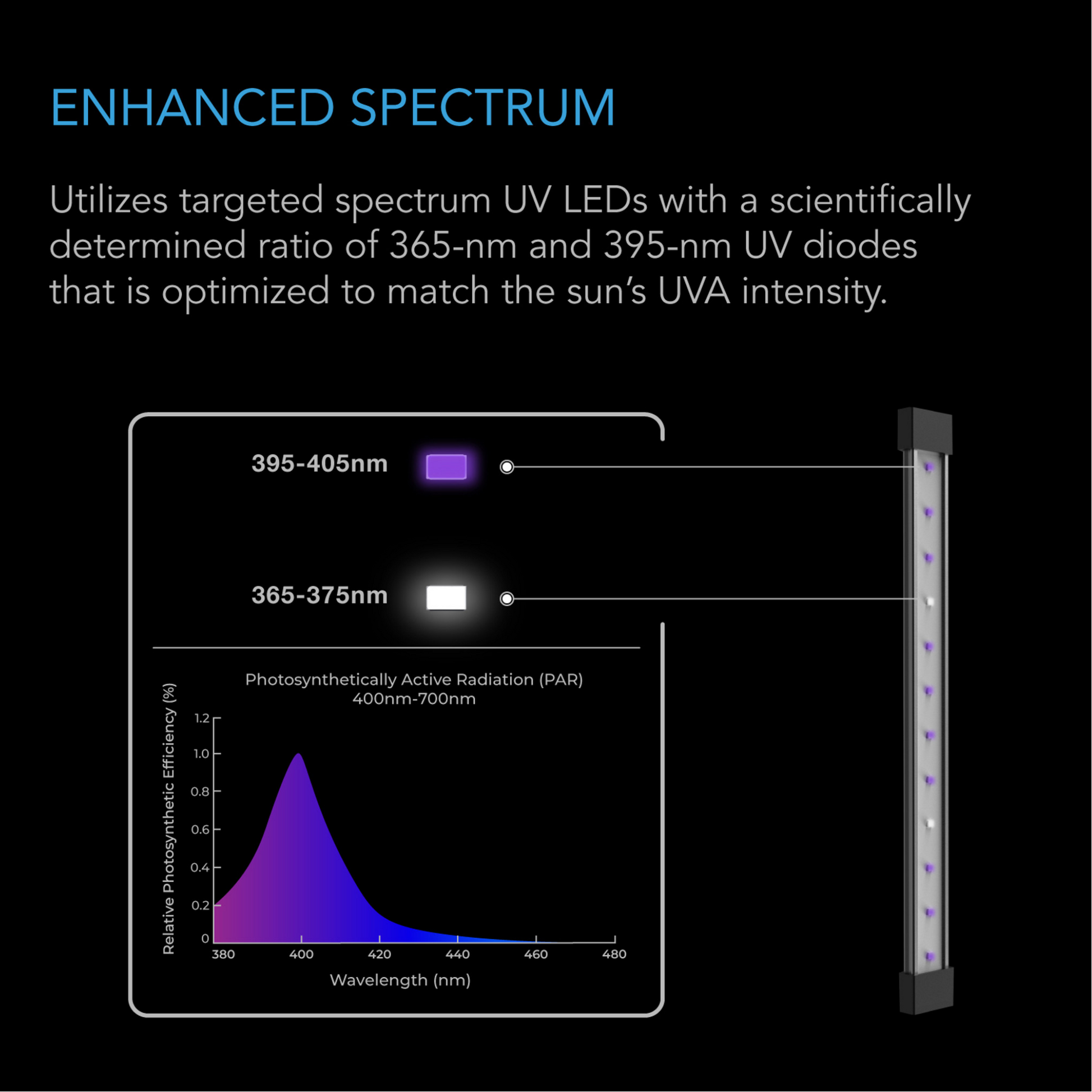

- 365nm + 395nm UV-A Diodes: Targets UV-A wavelengths shown to drive flower-stage compound expression and density.
- 12 Chips Per Bar: Each 11-inch bar carries 12 LED chips for even UV coverage across the canopy.
- IP65 Aluminum Build: Unibody aluminum housing with IP65 ingress protection runs in humid flowering rooms.
- Magnetic Steel Mounting: Four included steel bars allow fast magnetic mounting on tent frames, bar-style fixtures, or any magnetic surface.

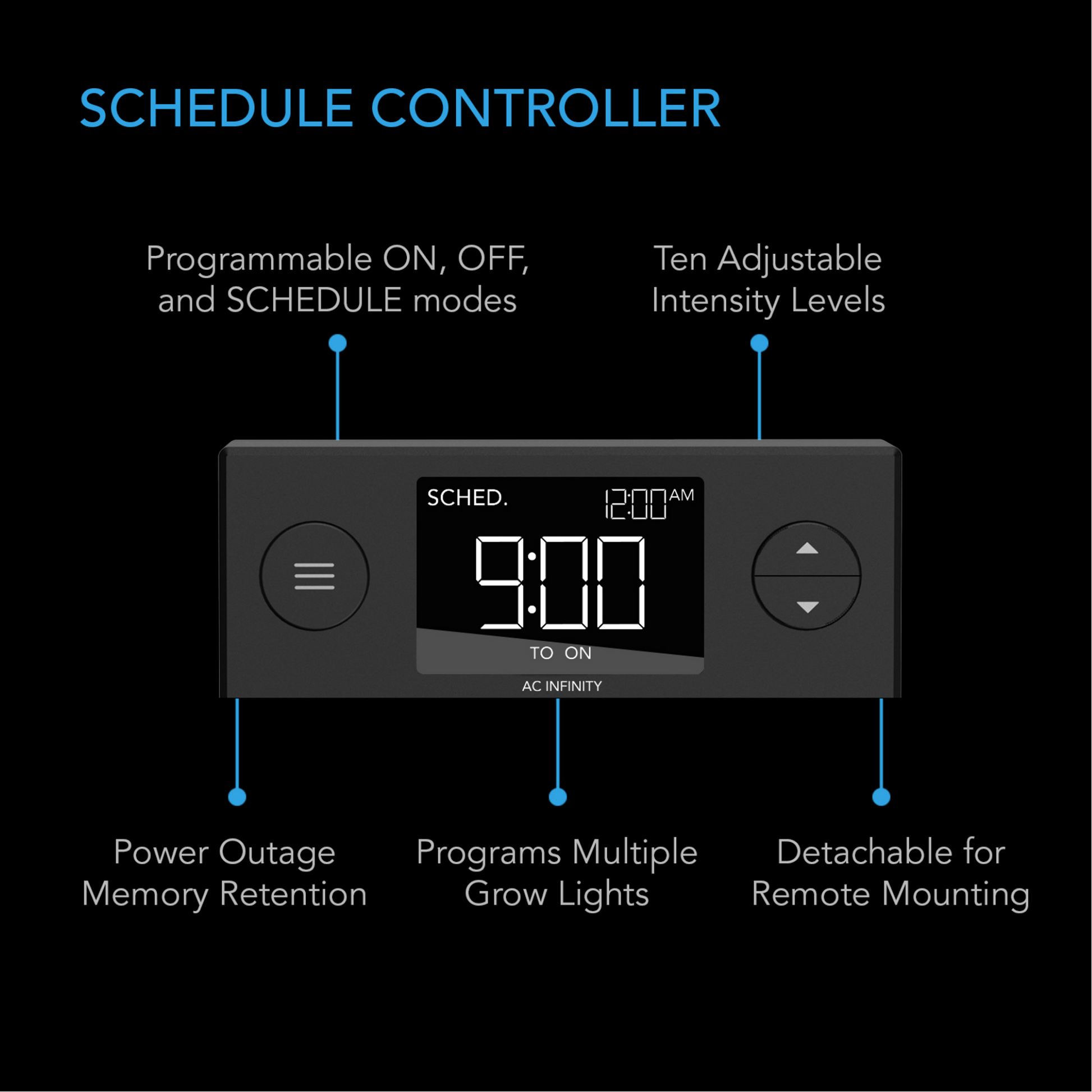

- Digital Schedule Controller: Included controller delivers 10 intensity levels plus ON, OFF, and SCHEDULE modes.

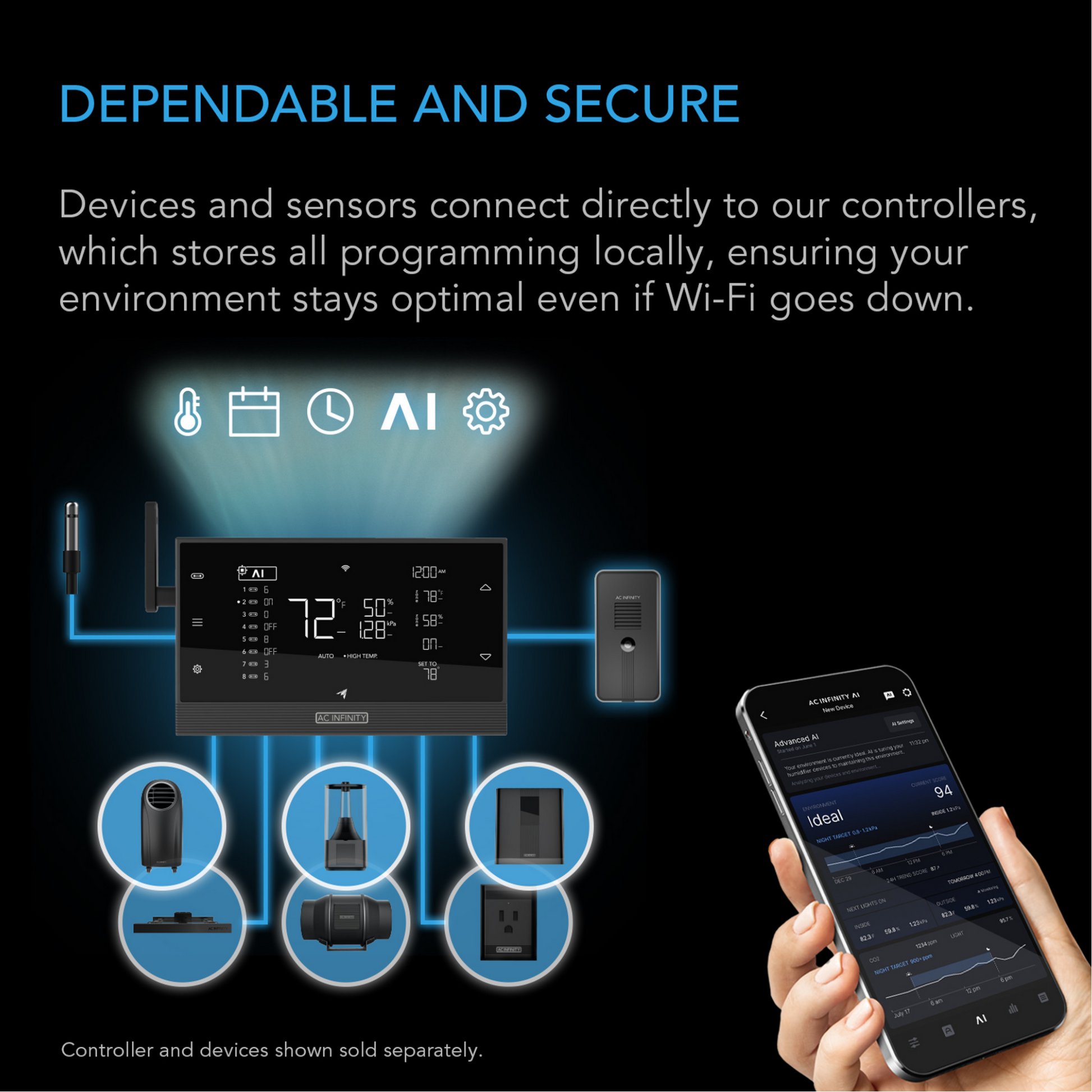

- UIS Smart Platform Integration: Connects to UIS smart controllers and the AC Infinity app for automation, alerts, and data export.
- 50,000-Hour Life Expectancy: Rated to 50,000 hours with operating ranges of 32-140°F and 35-85% RH.

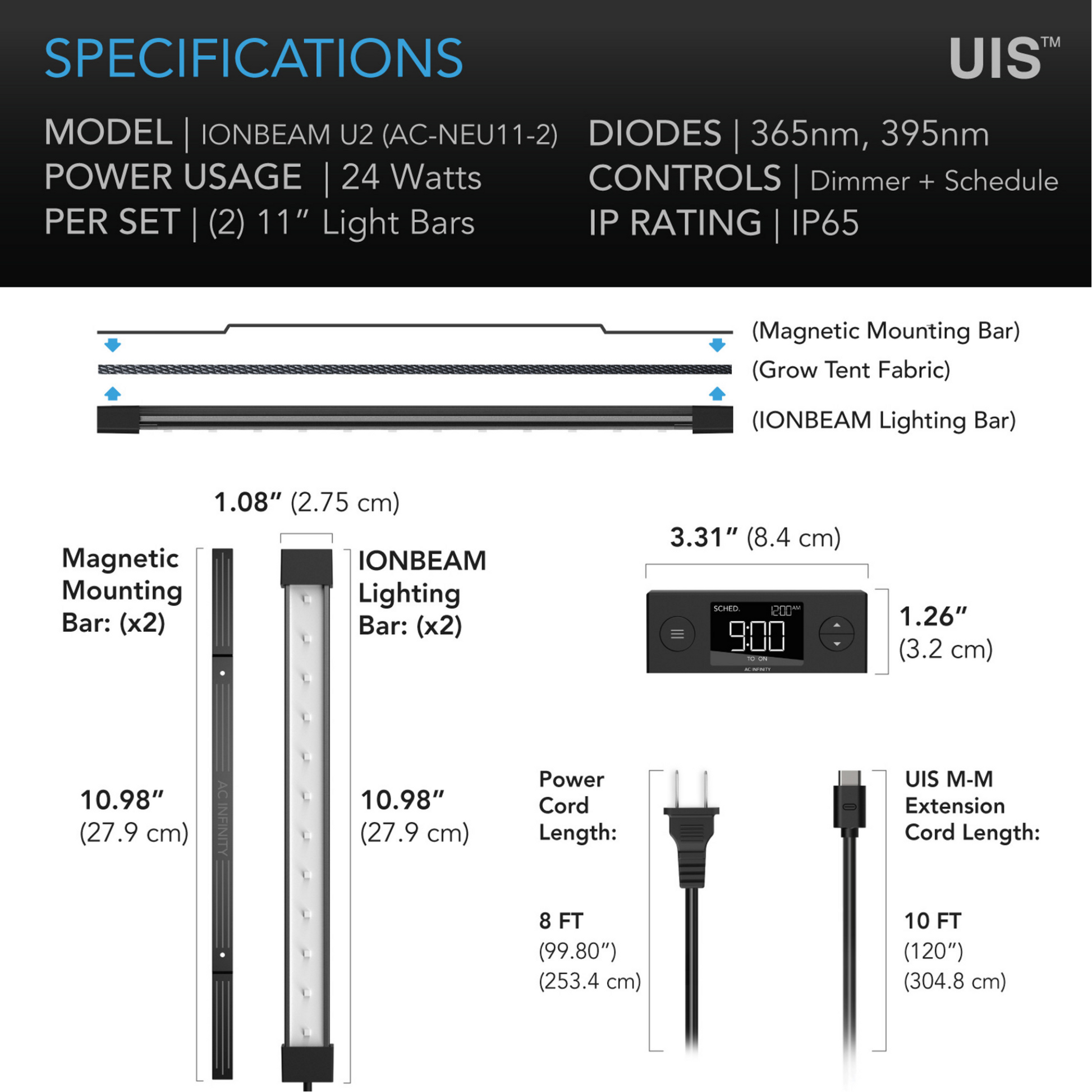

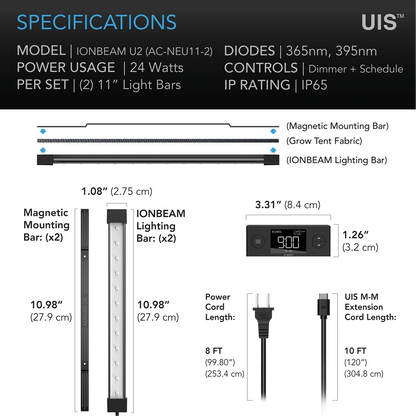

Technical Specifications
| Specification | Value |
|---|---|
| Power Draw | 24W (2-bar kit) |
| Voltage | 100-240V AC, 50/60Hz |
| Amps | 0.06A |
| Spectrum | UV-A 365nm + 395nm |
| Bar Length | 11" (10.98 × 1.08 in / 27.9 × 2.75 cm) |
| Controller Dimensions | 3.31 × 1.26 in (8.4 × 3.2 cm) |
| Power Cord Length | 99.8 in (253.4 cm) |
| Connector Cord Length | 9.1 in (23.2 cm) |
| LED Chip Count | 12 diodes per bar |
| IP Rating | IP65 |
| Operating Humidity | 35-85% RH |
| Operating Temp | 32-140°F |
| Coverage | 2×2 / 2×4 / 3×3 ft (2-bar) | 4×4 / 5×5 ft (4-bar) |
| Lifespan | 50,000 hrs |
| Mounting | Magnetic steel bars (4 included) |
| Connector | US Plug (NEMA 1-15 Type-A) |
| Controller | Dimming Schedule Controller (10 levels + ON/OFF/SCHEDULE) |
| Platform | UIS smart controller + AC Infinity app |
