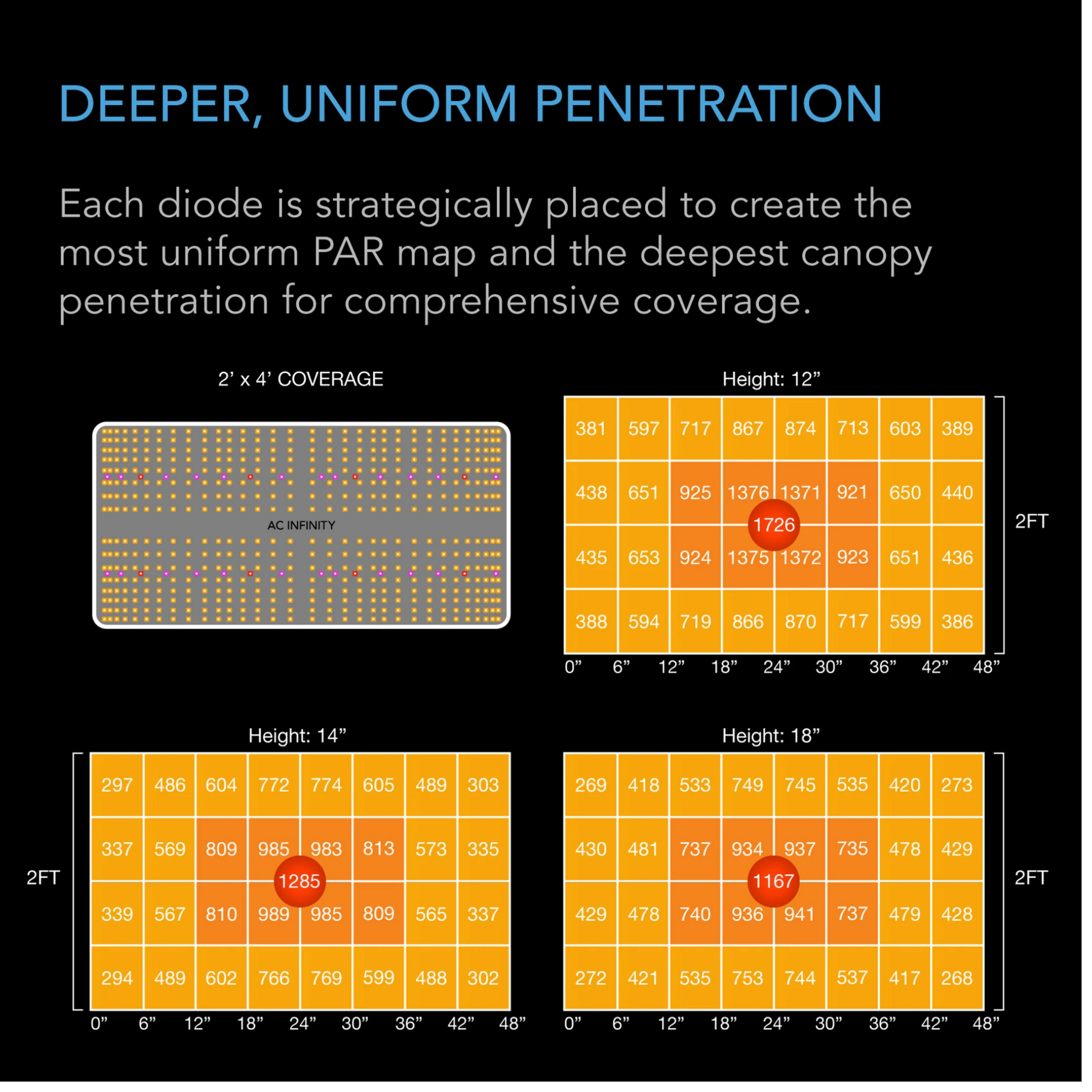

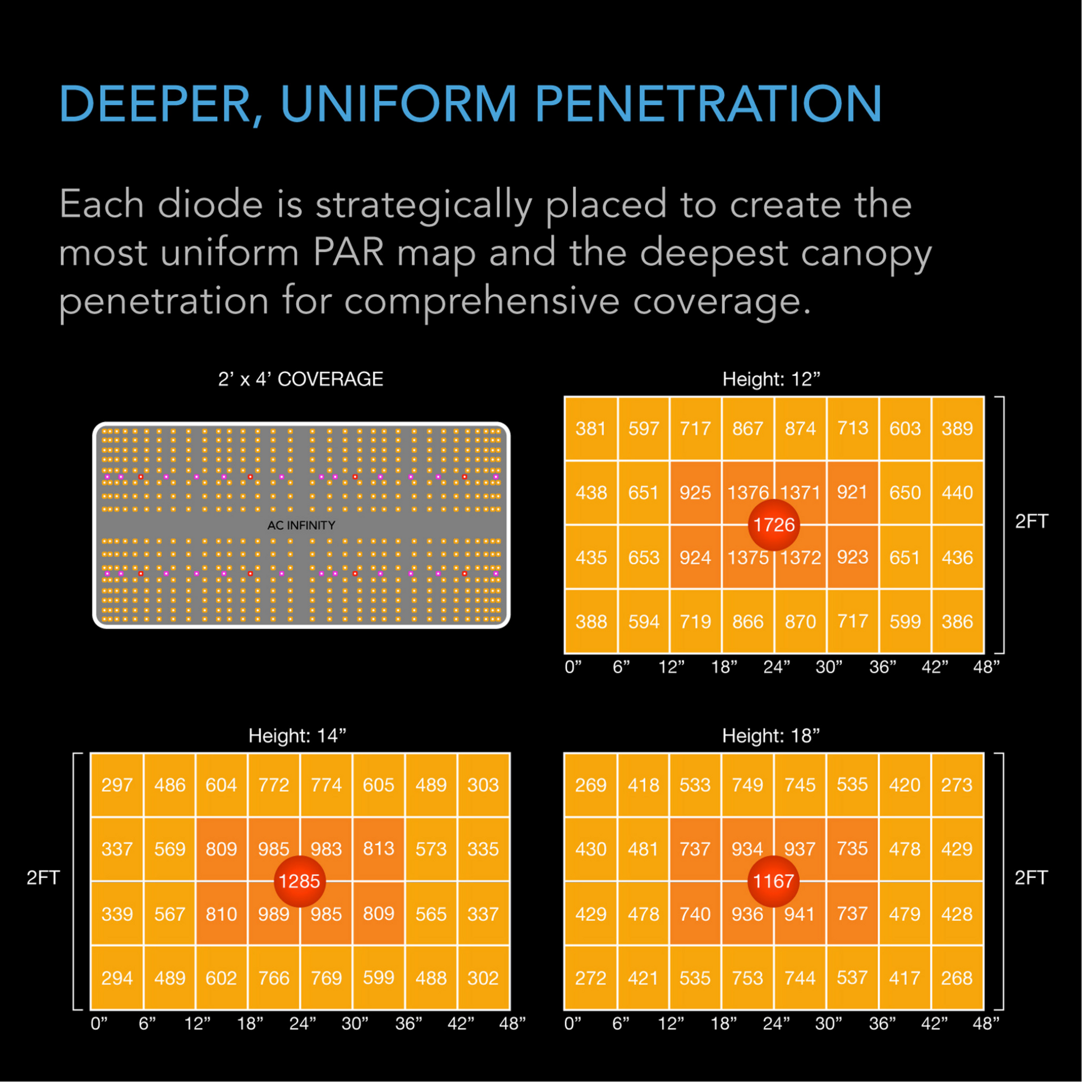

The AC Infinity IONBOARD S24 is an advanced full-spectrum LED grow light meticulously designed to enhance plant growth and maximize yields across all stages of cultivation. This 200W grow light utilizes state-of-the-art Samsung LM301H diodes, providing powerful and efficient lighting optimized for germination, vegetative, and flowering phases. The diodes are strategically positioned to create the most uniform PAR map and ensure deep light penetration, resulting in consistent and robust plant development.

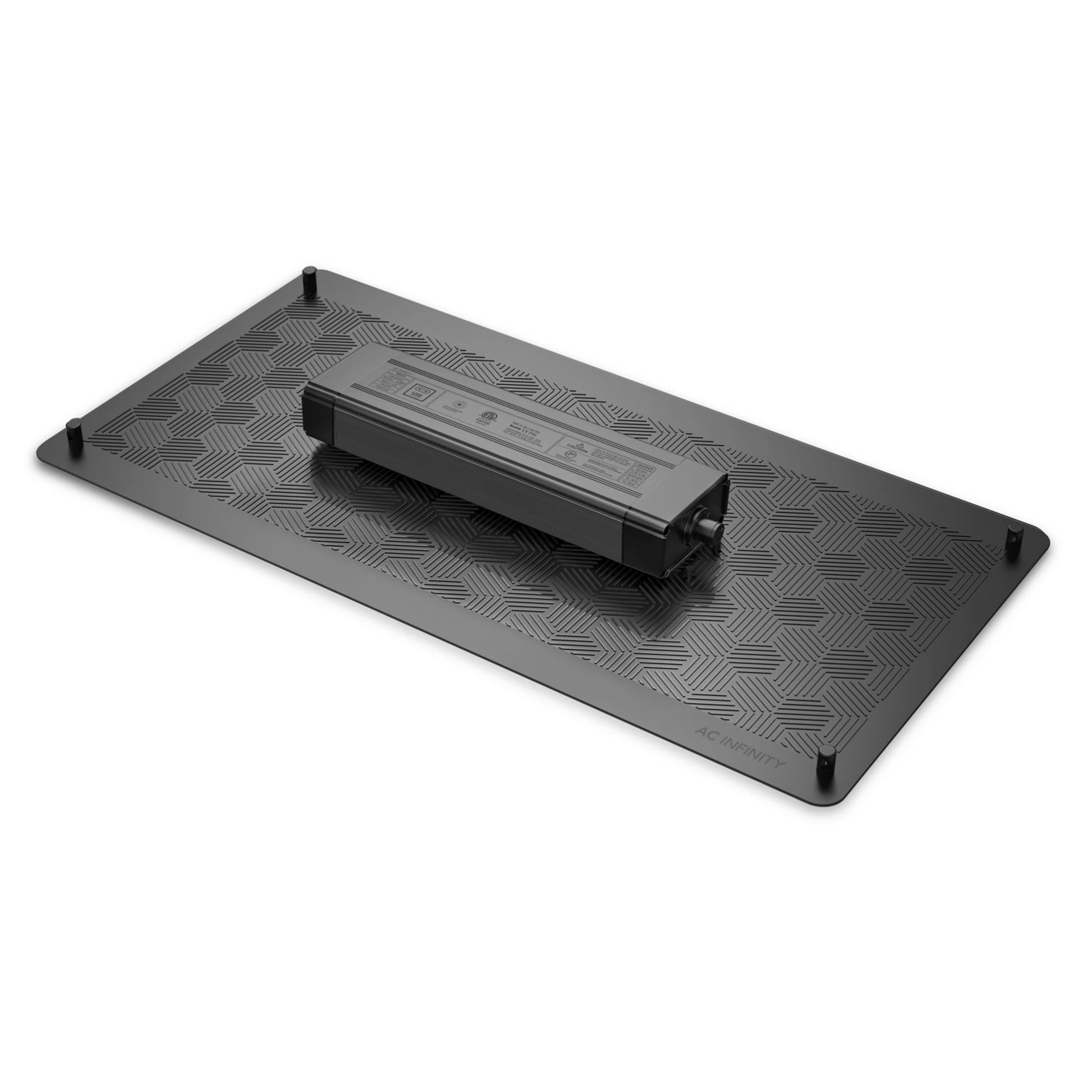

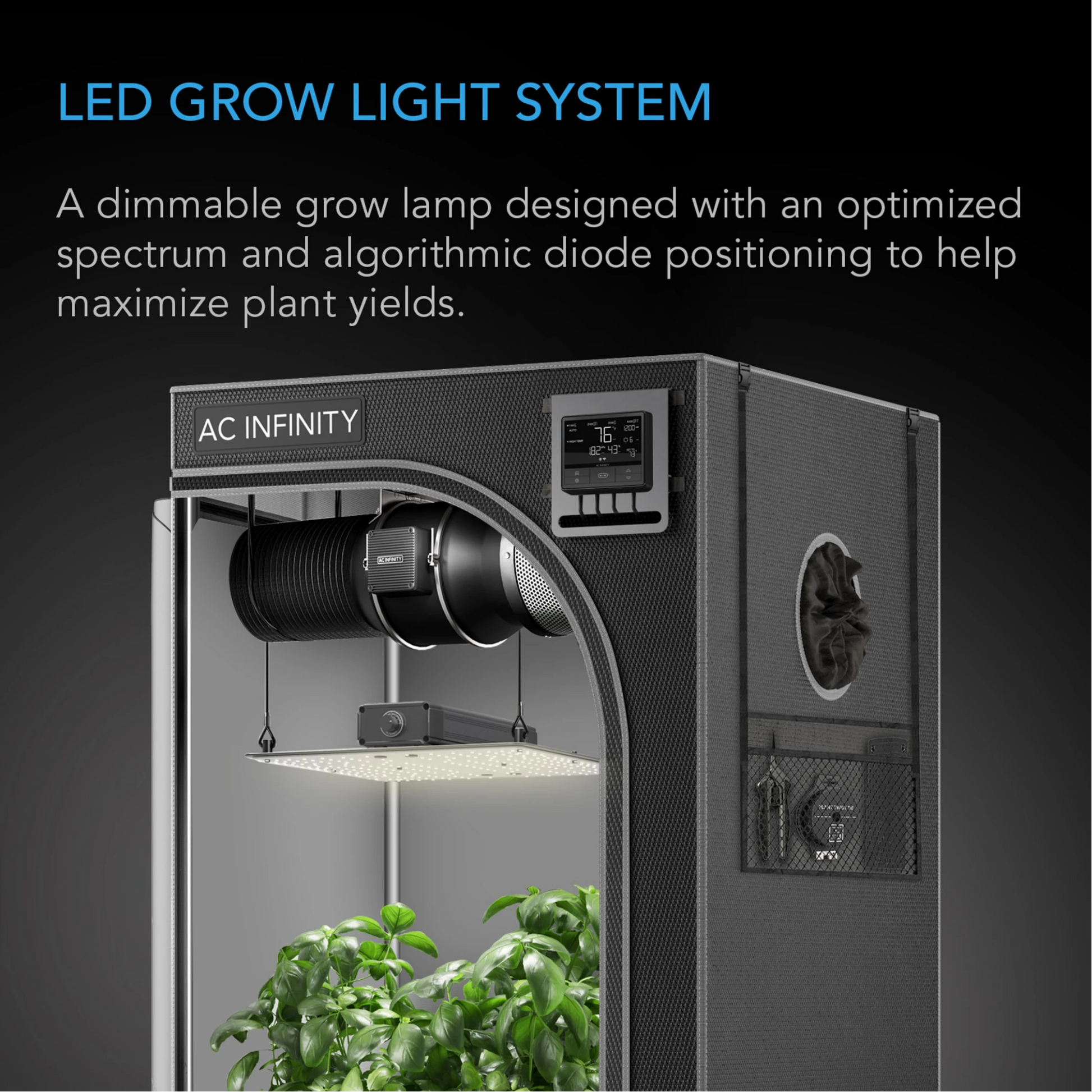

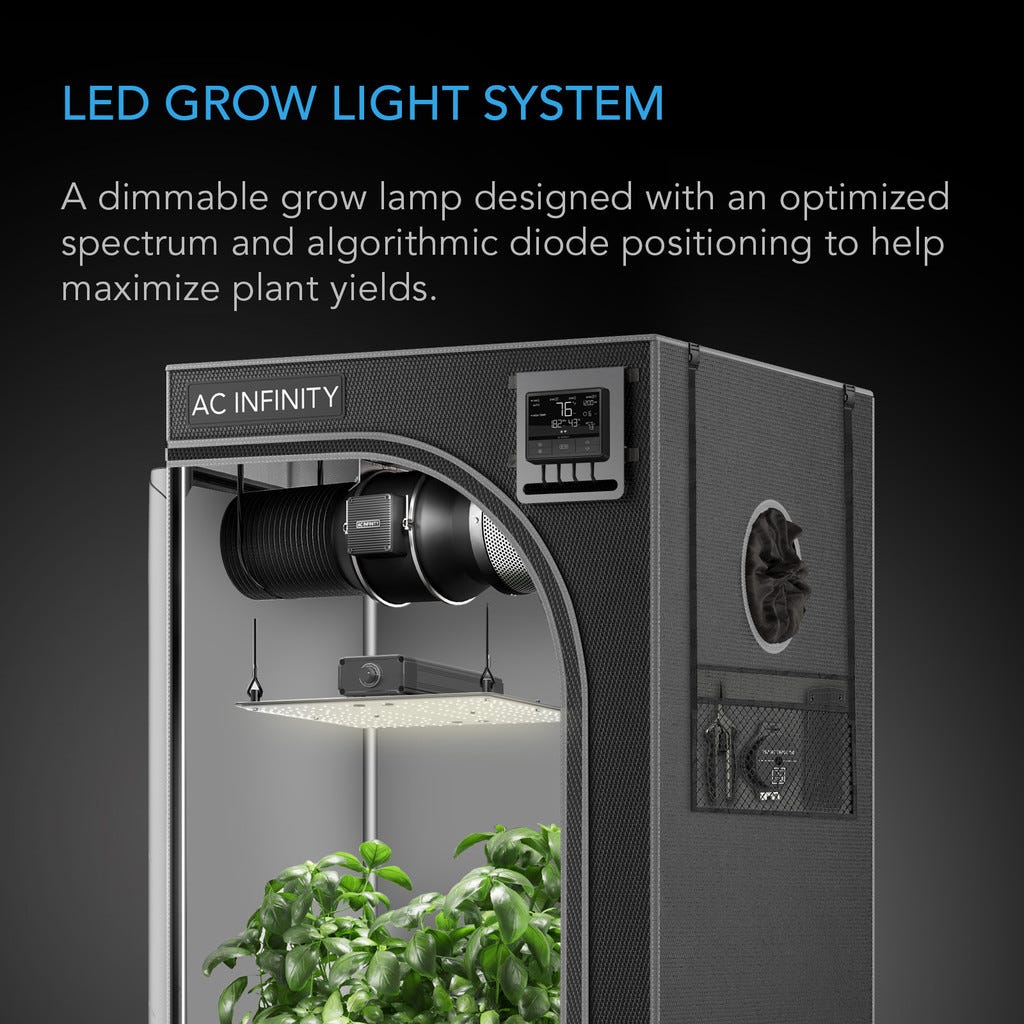

Constructed on a fanless, unibody aluminum board, the IONBOARD S24 is built for durability and longevity. Its IP-65 rating guarantees reliable performance even in environments with high humidity and heat, making it ideal for various grow tents and setups. The light fixture includes a pair of metal bar hangers and rope hangers, facilitating easy and secure installation.

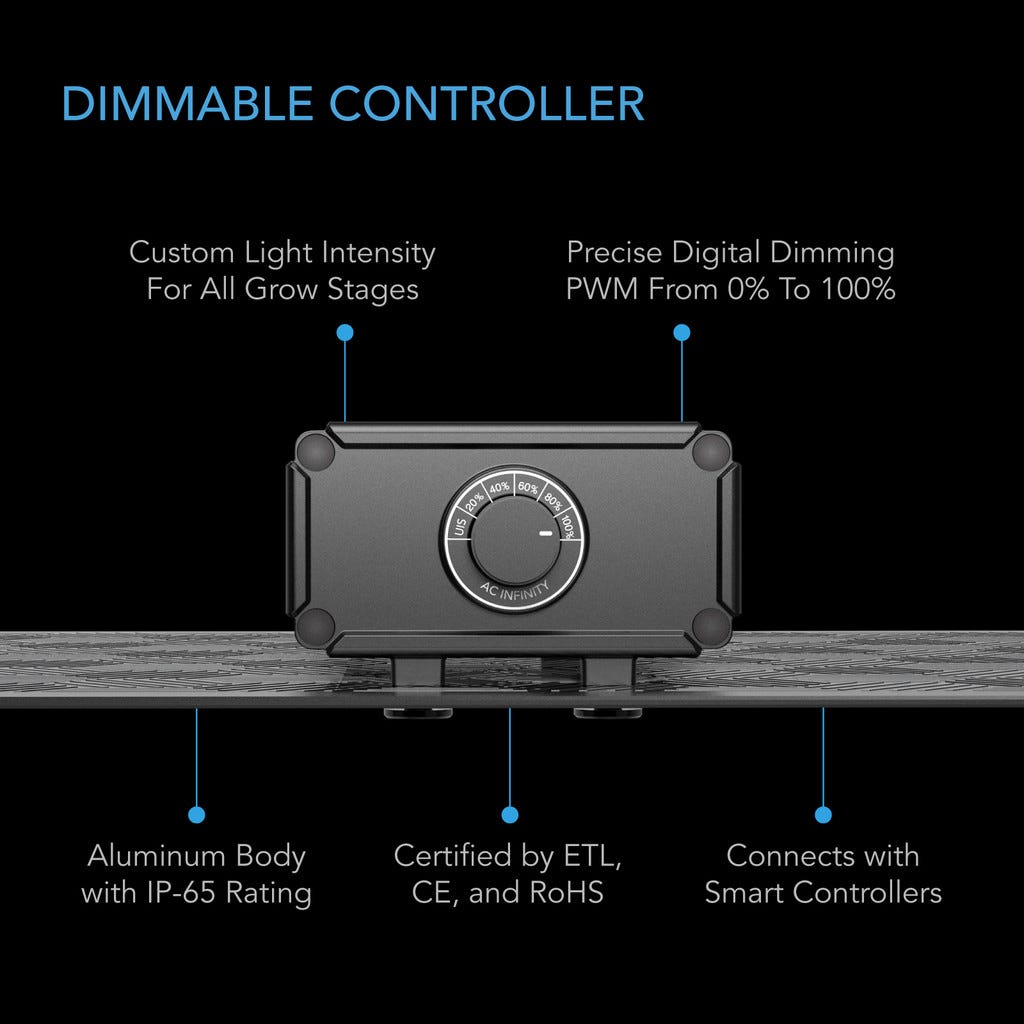

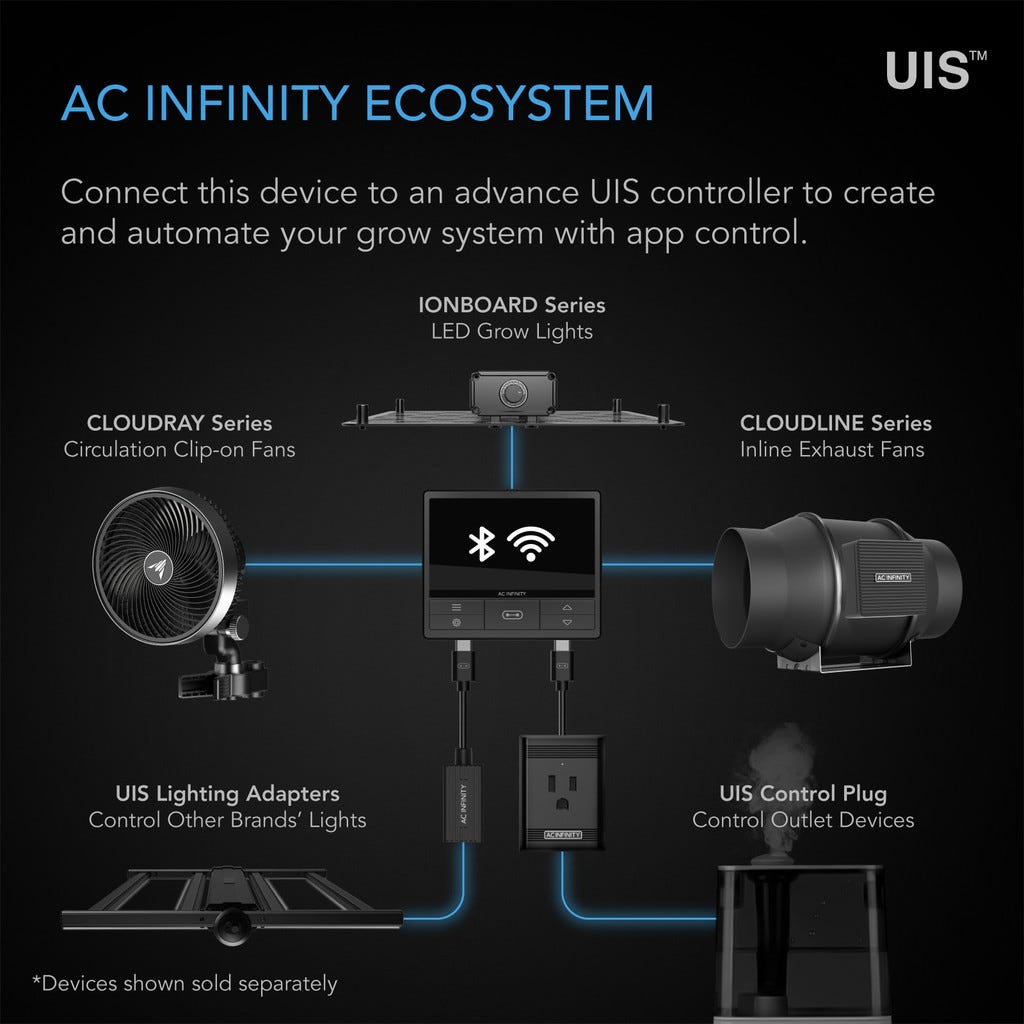

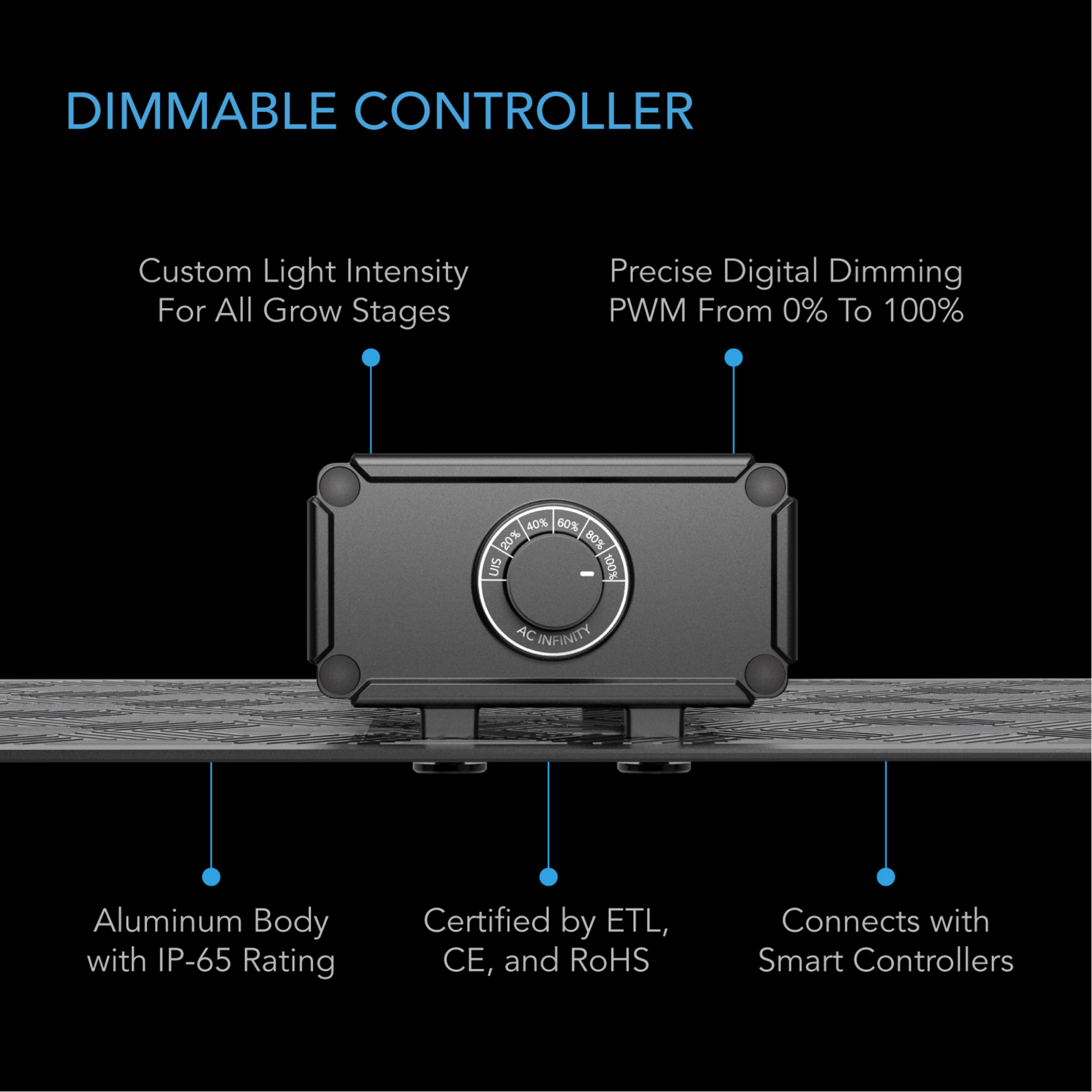

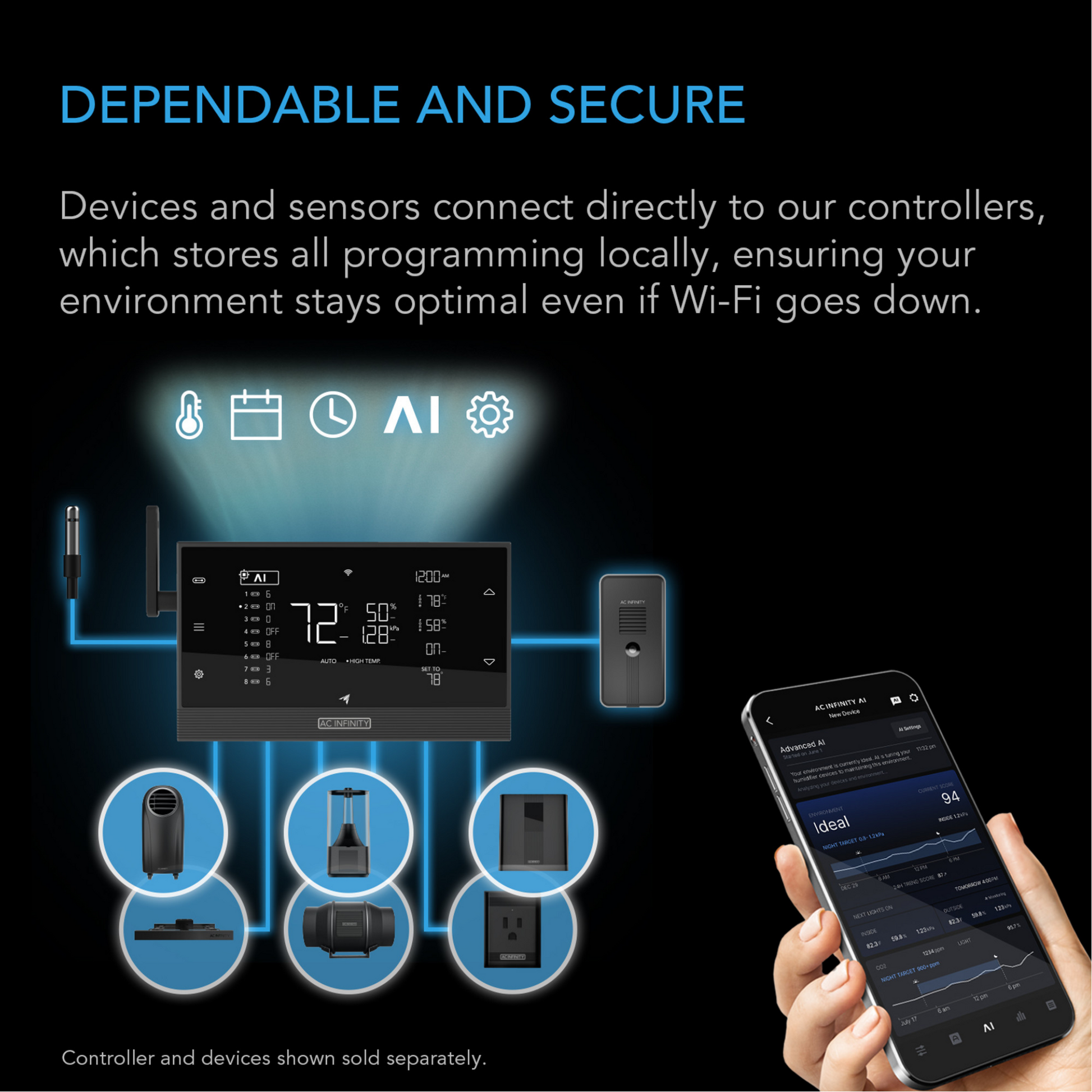

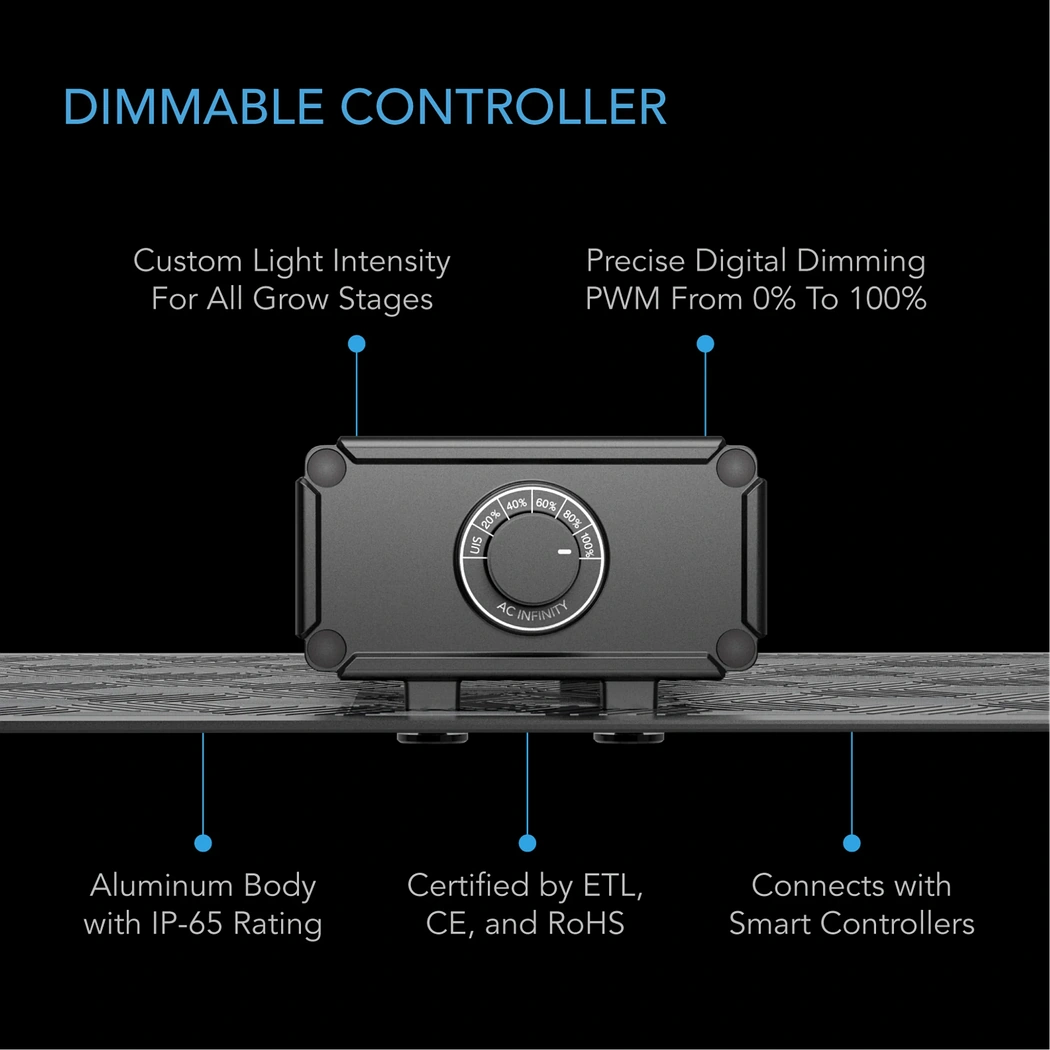

A proprietary driver enables precise light intensity control with a dimmer that adjusts from 0 to 100% in 20% increments. This driver also supports daisy chaining and connectivity with AC Infinity's smart controllers, providing access to advanced features such as grow cycle scheduling, app control, and integration with other grow equipment. This seamless integration within the UIS™ platform allows you to create and maintain the optimal environment for your plants.

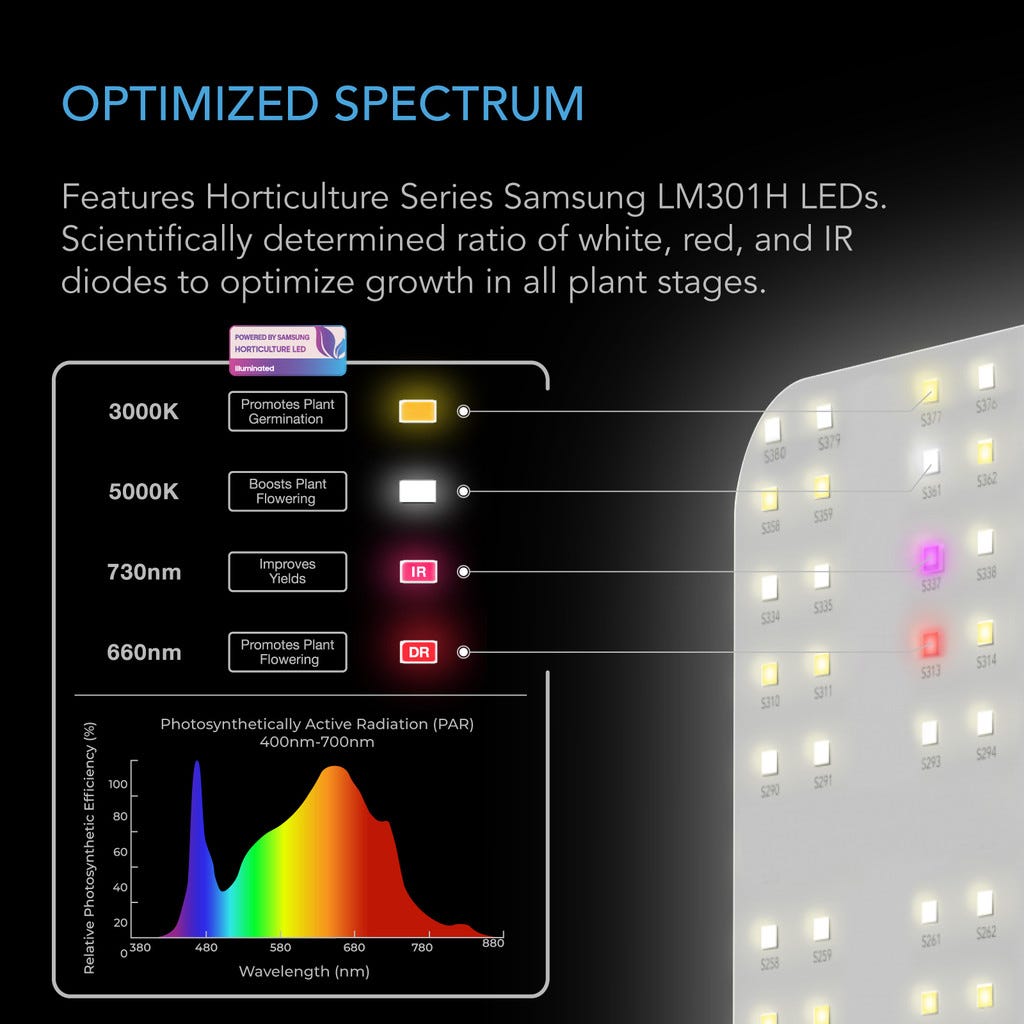

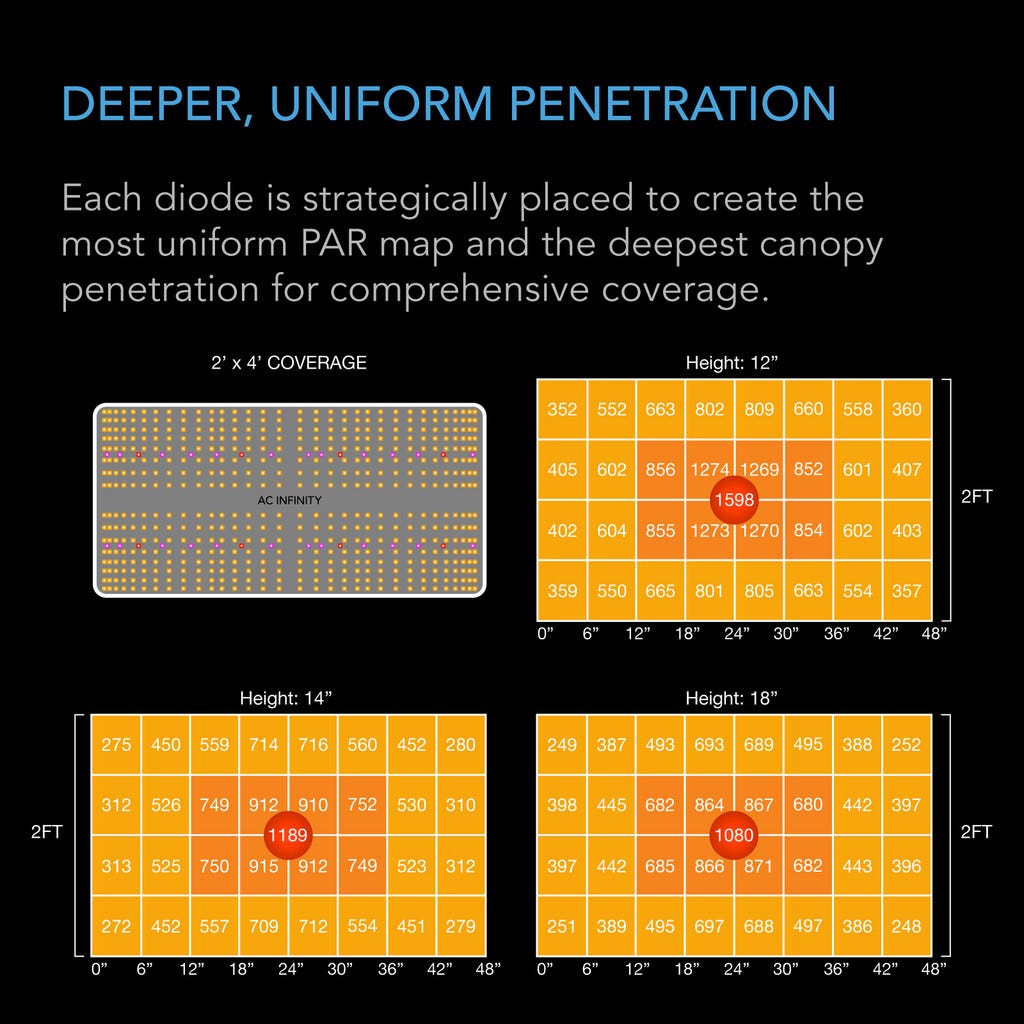

Key specifications include a coverage area of 2x4 ft., an efficiency of 2.65 µmol/J, and a PPFD of 1598. The light spectrum encompasses 660nm, 730nm, 3000K, and 5000K, offering a balanced range suitable for various plant stages. With a life expectancy of 50,000 hours, the IONBOARD S24 is a reliable choice for growers seeking to optimize their indoor gardening with cutting-edge LED technology.

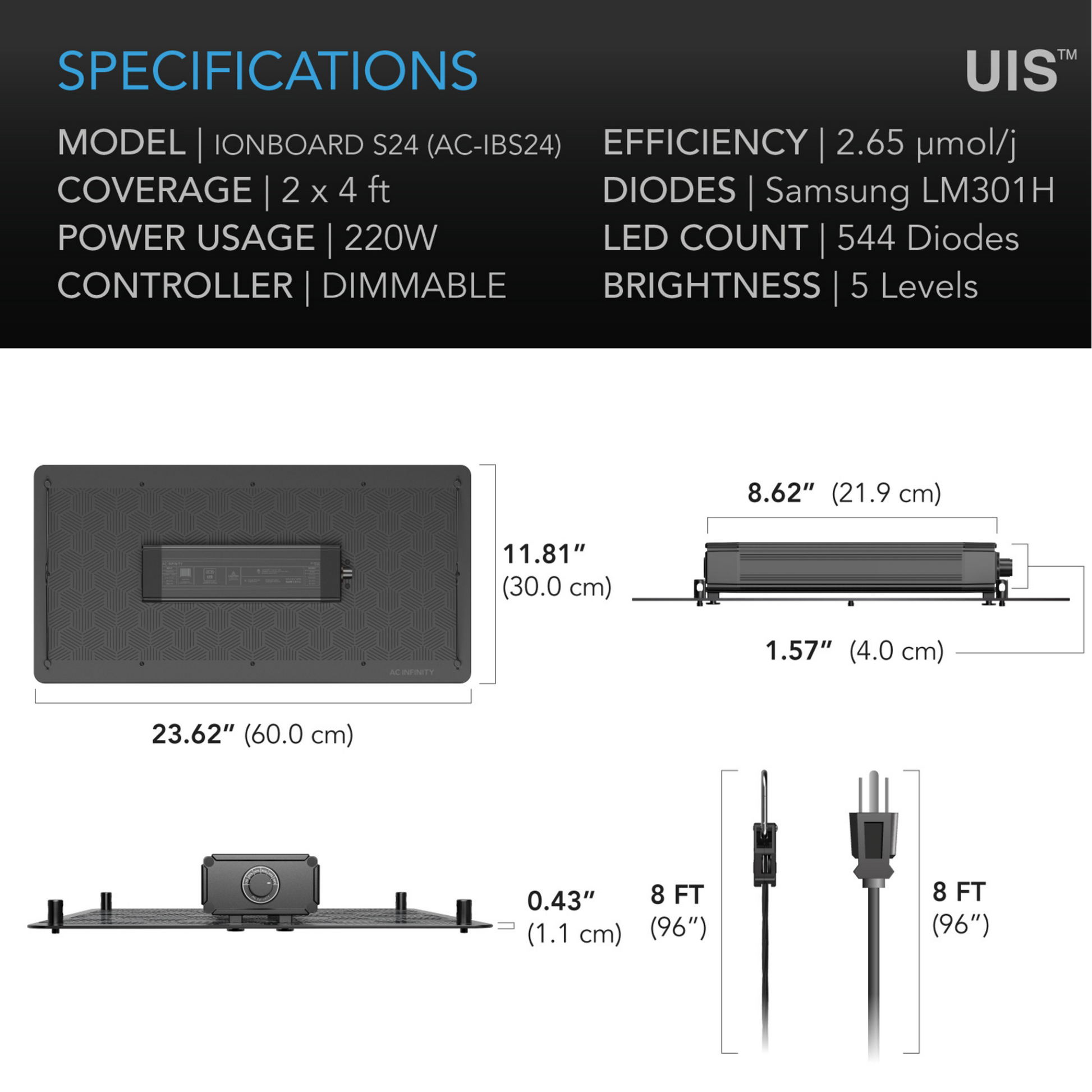

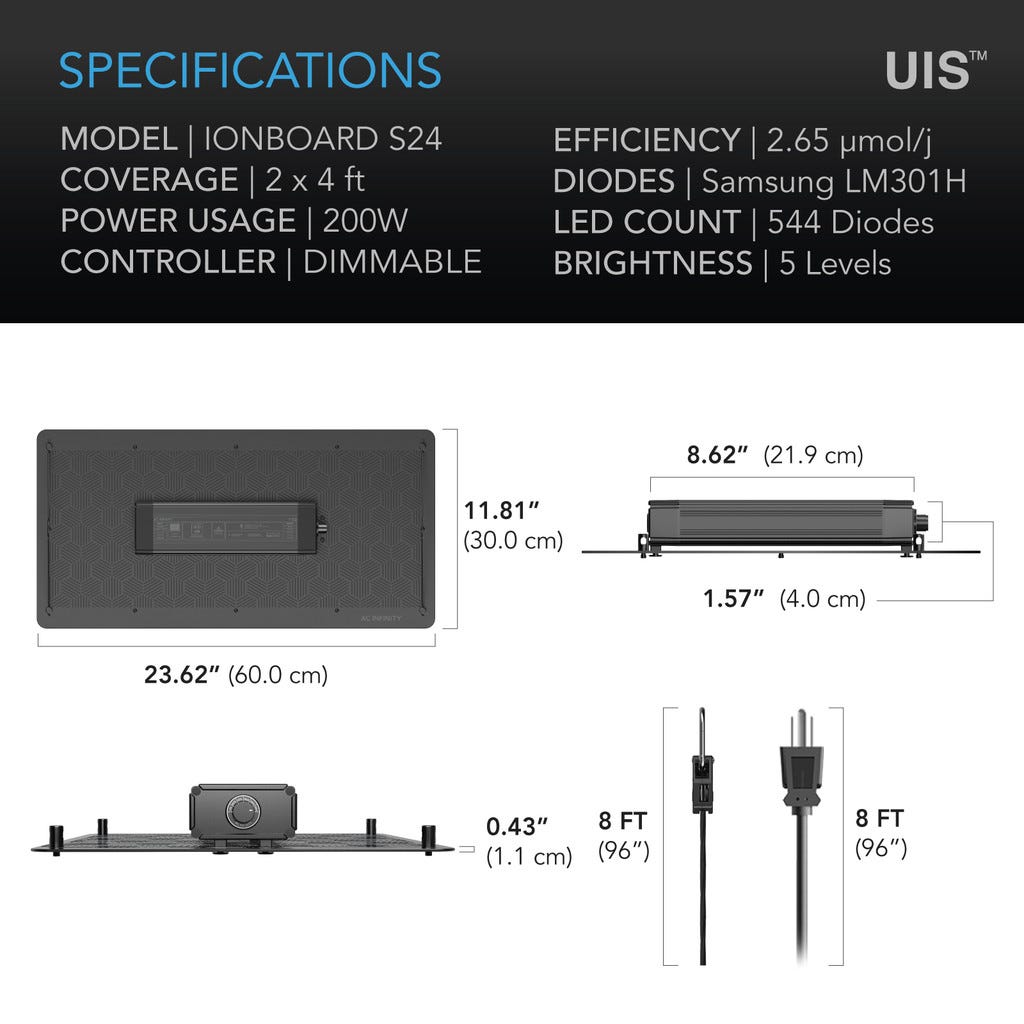

Product and Mounting Dimensions:
Light Dimensions: 11.81 x 23.62 in. (30.0 x 60.0 cm)
LED Board Thickness: 0.43 in. (1.1 cm)
Driver Dimensions: 8.62 x 1.57 in. (21.9 x 4.0 cm)
Technical Specs:
- Coverage: 2 x 4 ft.
- Diodes: Samsung LM301H
- LED Chip Count: 544
- LED Driver: AC Infinity Proprietary Driver, Model GTS-100
- Efficiency: 2.65 µmol/j
- PPFD: 1598 PPFD
- Spectrum: 660nm, 730nm, 3000K, 5000K
- Wattage: 200 W
- Voltage: 100-277V AC
- Frequency: 50/60 Hz
- Amps: 1.84 A @ 120V | 0.92 A @ 240V | 0.80 A @ 277V
- Controller: Digital Dimming Timer
- Power Connector Type: US Plug (NEMA 1-15 Type-A)
- Operating Humidity: 35 to 85% RH
- Operating Temperature: 32 to 140 °F
- Life Expectancy: 50,000 Hours
The AC Infinity IONBOARD S24 combines an optimized spectrum, future-ready controls, and robust build quality, making it an excellent choice for any indoor gardening enthusiast aiming for high yields and healthy plant growth.
Product and Mounting Dimensions
- Light Dimensions
11.81 x 23.62 in. (30.0 x 60.0 cm)
- LED Board Thickness
0.43 in. (1.1 cm)
- Driver Dimensions
8.62 x 1.57 in. (21.9 x 4.0 cm)
Product Performance and Technical Specs
- Coverage
2 x 4 ft.
- Diodes
Samsung LM301H
- LED Chip Count
544
- LED Driver
AC Infinity Proprietary Driver, Model GTS-100
- Efficiency
2.65 µmol/j
- PPFD
1598 PPFD
- Spectrum
660nm, 730nm, 3000K, 5000K
- Wattage
200 W
- Voltage
100-277V AC
- Frequency
50/60 Hz
- Amps
1.84 A @ 120V | 0.92 A @ 240V | 0.80 A @ 277V
- Controller
Digital Dimming Timer
- Power Connector Type
US Plug (NEMA 1-15 Type-A)
- Operating Humidity
35 to 85% RH
- Operating Temperature
32 to 140 °F
- Life Expectancy
50,000 Hours
