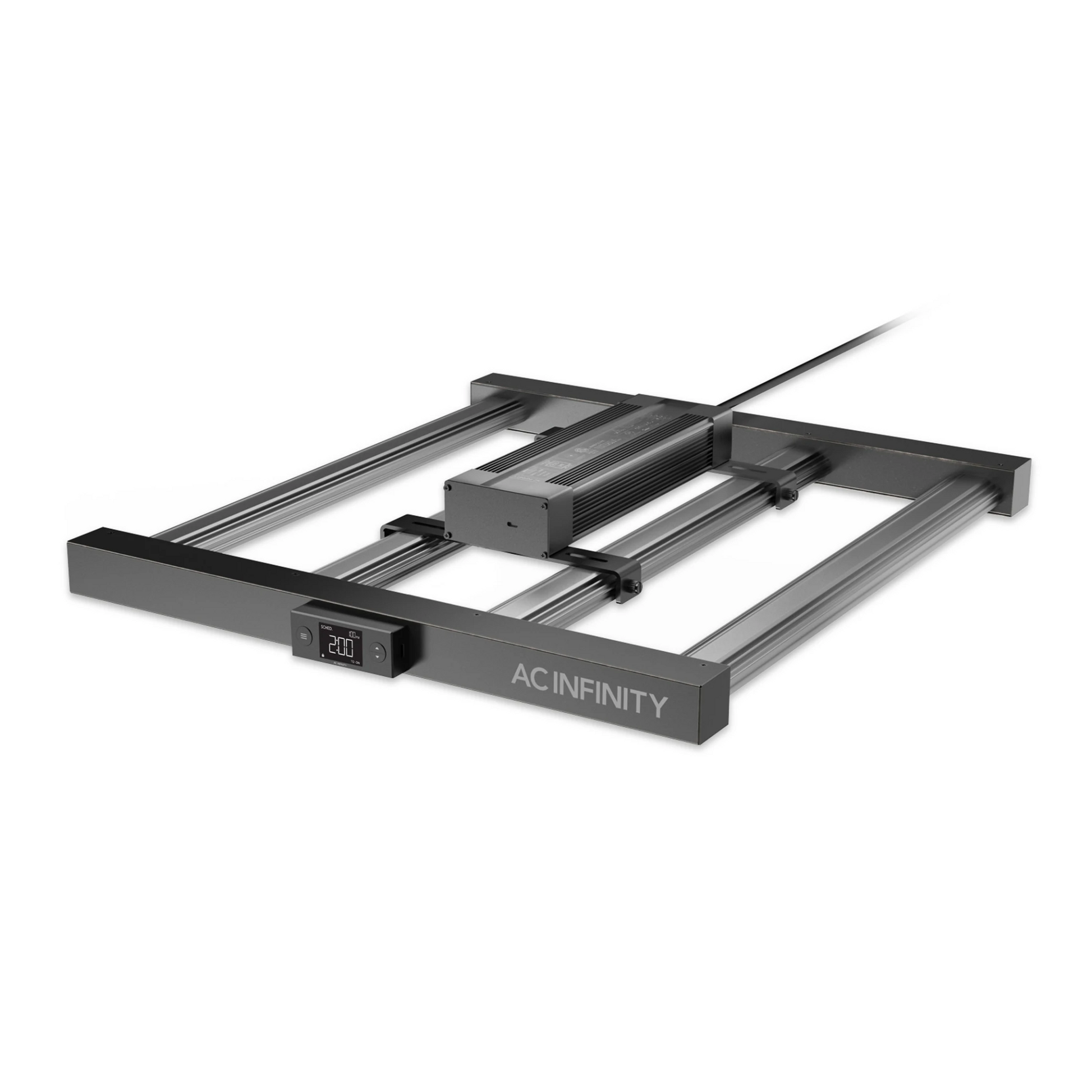

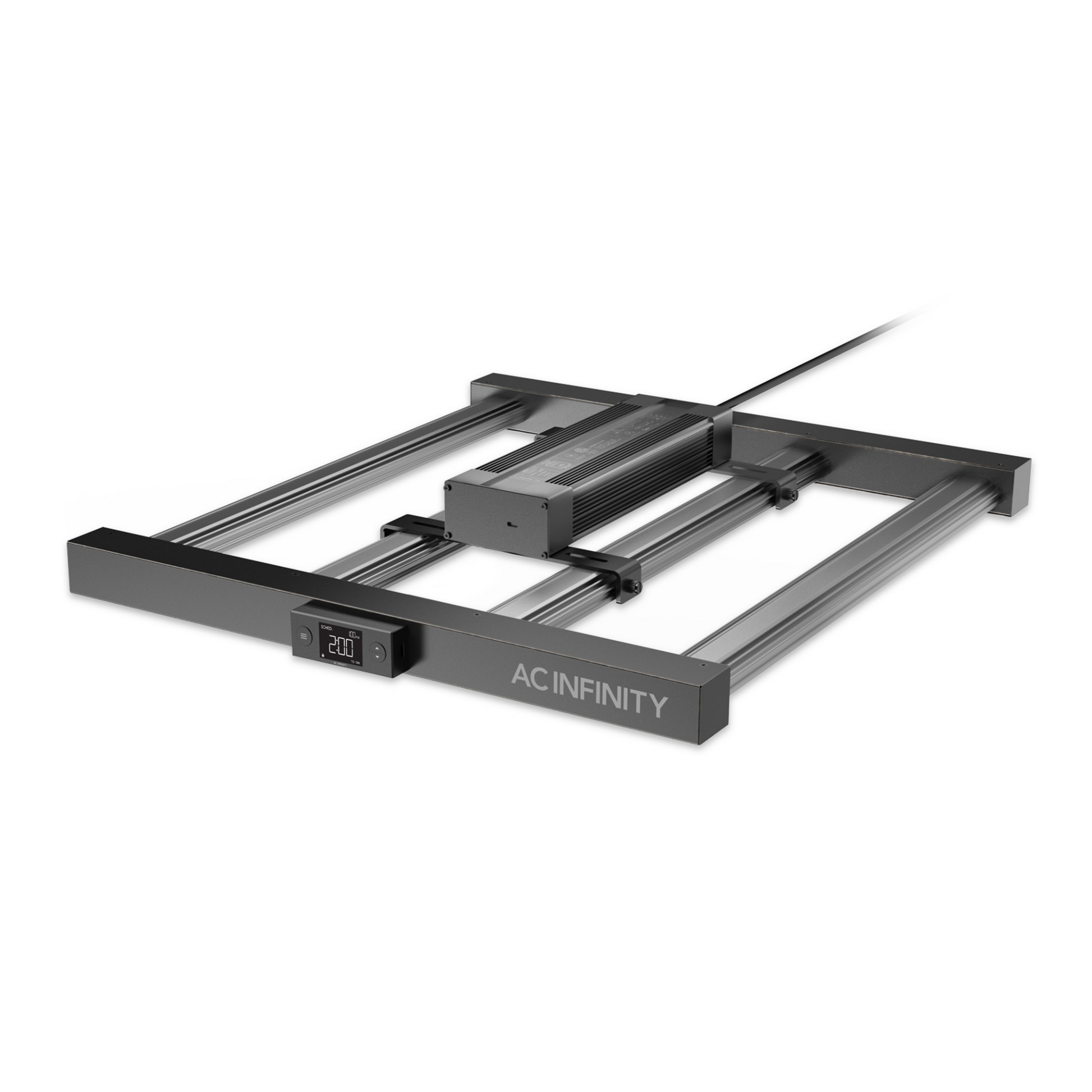

The AC Infinity IONFRAME EVO4 is a compact bar fixture for 3x3 flower tents, spreading 896 diodes across a frame instead of one board. It is a 300W LED grow light rated at 3.14 µmol/J, with Samsung LM301H EVO whites plus UV, red and far red.
AC Infinity IONFRAME EVO4 Spectrum, Draw and Footprint

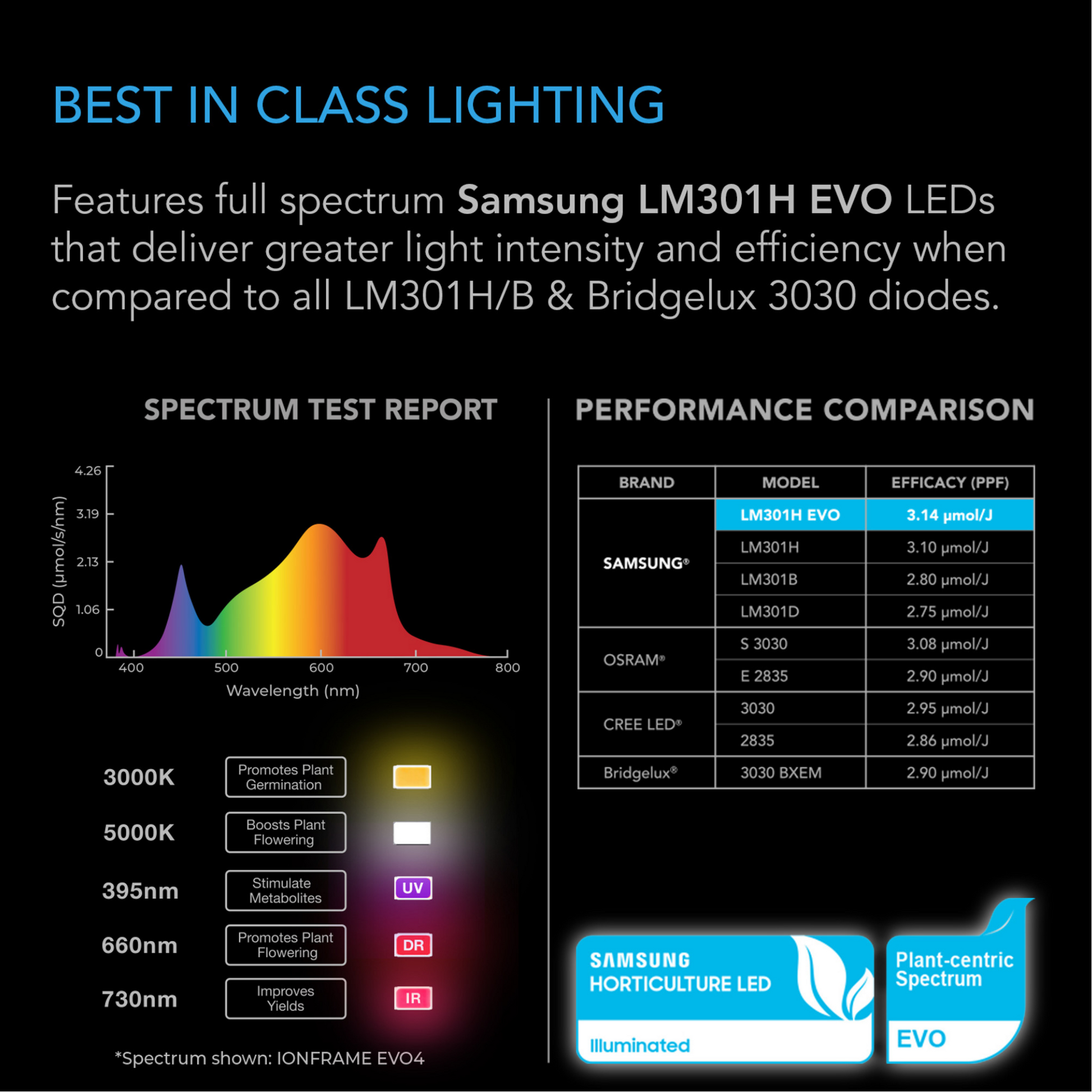

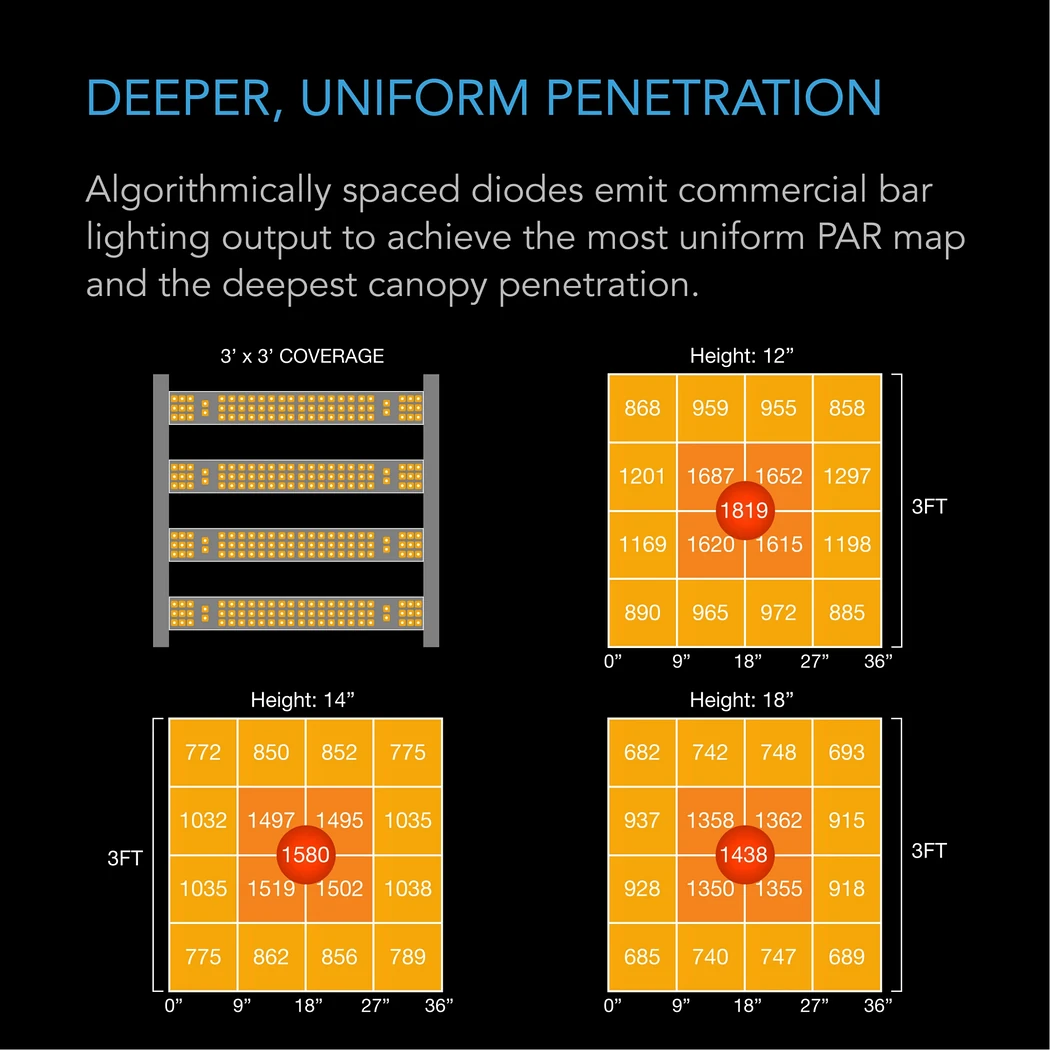

Most growers meet the EVO4 when a 3x3 tent needs more efficient light than a basic panel gives. It runs 896 diodes, and AC Infinity publishes the exact mix. There are 360 Samsung LM301H EVO at 3000K, 500 at 5000K, 28 OSRAM 660 nm, 4 OSRAM 730 nm and 4 Seoul 395 nm. That is a cooler, bluer white balance than the smaller EVO3, which keeps veg growth tight. Efficacy is 3.14 µmol/J, and the manufacturer lists 1,819 PPFD for the fixture. Input is 100–277V at 3.0A, a light load on any standard circuit. The frame measures 20.47 x 22.83 x 2.99 in, small enough to leave room for fans and a filter in a 3x3. Flower coverage is 3 x 3 ft, and in veg it reaches 4 x 4 ft. The body is IP65 sealed, and diodes carry a 50,000-hour rating. Its driver measures 7.16 x 1.57 in and unclips for remote mounting.
Running a 300W LED Grow Light in a 3x3 Tent

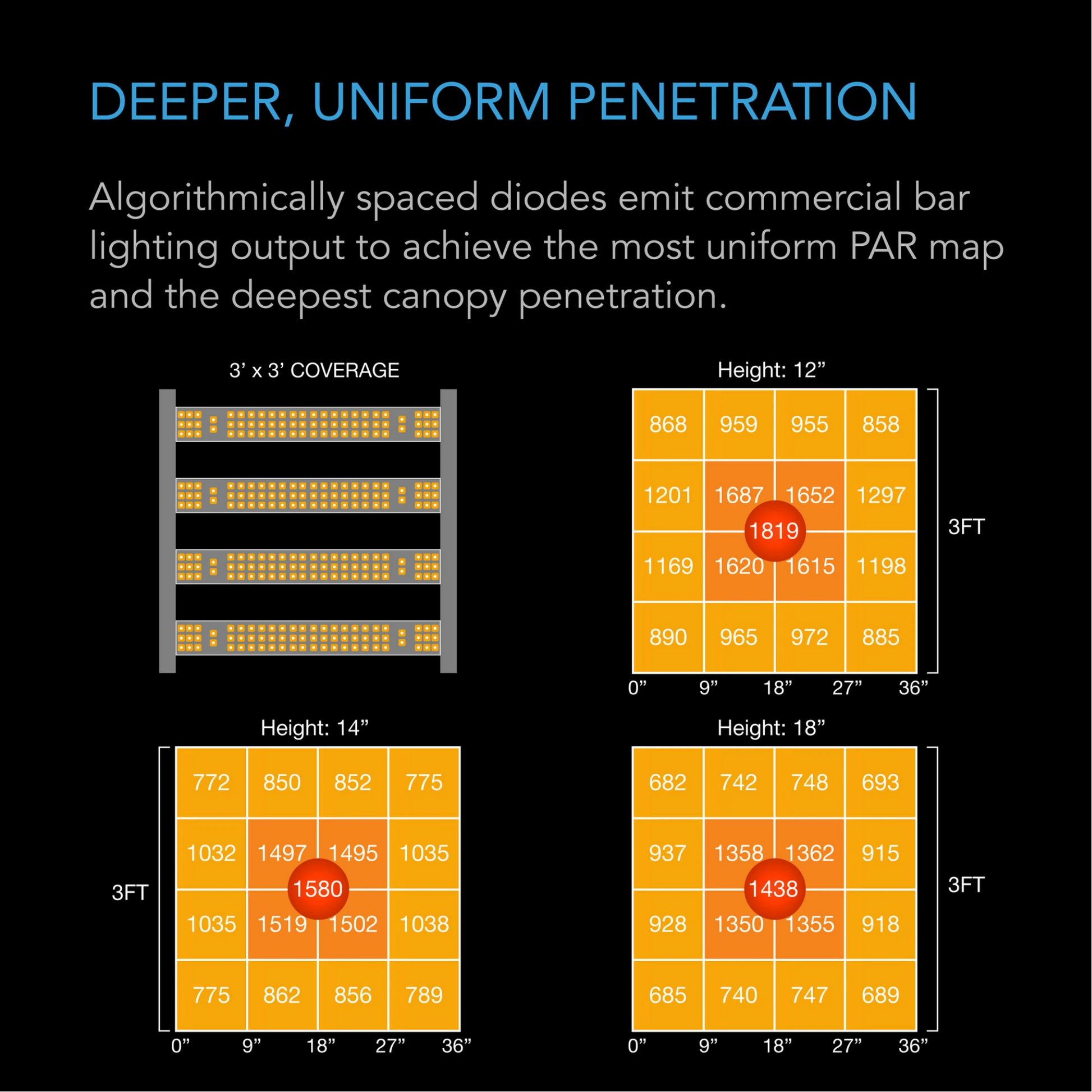

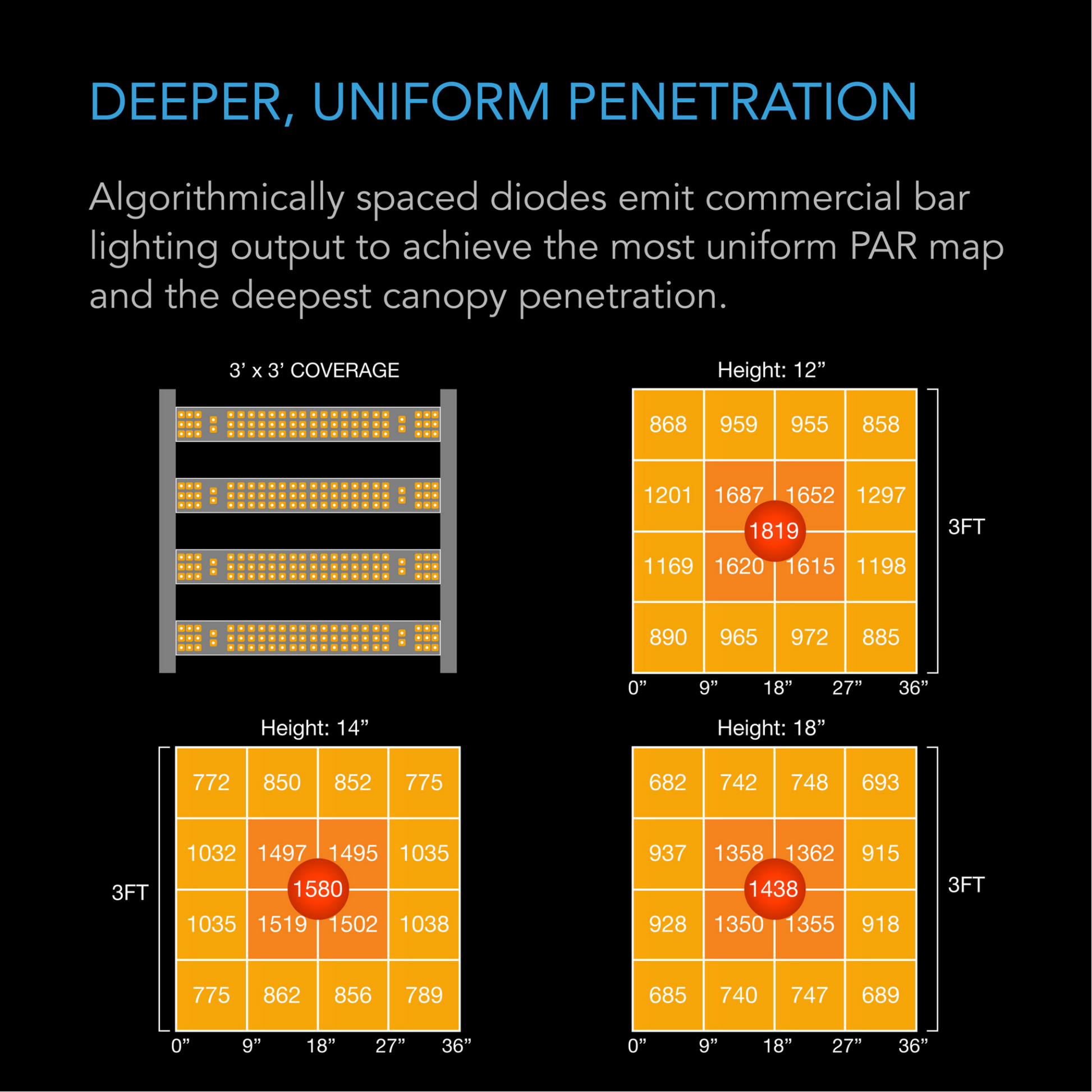

A 300W LED grow light is about the right load for a 3x3, where more watts mostly means more heat to exhaust. AC Infinity's manual says to hang the frame at least a foot above the tops. From there, run forty percent for seedlings, eighty in veg and full power in flower. Heat stays modest, which helps when a tent sits in a warm closet or garage. The bundled schedule controller covers on and off times, a clock mode and sunrise-sunset ramps. Growers comparing it with the IONBOARD S33 usually notice two differences. The EVO4 converts power more efficiently and adds a trace of UV, while the S33 is a single flat board. Neither has a published coverage map, so check the corners with a meter if you own one. The small UV channel will not replace a dedicated UV bar late in flower. For a single 3x3 run from clone to harvest, it is an efficient light that stays out of the way.
Key Features
- 896-diode full spectrum: LM301H EVO whites with OSRAM reds and Seoul UV support veg and flower in one fixture.
- Compact bar frame: Spreads output across the tent while leaving space for ducting and fans.
- Removable passive driver: Mount it on a pole outside the canopy to keep heat down.

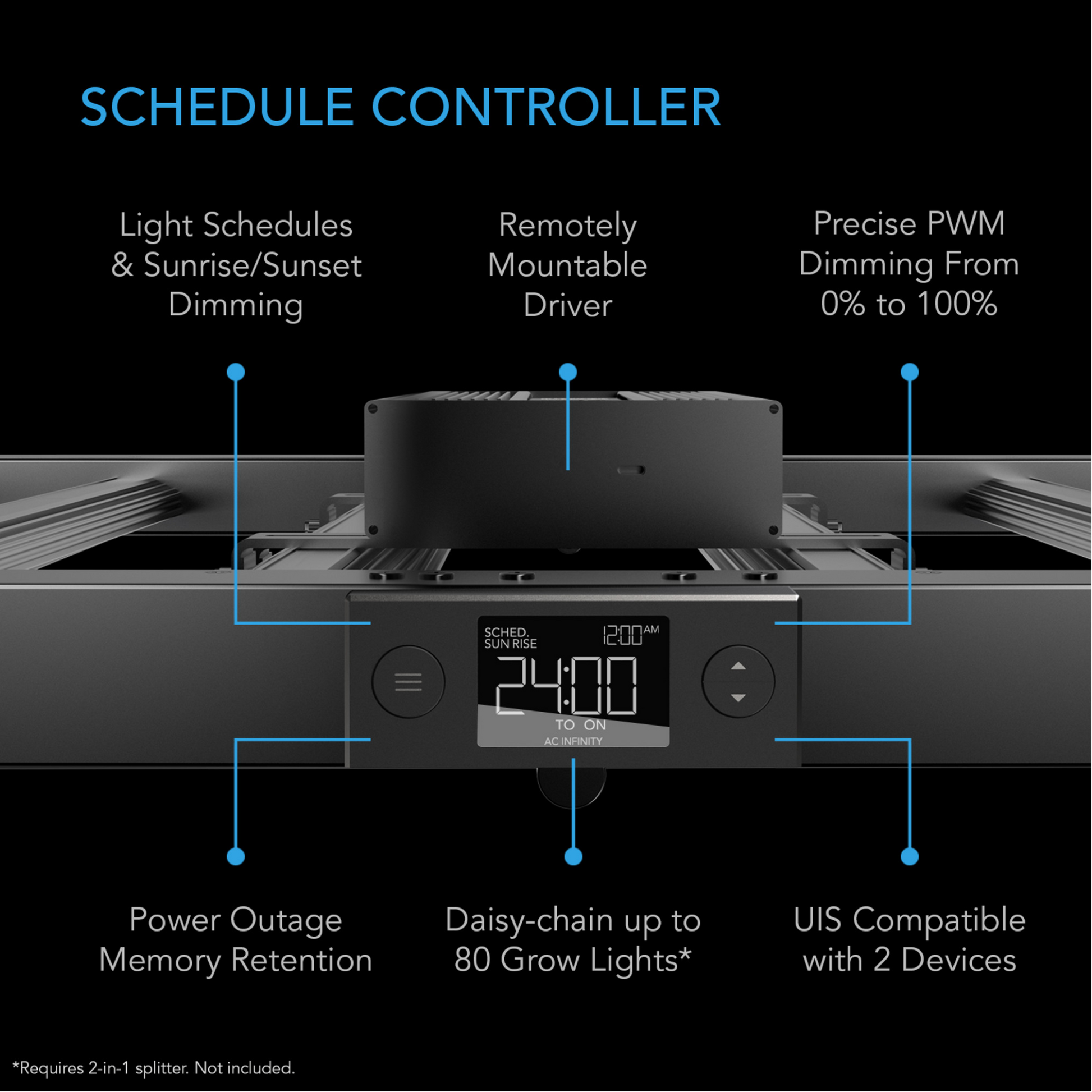

- Included schedule controller: Ten brightness levels, clock mode and sunrise-sunset ramps with no add-ons.
- Splitter-dongle daisy chain: Link more frames to the same controller as the grow expands.
- IP65 housing: Sealed against tent humidity and foliar spray.
Technical Specifications
| Specification | Value |
|---|---|
| Model | AC-IF4K |
| Power Draw | 300W |
| Input Voltage | 100–277V AC |
| Current | 3.0A |
| Efficacy | 3.14 µmol/J |
| Rated PPFD | 1,819 µmol/m²/s (manufacturer figure) |
| Diodes | 896 total: 360 LM301H EVO 3000K, 500 LM301H EVO 5000K, 28 OSRAM 660 nm, 4 OSRAM 730 nm, 4 Seoul 395 nm |
| Growth Phase | Full-cycle (seedling, veg, flower) |
| Coverage | 3 x 3 ft flower, 4 x 4 ft veg |

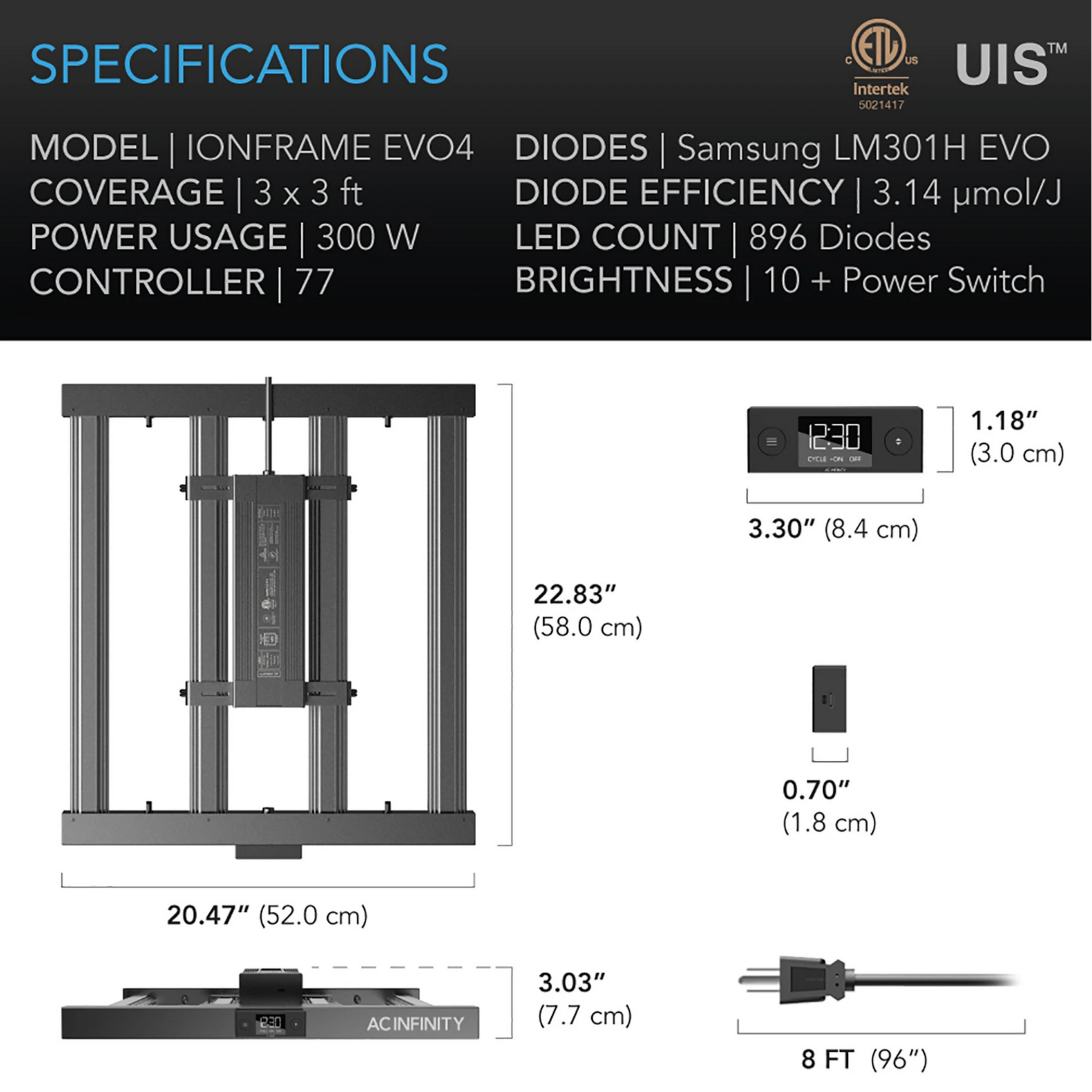

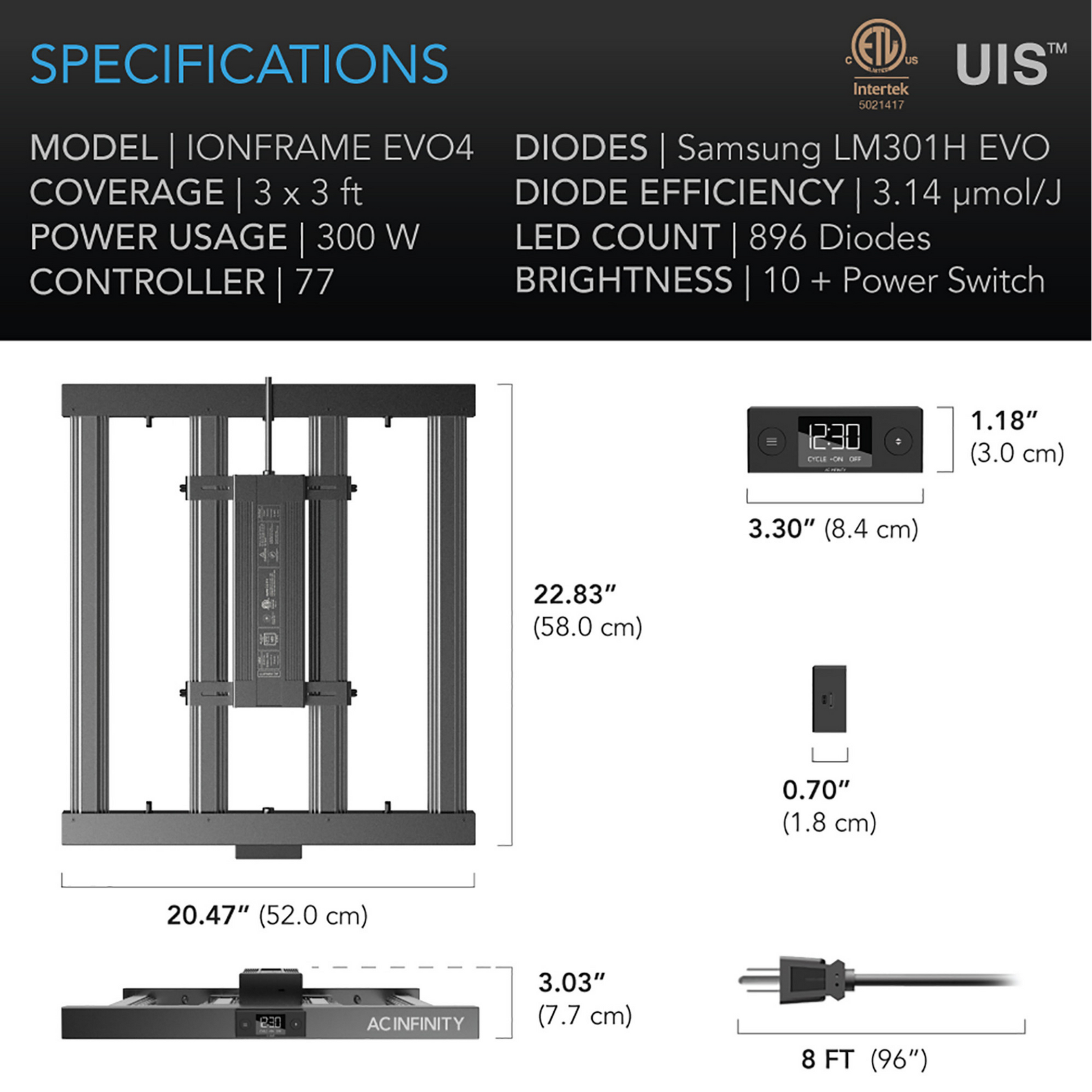

| Fixture Dimensions | 20.47 x 22.83 x 2.99 in (52.0 x 58.0 x 7.6 cm) |
| Driver Dimensions | 7.16 x 1.57 in (18.2 x 4.0 cm), removable |
| Controller | Included schedule controller, 10 levels, sunrise/sunset |
| IP Rating | IP65 |
| Rated Lifespan | 50,000 hours |
| Warranty | 2 years (manufacturer) |
