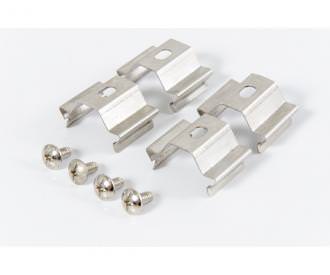

JSF Hanging Hardware for 3-Shelf and 6-Shelf Vertical Grow Systems
Stacking seedlings, clones or microgreens on shelves only works when each tier has its own light. This kit gives a Jump Start JSF T5 fixture a fixed place under a Hydrofarm shelf. The shelf above becomes the light mount for the shelf below. Hydrofarm built slots into the underside of each Vertical Grow Shelf panel for hanging fixtures. This hardware connects a JSF strip to those slots. With the fixture fastened in place, it stays level and centered over the trays. No chains, ratchets or ceiling hooks are needed inside the frame. That keeps the space between tiers clear for trays and domes. It also makes a mobile rack practical, since the lights roll with the unit on its casters. The kit is small and light, about 0.1 lb in a 2 x 2 x 2 inch package.
Lighting Each Tier of a Vertical Grow Shelf
Plan the light layout before loading the shelves with trays. The shelves sit on multiple mounting holes, so tier spacing can change as plants grow. Raise a shelf and the fixture under it rises too, keeping the same gap to the canopy. Young seedlings like a T5 close, while taller starts need more room. Check that each fixture fits the shelf width before mounting it. Count the weight of every light toward the rack's total load rating. Run the power cords along the frame so they stay clear of water and trays. Plug the fixtures into a timer so every tier runs the same schedule. After that, load the trays. The result is a compact, multi-level propagation station with its own light on each shelf.
Key Features
- Under-Shelf Mounting: Hangs a JSF T5 fixture from the shelf above.
- Fits Two Systems: Works with VGS300 3-shelf and VGS600 6-shelf racks.
- Uses Built-In Slots: Attaches to the hanging slots under each shelf.
- Clear Tier Space: No chains or hooks between shelves.
- Moves with the Rack: Lights stay mounted when the unit rolls.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Hydrofarm |
| Model | VGS025 |
| Use | Mounts Jump Start JSF T5 fixtures under shelves |
| Compatible Systems | Hydrofarm Vertical Grow Shelf VGS300 and VGS600 |
| Package Size | 2 x 2 x 2 in |
| Weight | 0.1 lb |
