Kessil Spectral Controller X

A touch controller for Kessil A360X and 0-10V lights

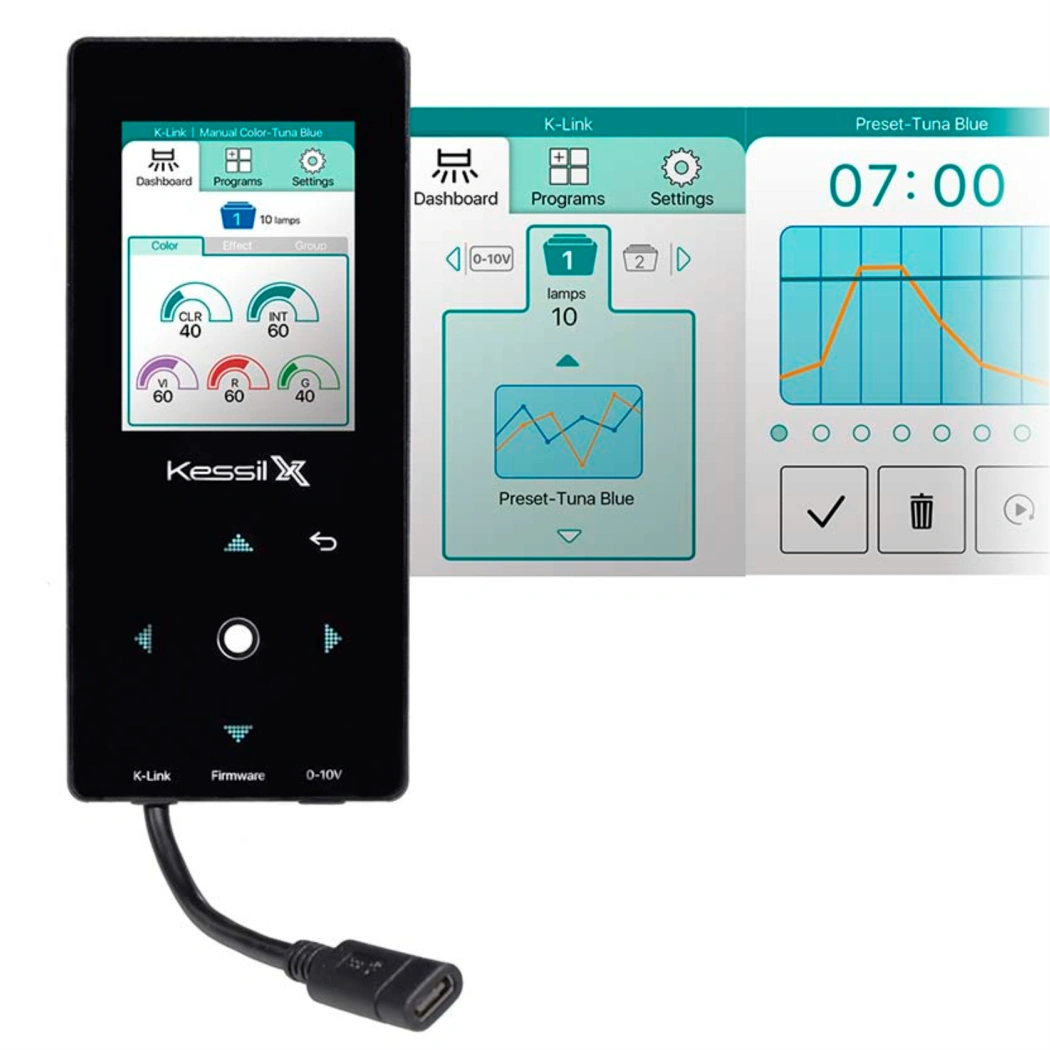

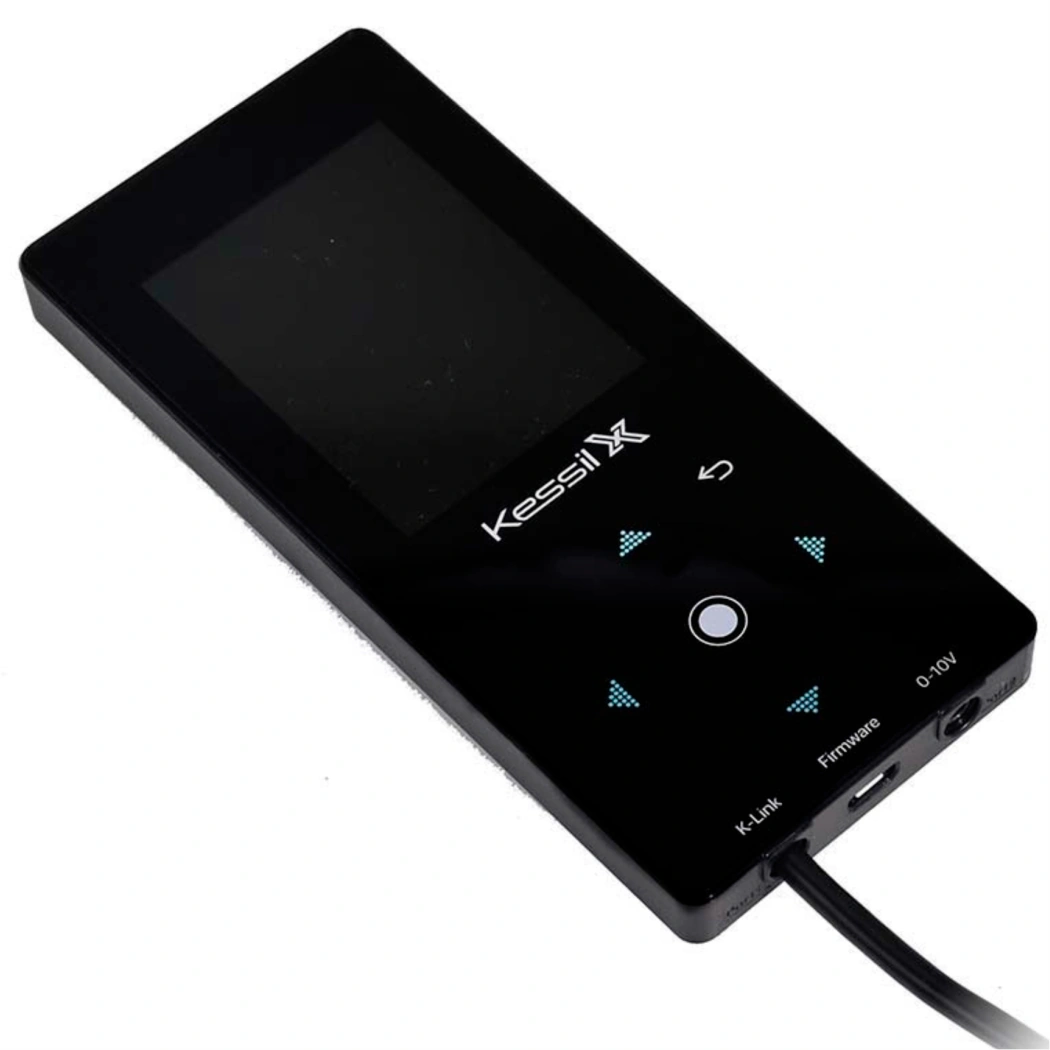

The Spectral Controller X drives Kessil lights from a color touchscreen, tuning spectrum and intensity without menus to hunt through. Its K-Link port networks multiple A360X fixtures, up to 32 per chain, and can split them into groups that each run their own program. K-Link is two-way, so the controller sees how many lights are connected and their status. A separate 0-10V output port also drives Kessil's 0-10V fixtures, so it spans both the new and older lines.

Programs and networking on the Spectral Controller X

Program mode holds up to 12 schedules. Quick Set builds custom dawn-and-dusk effects across eight time points. Acclimation mode eases new lights or livestock in gradually, and a five-phase Lunar Cycle runs moonlight. Manual mode tunes spectrum and intensity on demand for a quick change. The kit ships with a magnetic back plate, a 10-foot K-Link cable, a micro USB cable, and mounting hardware. One note: the USB power adapter and the 0-10V unit link cable are sold separately.

Key Features

• Color Touchscreen: Tunes spectrum and intensity from a vivid touch display.
• K-Link Networking: Chains up to 32 A360X fixtures with two-way communication.
• Group Control: Split networked lights into groups that run separate programs.
• Dual Ports: One K-Link port and one 0-10V output for new and older Kessil lights.
• 12 Programs: Store up to 12 schedules with Quick Set, Acclimation, and Lunar modes.
• Manual Mode: Adjust spectrum and intensity on demand at any time.
• Complete Mounting Kit: Ships with back plate, 10-ft K-Link cable, and hardware.
