Kootenay 500SL Pre-Filter Dimensions and Fit

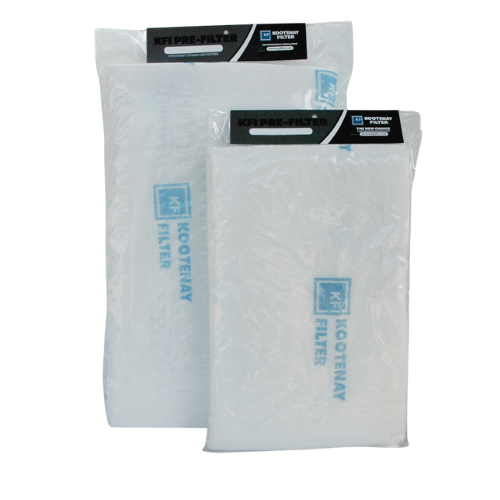

The Standard Line SL500 is a short, wide filter that can be fitted with a 6 in, 8 in or 10 in flange. This sleeve is the replacement pre-filter for that body. Kootenay Filter's part number for it is PF500. It measures 16 in in diameter and 20 in long. That wide diameter gives it a generous surface for catching dust. Coarse particles stay in the fabric rather than settling into the carbon. Keeping the outer bed clean is what lets the deeper carbon contribute to odor control. A dirty sleeve forces air through fewer open spots, which raises resistance and shortens carbon life. Swapping it brings that surface back to new without opening the filter. The SL500 ships with a pre-filter installed, and this part is the direct replacement for it.
Keeping a Replacement Pre-Filter on Hand for the SL500
A short, wide filter like this suits rooms where ceiling height is limited but airflow needs are high. It is often set on its side on a shelf or bracket, so the upper face of the sleeve takes the most dust. Having a replacement pre-filter in the supply closet means the swap happens on schedule. Check the sleeve at every crop turnover and any time the room has been cleaned out. Sweeping and moving pots stirs up a cloud of fine dust that lands on the filter within hours. Running the fan on low during cleanup and changing the sleeve afterward keeps that dust off the carbon. To swap, power down the fan and slide the old sleeve off the closed end. Carry it out of the room in a bag rather than shaking it off indoors. Pull the new sleeve on evenly so it covers the body from end to end. Tighten the duct clamp again before restarting the fan.
Key Features
- Fits the SL500: Replacement sleeve for the Standard Line SL500.
- 6, 8 or 10 in Flange Builds: Fits the filter body whichever flange is installed.
- 16 x 20 in Sleeve: Wide coverage for a short, broad filter.
- Coarse-Dust Barrier: Keeps the outer carbon bed open.
- Hand Installed: No tools needed for a change.

Technical Specifications
| Specification | Value |
|---|---|
| Brand | Kootenay Filter |
| Model | Pre-Filter, SL500 |
| Part Number | PF500 |
| Product Line | Standard Line |
| Compatible Flanges | 6 in, 8 in or 10 in (sold separately) |
| Diameter | 16 in |
| Length | 20 in |
| Fits | Kootenay Standard Line SL500 (supplied without flange) |
| Function | Replacement pre-filter; blocks larger particulate before it reaches the carbon bed |
