Advanced Ventilation System for Optimal Air Quality

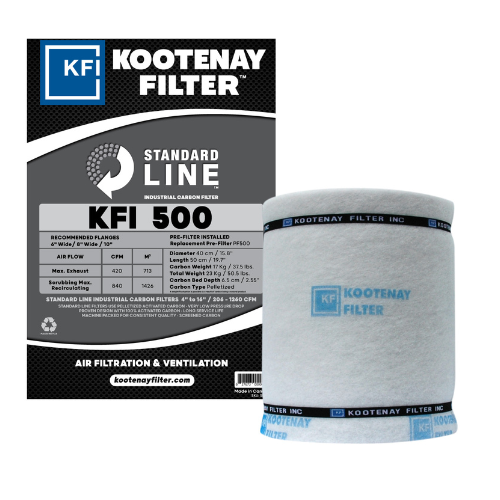

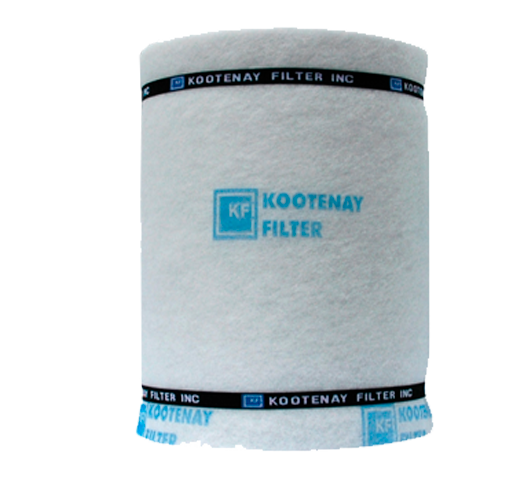

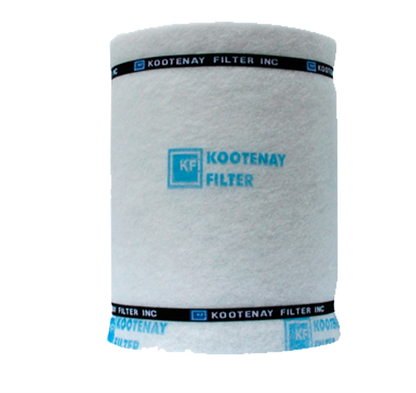

Enhance your HVAC system efficiency with the Kootenay Filter SL 500, featuring pelletized activated carbon (CKV-4) to provide exceptional air purification. With a maximum exhaust capacity of 420 CFM and a recirculation rating of 840 CFM, this carbon filter ensures effective air treatment and odor elimination in your indoor gardening setup. Its pre-installed pre-filter further extends filter life, reducing the need for frequent air filter replacements. Designed specifically for grow rooms and hydroponics systems, this ventilation solution helps maintain ideal environmental conditions for healthy plant growth and odor control. Trust in the Kootenay SL 500 for reliable, high-performance air filtration and ventilation.
Carbon: Pelletized Activated Carbon CKV-4
Prefilter installed: Yes
CFM/M3 Ratings:
Max Exhaust CFM – 420
Max Recirculate CFM – 840
Max Exhaust M3 – 713
Max Recirculating M3 – 1426
| Carbon: | Pelletized Activated Carbon CKV-4 | |
| Flanges Available: | 6" Wide / 8" Wide/ 10" | |
| Prefilter Installed: | Yes | |
| Measurements and Weights: | Imperial | Metric |
| Outside Diameter: | 15.8" | 40cm |
| Lengths: | 19.7" | 50cm |
| Total Weight: | 50.5lbs | 23kg |
| Carbon Weight: | 37.5lbs | 17kg |
| Carbon Bed: | 2.55" | 6.5cm |
| Max Operating Temperature: | 176F | 80°C |
| Minimum Recommended Airflow: | 210CFM | |
| Pressure Drop at Max CFM: | 180pa / 0.75"wg |
