Matrix Hybrid Channels, Electrical Load and Build

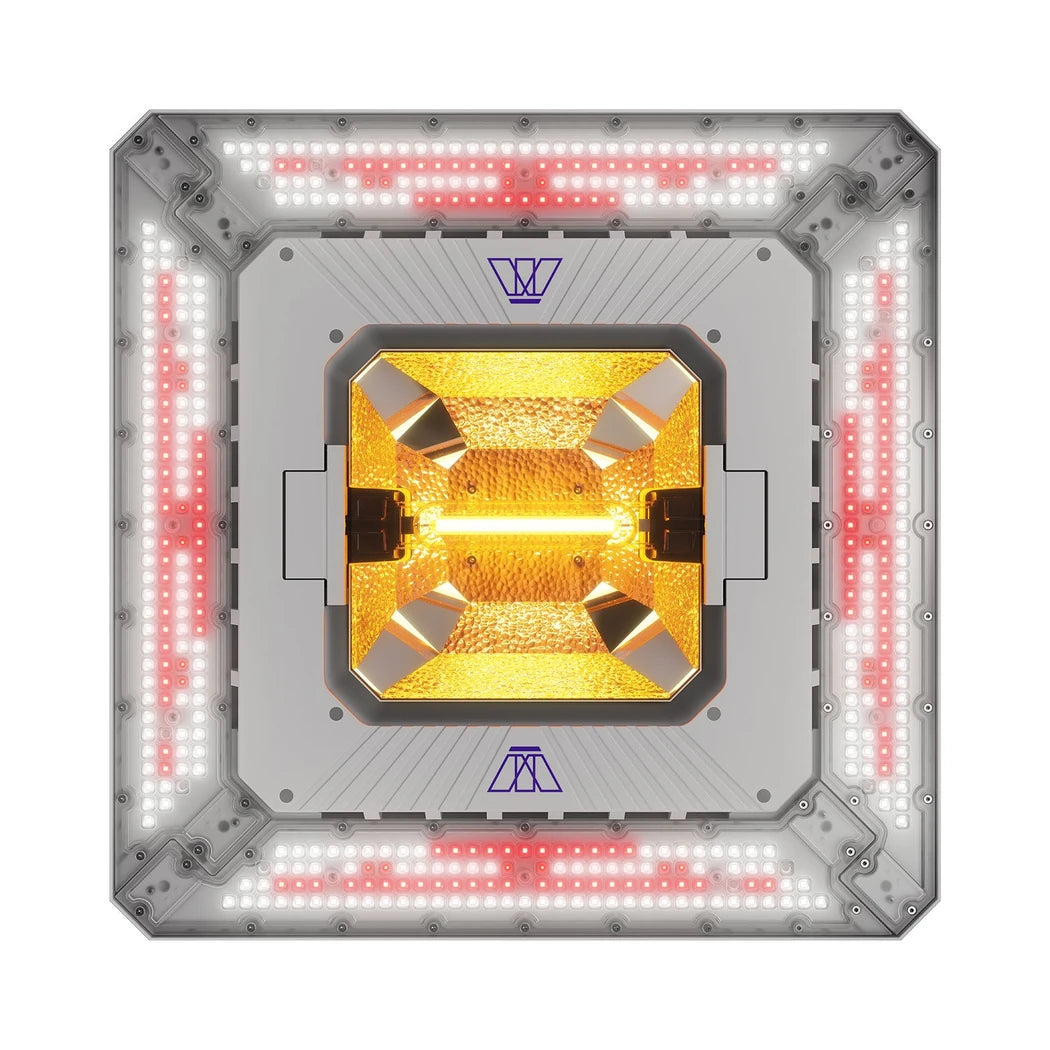

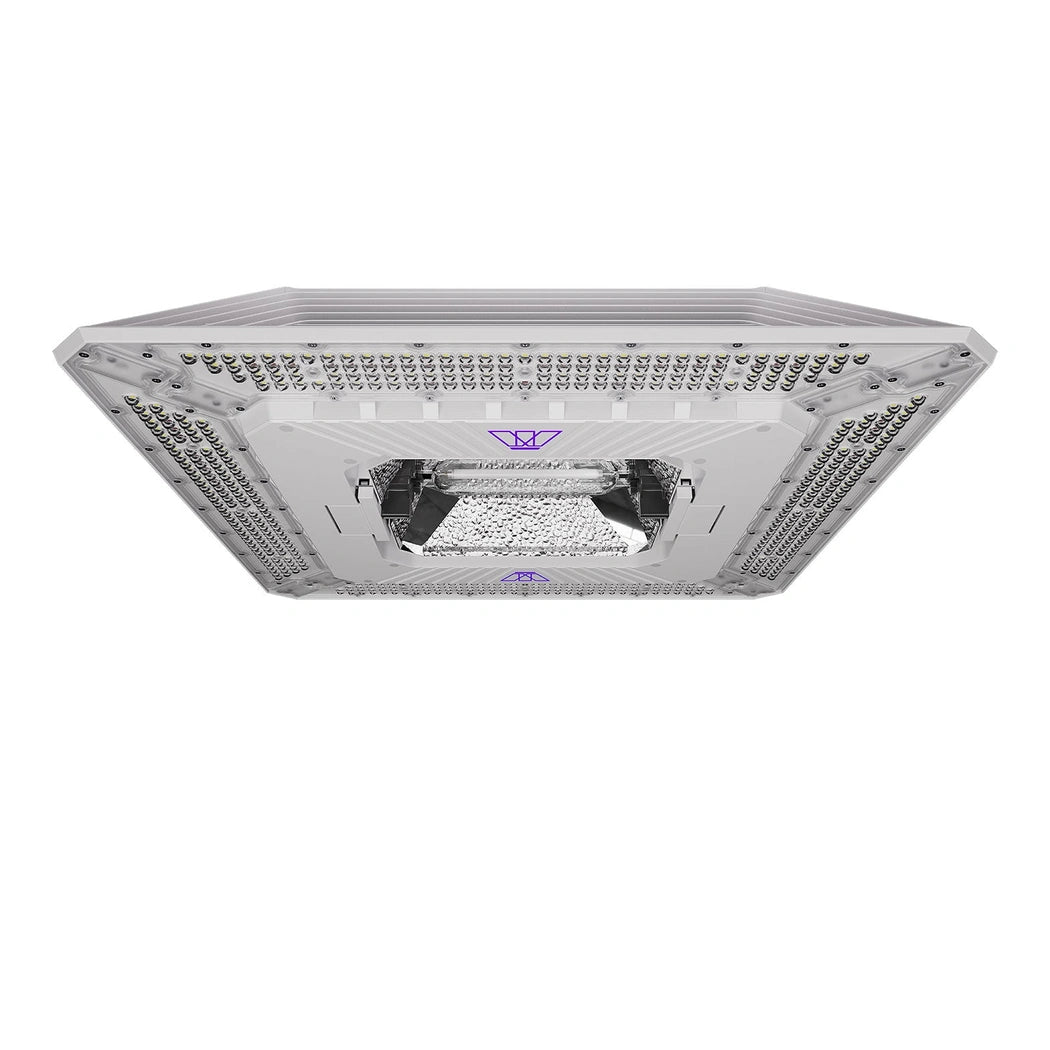

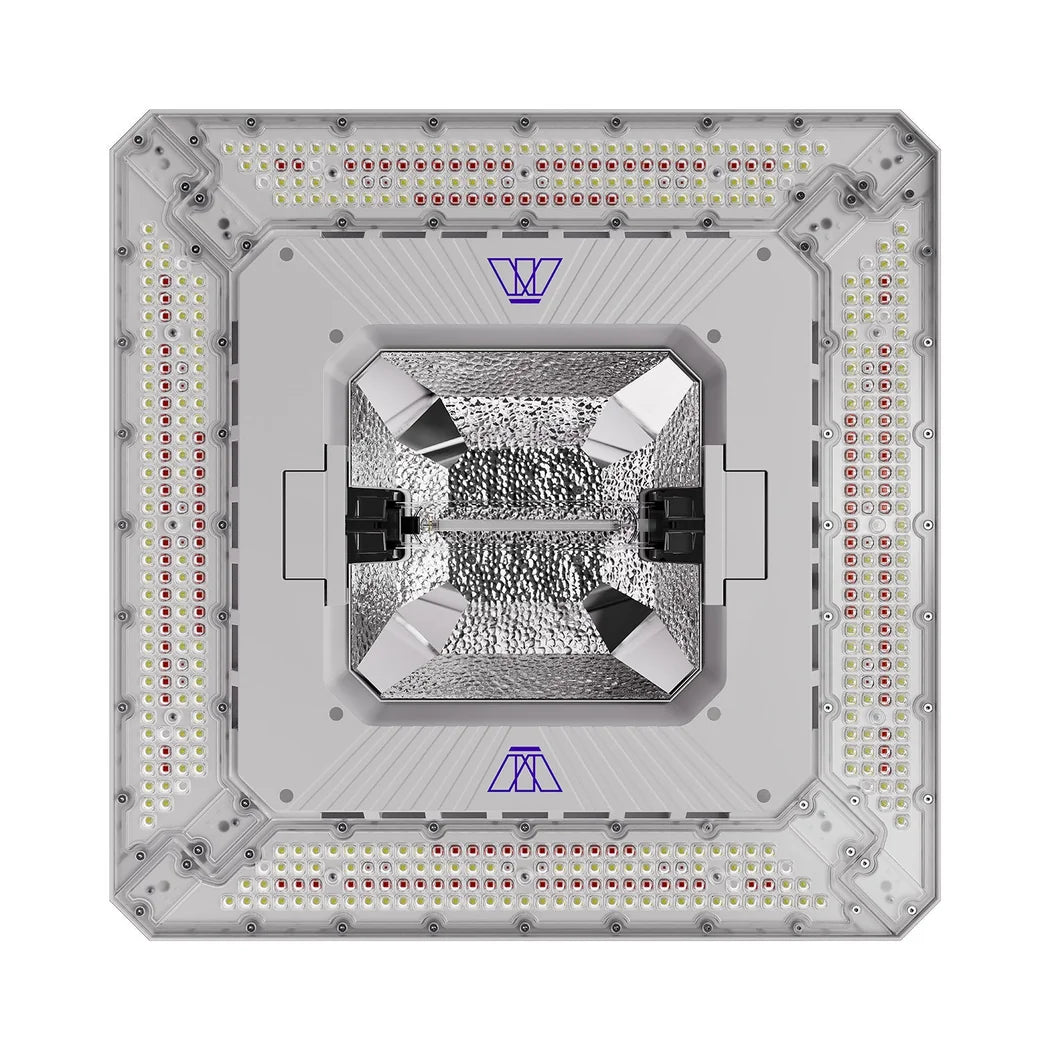

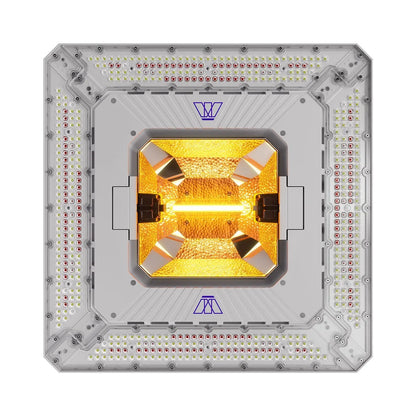

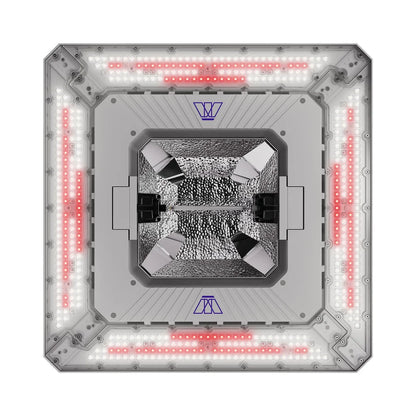

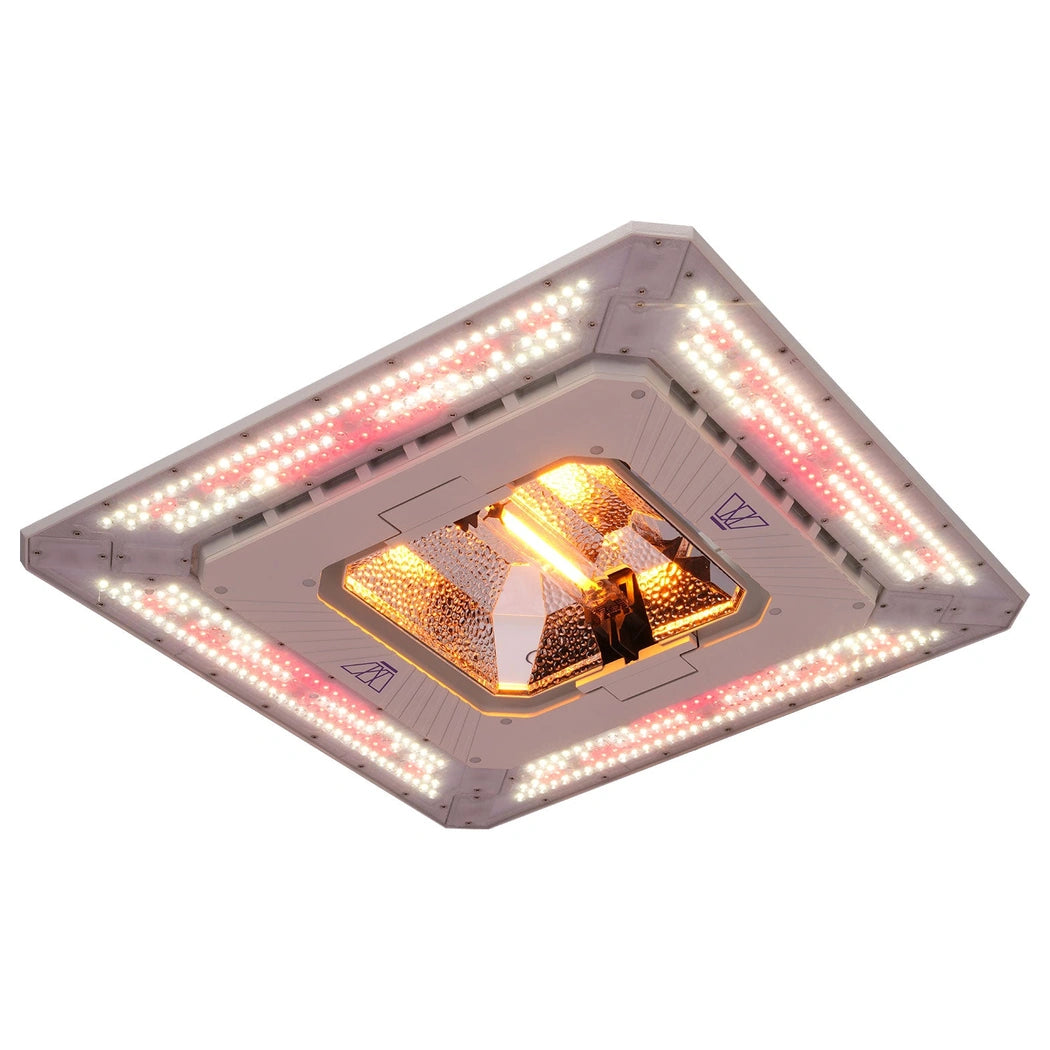

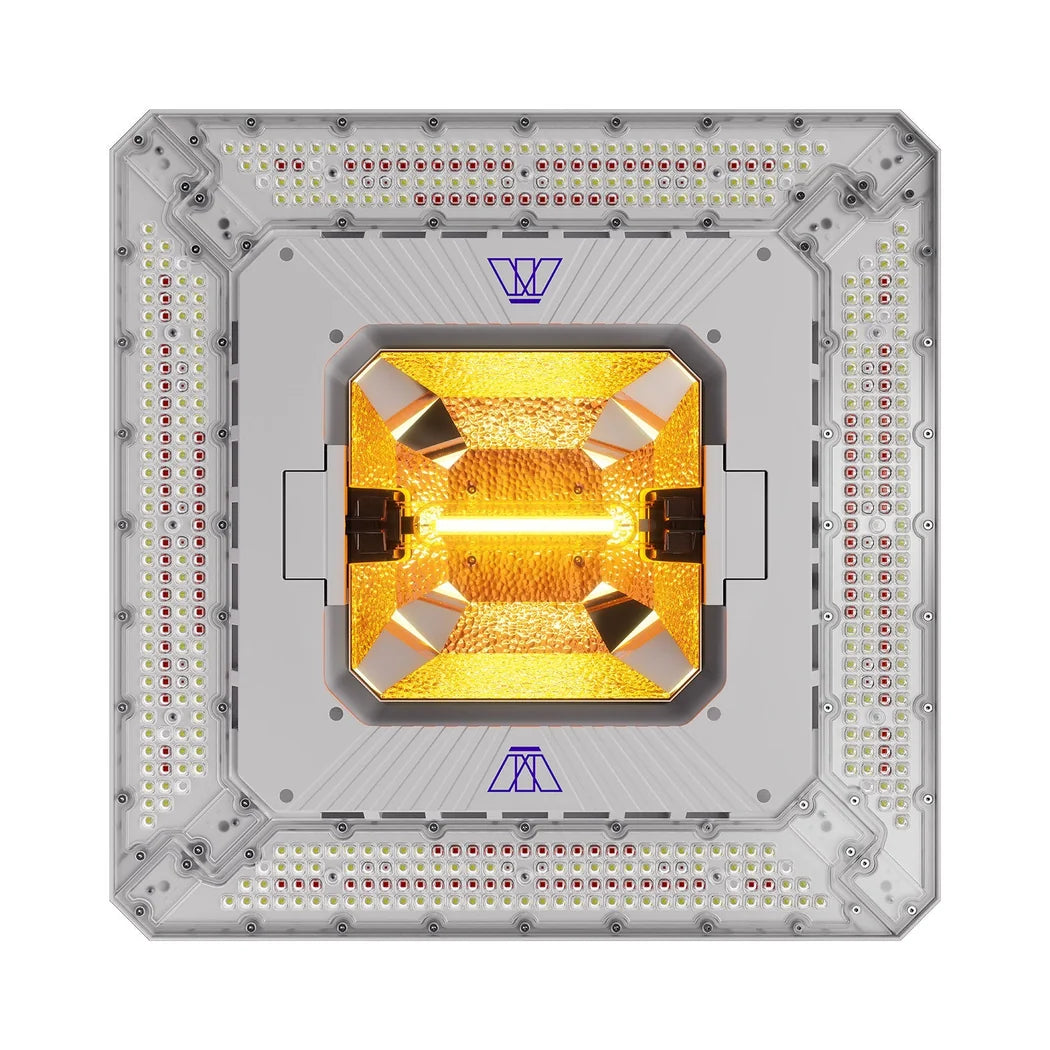

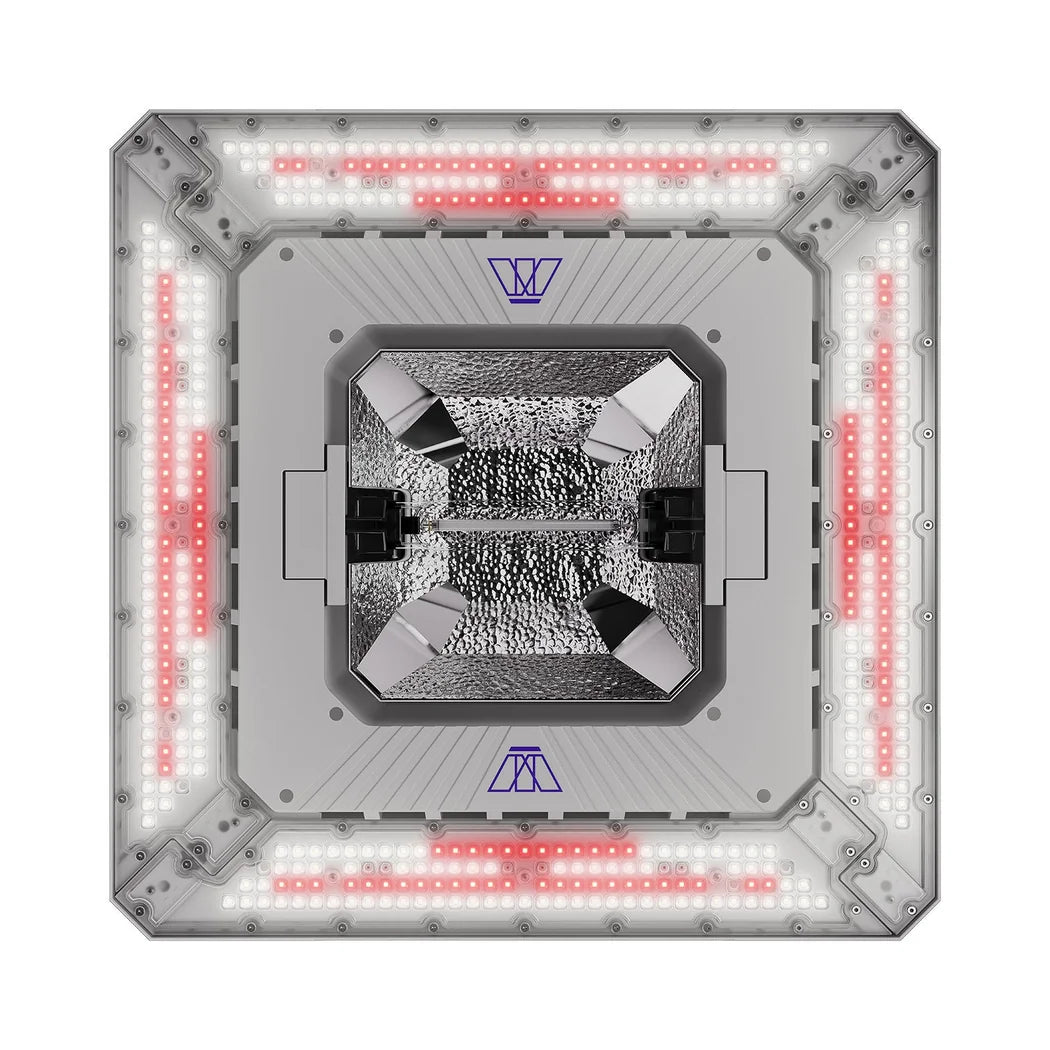

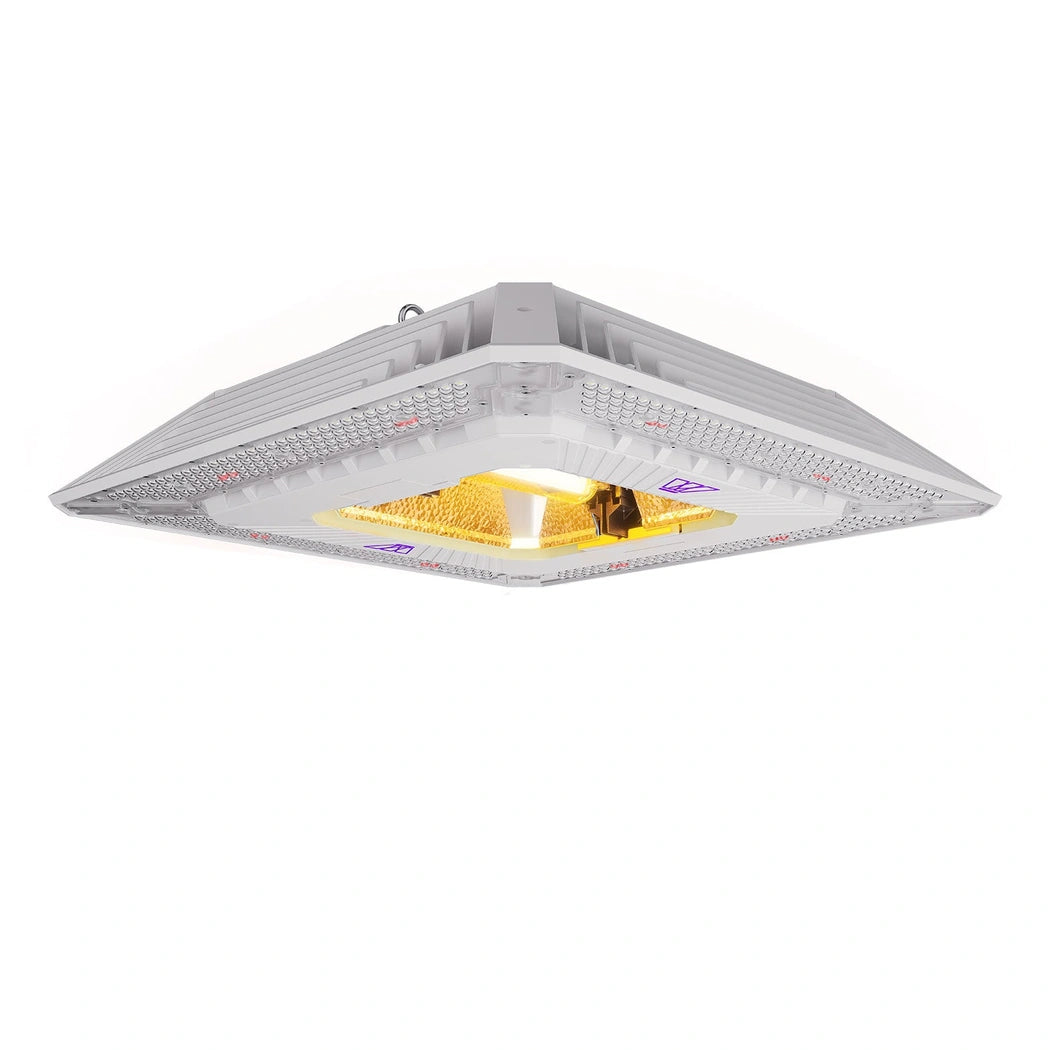

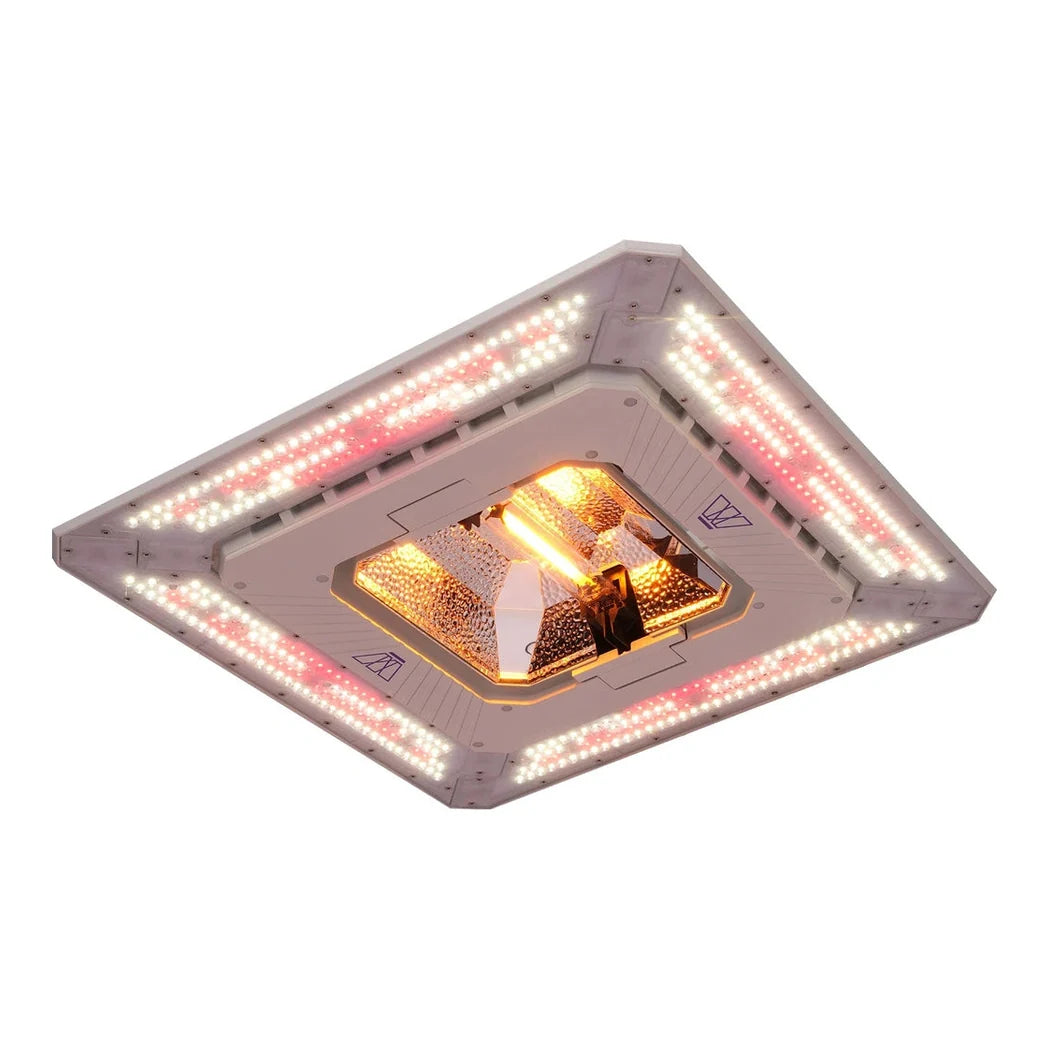

This fixture splits its 1000W draw across three light sources. A 560W full-spectrum LED array does most of the photosynthetic work. A 400W double-ended HPS lamp adds red-heavy light and radiant heat. A 40W far-red channel rounds out the spectrum. Input runs on 208V, 240V or 277V, drawing 5A, 4.4A and 3.8A respectively, with a power factor above 95%. Each channel connects over RS-485 to the Matrix MC5 Lighting Controller, sold separately, which unlocks dimming and scheduling. Matrix lists the body at 21.6 x 21.6 x 5.9 in, and it weighs about 32.5 lb. The LED section cools passively with what Matrix calls liquid optics. It runs in ambient temperatures from -4 to 104°F. Listings include ETL, CE, TISI, DLC and FCC, and Matrix backs the fixture for 5 years.
Running an LED HPS Hybrid Through Veg and Flower
An led hps hybrid lets you keep the canopy warmth of HPS while getting most of your light from efficient LED. Many growers run LED only in veg, which keeps plants compact and saves power. After the flip, bring in the HPS lamp to add radiant heat at the leaf, which helps transpiration in cool or humid rooms. The separate far-red channel can run at the end of the day to speed the shift into flower. Because every channel dims on its own, one fixture can follow a crop from veg to harvest. Matrix calls for at least 4 feet of clearance between the fixture and the canopy. That height matters because the HPS lamp throws heat that bar LEDs do not. Watch leaf temperature with an infrared thermometer when you first add the HPS channel. Plan for the MC5 controller, since full control of the three channels depends on it. For rooms with low ceilings, an all-LED fixture fits better.
Key Features
- Three light sources: 560W LED, 400W double-ended HPS and 40W far red in one body.
- Independent channels: Dim and schedule each source through the Matrix MC5 controller.
- HPS radiant heat: Keeps leaf temperature up in cool or humid flower rooms.

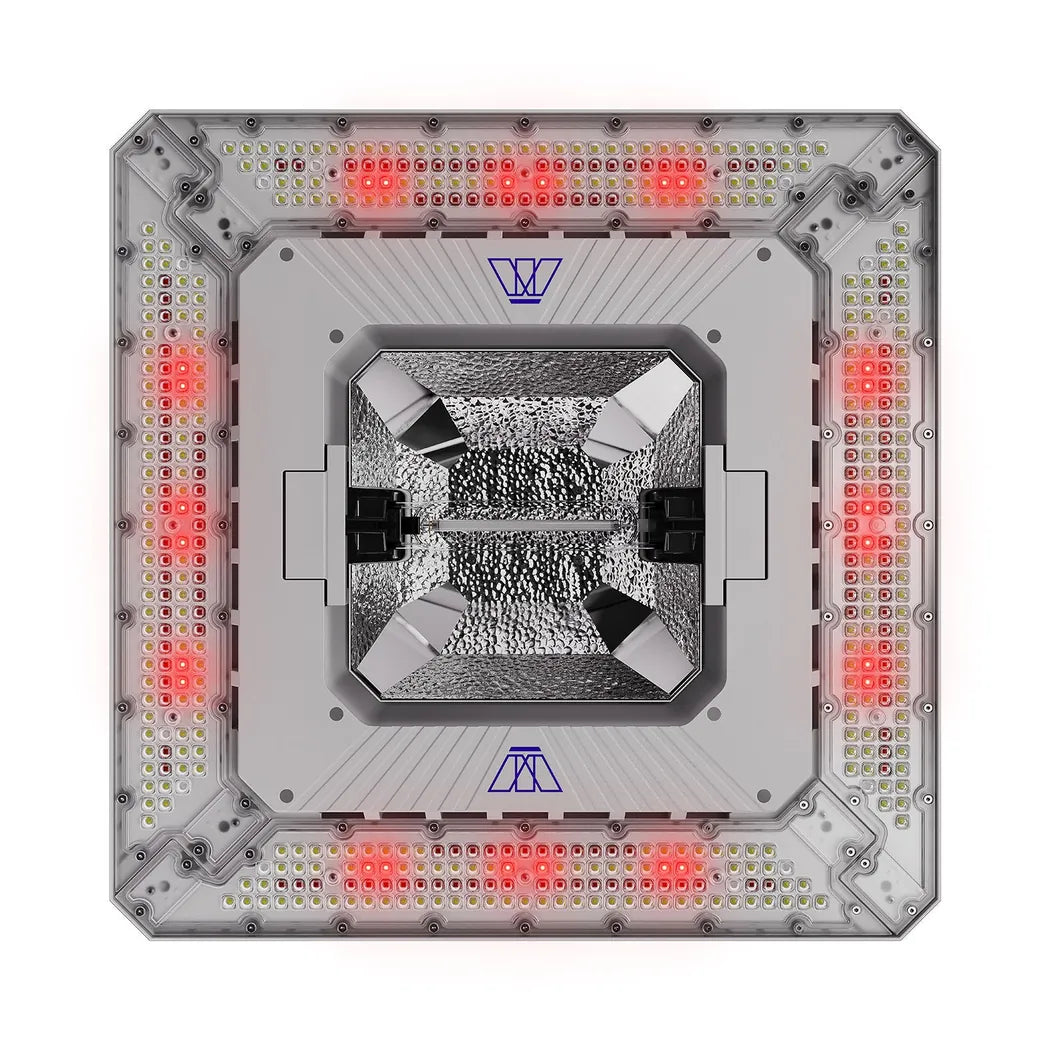

- Far-red channel: Run at end of day to steer the shift into flower.
- 208–277V commercial input: 5A at 208V down to 3.8A at 277V, power factor above 95%.
- ETL, DLC, CE listed: 5-year fixture warranty.
Technical Specifications
| Specification | Value |
|---|---|
| Model | Hybrid 1000W, 208–277V (10-010611-008) |
| Total Power | 1000W |
| LED Main | 560W full spectrum |
| HPS | 400W double-ended |
| Far Red | 40W |
| Growth Phase | Full-cycle; HPS and far red for flower |
| Input Voltage | 208V / 240V / 277V, 50/60 Hz |
| Current | 5A @ 208V, 4.4A @ 240V, 3.8A @ 277V |
| Power Factor | > 95% |
| Control | RS-485; Matrix MC5 Lighting Controller (sold separately) for full control |
| Minimum Hanging Height | 4 ft above canopy |

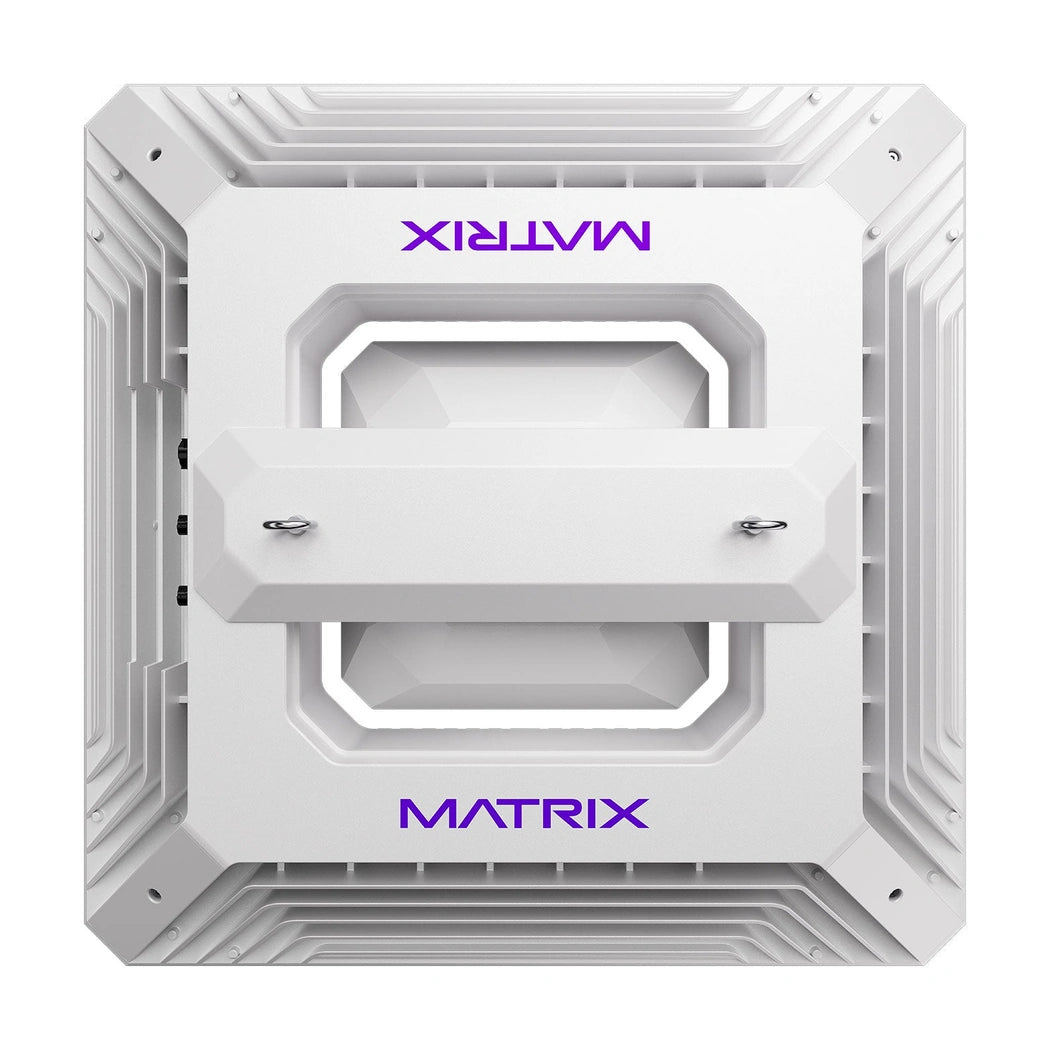

| Dimensions | 21.6 x 21.6 x 5.9 in (550 x 550 x 150 mm) |
| Weight | About 32.5 lb (14.9 kg) |
| Cooling | Passive (liquid optics on LED) |
| Ambient Temperature | -4 to 104°F (-20 to 40°C) |
| Certifications | ETL, CE, TISI, DLC, FCC |
| Warranty | 5 years |
