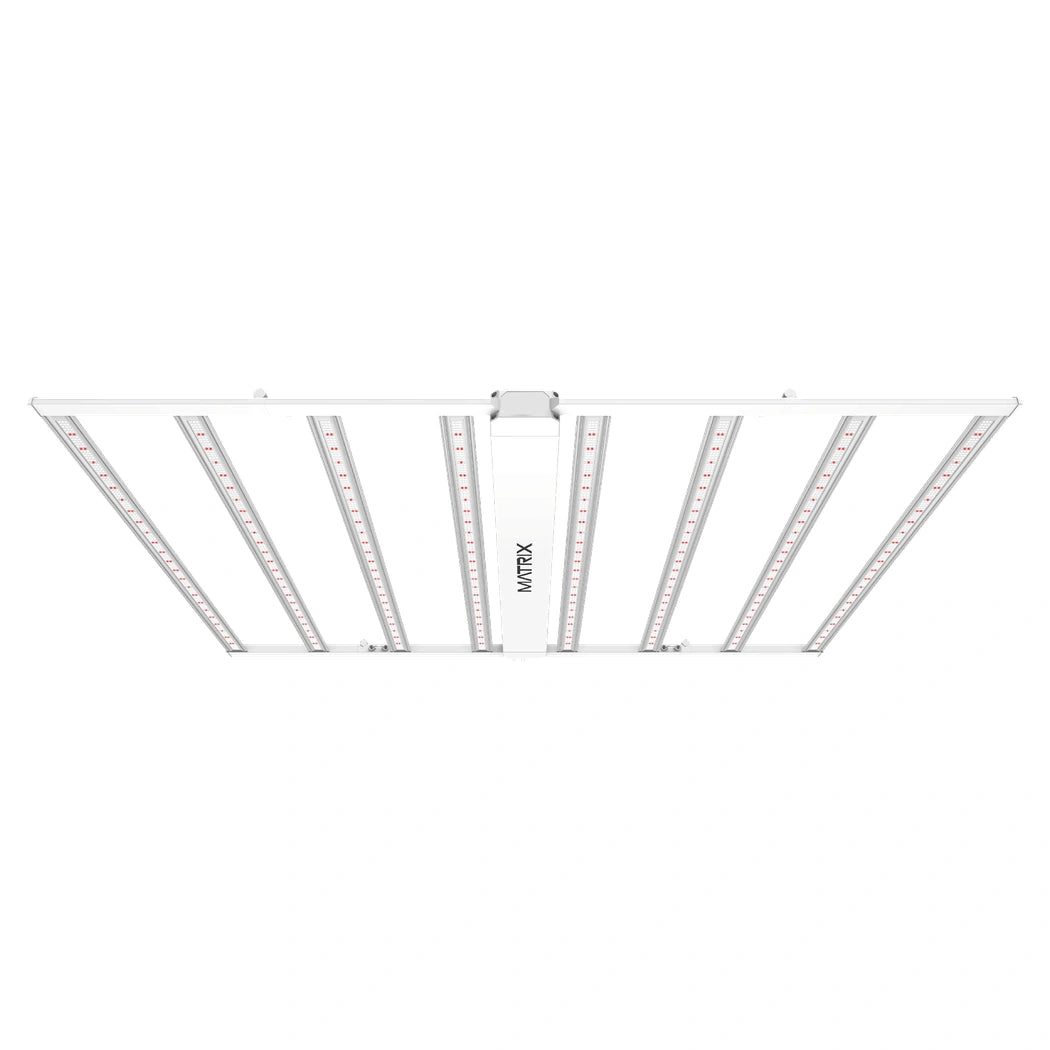

Matrix M8 1000W Dyna 4 Channel LED Grow Light

Matrix M8 1000W Dyna: 4-Channel Spectrum Tuning in the Largest M-Series Frame

The M8 Dyna pulls 1000W through four independently controllable channels — Main White, Deep Red, Far Red, and UV — hitting up to 3.2 µmol/J depending on channel configuration. The dynamic architecture holds constant power across the main spectrum while supplemental channels dial up or down, so shifting from a blue-forward veg recipe to a red-heavy bloom profile doesn't cost you photons on the primary output. At 60.0" × 48.0" × 2.5" and 40.8 lbs (18.5 kg), this is the largest fixture in the M-series lineup — a 5-foot span that covers more canopy per hanging point than any other model in the range, reducing total fixture count in rooms where square footage is the constraint.

Universal 0-10V Control and Wide-Format Coverage for Commercial Grow Facilities

Every channel responds to any standard 0-10V controller, so there's no proprietary lock-in — whatever automation platform the facility already runs will work. Global control handles 160+ fixtures simultaneously with programmable timers, dimming, and app integration for room-level adjustments from a single interface. The UV channel gives growers a tool for influencing secondary metabolite development during late flower, while the Far Red channel handles Emerson Effect runs and EOD flowering signals on its own schedule. Unistrut mounting or standard hangers keep installation flexible, and passive heat dissipation across that oversized frame keeps diode junction temps stable through extended 12–18 hour photoperiods. Available in 120V, 240V, and 277V.

Key Features

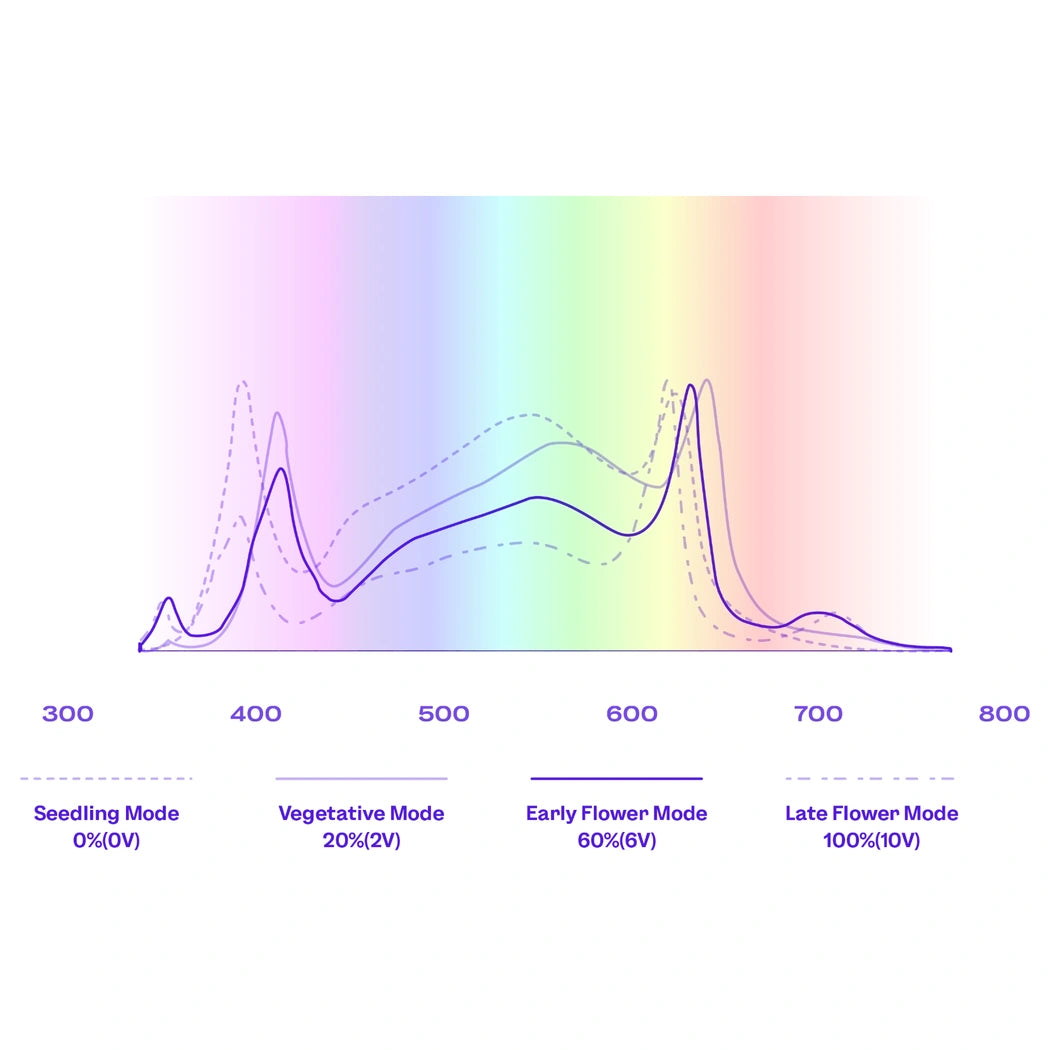

• 4 Independent Spectrum Channels: Separate control of Main White, Deep Red, Far Red, and UV lets you build custom spectral recipes for veg, bloom, and transition without swapping fixtures or adding supplemental bars.
• Constant Power Spectrum Shifting: Main channel holds full output while supplemental channels adjust — spectral changes don't reduce total photon delivery to the canopy.
• 60" × 48" Wide-Coverage Frame: The 5-foot span distributes light across a larger canopy area per fixture, cutting total fixture count and simplifying hanging layouts in commercial rooms.
• Universal 0-10V Compatibility: Works with any standard controller or automation system — no proprietary hardware required for dimming, scheduling, or spectrum management.
• Global Control for 160+ Fixtures: Manages dimming, scheduling, and intensity across entire rooms simultaneously through programmable timers and app-based integration.

Technical Specifications
