Matrix M6 760W Dyna 4 Channel LED Grow Light

Matrix M6 760W Dyna LED with 4-Channel Spectrum Tuning

The Matrix M6 Dyna runs at 760W with four independently controllable spectrum channels: Main White, Deep Red, Far Red, and UV. Each channel adjusts via any standard 0-10V controller, so growers aren't locked into a proprietary system — it works with whatever automation platform the facility already runs. The dynamic spectrum architecture maintains constant power across the main channel while the supplemental channels tune up or down, meaning growers shift spectral ratios without losing overall photon output. Efficiency reaches up to 3.2 µmol/J depending on channel configuration. The fixture measures 43.8" × 48.0" × 2.5" and weighs 34.2 lbs, sharing the same wide-footprint frame as the M6 series for uniform canopy coverage across large grow areas.

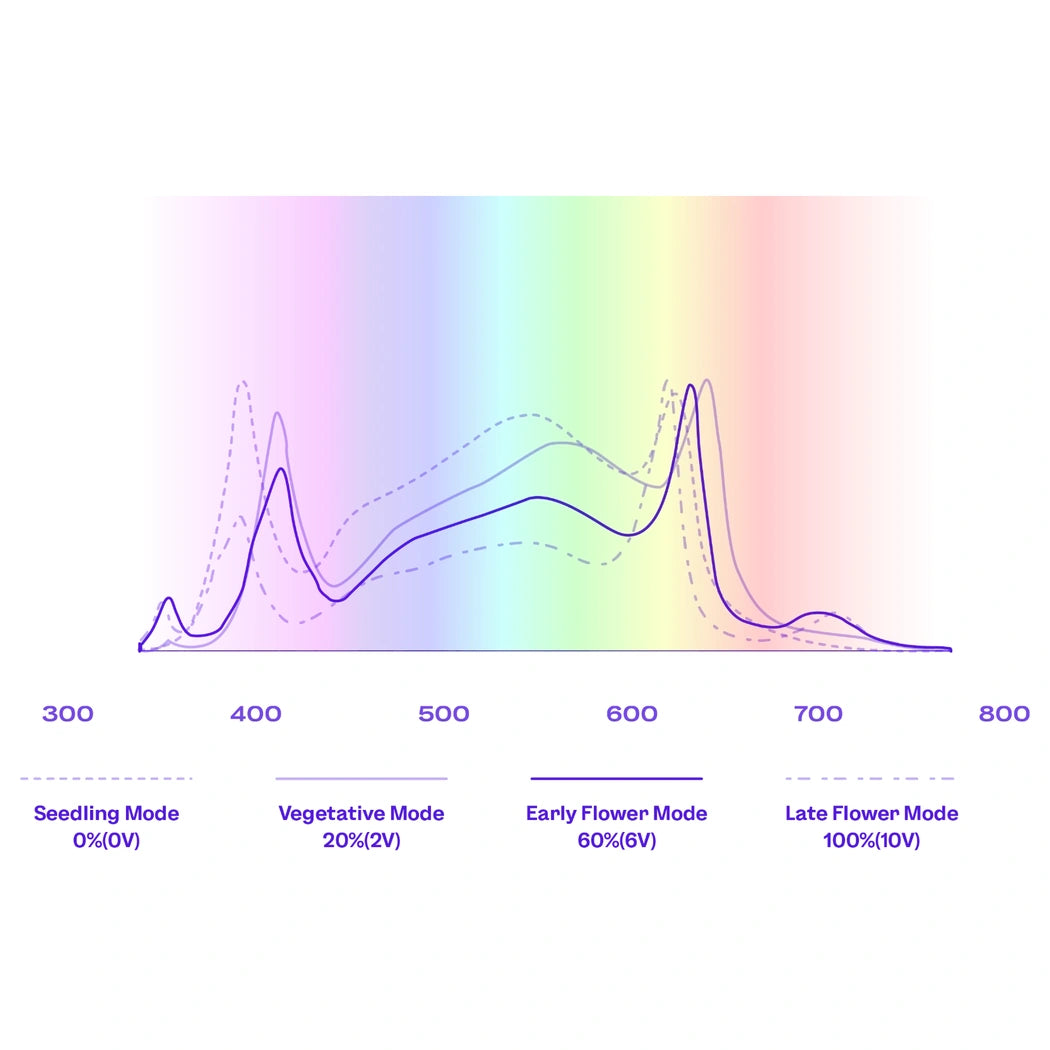

Tunable Spectrum LED for All-Stage Growth and Far-Red Scheduling

The four-channel layout lets growers run a blue-forward veg spectrum, transition to deep-red-heavy bloom output, and layer in far-red for Emerson Effect gains or end-of-day flowering signals — all from the same fixture without swapping lamps or repositioning reflectors. The UV channel adds another tool for influencing plant secondary metabolites and surface compound development during late flower. Global control supports 160+ fixtures simultaneously with programmable timers, dimming, and app integration for room-level spectrum management. The fixture mounts directly to Unistrut for fast installation and repositioning, and passive heat dissipation keeps canopy-level temps stable across long photoperiods. Available in 120V and 277V configurations pulling 5.38A and 2.33A respectively.

Key Features

• 4 Independent Spectrum Channels: Separate control of Main White, Deep Red, Far Red, and UV lets growers build custom spectral recipes for each growth phase without changing fixtures.
• Universal 0-10V Control Compatibility: Works with any standard 0-10V controller or automation system — no proprietary hardware lock-in for dimming or spectrum scheduling.
• Constant Power Spectrum Shifting: Main channel holds steady output while supplemental channels adjust, so spectral changes don't reduce total photon delivery to the canopy.
• Up to 3.2 µmol/J Efficiency: Delivers top-tier photon conversion across its channel configurations, keeping energy costs competitive even at 760W per fixture in high-density rooms.
• Unistrut Mounting: Attaches directly to standard Unistrut rail systems for quick installation, height adjustments, and layout changes as grow room configurations evolve.
