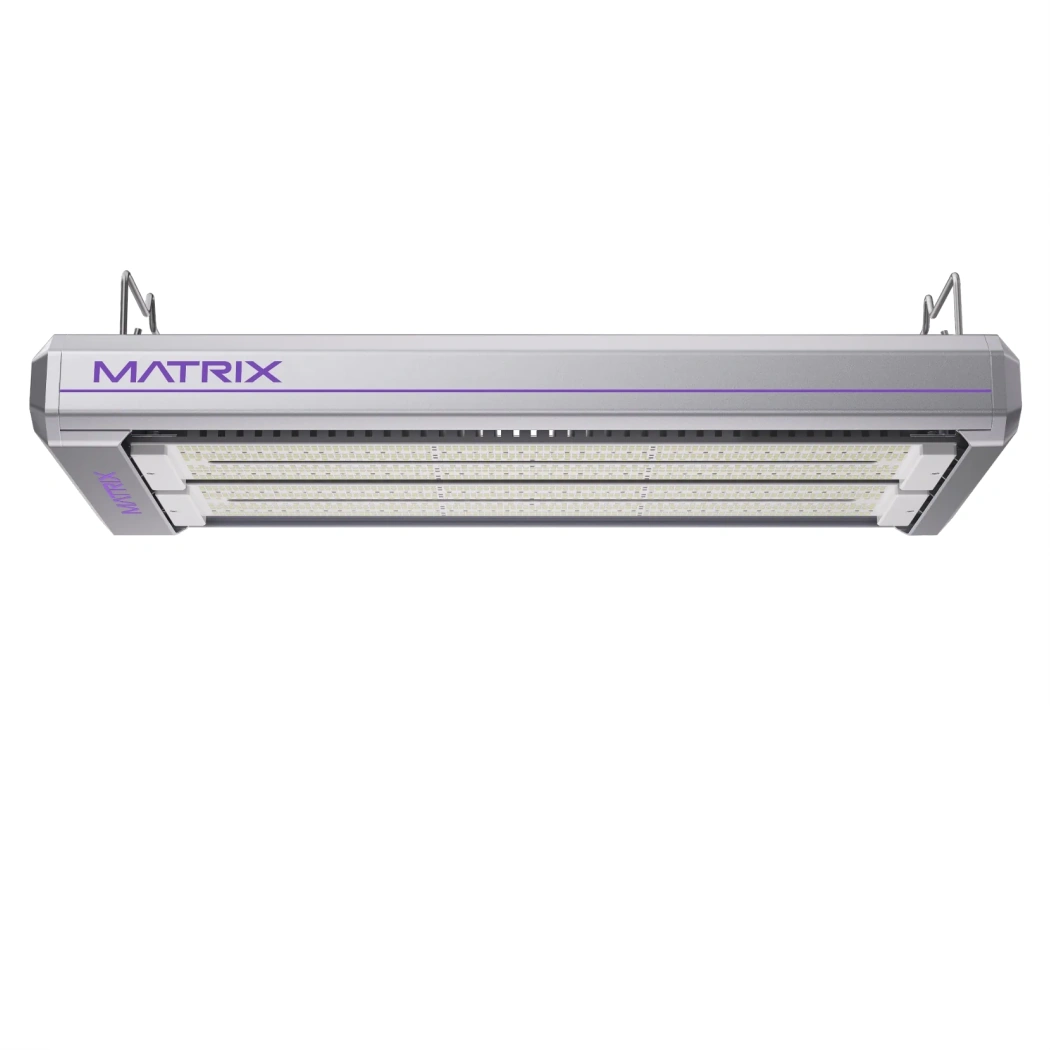

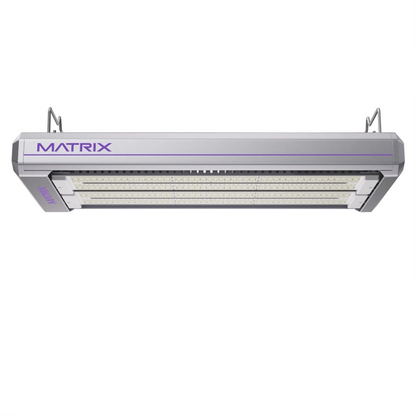

Matrix Vega Dyna 1000W LED Top Light - 208-240V

Matrix Vega Dyna 1000W LED Top Light: Tunable Spectrum Channels at Full Power

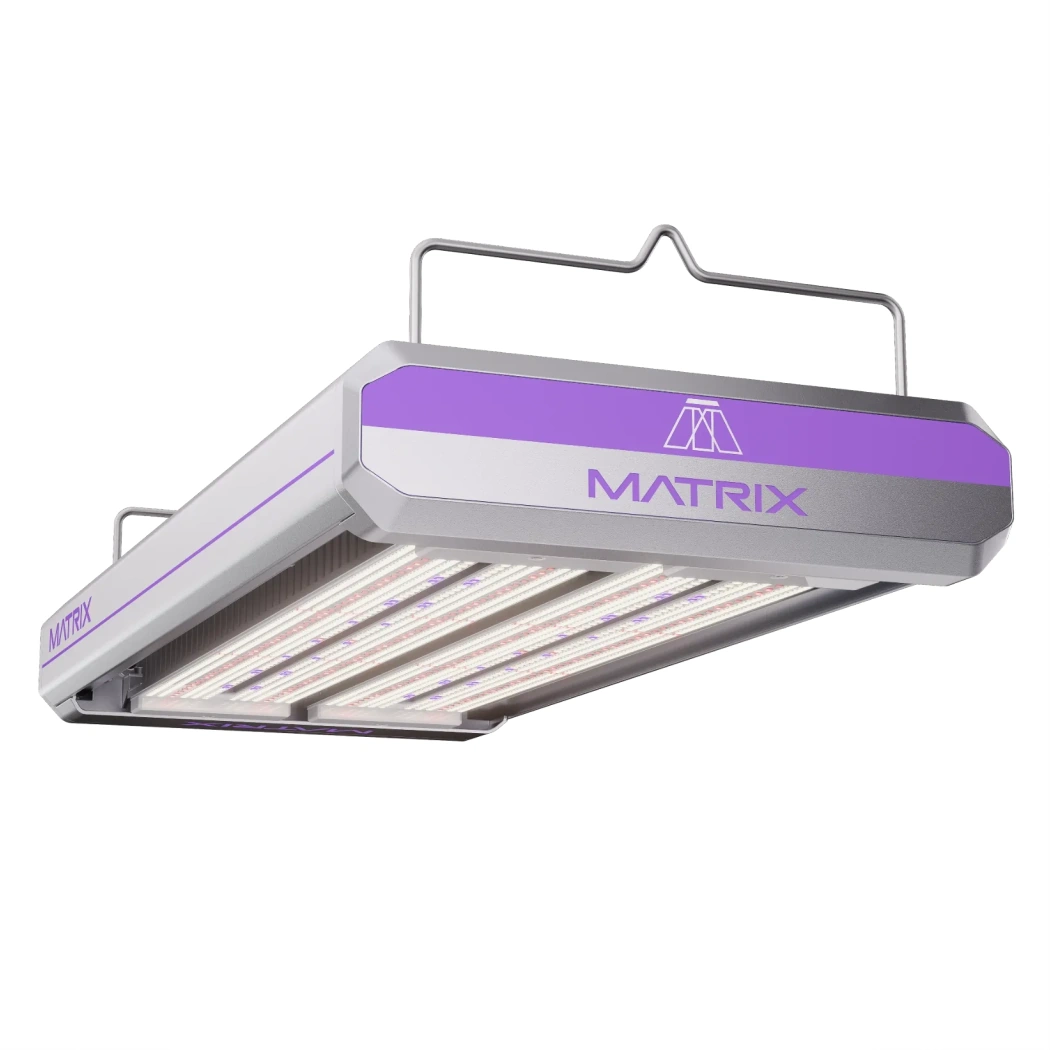

The 208–240V version of the Vega Dyna runs the same 3.0 µmol/J and 1000W output as the 120V model — the difference is in the infrastructure fit. At 208V it draws 4.82A, at 240V it pulls 4.16A, making it the right call for commercial facilities and grow rooms wired for higher-voltage service. The fixture itself measures 26.9″ × 12.5″ × 3.2″ and weighs 34.2 lbs (15.5 kg), with Far Red, UV, and Main Spectrum (Deep Red and White) channels tuning independently while the main spectrum holds full power throughout. Connect it to the Matrix MC5 controller to unlock per-channel scheduling, EOD far-red automation, and intensity adjustment across the photoperiod.

IP66 Construction, Daisy-Chain Scalability, and Flexible Mounting for Any Canopy

IP66 waterproofing covers dust-tight and direct-water-jet resistance — useful in greenhouse environments or high-humidity rooms where lower-rated fixtures degrade over time. Mounting works off Unistrut systems or standard hangers, so you can position the fixture at install and reposition as canopy height shifts through the grow without touching the electrical. Daisy-chain support keeps the system expandable as the facility grows, and the modular design maintains serviceability at scale.

Key Features

• 208–240V Input at 4.82A / 4.16A: Lower amperage draw versus the 120V version makes this the better fit for commercial facilities running 208V or 240V electrical service.
• 3.0 µmol/J PPE at 1000W: HPS replacement efficiency — 1000W in, full tunable spectrum out, no trade-off between intensity and output per watt.
• Independent Far Red, UV, and Main Spectrum Channels: Each channel tunes separately while the main spectrum holds full power, so Far Red pulses, UV programs, and EOD scheduling run without cutting your core light output.
• IP66 Waterproof Rating: Dust-tight and direct-water-resistant — built for greenhouse environments and aggressive humidity rooms that standard fixtures don't handle long-term.

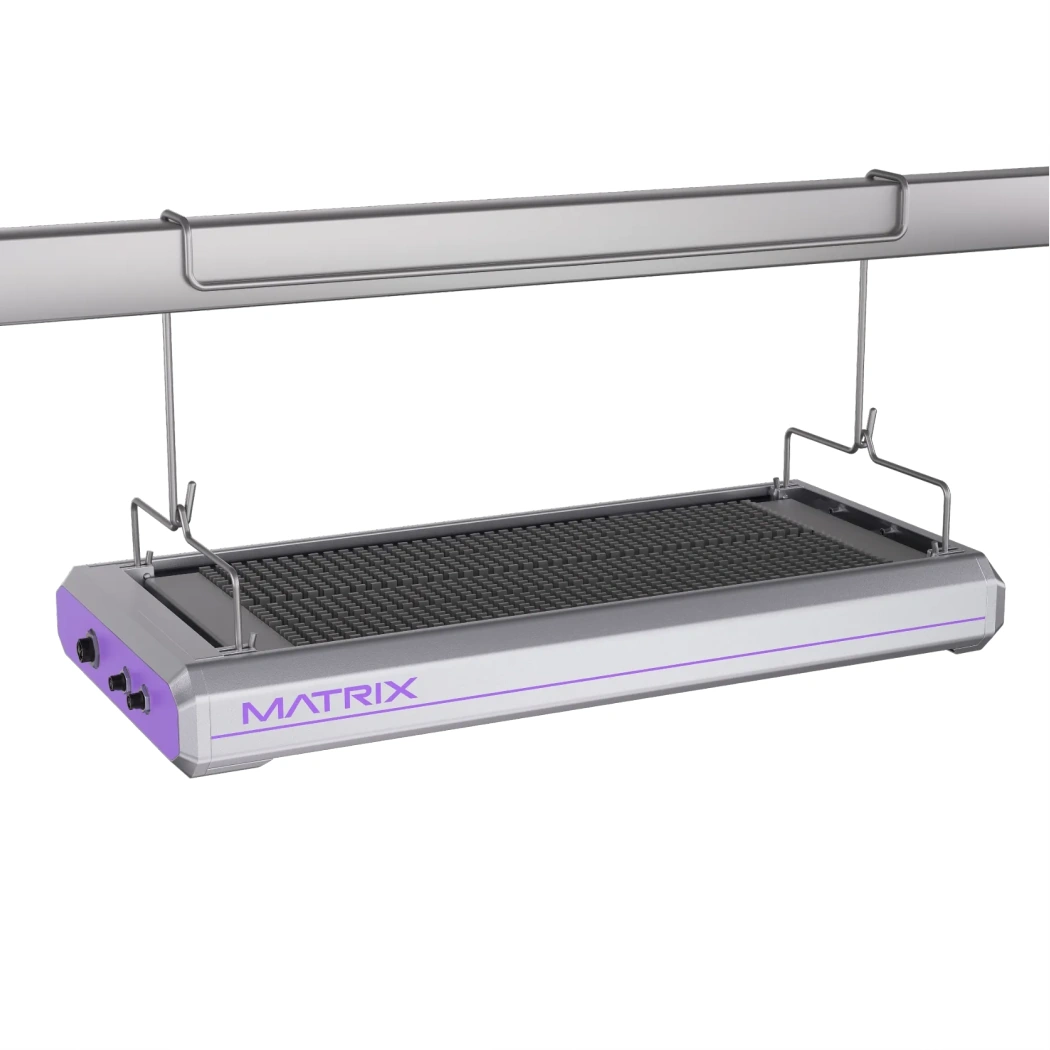

• Unistrut and Standard Hanger Mounting: Two mounting options let you lock in the fixture at install or reposition as canopy height changes through the grow cycle without modifying your overhead structure.

Technical Specifications
