Matrix Vega Dyna 1000W LED Top Light - 277V

Matrix Vega Dyna 1000W LED Top Light: Tunable Spectrum Channels at Full Power

The 277V version of the Vega Dyna is the lowest-amperage option in the lineup — 3.61A at 277V for the same 1000W input and 3.0 µmol/J output. That matters in large commercial facilities where 277V single-phase is available from 480V three-phase distribution panels, letting you run more fixtures per circuit and reduce the total number of circuits across the room. The fixture measures 26.9″ × 12.5″ × 3.2″, weighs 34.2 lbs (15.5 kg), and runs Far Red, UV, and Main Spectrum (Deep Red and White) channels independently while the main spectrum holds full power. Connect it to the Matrix MC5 controller for per-channel scheduling, EOD far-red automation, and dimming control across the photoperiod.

IP66 Construction, Daisy-Chain Scalability, and Flexible Mounting for Any Canopy

IP66 waterproofing handles dust-tight and direct-water-jet conditions — relevant in greenhouse builds and high-humidity rooms where lower-rated fixtures don't hold up long-term. Mounting works off Unistrut or standard hangers, giving you the option to reposition as canopy height changes through the grow without modifying overhead structure. Daisy-chain support keeps the system scalable as the facility expands, and the modular design keeps maintenance manageable across a large fixture count.

Key Features

• 277V Input at 3.61A: Lowest amperage draw in the Vega Dyna lineup — ideal for commercial facilities running 277V service from 480V three-phase distribution, where fewer circuits mean a cleaner, more scalable install.
• 3.0 µmol/J PPE at 1000W: HPS replacement efficiency — 1000W in, full tunable spectrum out, same output per watt regardless of voltage variant.
• Independent Far Red, UV, and Main Spectrum Channels: Each channel tunes separately while the main spectrum holds full power, so Far Red pulses, UV programs, and EOD scheduling don't cut into your core light output.
• IP66 Waterproof Rating: Dust-tight and direct-water-resistant construction for greenhouse environments and aggressive humidity rooms that degrade standard fixtures over time.

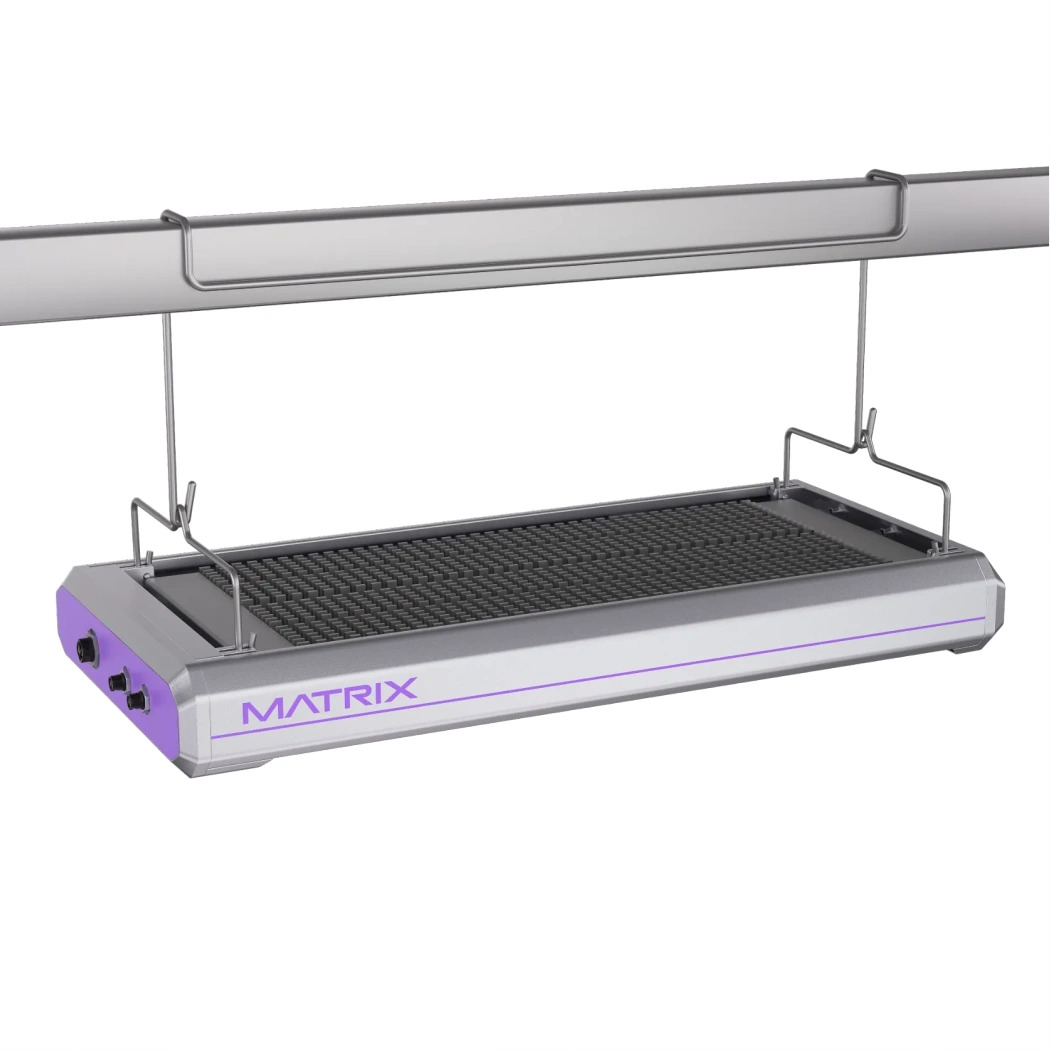

• Unistrut and Standard Hanger Mounting: Two mounting options let you position at install and reposition as the canopy develops — no structural modifications needed mid-run.
