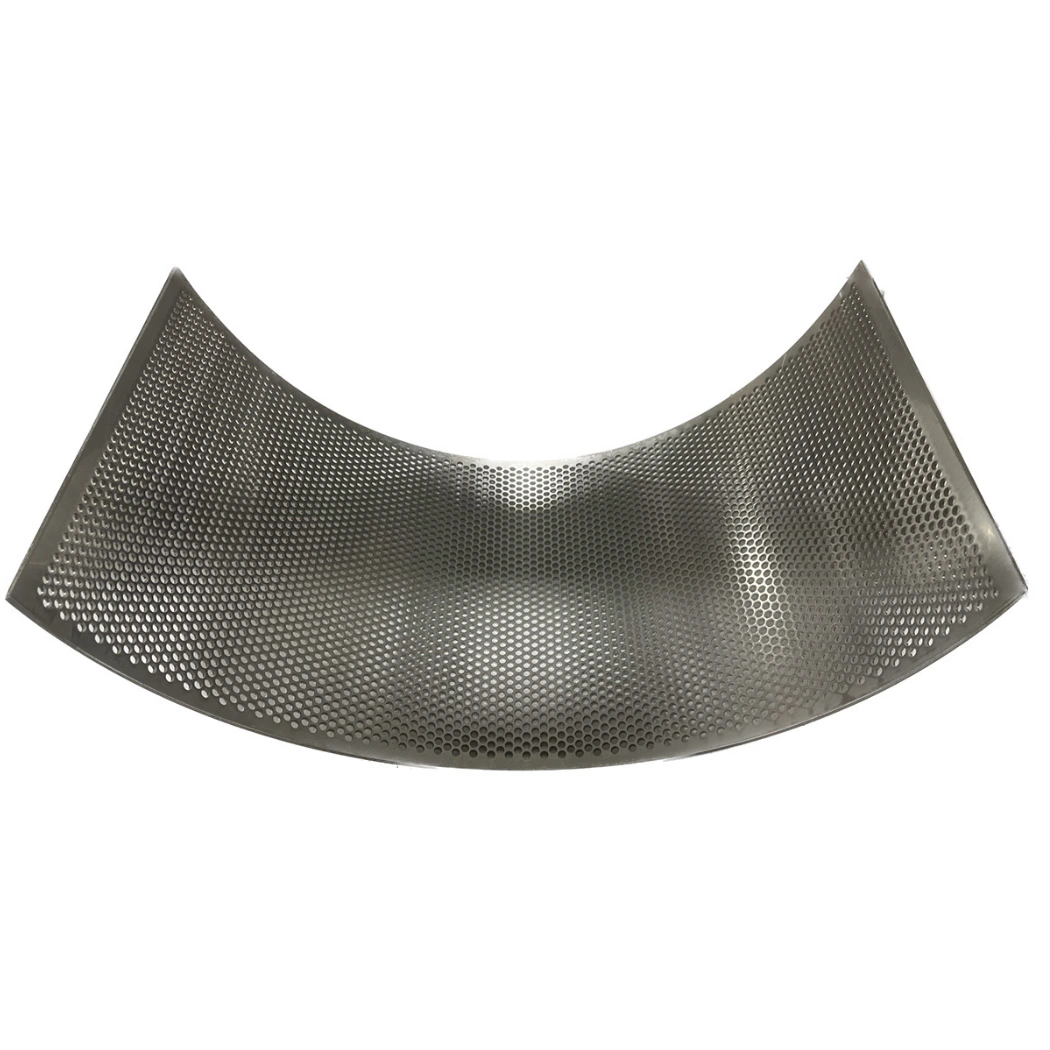

Mobius M210 Mill Screen at 1/2″ Aperture
The 12.7 mm (1/2″) perforated screen sits well above the M210's stock 1/4″ Coarse Blending screen. It's the largest aperture in the screen lineup. Output trends very coarse. Applying Mobius's 80% of material falling within 75–85% of aperture rule, the bulk of throughput lands somewhere around 9.5 to 10.8 mm. That's intentional. This screen isn't for finished product. It's for primary milling — taking whole flower or biomass down to a manageable particle size before a second pass through a finer screen. Some extraction methods also prefer a coarse, less-broken-up input.
Perforated Blending Screen Built for Heavy-Throughput Runs
As a perforated blending screen, the 1/2″ loads non-directional — either orientation produces the same particle profile, no specific load rule like the rasp screens. The high open area moves a lot of material through the chamber per minute. That's the point — with this screen in place, you're prioritizing throughput over fine particle control. The 304 stainless steel takes pressure-wash and CIP cleaning between strain runs without showing pitting or staining. That track record matters in GMP facilities where every visible defect on a contact surface gets logged and audited. Tool-free screen swap takes under a minute. Jumping from this 1/2″ for a coarse first pass to a 1/8″ Medium for the second adds almost no downtime to the run.
Key Features
- 12.7 mm (1/2″) Aperture: The largest hole size in the M210 screen lineup; bulk output around 9.5–10.8 mm based on Mobius's 80%/75–85% rule.
- 304 Stainless Steel: Food-grade build that holds up to pressure-wash and CIP sanitation between runs.
- Tool-Free Swap: In or out in under a minute, which is what makes a coarse-first / fine-second milling workflow practical.
- Non-Directional Install: Perforated geometry loads either side up — no orientation rule like the M210 rasp screens.
- GMP-Ready Construction: Pressure-washable contact surface that holds visible-defect-free finish through repeated sanitation cycles.
Technical Specifications
| Specification | Value |
|---|---|
| Hole Style | Perforated |
| Hole Size | 12.7 mm (1/2″) |
| Material | 304 Stainless Steel (food-grade) |
| Compatibility | Mobius M210 Rotary Mill |
| Install Orientation | Non-directional (either side up) |

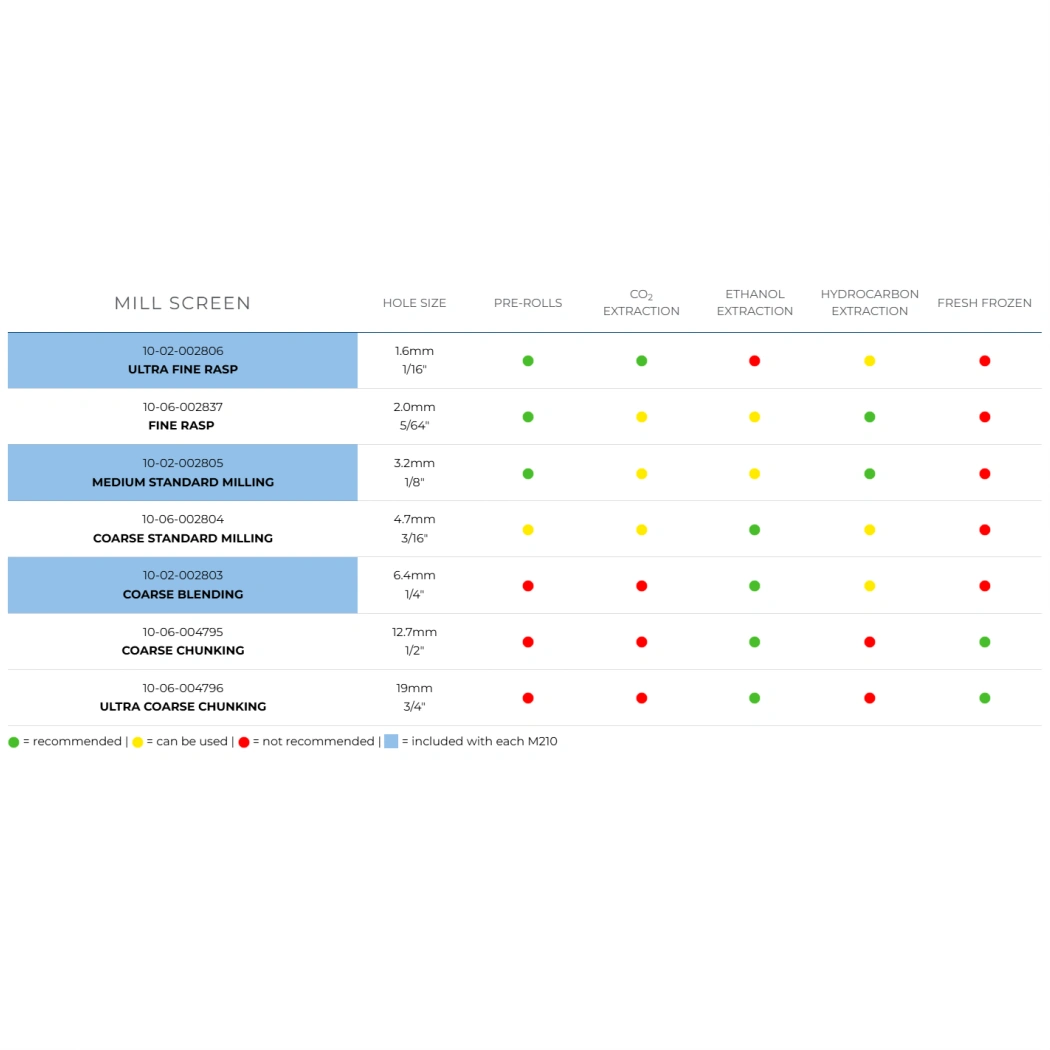

| Position in M210 Screen Lineup | Largest aperture — coarser than the stock 1/4″ Coarse Blending screen |
| Tool-Free Screen Swap | Under 1 minute |
| Cleaning Prep Time | ~3 minutes |
| Sanitation | Pressure-wash and CIP compatible, GMP-ready |
| Expected Particle Output | ~9.5 – 10.8 mm (80% of mass within 75–85% of aperture) |
| Typical Use Cases | Primary milling, coarse blending, high-throughput first pass, specific extraction methods |
| SKU | 10-06-004795U-PK |
