Mobius M210 Mill Screen Specifications
The 4.0 mm (5/32″) perforated screen sits between the included 1/8″ Medium and 3/16″ Coarse Standard options. It fills a gap. Operators get a discrete particle target when neither stock screen quite fits. Mobius rates the M210 at roughly 80% of milled material falling within 75–85% of screen aperture. For the 4 mm hole, expect the bulk of output between about 3.0 and 3.4 mm. That sizing range hits the practical sweet spot for blending dry flower lots before pre-roll machine feeding. It also preps biomass for hydrocarbon or ethanol extraction where consistent particle size drives yield.
Perforated Blending Screen for Tool-Free Mill Setup
As a perforated blending screen, this part is non-directional — install it in either orientation and the particle profile holds. Rasp screens in the M210 lineup have to be loaded a specific way; this one doesn't. The M210's tool-free screen change runs under a minute, with full cleaning prep in three. The 304 stainless steel construction takes pressure-wash cycles between strain runs without pitting or staining. That matters in GMP-ready facilities where sanitation logs get audited and any visible corrosion forces a part replacement. Pair this 4 mm screen with the 1/8″ Medium for a typical pre-roll workflow. Run coarse first for blending across lots, then drop to medium for the final feed grind.
Key Features
- 4.0 mm (5/32″) Perforation: Drops particle output into the medium-coarse range, between the M210's stock 1/8″ Medium and 3/16″ Coarse Standard screens.
- 304 Stainless Steel: Food-grade construction handles full pressure-wash sanitation between runs without pitting or staining.
- Tool-Free Screen Swap: Goes in or out in under a minute; full cleaning prep cycle takes about three.
- Non-Directional Install: Perforated geometry means it can load in either orientation and produce the same grind profile, unlike rasp screens.
- GMP-Ready Construction: Built for sanitation-cycle compatibility in facilities running audited cleaning logs.
Technical Specifications
| Specification | Value |
|---|---|
| Hole Style | Perforated |
| Hole Size | 4.0 mm (5/32″) |
| Material | 304 Stainless Steel (food-grade) |
| Compatibility | Mobius M210 Rotary Mill |
| Install Orientation | Non-directional (either side up) |

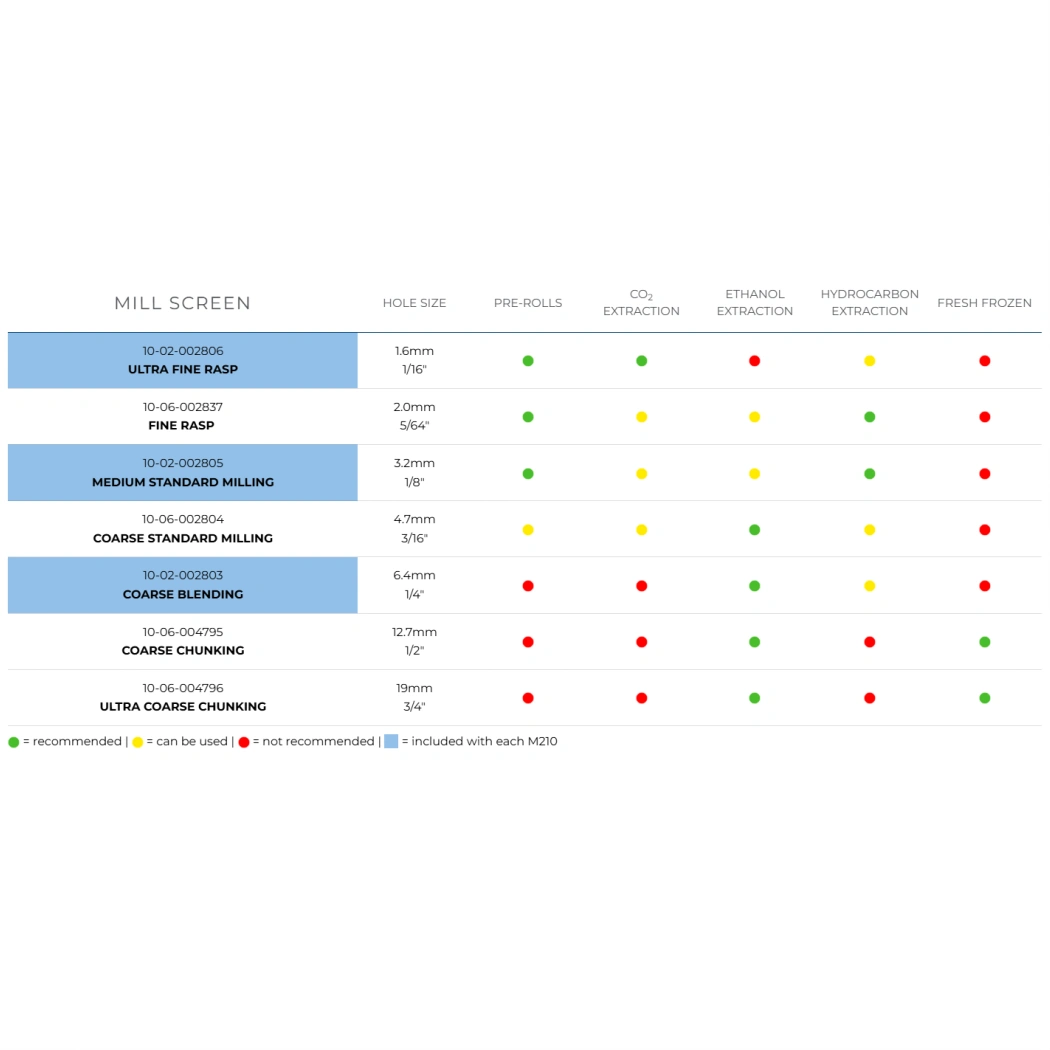

| Position in M210 Screen Lineup | Between 1/8″ Medium (3.175 mm) and 3/16″ Coarse Standard (4.76 mm) |
| Tool-Free Screen Swap | Under 1 minute |
| Cleaning Prep Time | ~3 minutes |
| Sanitation | Pressure-wash compatible, GMP-ready |
| Expected Particle Output | ~3.0 – 3.4 mm (80% of mass within 75–85% of aperture) |
| Typical Use Cases | Pre-roll feed prep, extraction feedstock, lot-to-lot blending |
| SKU | 10-06-007243U-PK |
