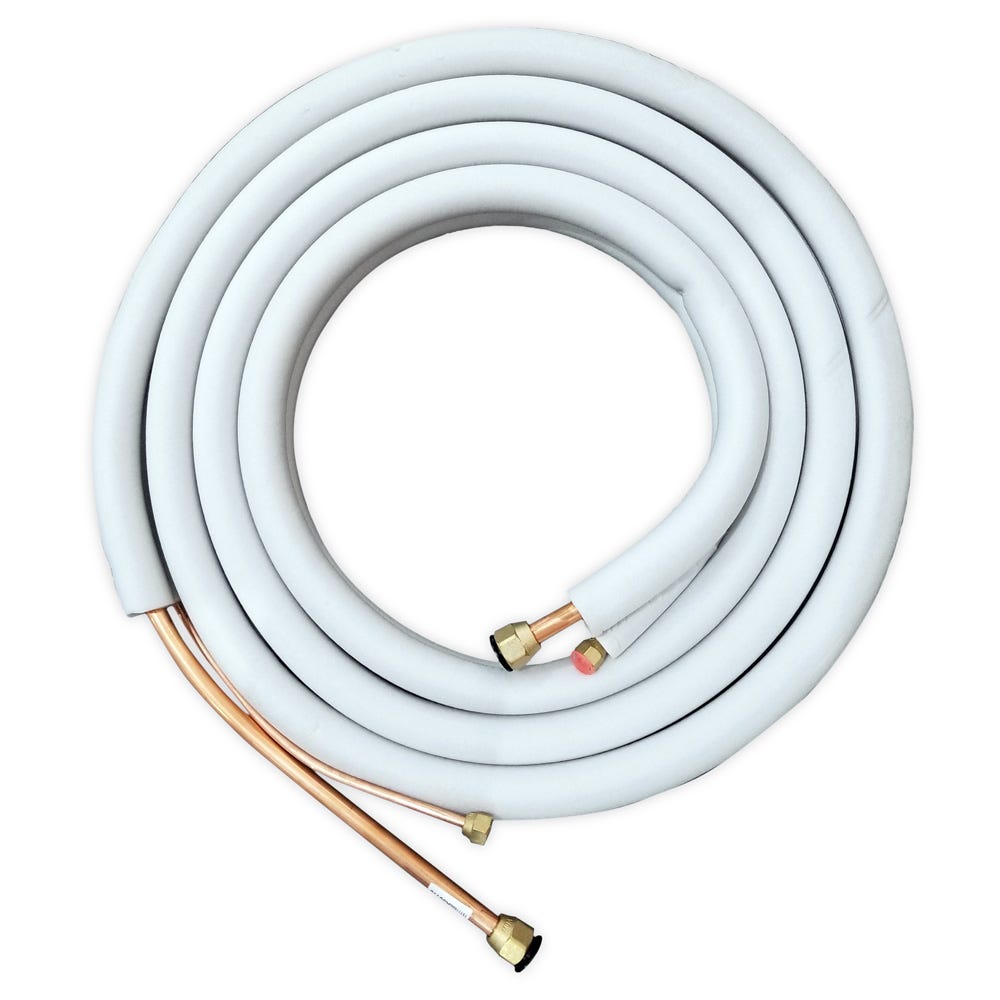

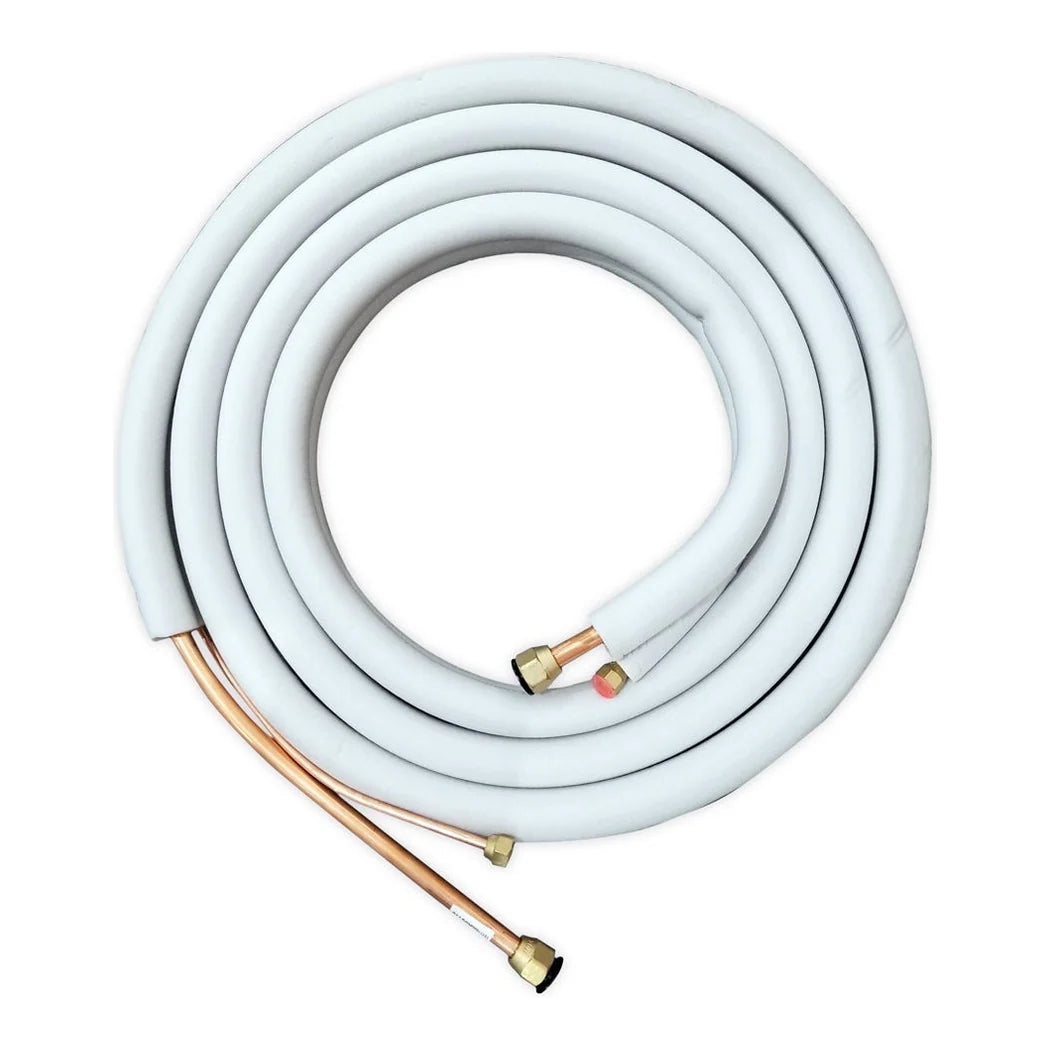

MRCOOL DIY Lineset 25 ft | 1/4 in x 1/2 in, Quick Connect 9K to 18K

Getting the 1/4 x 1/2 Line Set Size Right First

The single most common mistake on these is choosing the wrong gauge, and no adapter fixes it. MrCool pair the smaller lines with the smaller handlers, and this is the smaller pair. It serves the 9K, 12K and 18K units, where the larger 3/8 by 5/8 set serves the 24K and the 36K. The diameters are not interchangeable in either direction, since the fittings differ and so does the charge the system expects. Read the model plate on your own air handler rather than the box it arrived in. Length here is 25 ft, which covers most single room installs with slack at each end. Both lines sit inside a 3/4 in insulation sleeve with an outdoor rating. Quick connect valves mean the set arrives charged and sealed, and no vacuum pump or brazing enters the job. If the run turns out longer than this, the matching coupler kit joins a second set on rather than forcing this one. MrCool changed refrigerant between DIY generations, so match the generation on your air handler's model plate.

Sizing a Mini Split Run, and What the Cap Costs You

Mini split planning is a route measurement rather than a floor area calculation. Walk the actual path with a tape, count the rise, and add a little slack at the handler and at the condenser. Then compare that against the lengths MrCool make, which are sixteen, twenty five, thirty five and fifty feet in each gauge. Going long to be safe is not free. Surplus line has to be coiled somewhere, and a coil outdoors is insulation sitting in the sun. Going short and joining is not free either, since every coupler is two more joints that can weep. The hard limit is the one to design around: MrCool support a total system run of seventy five feet and no more. That budget covers the original set plus any extension, so a fifty foot run leaves twenty five feet of headroom and nothing else. Anything past the cap falls outside the warranty. Decide the route first and choose the length to fit it, rather than the other way round.

Key Features

• Gauge: 1/4 in and 1/2 in, the smaller MrCool pair
• For air handlers: 9K, 12K and 18K
• Not interchangeable: The larger units take the 3/8 by 5/8 set
• Length: Twenty five feet of run

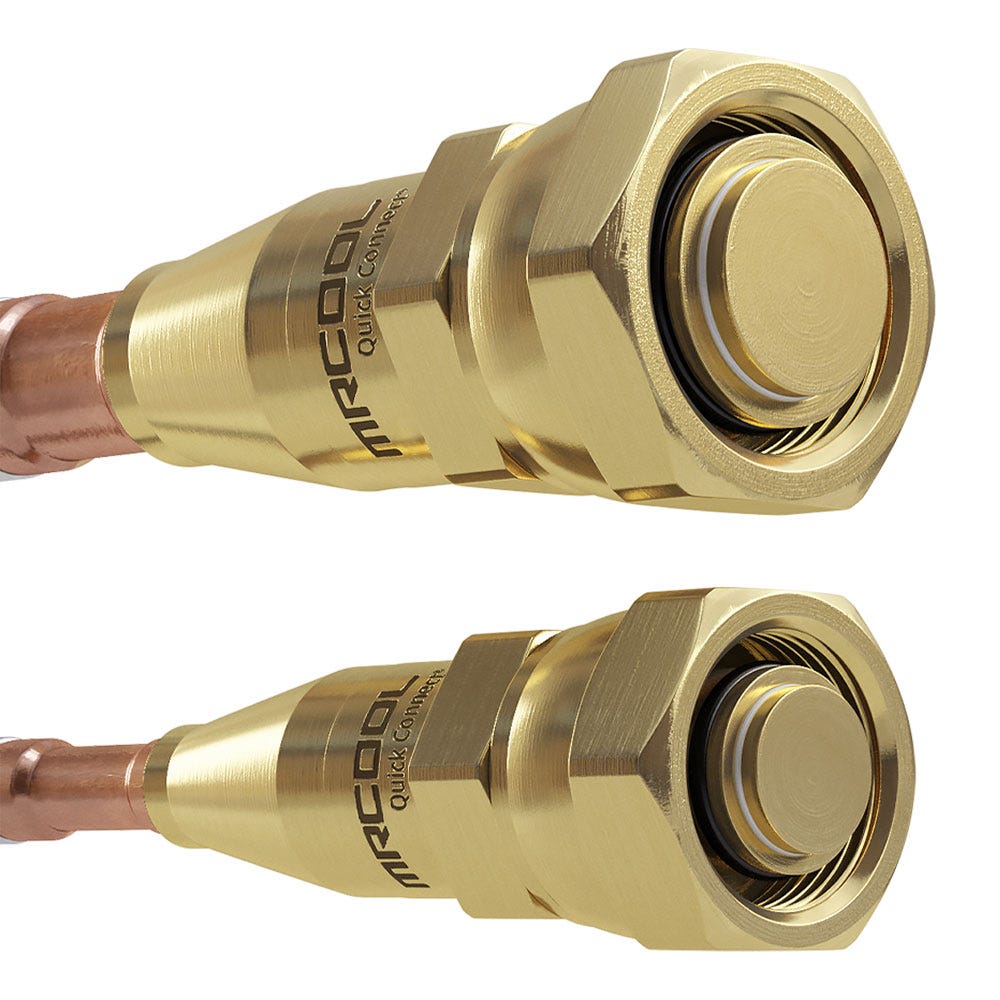

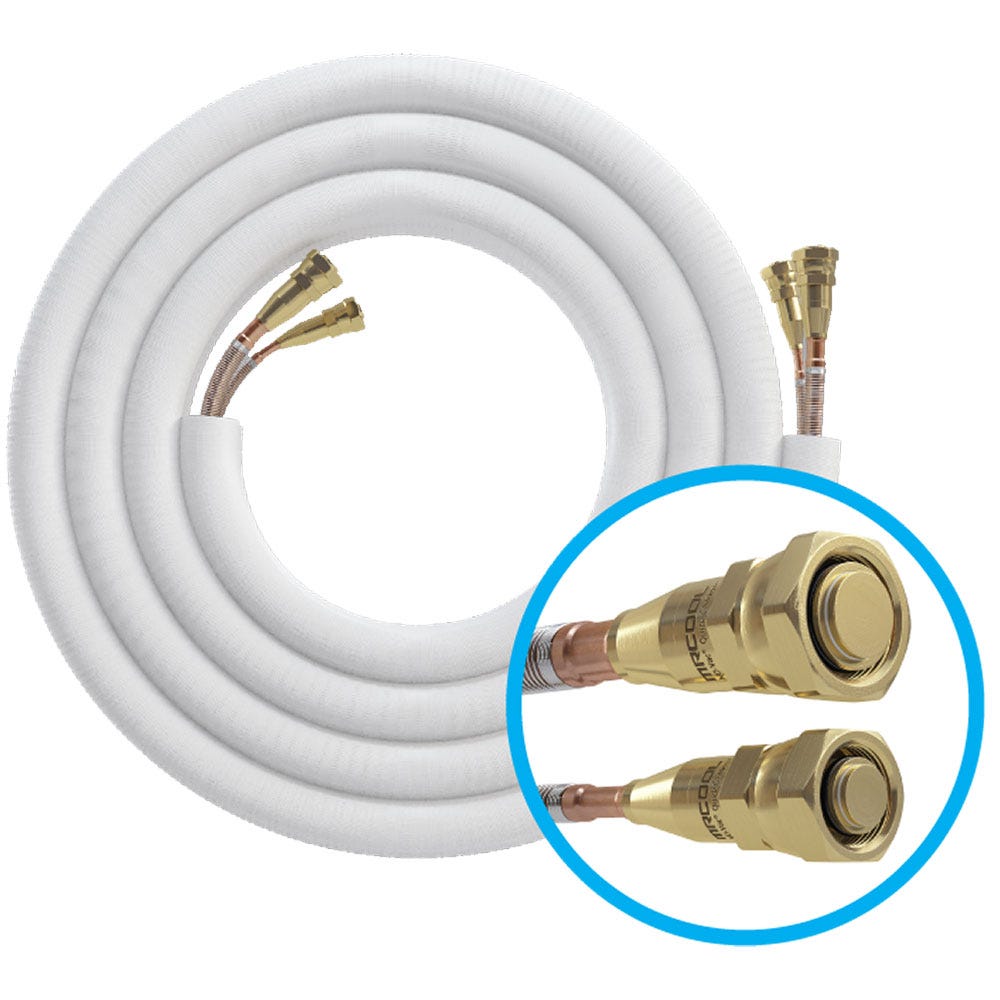

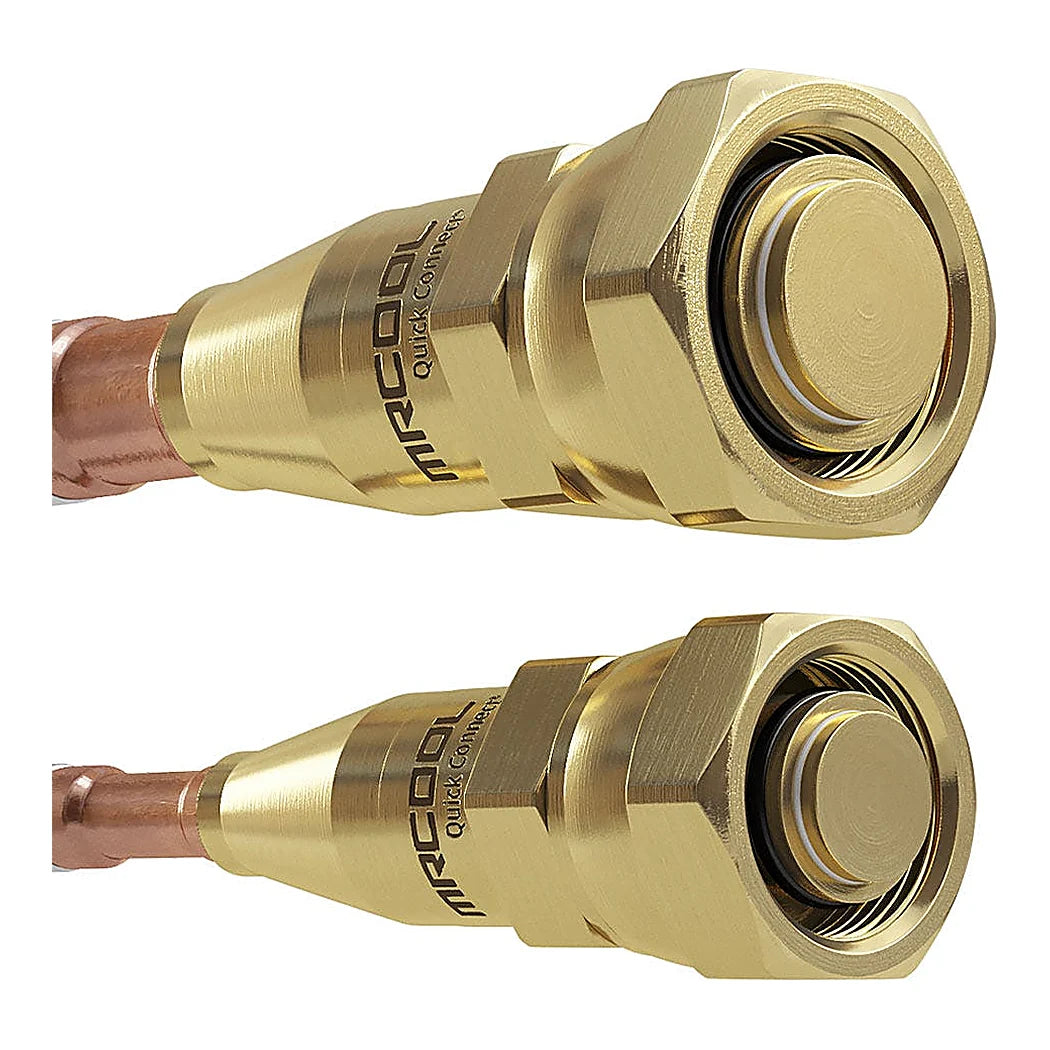

• Charge: Pre-charged and factory sealed
• Insulation: A 3/4 in sleeve with an outdoor rating
• Not needed: Vacuum pump, gauges, brazing or certification
• Lengths in the range: Sixteen, twenty five, thirty five and fifty feet
• Total run cap: Seventy five feet
• Check first: The model plate on your air handler, and the generation
