What the TrolMaster MC-1 Does

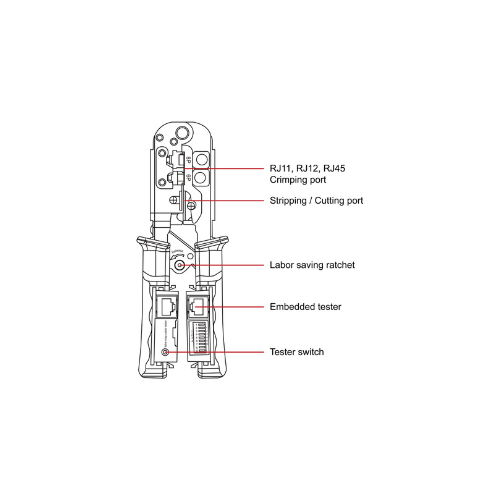

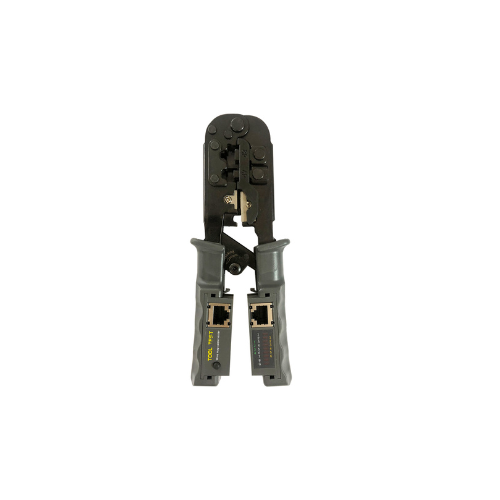

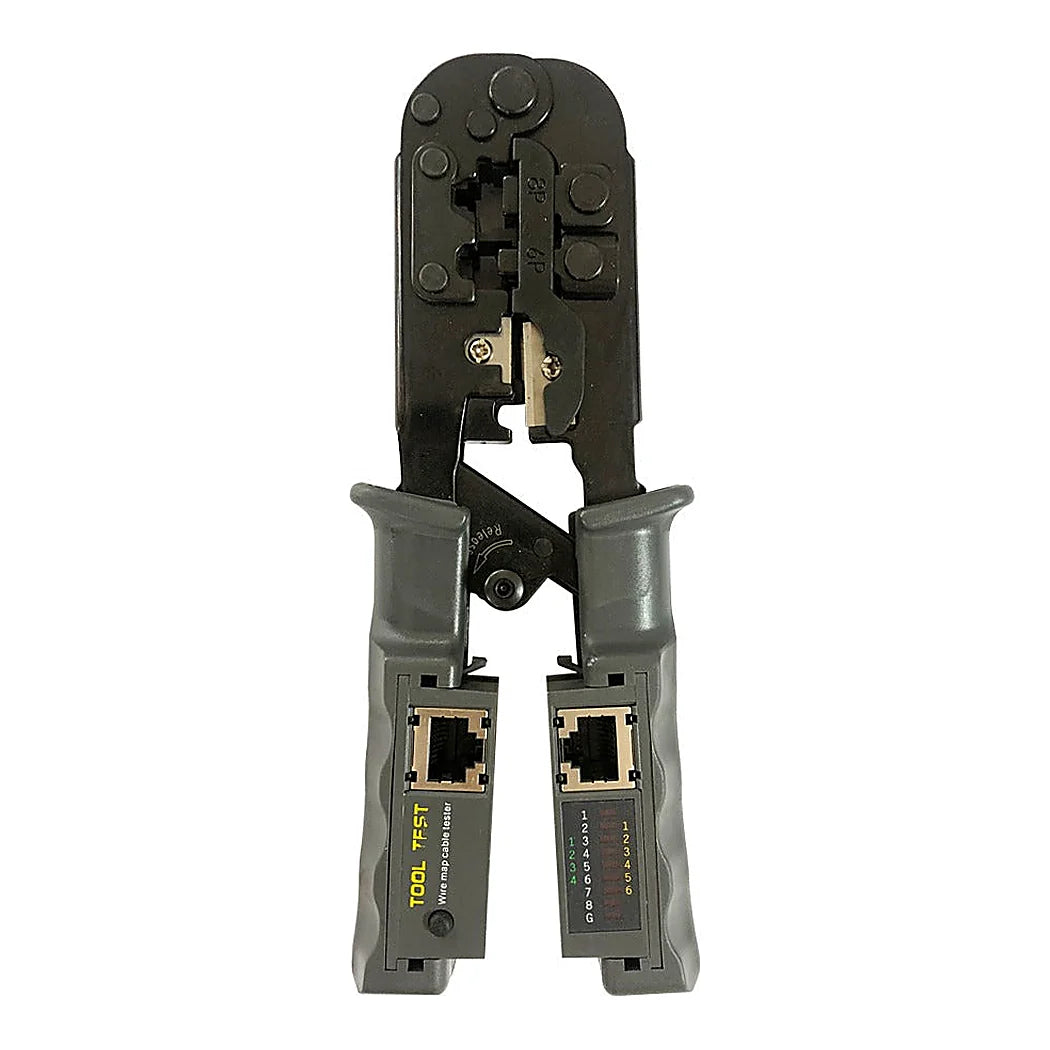

This hand tool combines four jobs: cutting, stripping, crimping and cable testing. It takes RJ12, RJ11, RJ45 and RJ22 modular plugs. That covers the six-position RJ12 plugs used across the TrolMaster Hydro-X and Aqua-X systems. Built-in blades cut cable to length and strip the outer jacket without nicking the conductors. A ratchet mechanism will not release until a full crimp cycle is complete. That keeps every plug seated evenly, so loose pins do not cause dropouts later. The tester checks patch cables and installed runs for continuity, opens, shorts and miswires. Problems show up on the bench rather than after the cable is buried in a ceiling run. It is rated for use between 32 and 122 °F at up to 90% humidity. TrolMaster backs the tool with a 3-year warranty.
Building Custom Cables With an RJ12 Crimper
An RJ12 crimper pays for itself the first time a stock cable is too short or leaves a coil of slack across the floor. Measure the route from the controller to the station, then add a little extra for strain relief. Cut the cable square and strip just enough jacket for the conductors to reach the end of the plug. Keep the wire sequence identical at both ends, matching the factory cables already in the system. Push the conductors fully home, then squeeze the handles until the ratchet releases. Plug both ends into the tester before the cable goes anywhere near the controller. A clean continuity pass means the run is ready to install. If the tester shows an open or a cross, cut off the plug and crimp a fresh one. Label each finished cable with its destination so the room stays easy to trace. Keep spare plugs and covers on hand for quick repairs. Used this way, it keeps wiring tidy and dependable across the whole room.
Key Features
- Four tools in one: Cut, strip, crimp and test.
- Multiple plug types: RJ12, RJ11, RJ45 and RJ22.
- Ratchet crimp: Releases only after a full crimp cycle.
- Built-in tester: Checks continuity, opens, shorts and miswires.
- 3-year warranty: Backed by TrolMaster.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | TrolMaster |
| Model | MC-1 |
| Functions | Cut, strip, crimp, test |
| Plug types | RJ45, RJ11, RJ12, RJ22 |
| Tester checks | Continuity, opens, shorts, miswires |
| Crimp action | Ratchet |
| Working environment | 32 to 122 °F, up to 90% RH |
| Package size | 258 x 258 x 295 mm |
| Warranty | 3 years |
| EAN | 6970207971585 |
