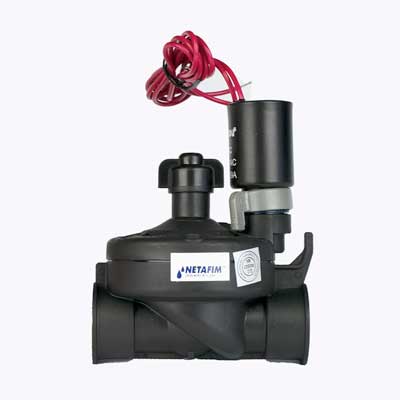

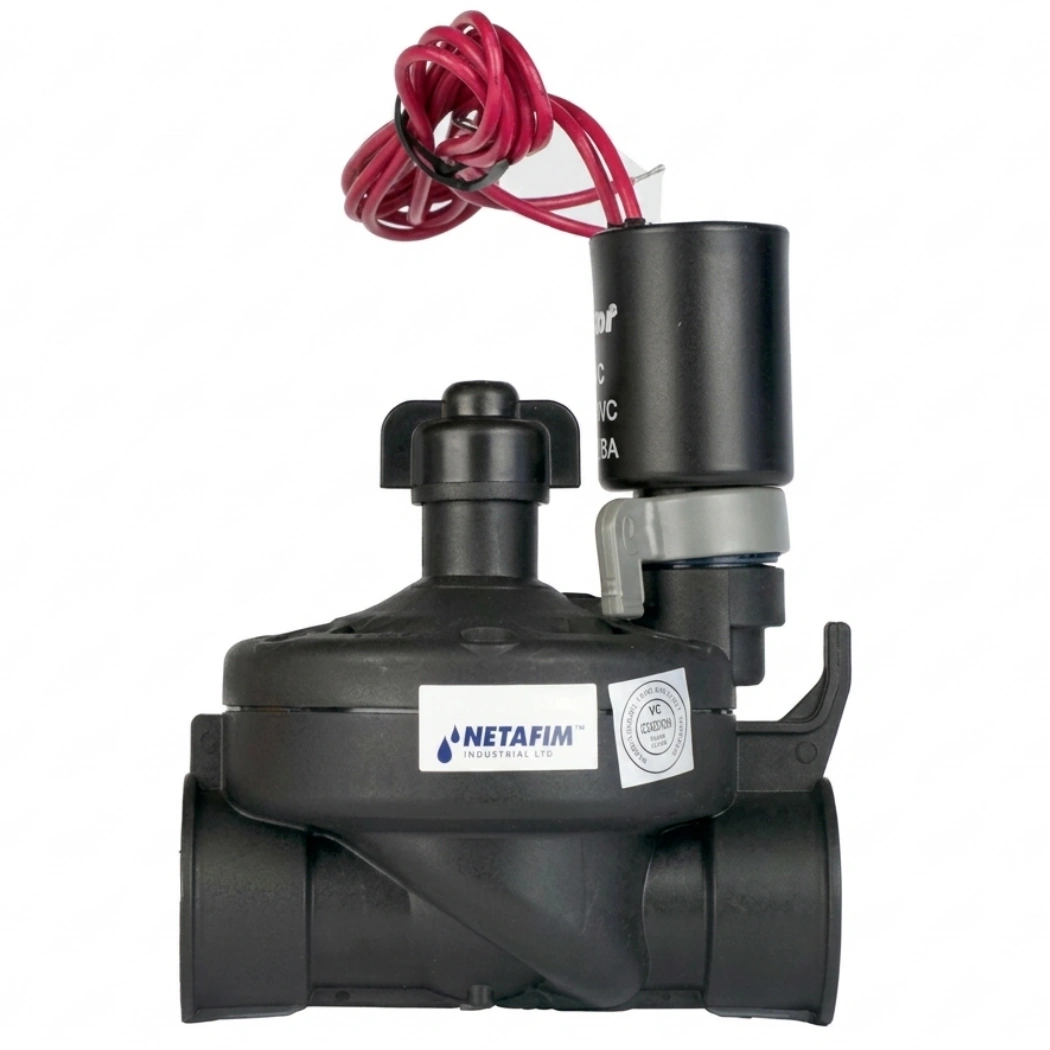

Netafim Series 80 3/4in Valve for Battery-Run Zones
A battery-run controller cannot afford a solenoid that draws current all cycle long, or the batteries die mid-season. This valve solves that with a 12VDC latching solenoid. It pulses open or closed and holds without steady power. Its glass-reinforced nylon body handles 7 to 150 psi and flows 0.01 to 26 GPM, enough for a bench or a full drip zone. The 3/4 inch threaded ports drop onto standard nylon fittings without adapters. A grower automates a zone off a DC or battery timer, and the valve stays put between pulses.
12VDC Latching Solenoid With Manual Flow Control
The latching design pulses open, holds, then pulses closed, which fits solar and battery controllers where every milliamp counts. A flow-control stem lets a grower throttle the zone or shut it by hand, from full closure up to maximum flow. The normally closed globe seals tight when the line is off, so nothing weeps between cycles. Corrosion-free nylon shrugs off the fertigation salts that pit a metal body over a season. For an off-grid or DC-timed bench, this valve runs clean cycles without a wall outlet.
Key Features
- 12VDC latching: Pulse open and closed, holds with no steady power
- Battery and solar ready: Suits DC and battery-run controllers
- 0.01-26 GPM flow: Feeds a bench or a full drip zone
- 7-150 psi range: Wide window for well, pump, or municipal supply
- Flow-control stem: Throttle or shut the zone by hand
Technical Specifications
| Specification | Detail |
|---|---|
| Model | 61ET.75GH2-L |
| Valve Type | 2-way globe, normally closed |
| Size | 3/4 in nylon threaded |
| Solenoid | 12VDC latching (pulse) |
| Flow Range | 0.01 to 26 GPM |
| Operating Pressure | 7 to 150 psi |
| Body Material | Glass-reinforced nylon |
| Flow Control | Manual stem |
| Series | Series 80 |
