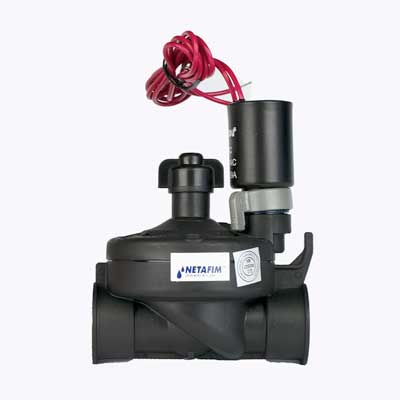

Netafim 3/4in Series 80 12VDC Control Valve for DC Systems
A DC-powered controller that keeps a valve energized through the cycle needs a matching continuous-draw solenoid, not a pulse-latch. The Netafim 3/4in Series 80 12VDC control valve runs on steady 12-volt DC and holds open while the controller powers it. Its glass-reinforced nylon body handles 7 to 150 psi and flows 0.01 to 26 GPM, enough for a bench or a full drip zone. The 3/4 inch threaded ports drop onto standard nylon fittings without adapters. When power drops, the normally closed globe shuts on its own, so a fault fails safe.
Normally Closed Globe With Manual Flow Control
As a 2-way normally closed globe, it seals tight when de-energized and opens cleanly under a 12VDC signal. A flow-control stem lets a grower throttle the zone or shut it by hand, from full closure up to maximum flow. Corrosion-free nylon shrugs off the fertigation salts that pit a metal body over a season. Wire it to a DC controller that holds voltage across the run for steady, repeatable cycles. For a hardwired DC system, this valve runs a zone without the pulse hardware a latching model needs.
Key Features
- Continuous 12VDC: Holds open on steady DC from a hardwired controller
- Normally closed: Fails safe and shuts when power drops
- 0.01-26 GPM flow: Feeds a bench or a full drip zone
- 7-150 psi range: Wide window for well, pump, or municipal supply
- Flow-control stem: Throttle or shut the zone by hand
Technical Specifications
| Specification | Detail |
|---|---|
| Model | 61ET.75GH2-12DC |
| Valve Type | 2-way globe, normally closed |
| Size | 3/4 in nylon threaded |
| Solenoid | 12VDC continuous (non-latching) |
| Flow Range | 0.01 to 26 GPM |
| Operating Pressure | 7 to 150 psi |
| Body Material | Glass-reinforced nylon |
| Flow Control | Manual stem |
| Series | Series 80 |
