Netafim 4-Way Flat MOD Assembly for Container Clusters
One dripper feeding four pots beats a tangle of separate emitters on a container bench. This MOD assembly runs a single 2.0 GPH pressure-compensating dripper and splits it four ways down white micro-tubes. Each tube ends in an angle arrow stake that pins into the pot and feeds the root zone. Two tubes run 24 inches and two run 36 inches, so a grower reaches pots staggered at different distances. One takeoff then waters four containers at a matched 0.50 GPH each.

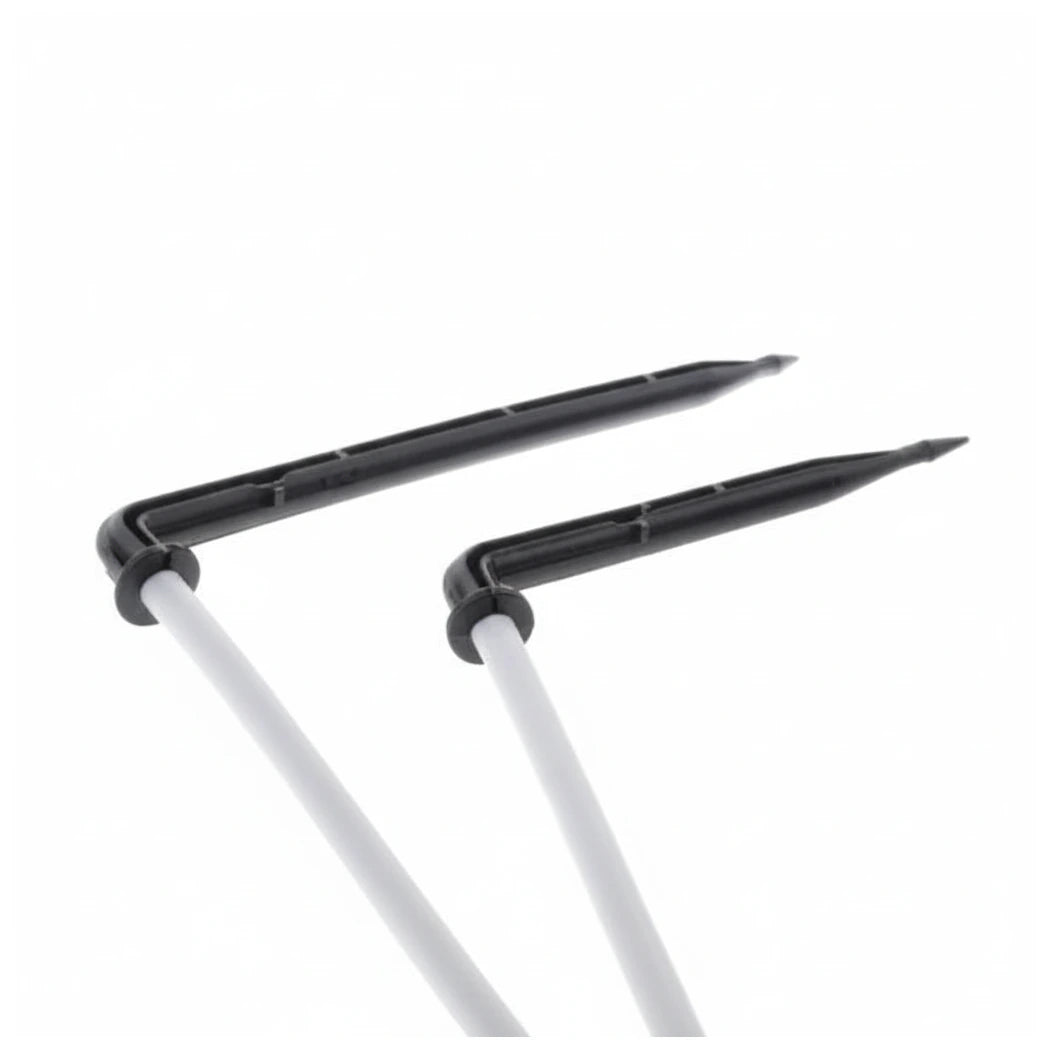

Angle Arrow Stakes That Keep Foliage Dry
Pressure compensation holds 94 percent uniformity across the bench, so near and far pots draw the same 0.50 GPH. A built-in check valve keeps the line charged and stops it draining onto low pots between cycles. The angle arrow stakes deliver water to the soil and keep foliage dry, which cuts disease spread and pesticide washoff. The mixed 24 and 36 inch legs suit large containers spaced at varying reach. Sold 25 to a pack, it fits out a full bench of four-pot clusters in one pass.
Key Features
- One-to-four split: A single 2.0 GPH dripper feeds four outlets
- Per-outlet flow: 0.50 GPH to each pot at 94 percent uniformity
- Angle arrow stakes: Feed the soil and keep foliage dry
- Mixed legs: Two 24-inch and two 36-inch white tubes
- Check valve: Anti-drain valve for clean start and stop
Technical Specifications
| Specification | Detail |
|---|---|
| Model | 014DM-2436F (40201-003900) |
| Type | Flat 4-way multi-outlet dripper (MOD) assembly |
| Total Flow | 2.0 GPH (pressure-compensating) |
| Per Outlet | 0.50 GPH x 4 |
| Uniformity | 94% |
| Check Valve | Built-in (anti-drain) |
| Tube Lengths | Two 24 in + two 36 in |
| Tube Color | White |
| Stakes | Angle arrow drippers |
| Pack Size | 25 assemblies |
