Netafim 4-Way Stackable Flat MOD, Angle Arrow, 24 in Tubes - 25 Pack (014DMS-2424F)

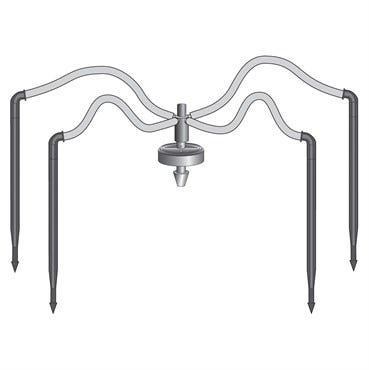

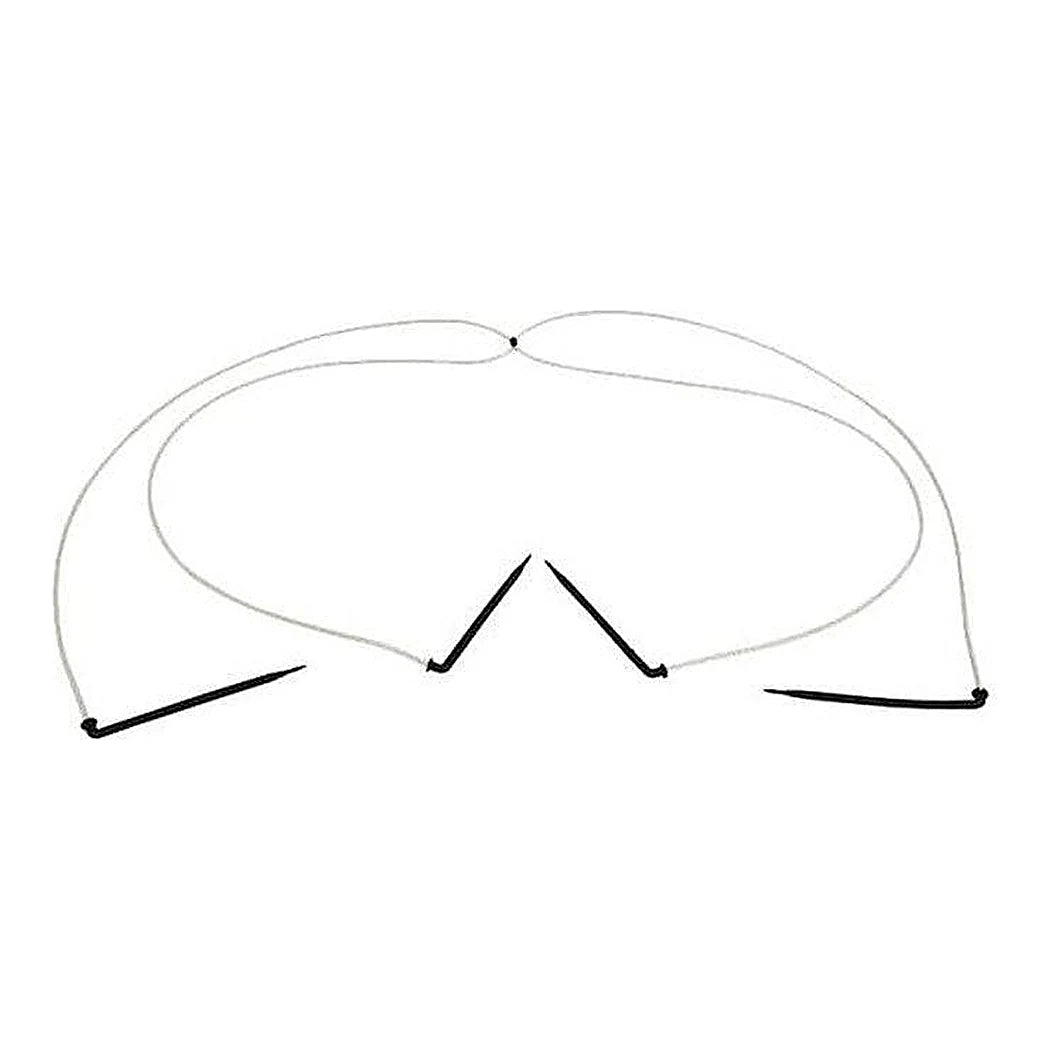

Netafim Stackable Dripper Manifold With Four 24 in Tubes

Large crops of small pots are where a multi-outlet layout pays off most, because every dripper removed from the lateral cuts cost and clutter. This Netafim stackable flat MOD, item 40201-008000 and model 014DMS-2424F, doubles the outlets on a single dripper. It mounts onto a flat 4-way MOD assembly, and together the two feed eight pots. All four of its tubes measure 24 in, giving each pot a mid-length reach from the dripper. Even tube lengths make it easy to lay the pots out in a symmetrical block. Standard angle arrow drippers, roughly 6-3/8 in long, finish each tube. Shared across eight outlets, the feed dripper's flow works out to about 0.25 GPH per pot. The tubing is Super Flex UV White PE, white through the whole wall and fully opaque against algae. Its light color also keeps the water inside cooler on hot days. Packs contain 25 stackable assemblies, with the flat 4-way base and the dripper sold separately.

Laying Out a Pot Watering System With Stacked Manifolds

Start each station with one 2.0 GPH Woodpecker PC Junior dripper, the size Netafim pairs with this build. Fit the flat 4-way assembly first, then stack this manifold on top to bring the outlet count to eight. The PC dripper keeps its output steady from 10 to 45 psi and closes a check valve when the zone shuts off. That stops water draining downhill onto the lowest pots after each cycle. Netafim rates a pot watering system built on these drippers at 94% uniformity, even on sloped ground. Plan around 8 GPM for 2,000 plants on eight-outlet assemblies. Keep every station in a zone identical so each pot gets the same share. Point each arrow toward the root ball and press it in at an angle. Watering only the pot keeps foliage dry and leaves pesticide applications on the leaves. The flat manifolds separate for storage, and the tubing rolls up without knots.

Key Features

• Stacks for eight outlets: Mounts on a flat 4-way assembly so one dripper waters eight pots.
• Four 24 in tubes: Even mid-length reach for a symmetrical pot block.
• 0.25 GPH per pot: With a shared 2.0 GPH dripper.
• Standard angle arrows: Roughly 6-3/8 in long.
• UV White PE tubing: Fully opaque against algae and cooler in the sun.
• Pack of 25: Twenty-five stackable assemblies.
