Netafim MOD Assembly With 36 Inch Leads for Spaced Pots

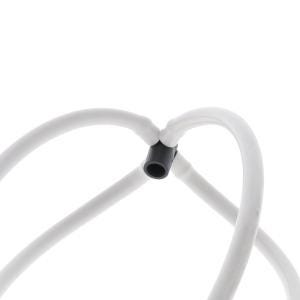

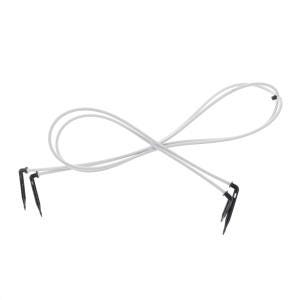

Larger containers usually sit farther apart, and the drip leads have to cover that distance. This Netafim flat 4-way assembly, model 014DM-3636F and item 40201-004800, uses four 36 inch leads to reach pots on wider spacing. Super Flex white PE tubing forms each lead, with UV resistance for long service in greenhouses and outdoor blocks. An Angle Arrow stake on every lead puts water directly into the container. Netafim designed the flat manifold with a low profile and a durable body that stands up to crews working the rows. The usual pairing is a 2.0 GPH WPCJL pressure compensating dripper, sold separately. Split across four leads, that dripper gives each plant 0.50 GPH. Pressure compensation from 10 to 45 psi keeps flow equal from one end of the block to the other. The dripper's check valve prevents the system from draining onto low-lying pots once a cycle ends. Netafim reports 94% watering uniformity for these systems, even across rolling ground.
Running 36 Inch Drip Leads to Large Containers

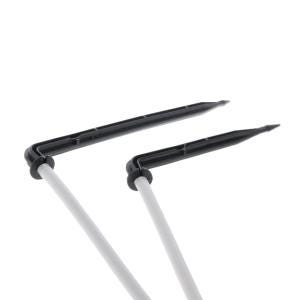

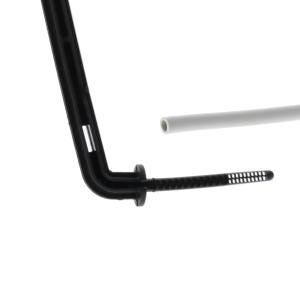

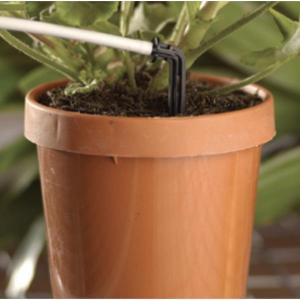

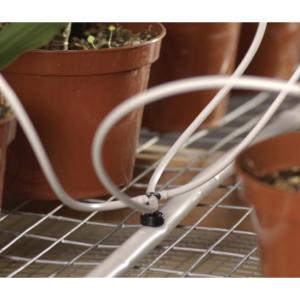

These long leads let one dripper serve four pots set well apart, which suits big containers and wide aisles. Place each Angle Arrow stake near the stem so water soaks the root ball rather than the pot edge. The standard stake is 6 3/8 inches long and is designed for larger pots. Watering below the canopy keeps leaves dry, lowering disease pressure and leaving foliar sprays in place. Route the leads along the pot rims so they stay clear of feet and carts. For many small pots, two manifolds stack into an 8-way assembly that delivers 0.25 GPH per pot. The manifold separates for storage, and the supply tube rolls up without the leads knotting. Switch spacing by changing the manifold instead of cutting new tubing. Keep a filter at the head of the system to protect the dripper and stakes. Each pack contains 25 assemblies for up to 100 pots.
Key Features
- 36 in Leads: Reach four widely spaced containers.
- Angle Arrow Stakes: Water goes straight to the root ball.
- Super Flex PE: UV-resistant white tubing for long service.
- 0.50 GPH per Pot: With a 2.0 GPH WPCJL dripper.
- Durable Flat Manifold: Low profile for busy rows.
- Pack of 25: Up to 100 containers.
Technical Specifications
| Specification | Value |
|---|---|
| Netafim Item Number | 40201-004800 |
| Model Number | 014DM-3636F |
| Manifold | Flat 4-way |
| Tubing | Super Flex UV-resistant white PE |
| Tubing Length | 36 in, four leads per assembly |
| Stakes | Angle Arrow drippers, 6 3/8 in |
| Typical Dripper | 2.0 GPH WPCJL PC dripper (sold separately) |
| Flow per Plant | 0.50 GPH with a 2.0 GPH dripper |
| Pack Quantity | 25 assemblies |
