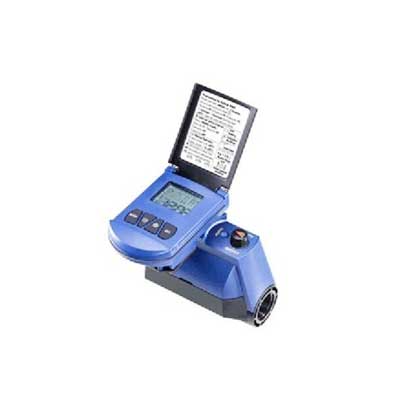

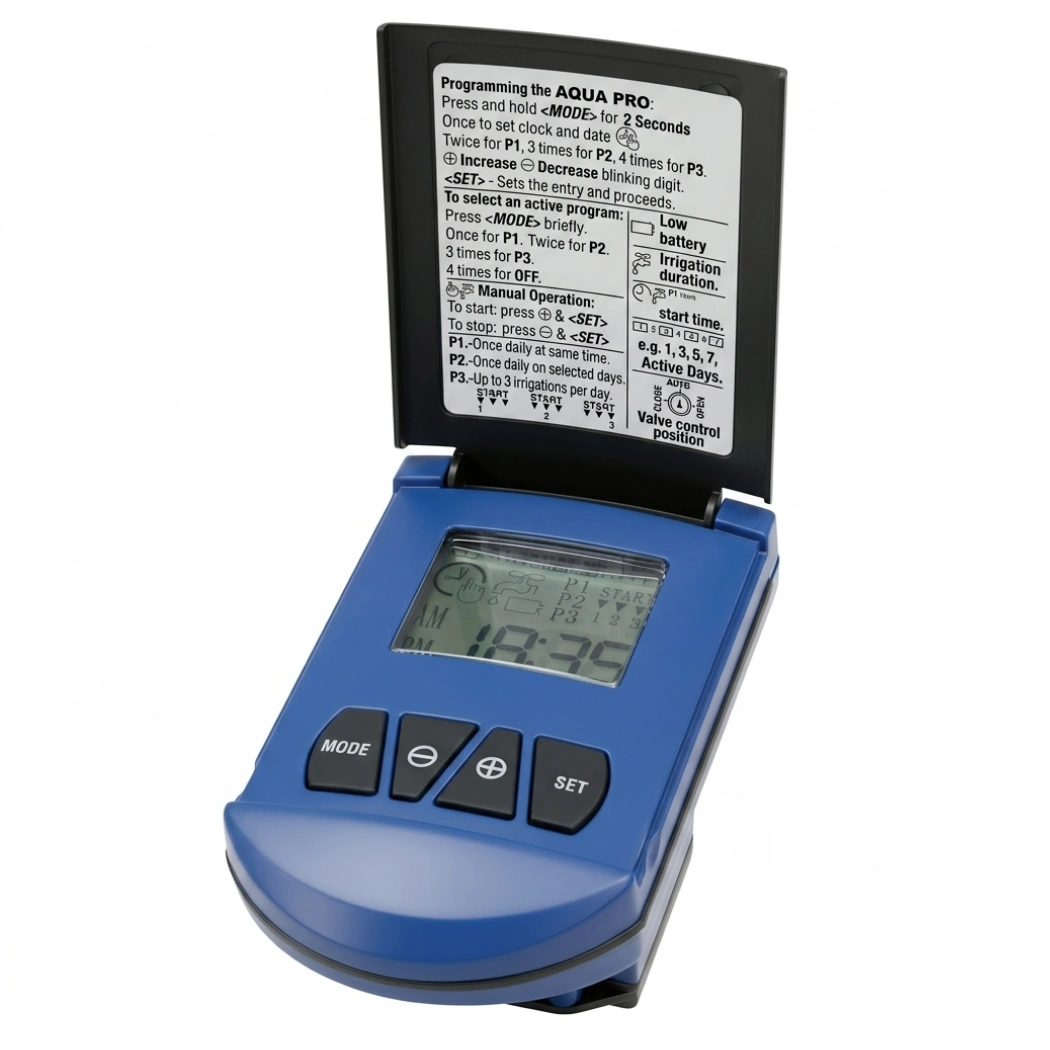

Netafim Aqua Pro Controller for Single-Zone Battery Irrigation
The Netafim Aqua Pro controller automates one irrigation zone on two LR1130 batteries. It puts a valve on a schedule where running power is not practical. It carries an IP67 waterproof rating for wet greenhouse and outdoor spots. Five operating modes cover once-a-day, selected-day, and three-times-a-day watering. Run times set from 1 minute to 11h 59m.
Mounting and Wiring a Battery-Operated Irrigation Controller

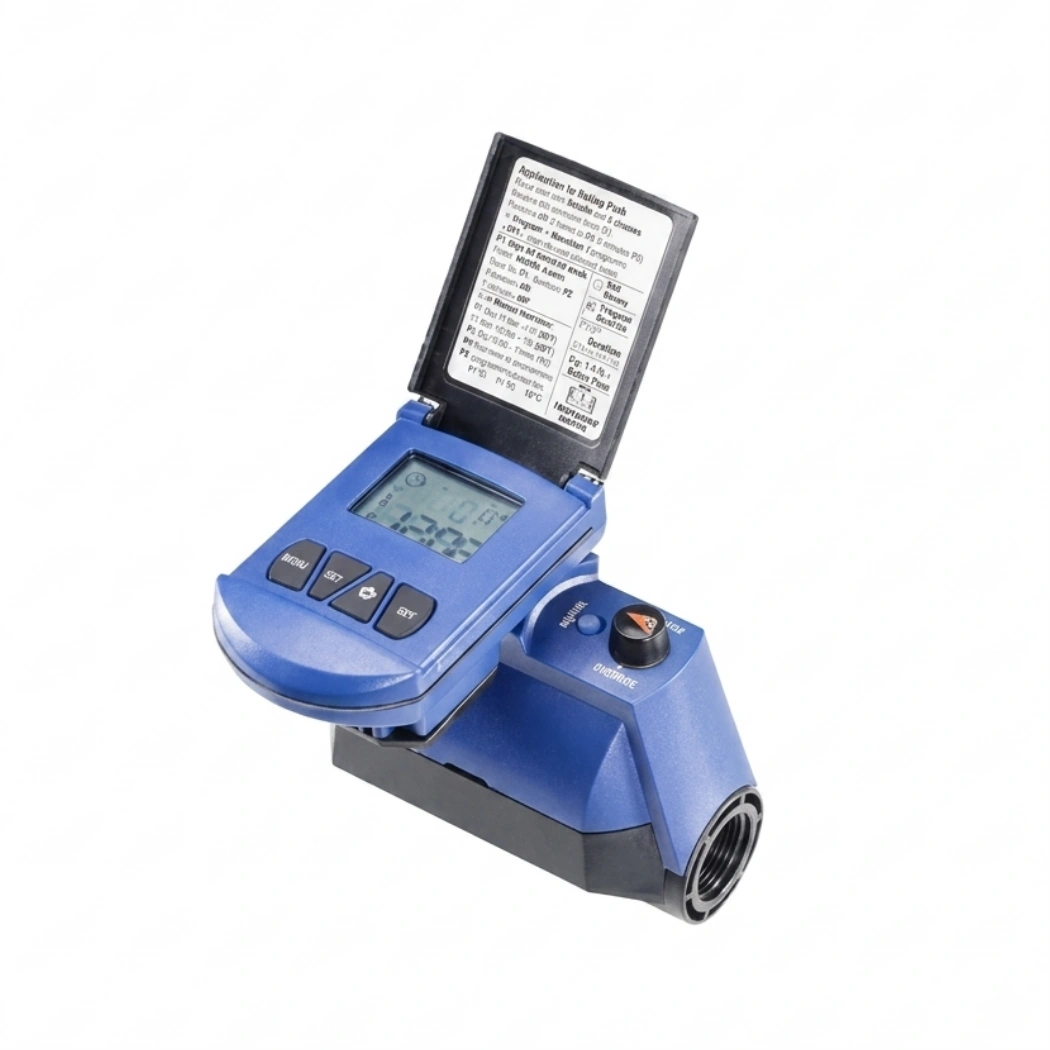

Growers clip it to a 3/4 in PVC riser or a wall adapter right at the valve. A DC latching solenoid drives from the four-button panel. When the box needs to sit away from the valve, remote wiring reaches up to 300 ft on #16 wire. IP67 sealing means a wash-down or a rain event will not kill it. Batteries are included, so it programs out of the box.
Key Features
- Battery-powered: Runs one zone on two included LR1130 batteries, no mains needed.
- IP67 waterproof: Handles wash-downs, rain, and wet greenhouse corners.
- Five operating modes: Once-a-day, selected days, three-times-a-day, manual, or off.
- 1 min to 11h 59m run time: From a quick pulse to a long soak.
- Dual mount + 300 ft remote: Clip to 3/4 in PVC or a wall, wire the valve up to 300 ft away.
Technical Specifications
| Specification | Value |
|---|---|
| Model | AP-CONTROLLER-P3 |
| Stations | 1 (single zone) |
| Power | 2 x LR1130 batteries (included) |
| Waterproof | IP67 |
| Operating Modes | 5 (once/day, selected days, 3x/day, manual, off) |
| Run Time | 1 min - 11h 59m |
| Remote | Up to 300 ft (#16 wire) |
| Mounting | 3/4 in PVC bracket or wall adapter |
