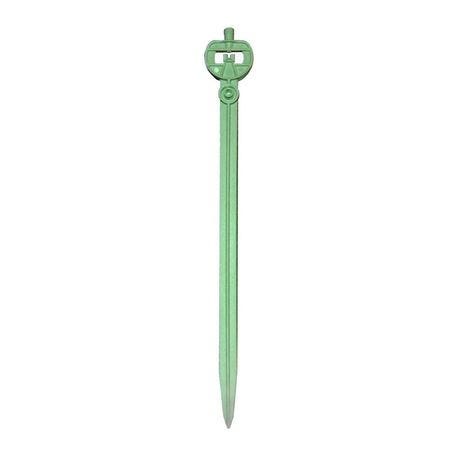

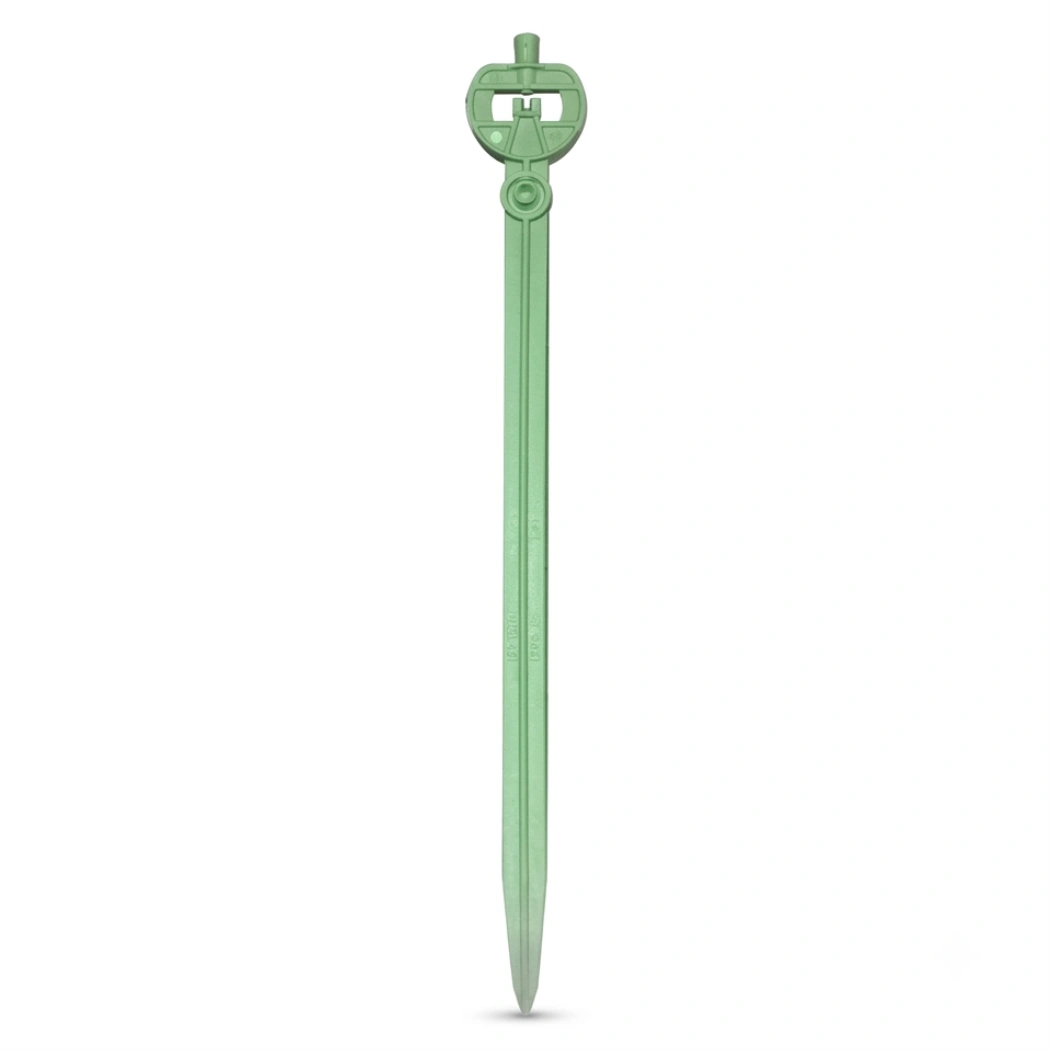

Netafim Green 5 GPH Spray Stake for Level Benches
On a level bench fed at steady pressure, a pressure-compensating head is more than the job needs, and a simpler stake stretches the budget further. The Netafim Green 5 GPH spray stake meters a mid 5.0 GPH from a rugged one-piece body, its green color code marking that flow. As a non-compensating head, its output tracks system pressure, so it shines where pressure holds even across the bench. A spray-direction indicator and a simple close-off make setup and service quick. A grower then waters a flat bench of pots at volume without paying for compensation the layout does not need.
Non-PC Single-Arc Head at Steady Pressure
The head throws a soft 160-degree arc across a 12 to 16 inch radius, wetting the media surface while minimizing overspray and runoff. It presses into the media and feeds from White Flex 5/3mm tubing off the lateral, with a 120-mesh filter keeping the outlet clear. At 5.0 GPH, the green stake sits above the 3.0 GPH yellow and below the 7.0 GPH black in the non-PC line. Run it where inlet pressure stays near 15 psi for consistent output down the row. A 100-pack fits out a full bench of level container rows in one pass.
Key Features
- Flow rate: 5.0 GPH at steady pressure (green code, non-PC)
- Best on level benches: Output tracks system pressure, no compensation
- 160-degree arc: Wets a 12 to 16 inch radius with low overspray
- One-piece body: Spray-direction indicator and simple close-off
- Pack size: 100 spray stakes per pack
Technical Specifications
| Specification | Detail |
|---|---|
| Model | 901SSGN-B0 (22500-001120) |
| Flow Rate | 5.0 GPH (Green, at ~15 psi) |
| Type | Non-pressure-compensating spray stake |
| Spray Pattern | 160 degrees, single arc |
| Spray Radius | 12 to 16 in |
| Recommended Pressure | ~15 psi |
| Filtration | 120 mesh |
| Tubing | White Flex PE 5/3mm (0.197 x 0.125 in) |
| Pack Size | 100 spray stakes |
