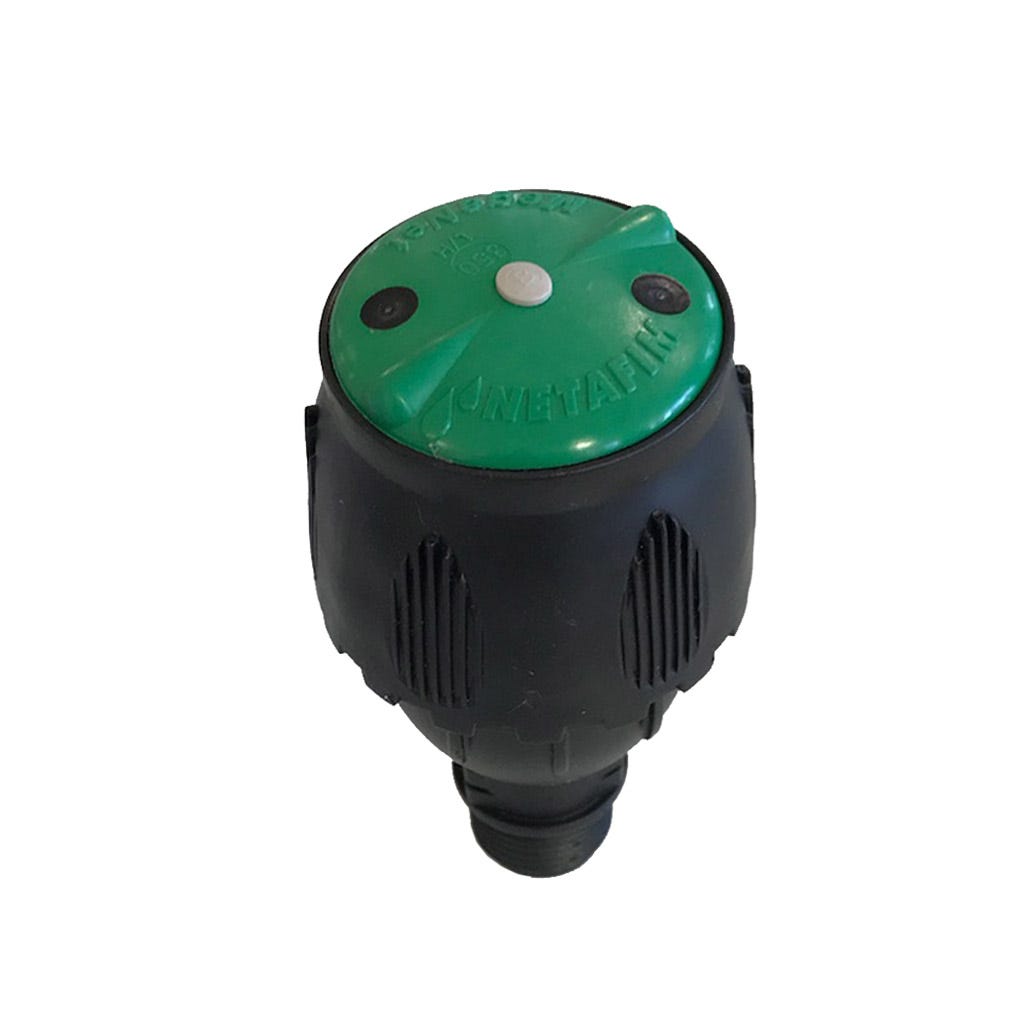

Netafim MegaNet 15D Sprinkler, Green Nozzle
Under a net or shade roof, the best sprinkler keeps its water below the cover and on the beds. This head, Netafim item 63600-005000 and model MGN15D-154HO, keeps its stream at a low 15°. The green cap identifies a 2.44 mm nozzle with a nominal 1.54 GPM at 33 psi. Its stream tops out only about 3.3 ft above the nozzle, around 15.6 ft from the head. Two equal jets turn the rotor, giving a steady, balanced spin and even wetting. Water lands as small, gentle drops, so the bed surface stays intact from start to finish. An integral filter sits at the inlet and comes out for a quick rinse. A pop-up mechanism exposes the nozzle only during irrigation, keeping insects and dust out the rest of the time. The materials are UV protected and resist the fertilizers that run through the line. Under-tree blocks and windy open fields also benefit from the flatter stream.
Fitting the Green Nozzle Into Shade House Irrigation
Mount the head on its 1/2 in male thread, using a 20 mm and a 30 mm spanner. Assemble gently and do not overtighten the plastic threads. Run the head between 29 and 44 psi at the sprinkler itself. At 36 psi the green nozzle passes about 1.59 GPM, and about 1.74 GPM at 44 psi. On a tight 26 x 26 ft grid that applies roughly 0.22 to 0.24 in per hour. Opening the grid to 33 x 33 ft drops the rate to about 0.14 to 0.16 in per hour. A short 1/2 in riser adds almost no friction loss at this flow, so pressure at the pipe carries to the head. Water pH should stay at 6.0 or above for continuous use. Before each growing season, open the head, rinse the filter and check the cover and turbine tabs for wear. Seat the light-colored locking pin again afterward, since it holds the cover and turbine in place.
Key Features
- Green nozzle, 1.54 GPM: Nominal flow at 33 psi, 2.44 mm orifice.
- Low 15° trajectory: Peaks about 3.3 ft above the nozzle.
- For net and shade houses: Keeps water under the roof.
- Integral inlet filter: Rinses clean in seconds.
- Pop-up insect guard: Nozzle exposed only while running.
- 1/2 in male thread: Solid set or field stand mounting.
Technical Specifications
| Specification | Value |
|---|---|
| Item Number | 63600-005000 |
| Model | MGN15D-154HO |
| Type | Rotating impact sprinkler, head only |
| Nozzle Color | Green |
| Nozzle Size | 2.44 mm |
| Nominal Flow | 1.54 GPM at 33 psi |
| Flow at 36 / 44 psi | About 1.59 / 1.74 GPM |
| Recommended Pressure | 29 - 44 psi at the head |
| Trajectory Angle | 15° (low) |
| Peak Stream Height | About 3.3 ft above the nozzle |
| Maximum Spacing | About 33 x 39 ft (10 x 12 m) |
| Inlet | 1/2 in male thread |
| Minimum Water pH | 6.0 |
| Filtration | 40 mesh (400 micron) for dirty water |
| Standard | ISO 8026 |
| Warranty | 1 year |
