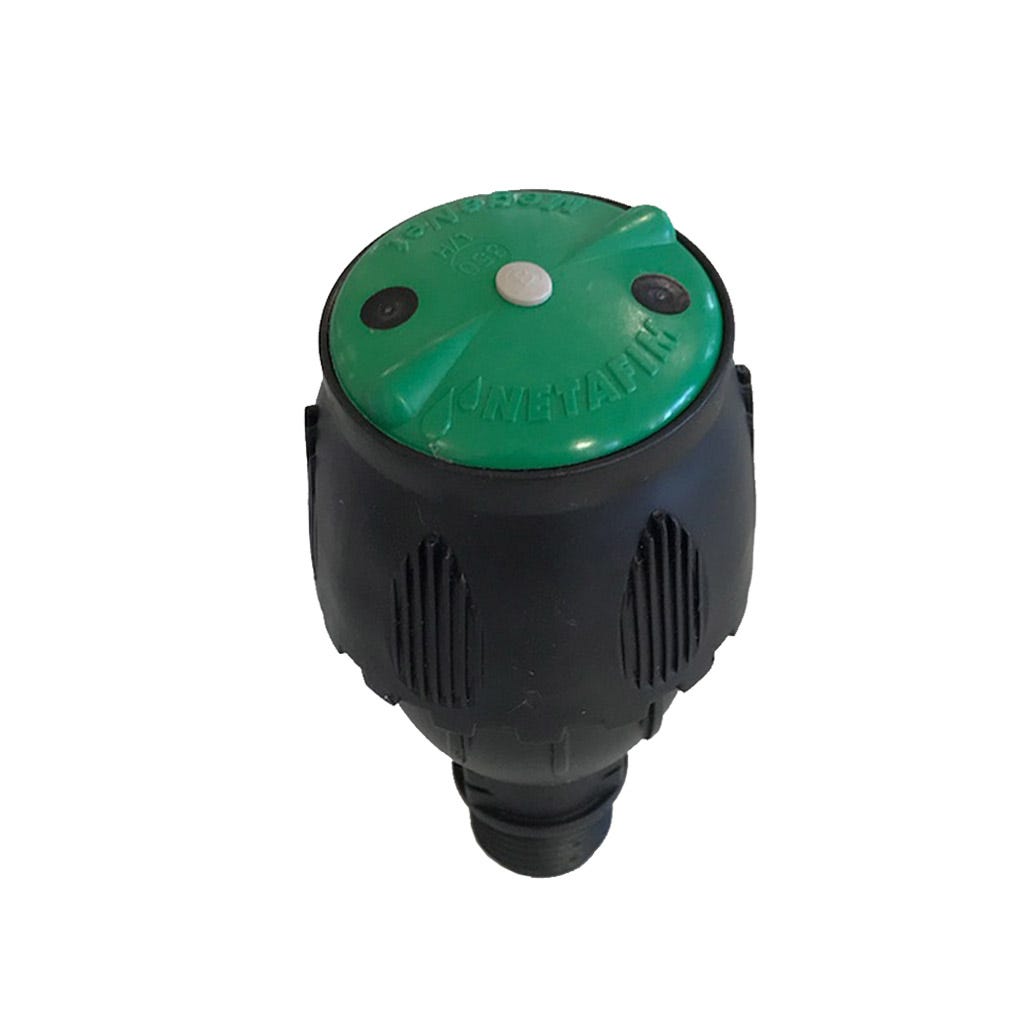

Netafim MegaNet Sprinkler, Green Nozzle, 24° Head
Open field nursery beds do well under a moderate, even rate that covers every container on the block. This head is Netafim item 63600-001000, model MGN24D-154HO, with the green nozzle cap. The 2.44 mm nozzle delivers a nominal 1.54 GPM at 33 psi. A high 24° trajectory carries the water out over the bed rather than dropping it close to the riser. Two equal jets drive the rotor, so the head turns steadily without wobble. Drops fall gently, which keeps fresh media and seed in place through start-up and shutdown. A filter inside the inlet stops particles before they reach the nozzle. When the water is off, a pop-up cover closes over the works and keeps insects out. The body is UV protected and stands up to fertilizers carried in the irrigation water. Vegetable and open field crop blocks run the same head for germination and routine watering.
Mounting the Green Nozzle for Nursery Irrigation
The head threads onto any 1/2 in female outlet, on a fixed PVC riser or a portable stand. A MegaStand with one 16 in riser holds the head about 20 in above ground, and a second riser lifts it to about 39 in. Its wide base sits on 2 in FlexNet layflat pipe and assembles by hand without tools. Hold 29 to 44 psi at the head, which gives about 1.59 GPM at 36 psi and 1.74 GPM at 44 psi. On a 26 x 33 ft grid that lays down roughly 0.18 to 0.20 in per hour. At the widest suggested spacing of 33 x 33 ft, the rate eases to about 0.14 to 0.16 in per hour. Water from lakes or rivers needs 40 mesh filtration, while clean supplies need none. Lift out and rinse the inlet filter before the season starts. Replacement filters, black locking pins and turbines are stocked as spare parts. This nozzle size takes the black turbine, part 63620-002000, when worn parts are replaced.
Key Features
- Green nozzle, 1.54 GPM: Nominal flow at 33 psi, 2.44 mm orifice.
- High 24° trajectory: Even coverage across nursery beds.
- Gentle drops: Keeps seed and fresh media in place.
- Integral inlet filter: Rinse before each season.
- Pop-up cover: Seals out insects when off.
- 1/2 in male thread: Riser or MegaStand mounting.
Technical Specifications
| Specification | Value |
|---|---|
| Item Number | 63600-001000 |
| Model | MGN24D-154HO |
| Type | Rotating impact sprinkler, head only |
| Nozzle Color | Green |
| Nozzle Size | 2.44 mm |
| Nominal Flow | 1.54 GPM at 33 psi |
| Flow at 36 / 44 psi | About 1.59 / 1.74 GPM |
| Recommended Pressure | 29 - 44 psi at the head |
| Trajectory Angle | 24° (high) |
| Maximum Spacing | About 33 x 33 ft (10 x 10 m) |
| Inlet | 1/2 in male thread |
| Replacement Turbine | 63620-002000 (black) |
| Filtration | 40 mesh (400 micron) for dirty water |
| Standard | ISO 8026 |
| Warranty | 1 year |
