Netafim Arrow Dripper, Short Angle, for 4 to 5 in Pots

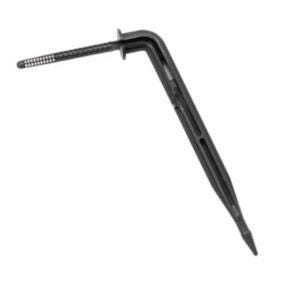

Small containers on a bench water evenly when each pot gets its own outlet set right into the media. This stake is Netafim item 22000-000920, model 01MODS-A-ANGS-B, the short angle arrow dripper. At 3 3/4 in long, it is sized for 4 to 5 in pots. The angled head takes the end of a micro-tube, and the pointed shank pushes into the growing media. Water is applied directly to the pot, so leaves and flowers stay dry. Dry foliage slows the spread of disease that moves with splashing water. Sprays applied to the leaves are also not washed off by daily watering, which can cut spraying and run-off. Super Flex White PE micro-tube links each arrow to its manifold outlet. It is a component of Netafim multi-outlet dripper assemblies for potted plants. Each bag holds 100 arrows for building or repairing assemblies.
Building Multi-Outlet Assemblies for the 4 Inch Pot
In a multi-outlet assembly, one pressure-compensating dripper feeds a flat manifold that splits the flow to several arrows. The flow at each arrow equals the dripper flow divided by the number of arrows on that assembly. A flat 4-way manifold is usually paired with a 2.0 GPH Woodpecker Junior dripper, giving 0.50 GPH per plant. A flat 2-way manifold with a 1.0 GPH dripper gives the same rate per plant. Stacking a 4-way stackable manifold on a 4-way manifold creates an 8-way assembly at 0.25 GPH per pot. At that rate, every 10 GPM available waters about 2,000 pots. The WPCJL dripper holds constant flow from 10 to 45 psi and has a built-in check valve. Uniformity reaches 94 percent even on sloped ground, and the lowest pots do not drain the line after each cycle. Use the same assembly type throughout a zone so every plant receives equal flow. Supply tubing with the arrows attached rolls up without tangling when the crop moves on.
Key Features
- Short angle stake: 3 3/4 in long.
- Sized for small pots: 4 to 5 in containers.
- Water at the media: Keeps foliage and flowers dry.
- Multi-outlet ready: Flat 2-way, 4-way and stackable manifolds.
- 100 per bag: For building or repairing assemblies.
Technical Specifications
| Specification | Value |
|---|---|
| Item Number | 22000-000920 |
| Model | 01MODS-A-ANGS-B |
| Type | Short angle arrow dripper stake |
| Length | 3 3/4 in |
| Recommended Pot Size | 4 - 5 in |
| Color | Black |
| Used With | Flat 2-way, 4-way and 4-way stackable manifolds, micro-tubing |
| Bag Quantity | 100 |
