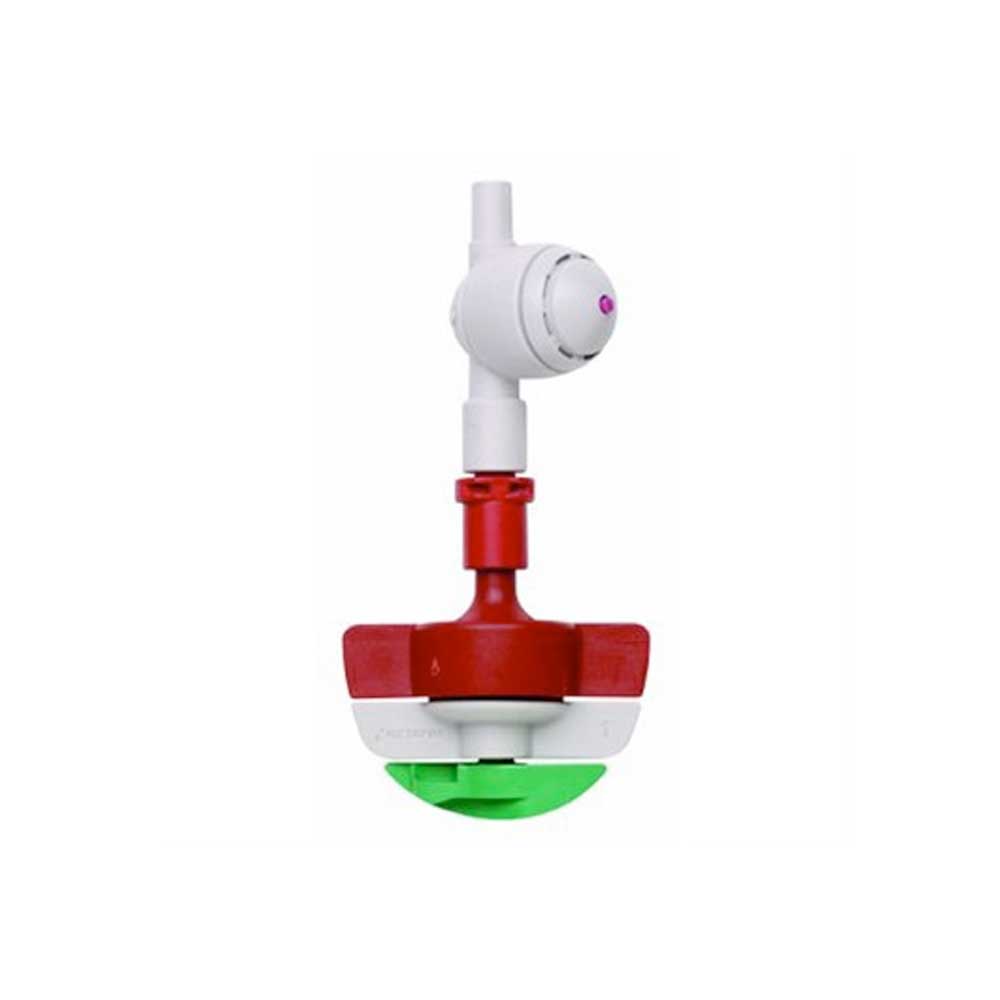

Netafim SpinNet Head Assy, Red Body, Red Mist Control, Green Spinner, 25 Pack

Netafim SpinNet Sprinkler Head Assy, Red/Red/Green

Wide houses need a hanging head that sends water far to each side without heavy flow at any one point. This bag holds 25 heads, Netafim item 64200-010760, model 03551200070G-B, in the R-R-GN combination. A red body and red mist control sit above a green spinner, the high-trajectory rotor. Nominal flow is about 18.0 GPH (68 L/h) at 29 psi. Measured 1.5 m above the surface at 36 psi, the wetted diameter is about 25 ft. Pairing a modest flow with a long reach spreads water thinly and evenly over a large strip. The head is supplied without a check valve, ready to complete a stand or replace a failed head. With no bridge over the spinner, water has nowhere to gather and fall onto the crop. A shoulder distributor helps the pattern fill rectangular areas with good uniformity. Parts are interchangeable, separate by hand for cleaning, and stand up to acid treatment.

Setting Up Lines Across Wide Bays

With heads 3 ft apart, a single R-R-GN line covers an 18 ft bay from 2 to 3 ft above the crop. Raised to 4 to 5 ft above the crop, one line covers 20 or 22 ft bays. Two lines 17 to 19 ft apart cover 32 to 36 ft bays from 3 ft above the crop. In a 36 ft bay, two lines also work with the heads 6 to 7 ft up. Add lines 7, 8 or 9 ft apart for full-house coverage, starting 3 ft from the wall. Hanging assemblies with 12 to 48 in drops connect heads to PE supply tubing. A check valve between the drop and the head holds the line full, giving instant start and stop on short cycles. Set the zone regulator at 35 psi and keep heads within 29 to 43 psi. Filter to 120 mesh, and flush all pipes before attaching heads with check valves. Disassemble a head by hand whenever the spray pattern looks uneven, then rinse and refit it.

Key Features

• Green high-trajectory spinner: About 25 ft wetted diameter.
• About 18.0 GPH at 29 psi: Red body and red mist control.
• Head only: No check valve; completes or repairs a stand.
• Bridgeless: Nothing above the spinner to drip.
• Shoulder distributor: Even water over rectangular areas.
• Hand-serviced: Interchangeable parts that resist acid cleaning.
