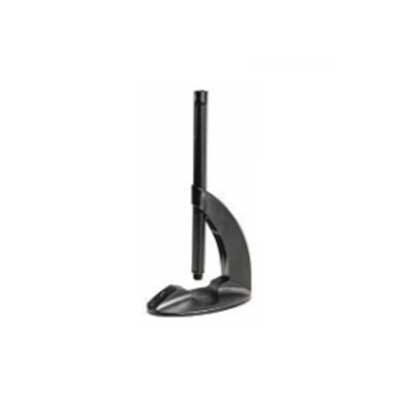

Netafim Sprinkler Stand for PE Laterals, 48 in Tube
Raising each sprinkler off the ground on its own stand lets one PE lateral water a whole block of beds or rows. This bag holds 25 stand assemblies, Netafim item 64520-002305, model 03N20STAND0948-B. Every stand includes a connector, 48 in of 9 mm ID tubing, a PE barb and a 1/2 in FIPT fitting. An 8 mm stake adapter rides on the tube to hold it to a stake. The stake itself is not included, so its length can be matched to the crop. The barbed end connects the tube to the PE lateral on the ground. At the top, the female 1/2 in thread accepts any sprinkler with a 1/2 in male threaded inlet. MegaNet sprinklers with the 1/2 in threaded inlet are among the heads that install in removable field stands like this. Stands of this style have long been a standard in open field and orchard irrigation. They earned that place through durability, simple assembly and the freedom to move sprinklers as the crop changes.
Setting Up Stands for Field Irrigation
Lay the PE lateral along the row and mark a point for each sprinkler. Connect the barbed end of each stand to the lateral at those points. Route the tube up to a stake driven beside the row, and clip the stake adapter onto it. Thread the sprinkler into the female fitting by hand until it seats. Check that each head sits upright so the spray pattern lands evenly on the beds. Run the system briefly and walk the line to confirm every connection is tight. The female x barb connector for this stand is also offered on its own for repairs. When a block is finished, pull the stakes, coil the tubes and move the stands to the next planting. Bags of 25 make it simple to equip a full lateral at once. Spare stands are handy for replacing any damaged during cultivation or harvest.
Key Features
- 48 in tube: 9 mm ID, flexible PE.
- 1/2 in FIPT top: Takes any 1/2 in male threaded sprinkler.
- PE barb: Connects to the PE lateral.
- 8 mm stake adapter: Stake sold separately.
- Portable setup: Moves from block to block.
- 25 per bag: Equip a full lateral at once.
Technical Specifications
| Specification | Value |
|---|---|
| Item Number | 64520-002305 |
| Model | 03N20STAND0948-B |
| Connects To | PE lateral |
| Includes | Connector, 48 in 9 mm ID tubing, PE barb, 1/2 in FIPT, 8 mm stake adapter |
| Tube | 9 mm ID, 48 in |
| Sprinkler Connection | 1/2 in female pipe thread (FIPT) |
| Stake | Not included |
| Bag Quantity | 25 |
