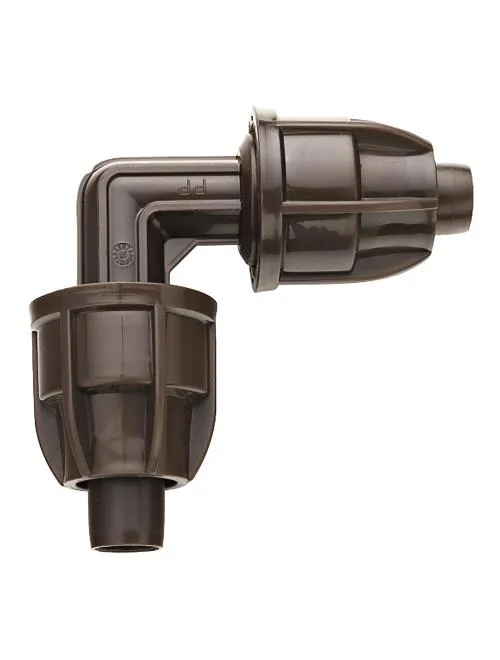

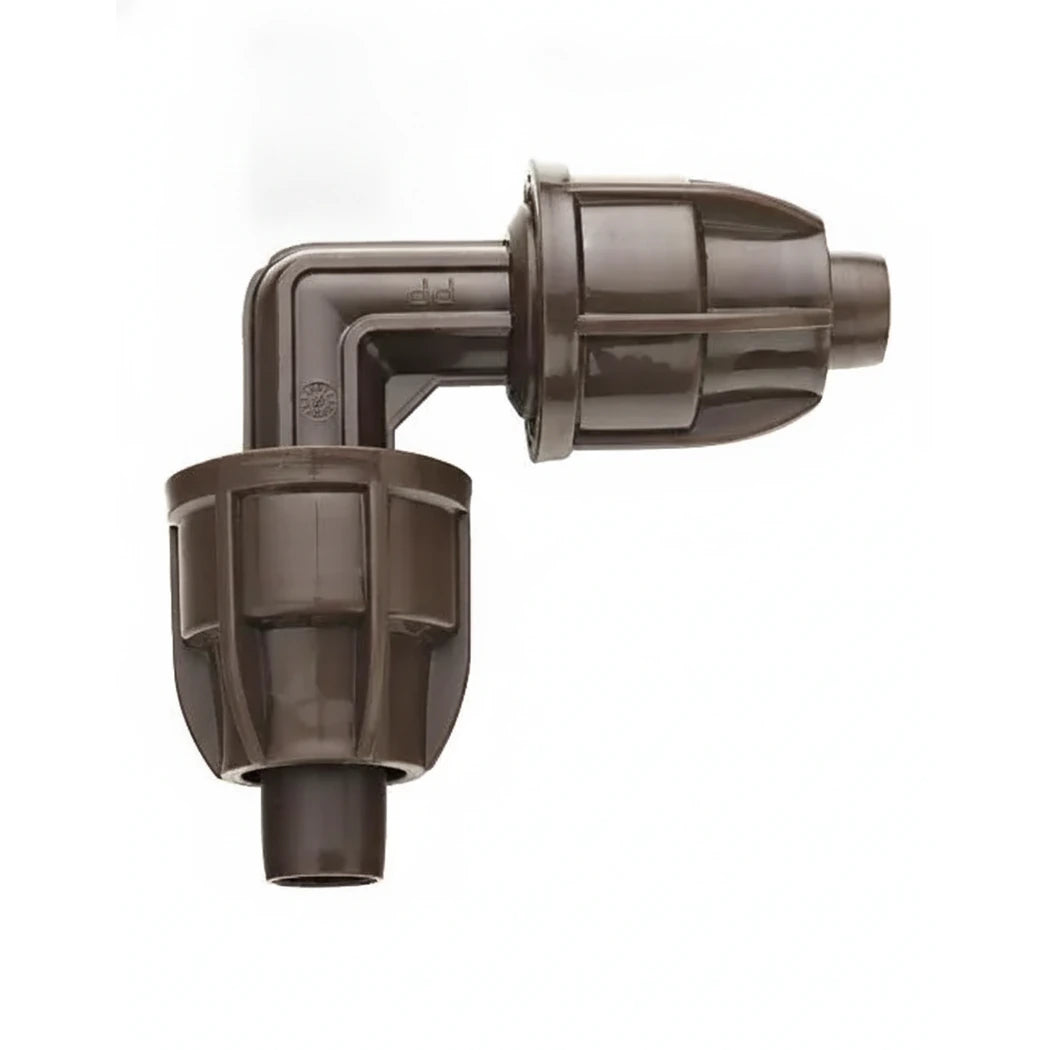

Netafim TechLock Elbow 17mm for 16/17mm Dripline Corners
The Netafim TechLock elbow 17mm turns a run of 16/17mm dripline through a clean 90° corner. Push the tubing into each end and the TechLock collar locks onto it, so the joint holds to 100 psi without a clamp or glue. The fitting is UV-resistant for above-ground runs in full sun. Each bag holds 25 elbows for a full bed layout.
Installing a 16/17mm Dripline Elbow Without Tools
Growers use these to route Techline around bed corners or to square off a manifold without kinking the tubing. Seat the line fully into the barb until the collar grips, then tug to confirm the lock. No primer, no clamps. The push-in design makes mid-run repairs quick when a corner splits or you re-shape a zone.
Key Features
- 90° bend: Turns 16/17mm dripline around corners without kinking the tubing.
- TechLock locking collar: Grips the tubing so the joint holds under pressure.
- 100 psi rated: Stands up to full drip-zone pressure.
- UV-resistant: Holds up on above-ground runs in direct sun.
- 25 per bag: Enough elbows for a full bed or zone layout.
Technical Specifications
| Specification | Value |
|---|---|
| Model | TLCKELL (32500-080020) |
| Type | 90° elbow, TechLock insert |
| Fits | 16/17mm dripline (Techline) |
| Pressure Rating | 100 psi |
| Material | UV-resistant |
| Pack Size | 25 |
