Innovative Drip Irrigation Technology:

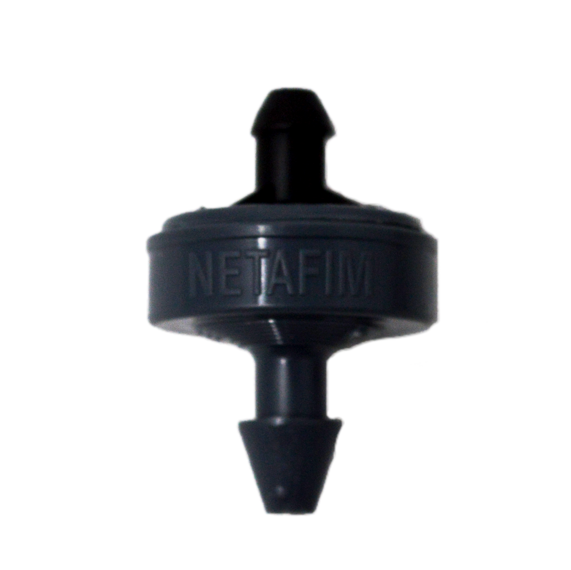

The Netafim WPCJ CNL 1.0GPH Nipple Outlet Dripper is a cornerstone in advanced drip irrigation. Renowned for its precision and efficiency, the "Woodpecker Jr." dripper is a leading choice for those seeking a reliable, pressure-compensating irrigation solution. This 100-pack is designed to cater to a range of irrigation requirements, from agricultural fields to residential gardens.
Uniform and Accurate Flow Rates:
Equipped with a 1.0 GPH pressure-compensating emitter, the Netafim WPCJ dripper delivers a consistent flow rate across a wide range of input pressures. This uniformity is key to ensuring even and effective water and nutrient distribution across your irrigation system.
CNL Check Valve for Water Efficiency:
A built-in CNL (Check Non-Leak) check valve prevents the draining of lines when the pressure drops below a preset level. This feature conserves water by preventing drainage to the lowest point of the system and maintains operational integrity, especially in pulse irrigation settings.
Clog-Resistant Flow Channel:
The dripper's precision-molded flow channel is highly resistant to clogging, a critical feature in environments where water quality may contain sediment or particulate matter. This resistance ensures dependable and continuous operation of your irrigation system.
FEATURES AND BENEFITS:
- Wide Water Passages: Designed to improve resistance to clogging, ensuring steady water flow.
- Pressure Compensating System: A patented pressure differential system maintains uniform flow rates at different inlet pressures, enabling precise water and nutrient delivery.
- Self-Flushing System: The continuous self-flushing feature enhances the dripper's resistance to clogging.
- Anti-Drain (CNL) System: The optional CNL model eliminates unnecessary drainage and refill effects, enhancing the efficiency of pulse irrigation systems.
- Flexibility in Emitter Quantity: Allows for the addition of more emitters as needed, adapting to plant growth requirements.
- Spider Assembly Compatibility: Supports installation of a "spider assembly" to distribute water to multiple outlets or to PC spray stake units.
SPECIFICATIONS:
- Large Water Passages: Minimizes blockages for consistent flow.
- Recommended Filtration: 130 micron / 120 mesh; choose based on water quality and sediment levels.
- Variety of Flow Rates: Offers five different flow rates to suit specific irrigation needs.
- Multiple Outlet Options: Three outlet choices - nipple, barb to 3 mm ID, and barb to 4 mm ID micro-tube.
- Suitable for Thick-Walled Pipes: Compatible with pipes of 0.90, 1.00, 1.20 mm thicknesses.
- High-Quality Components: Injected emitter with low CV and durable injected silicon diaphragm.
