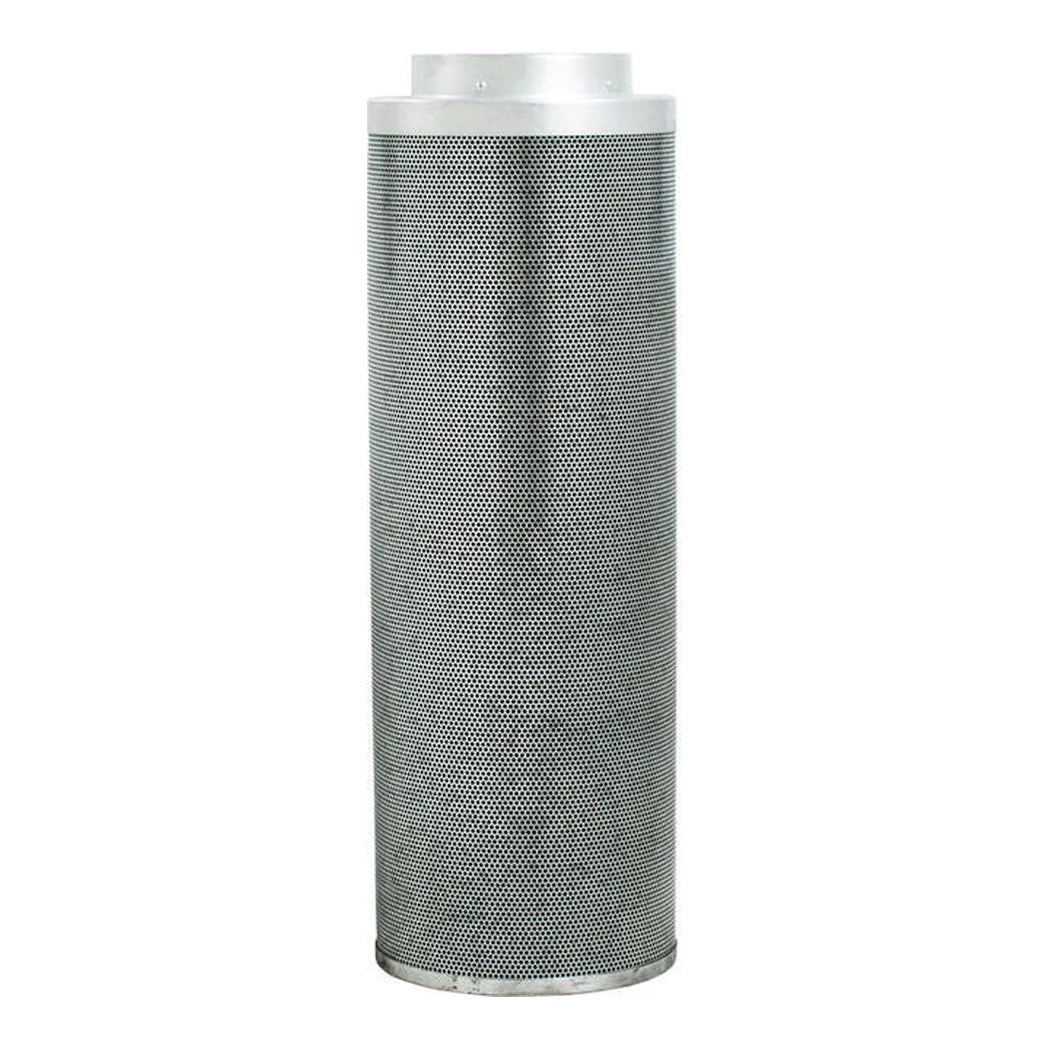

Phat Carbon Filter for 10 Inch Exhaust Lines
Phat builds this filter to pull odor out of grow room air before it leaves the building. It is 39 in long, with a 10 in flange that fits standard ducting of the same size. The rated airflow is 1400 CFM. Inside, the bed is RC 412 virgin carbon, steam-activated and packed loose. The carbon is not pelletized, so no glues or binders cover its surface. Odor molecules stick to that open carbon surface as air passes through. An internal conical base spreads the airflow along the whole length of the filter. The outer aluminum mesh has 53% open area, so air enters with little resistance. The filter is built so no air slips past without going through the carbon. A white Dacron pre-filter covers the outside and is held on by two straps. Each filter is sealed right after manufacture to keep the carbon's moisture in. Overall size is 15 x 15.25 x 43.25 in, and the weight is 64 lb.
Setting Up a 10 Inch Carbon Filter on the Fan
The filter works two ways. On an exhaust line, it mounts on the intake side of the inline fan, so all air leaving the room passes through the carbon first. As a scrubber, it pairs with a fan inside a sealed room and cleans the same air in a constant loop. Match the fan to the filter rating, using the fan's airflow under real duct resistance rather than its free-air figure. Keep the duct between the flange and the fan as short and straight as the layout allows. Clamp the duct and seal the joint with foil tape so the fan cannot pull air around the carbon. The filter can stand on the floor, or hang from a wall or ceiling. At this weight, hang it from structural framing with hangers rated for the load, never from a tent frame. Keep the pre-filter on whenever the fan is running. It catches dust and lint before they clog the carbon. Change the pre-filter once it looks dirty or discolored, using Phat replacement part IGSPF3910PF. Odor coming through at a fan speed that once controlled it means the carbon is spent. Holding room humidity down helps the carbon last, because damp air loads it faster.
Key Features
- 1400 CFM Rating: Sized for large exhaust and scrubber setups.
- 10 in Flange: Mates directly to 10-inch ducting.
- RC 412 Virgin Carbon: Loose-packed, with no glues or binders.
- 53% Open Mesh: Aluminum outer mesh lets air in freely.
- Conical Base: Spreads airflow along the full length.
- Dacron Pre-Filter: Included, with two straps to hold it on.
- Sealed Packaging: Carbon moisture is held in after manufacture.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Phat |
| Model | IGSPF3910 |
| Filter size | 10 x 39 in |
| Flange | 10 in |
| Airflow rating | 1400 CFM |
| Carbon | RC 412 virgin, non-pelletized |
| Outer mesh | Aluminum, 53% open area |
| Internal base | Conical |
| Pre-filter | Dacron, included, 2 straps |
| Replacement pre-filter | Phat IGSPF3910PF |
| Dimensions | 15 x 15.25 x 43.25 in |
| Weight | 64 lb |
| Mounting | Floor, wall or ceiling |
| Use | Exhaust (single pass) or scrubber |
| UPC | 638104014298 |
