6-15P 240V power cord for plug-and-play LED installs

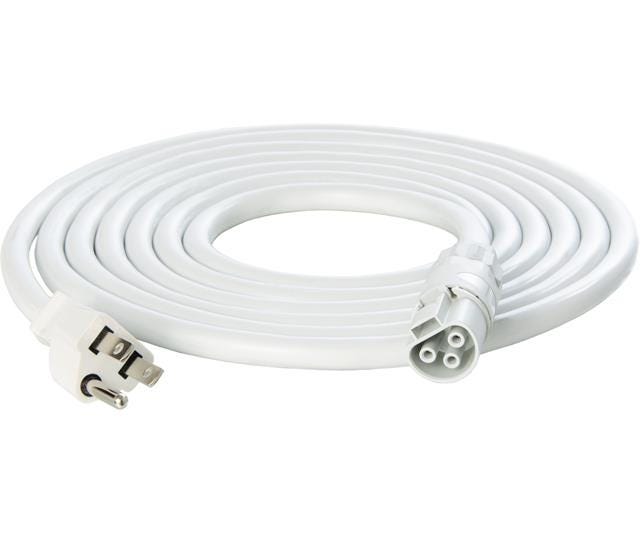

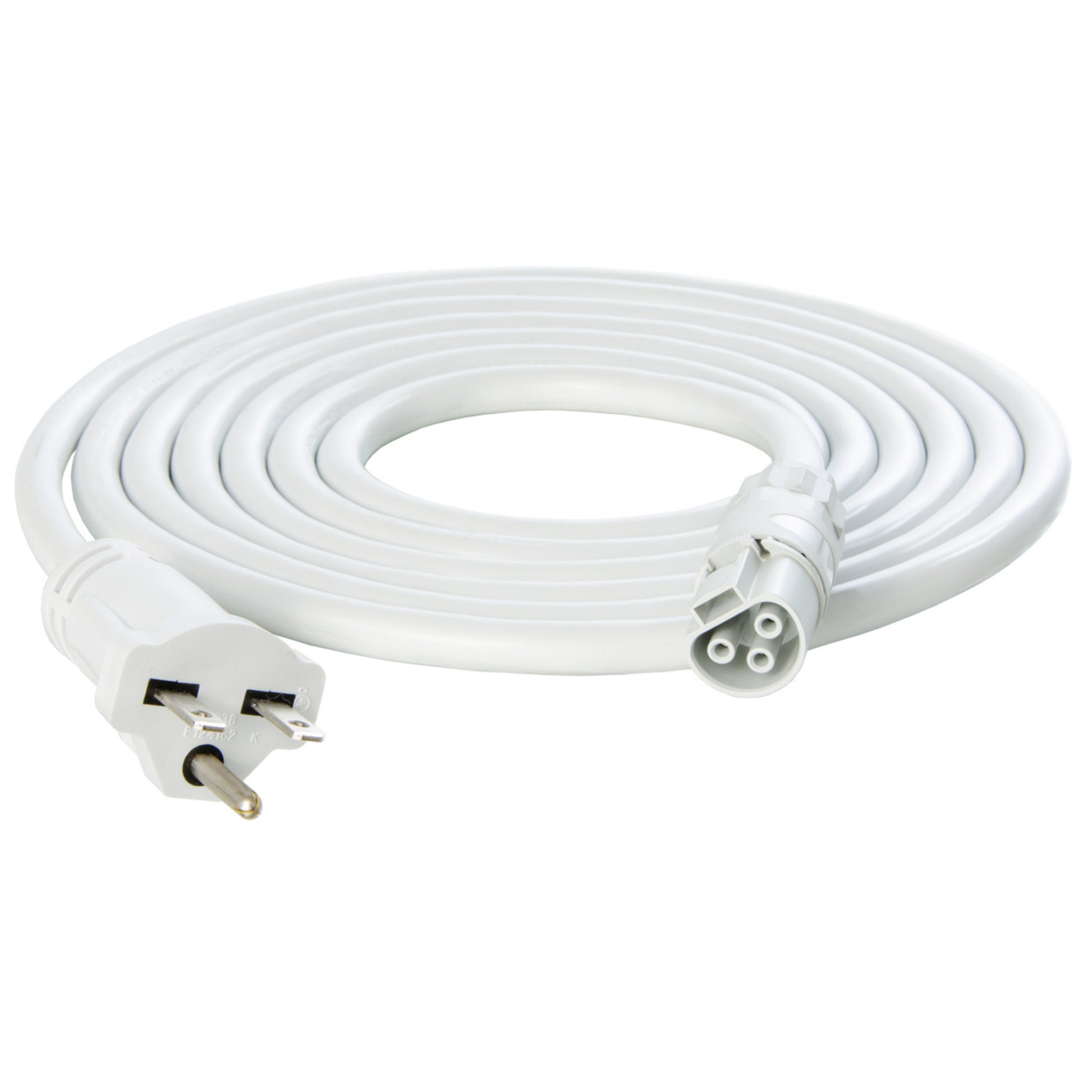

The PHOTOBIO X 240V harness delivers 208-240V power to LED grow lights through a 10-foot 16AWG cable. A NEMA 6-15P plug ties the cable to standard 240V outlets without rewiring the panel. The IP-rated mini connector at the fixture end resists dust and the humidity swings common in flower rooms. Its white UV-resistant jacket bounces stray light back to the canopy rather than absorbing it. The 16AWG conductor handles continuous load without warming under a sustained draw across the cycle.
6-15P 240V power cord for the PHOTOBIO X fixture line
Growers typically wire a 6-15P 240V power cord per fixture in single-row tents and double-row commercial racks. The cable drops in on Phantom PHOTOBIO CX, MX, T, and TX fixtures already configured for 208-240V branch circuits. Place the cable along the rear truss so the locking strain relief faces away from the canopy. That keeps the connector dry during mist cycles and avoids tugging when you pull a fixture for cleaning. The 10-foot run reaches across most 4x8 footprints without an extension, which keeps the breaker count honest. And the white jacket reads at a glance during a 3 a.m. fixture-down troubleshoot when the canopy lights are off. Pair the cable with the 240V daisy chain trunk to consolidate trunk wiring on dense commercial benches. That cuts conduit pulls in half and keeps the panel breakdown legible after a few cycles of fixture rotation.
Key Features
- NEMA 6-15P 240V plug: Standard 240V receptacle pattern that ties to existing panels without rewiring.
- 16AWG copper, 10-foot reach: Carries continuous 208-240V load across a single rack without splicing.
- IP-rated mini connector: Sealed plug-and-play termination resists dust and runoff in flower rooms.
- White UV-resistant jacket: Bounces stray photons back to the canopy and stays visible at low light.
- Built for PHOTOBIO CX, MX, T, TX: Drop-in fit on the Phantom PHOTOBIO LED power lead family.
Technical Specifications
| Specification | Value |
|---|---|
| Voltage | 208-240V |
| Plug Pattern | NEMA 6-15P |
| Conductor | 16AWG copper |
| Length | 10 ft |
| Connector | Mini IP-rated plug-and-play |
| Jacket | White, UV-resistant |
| Compatible Fixtures | PHOTOBIO CX, MX, T, TX |
